Toyota Brevis
2001-05 → 2007-06 · chassis JCG1# · catalogue 324110 · Japan
Discontinued model
Data version 2008-01
Heating & Air Conditioning - Control & Air Duct
18 part groups · 3 illustrations
Part groups

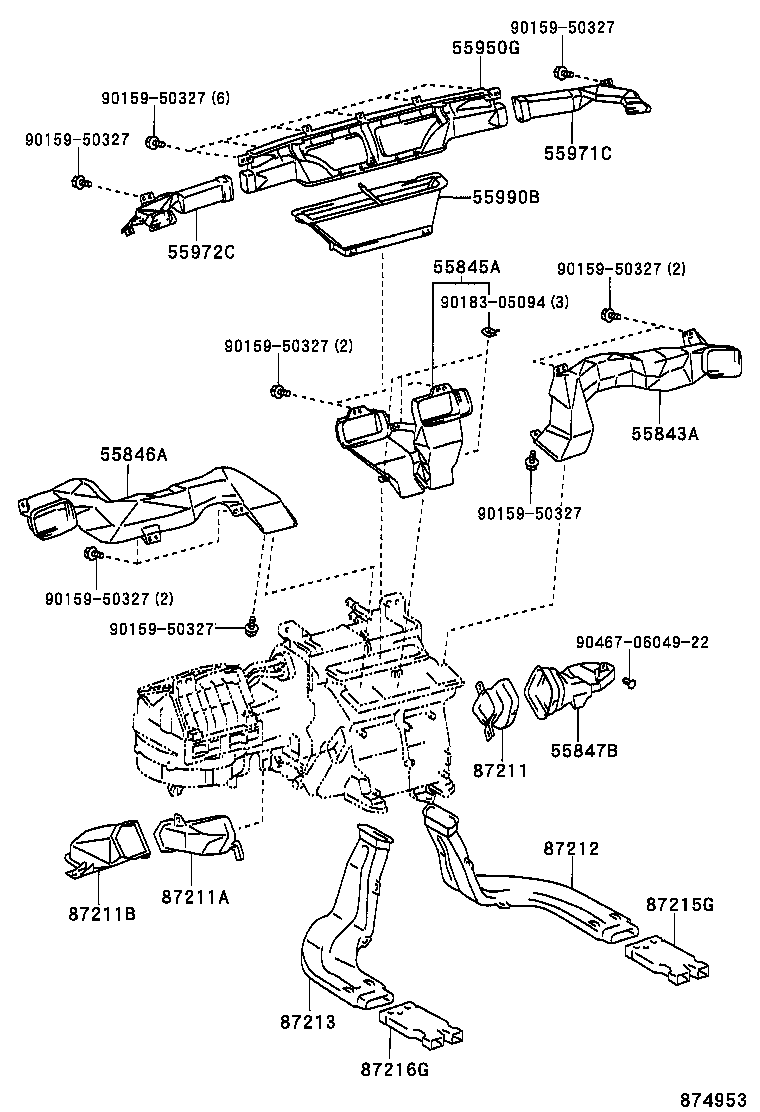

| PNC | Description |
|---|---|
| 55843A | Duct, Heater TO Register, NO.1 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55846A | Duct, Heater TO Register, NO.4 |
| 55847B | Duct, Heater TO Register, NO.5 |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 55990B | Nozzle Assy, Defroster, Lower |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211B | Duct, Air, NO.3 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87215G | Guide, Air Duct, Rear RH |
| 87216G | Guide, Air Duct, Rear LH |

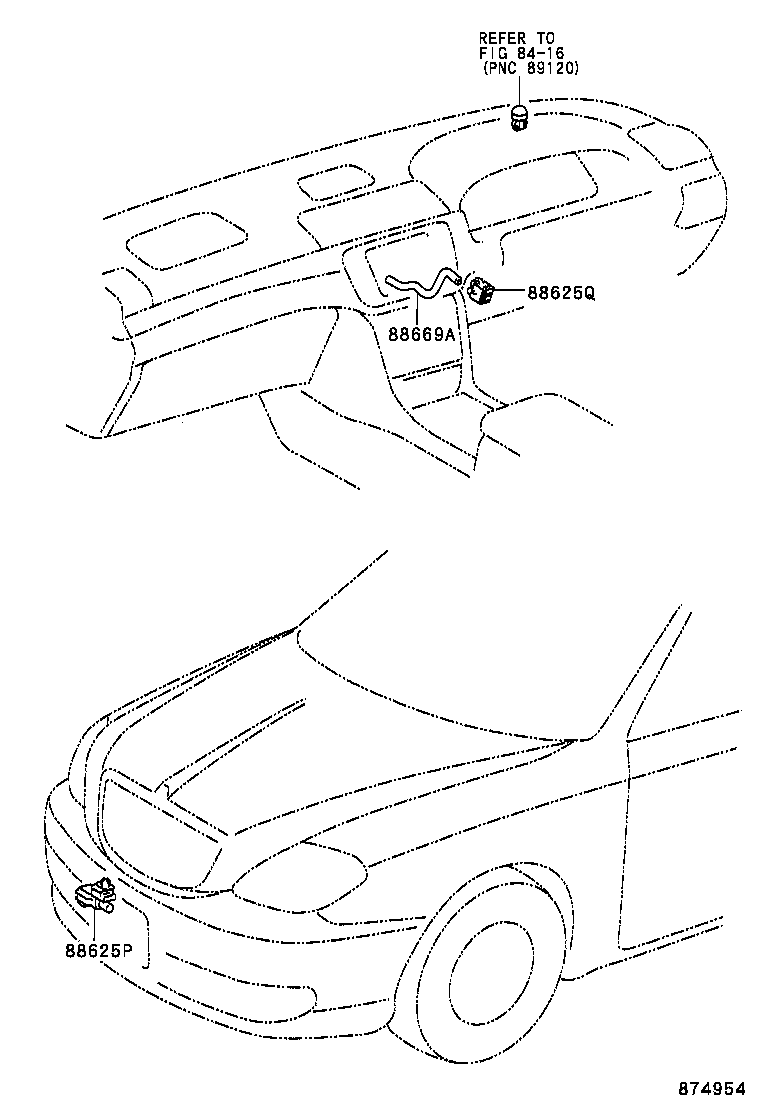

| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88669A | Hose (FOR COOLER THERMISTOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
