Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

38 part groups · 8 illustrations

Illustrations

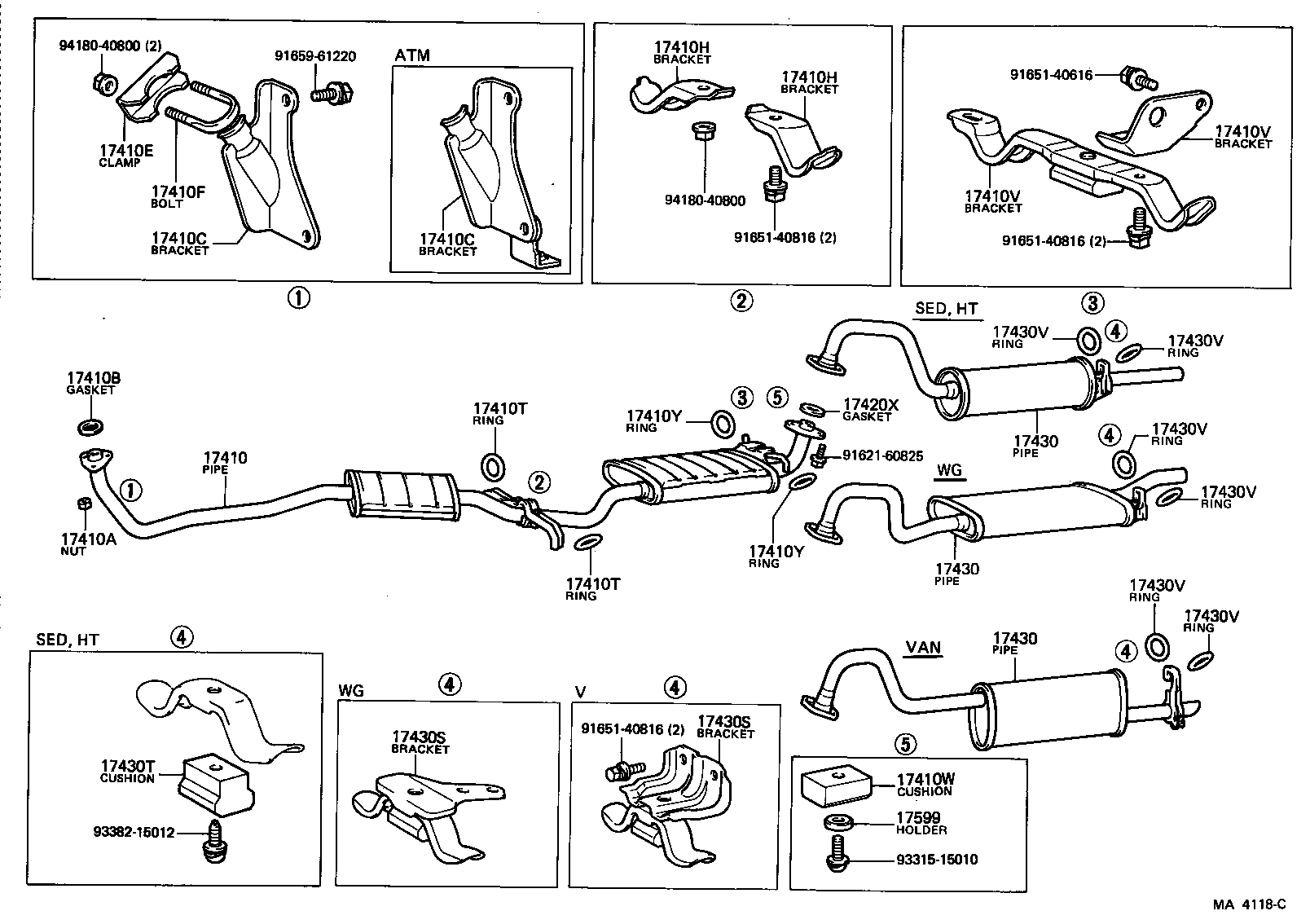

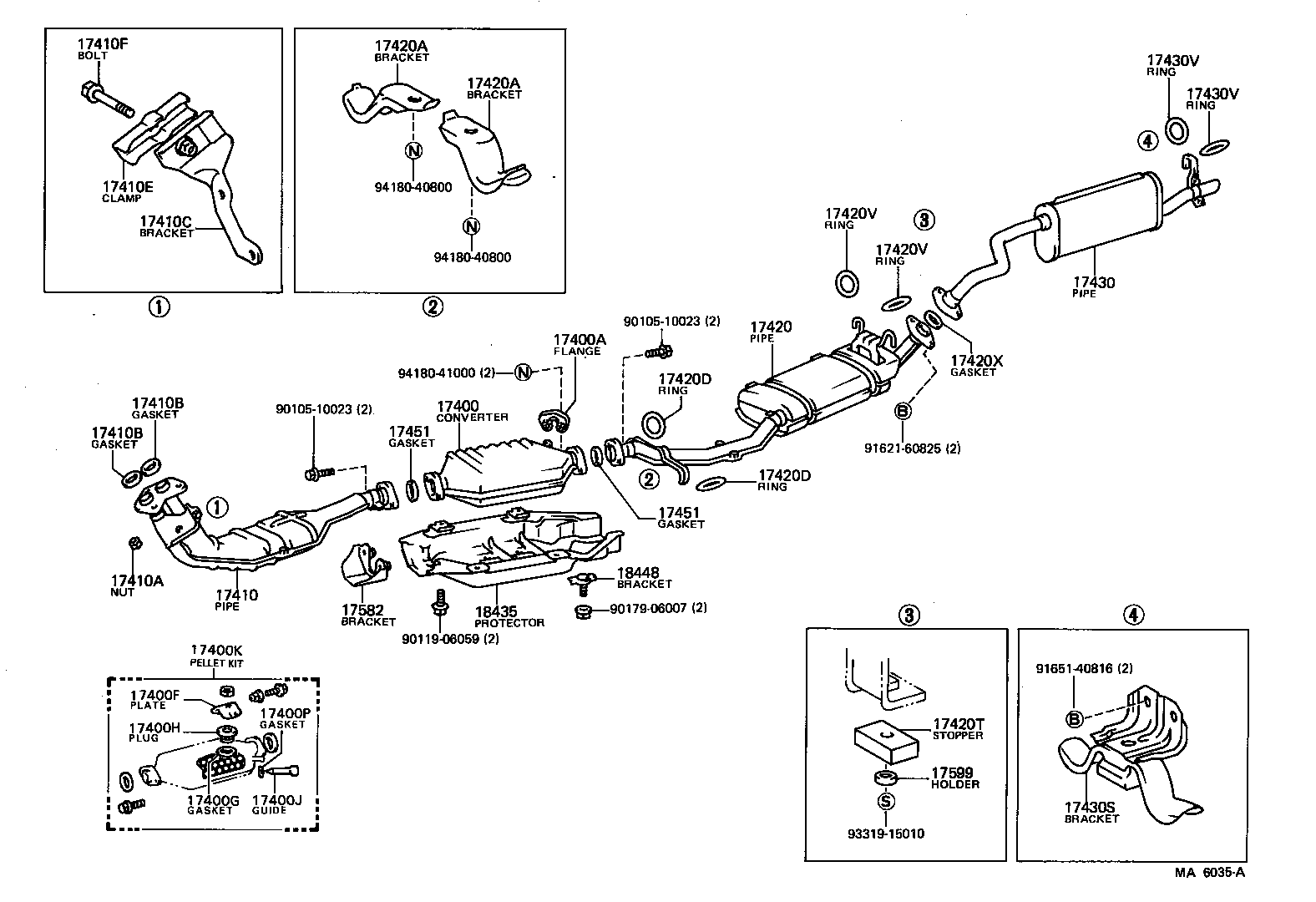

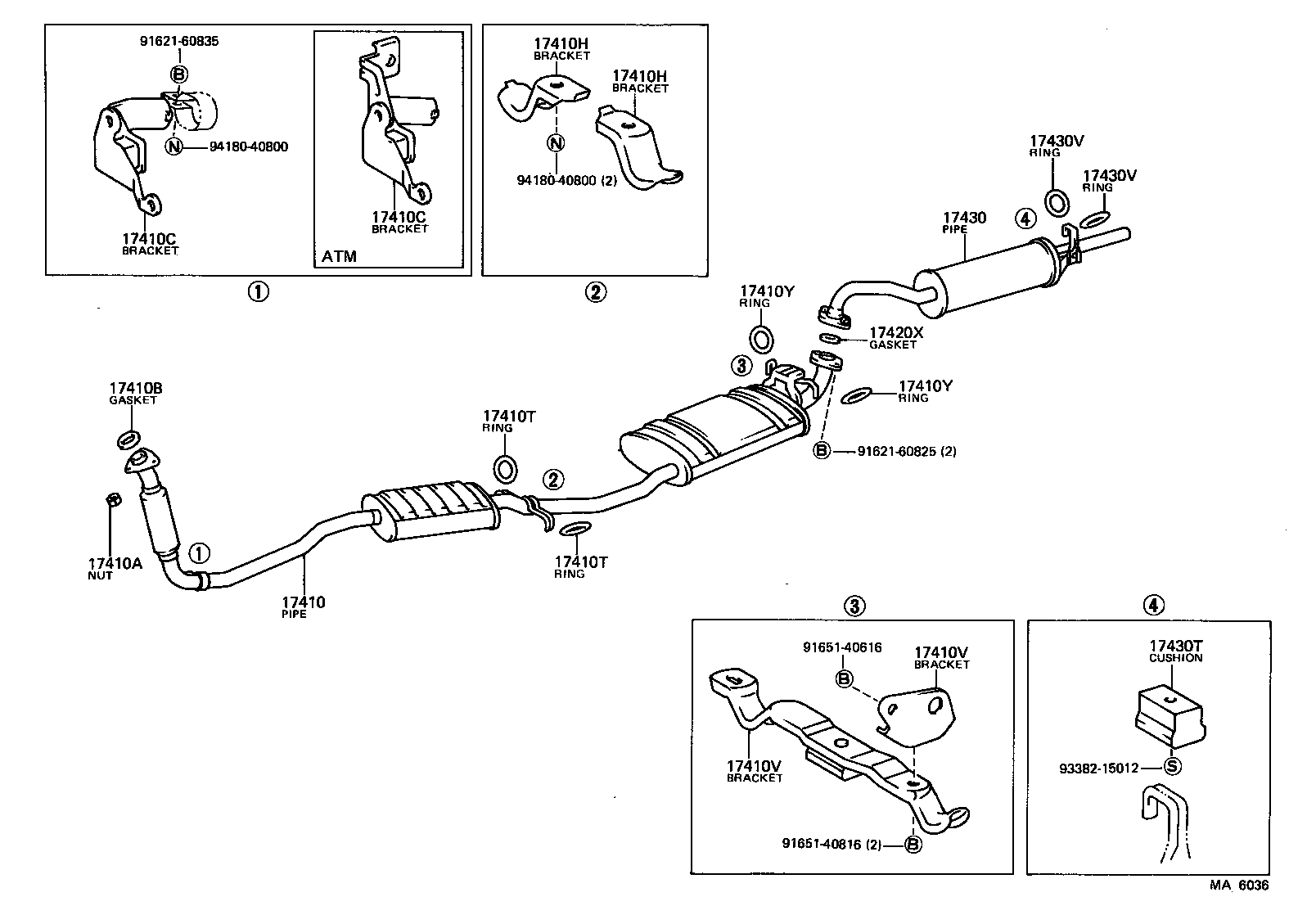

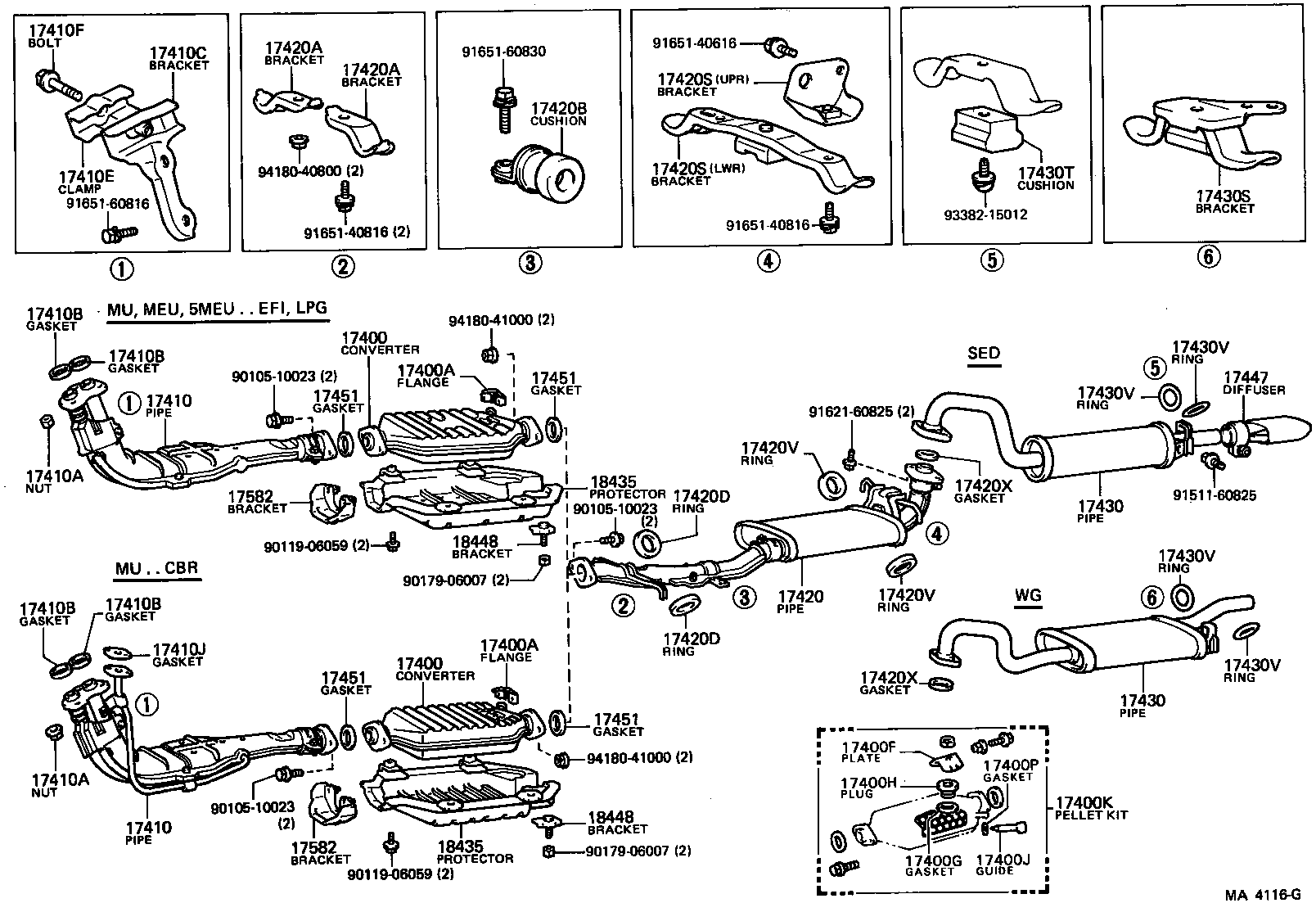

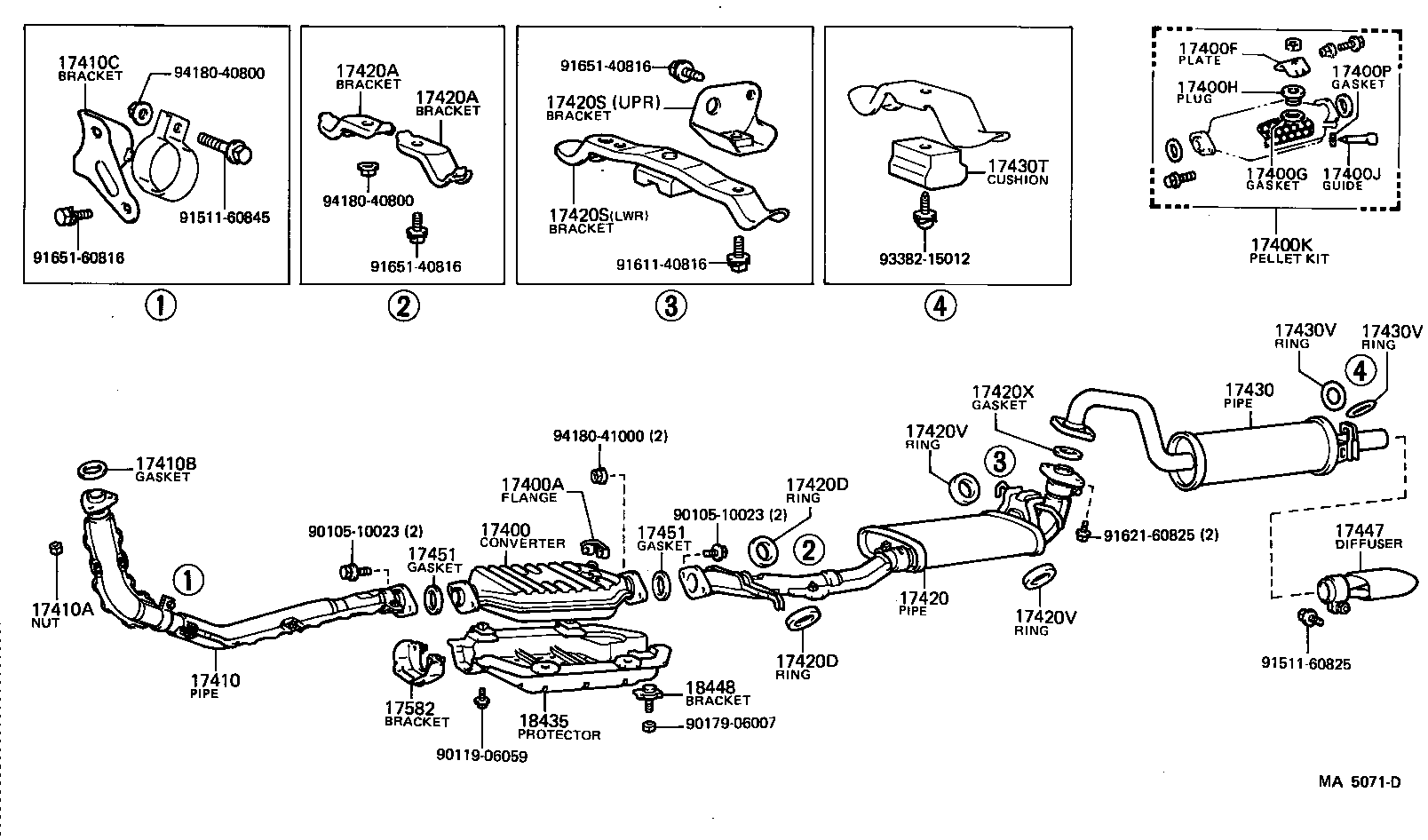

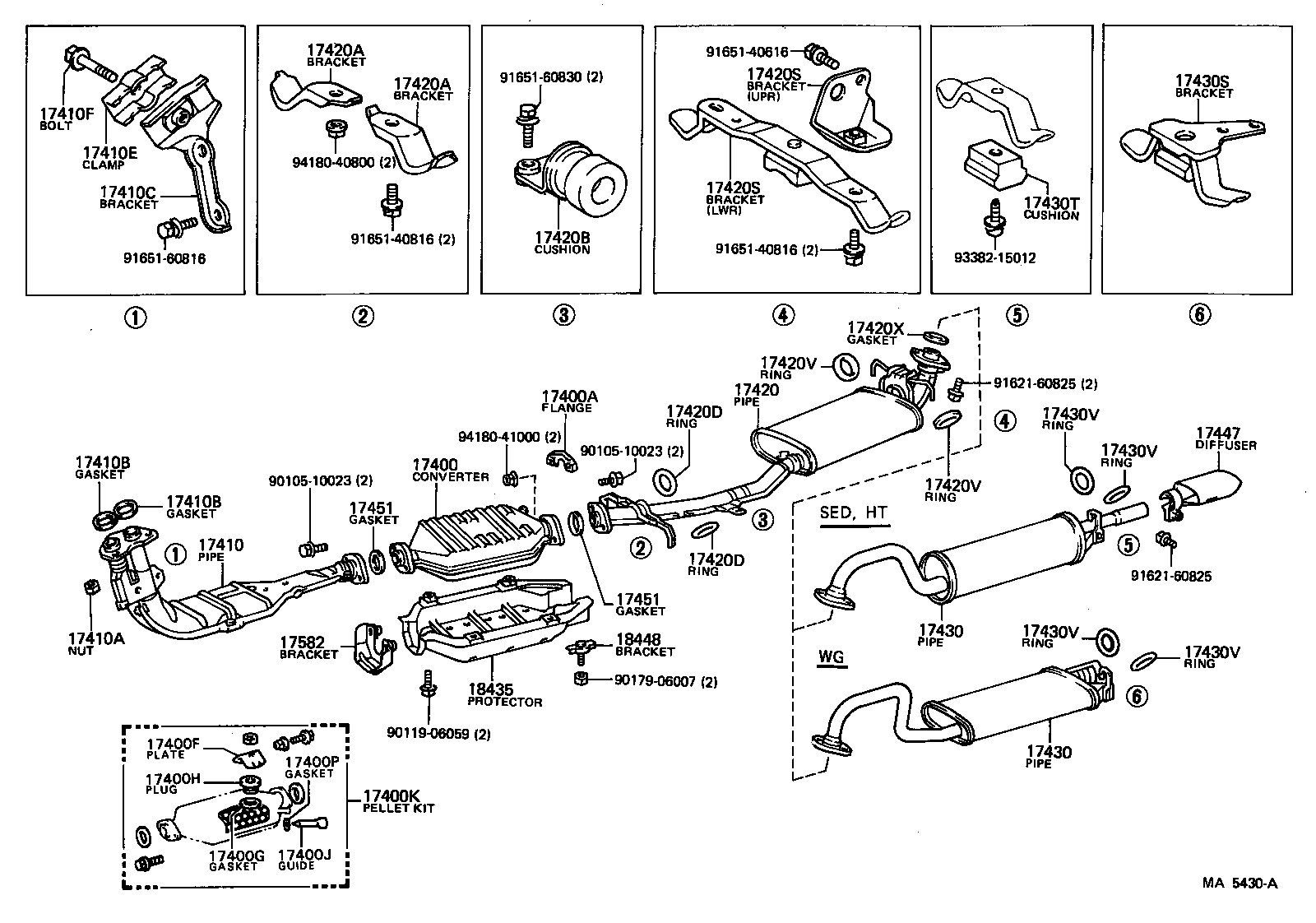

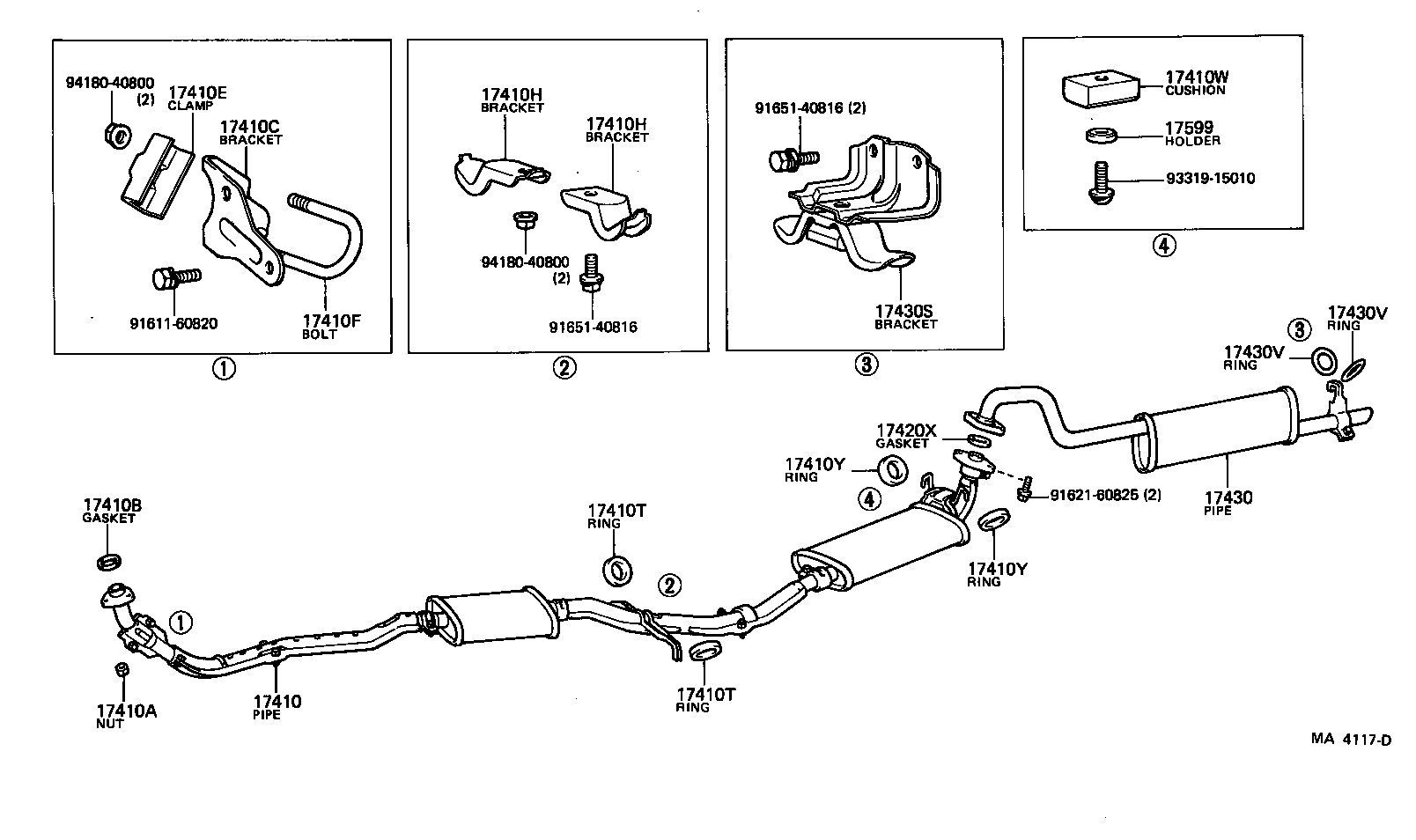

Figure MA4115E MA4115E 1979-09 → — Figure MA6035A MA6035A 1982-08 → — Figure MA5430A MA5430A 1981-08 → — Figure MA4116G MA4116G 1979-09 → — Figure MA4117D MA4117D 1979-09 → 1982-08 Figure MA5071D MA5071D 1980-10 → — Figure MA4118C MA4118C 1979-09 → — Figure MA6036 MA6036 1982-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400A Flange, Thermosenser Inlet
17400F Plate, Catalyzer Inlet Plug Lock
17400G Gasket, Catalyzer Inlet
17400H Plug, W/Head Straight Screw(FOR CATALYZER INLET)
17400J Guide, Catalytic Converter Sensor
17400K Pellet Kit
17400P Gasket(FOR CATALYTIC CONVERTER SENSOR GUIDE)
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17410H Bracket, Exhaust Pipe Front (FOR CENTER)
17410J Gasket, Converter Air Inlet Pipe
17410T Bolt OR Ring, Exhaust Pipe Front (FOR CENTER)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410W Cushion, Exhaust Pipe Front (FOR REAR)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420A Bracket, Exhaust Pipe Center, Front
17420B Cushion, Exhaust Pipe Center, Front
17420D Bolt OR Ring, Exhaust Pipe Center, Front
17420S Bracket, Exhaust Pipe Center, Rear
17420T Cushion, Exhaust Pipe Center, Rear
17420V Bolt OR Ring, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17447 Diffuser, Exhaust Gas
17451 Gasket, Exhaust Pipe
17582 Bracket, Catalytic Converter Support, Upper
17599 Holder, Exhaust Pipe Support Stopper
18435 Protector, Catalytic Converter
18448 Bracket, Converter Protector, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
