Toyota Crown
1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan
Discontinued model
Data version 1984-02

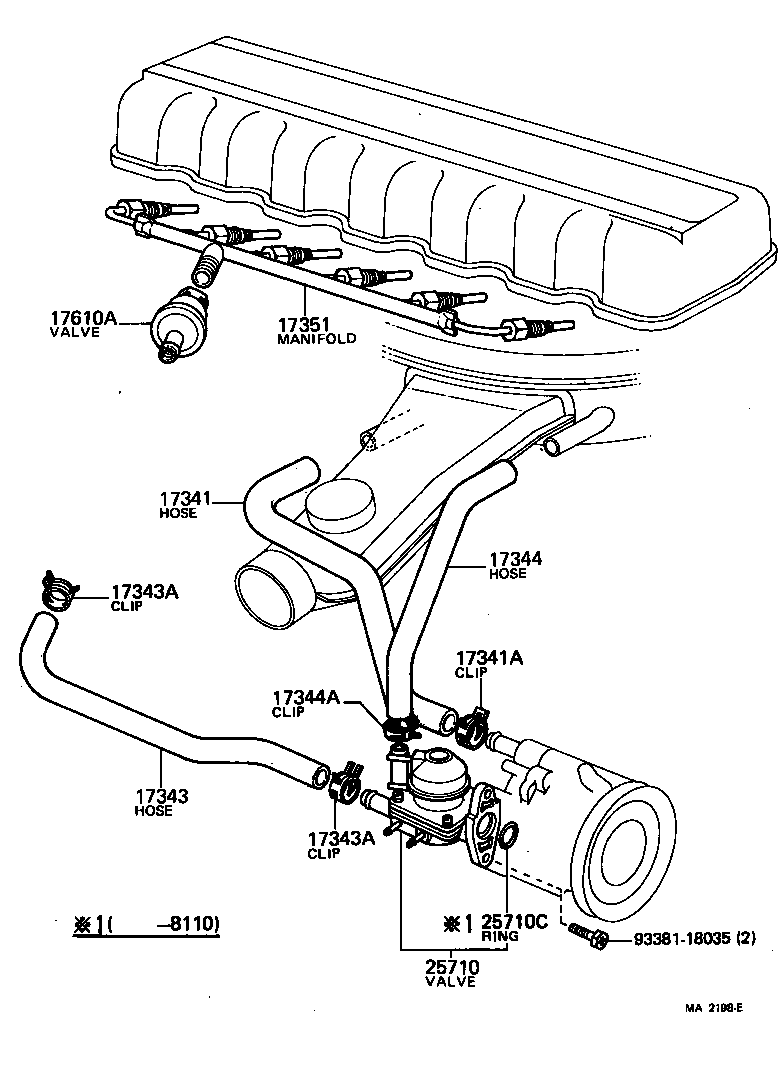

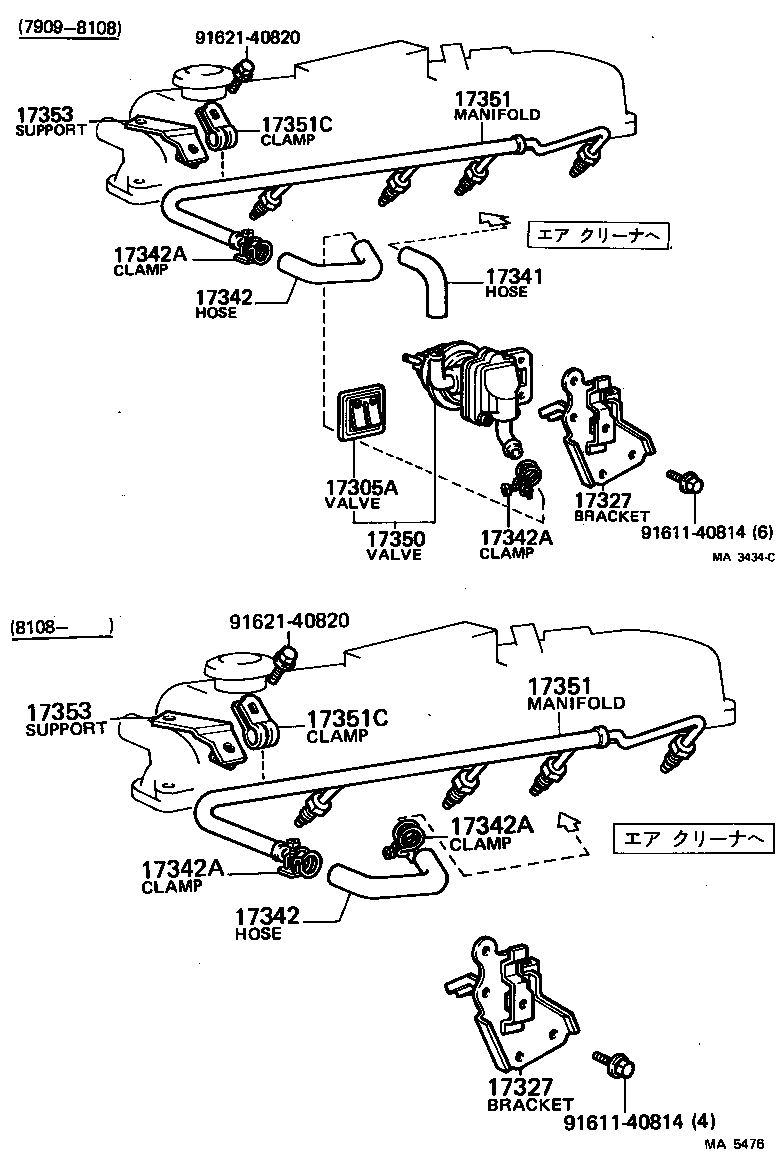

Manifold Air Injection System
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17303 | Pipe Sub-assy, Air |
| 17305A | Valve Sub-assy, Reed |
| 17327 | Bracket, Reed Valve |
| 17341 | Hose, NO.1(FOR AIR INJECTION SYSTEM) |
| 17341A | Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1) |
| 17342 | Hose, NO.2(FOR AIR INJECTION SYSTEM) |
| 17342A | Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2) |
| 17343 | Hose, NO.3(FOR AIR INJECTION SYSTEM) |
| 17343A | Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3) |
| 17344 | Hose, NO.4(FOR AIR INJECTION SYSTEM) |
| 17344A | Clamp OR Clip, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4) |
| 17345 | Hose, NO.5(FOR AIR INJECTION SYSTEM) |
| 17345A | Clamp OR Clip, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5) |
| 17350 | Valve Assy, Reed |
| 17351 | Manifold, Air Injection |
| 17351C | Clamp(FOR AIR INJECTION MANIFOLD) |
| 17352 | Manifold, Air Injection, NO.2 |
| 17353 | Support, Air Injection Manifold |
| 17610A | Valve, Check(FOR AIR INJECTION SYSTEM) |
| 25710 | Valve Assy, Air Switching |
| 25710C | Ring, O |
| 25740 | Valve Assy, Air Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
