Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

42 part groups · 17 illustrations

Illustrations

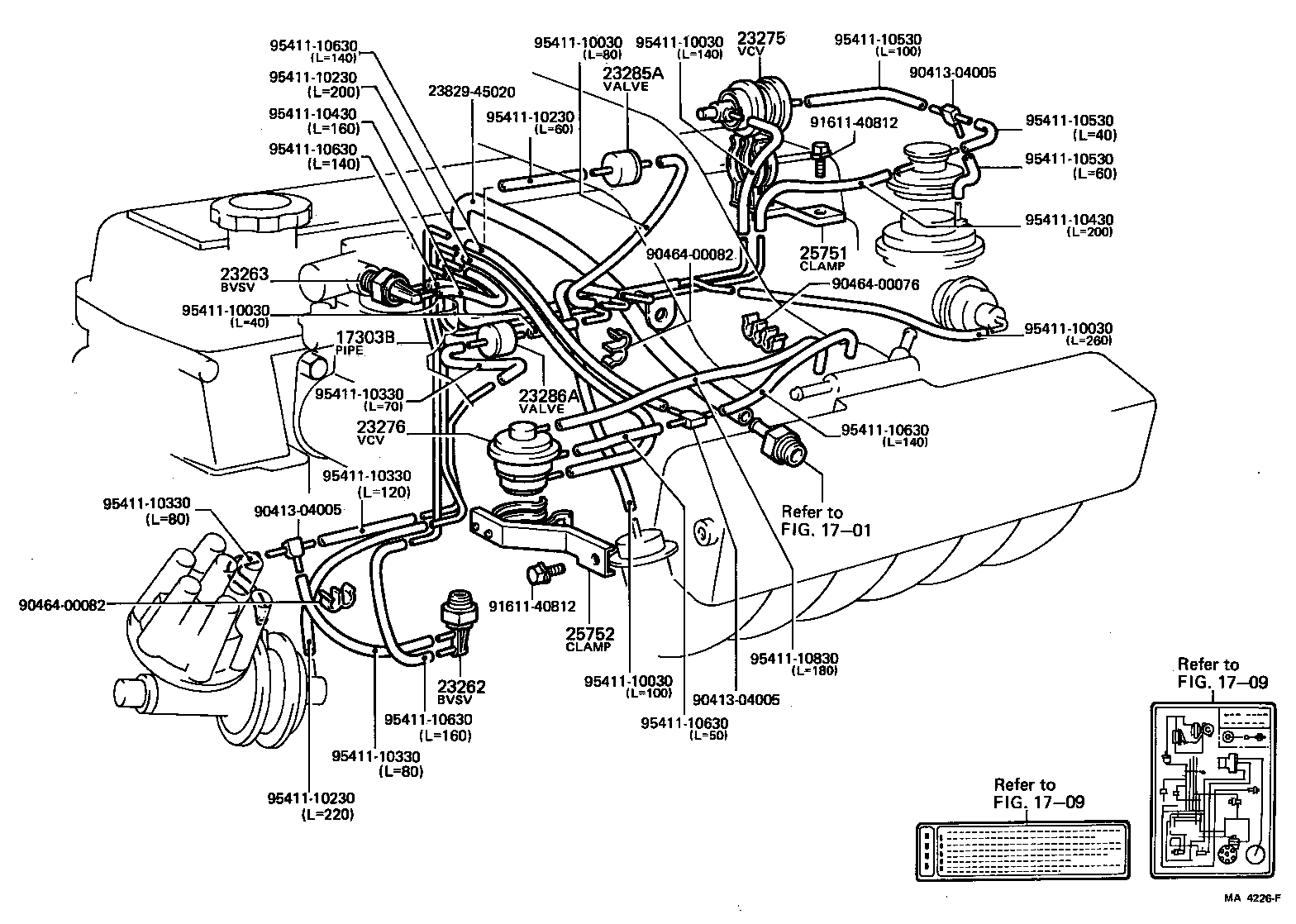

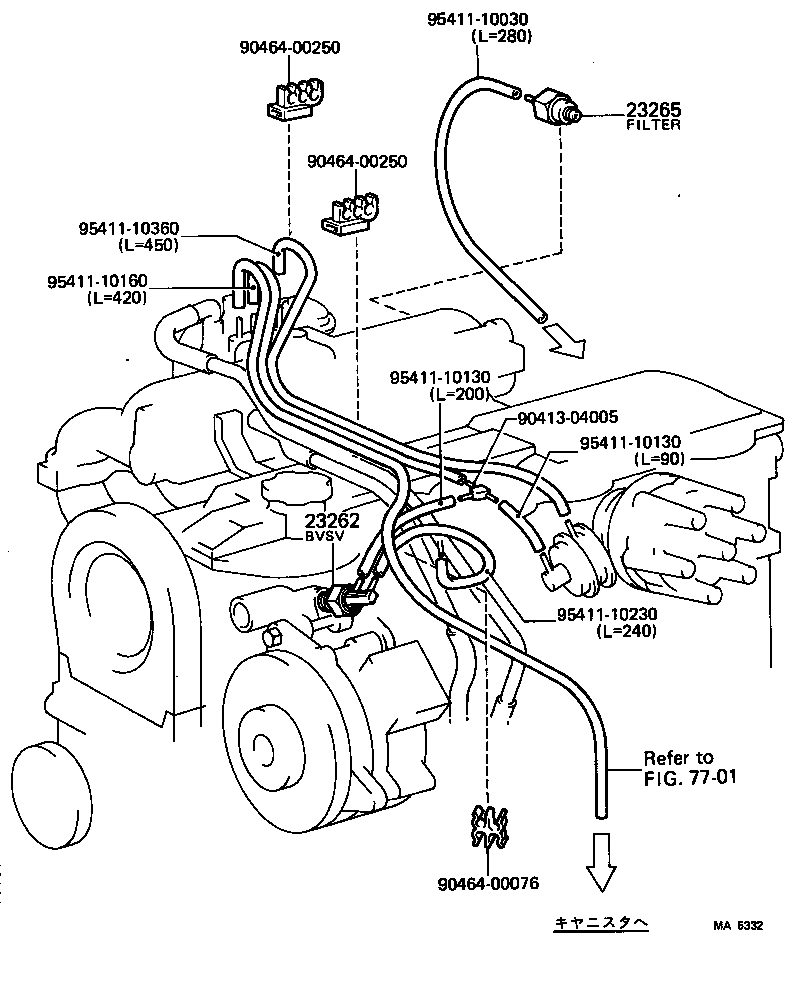

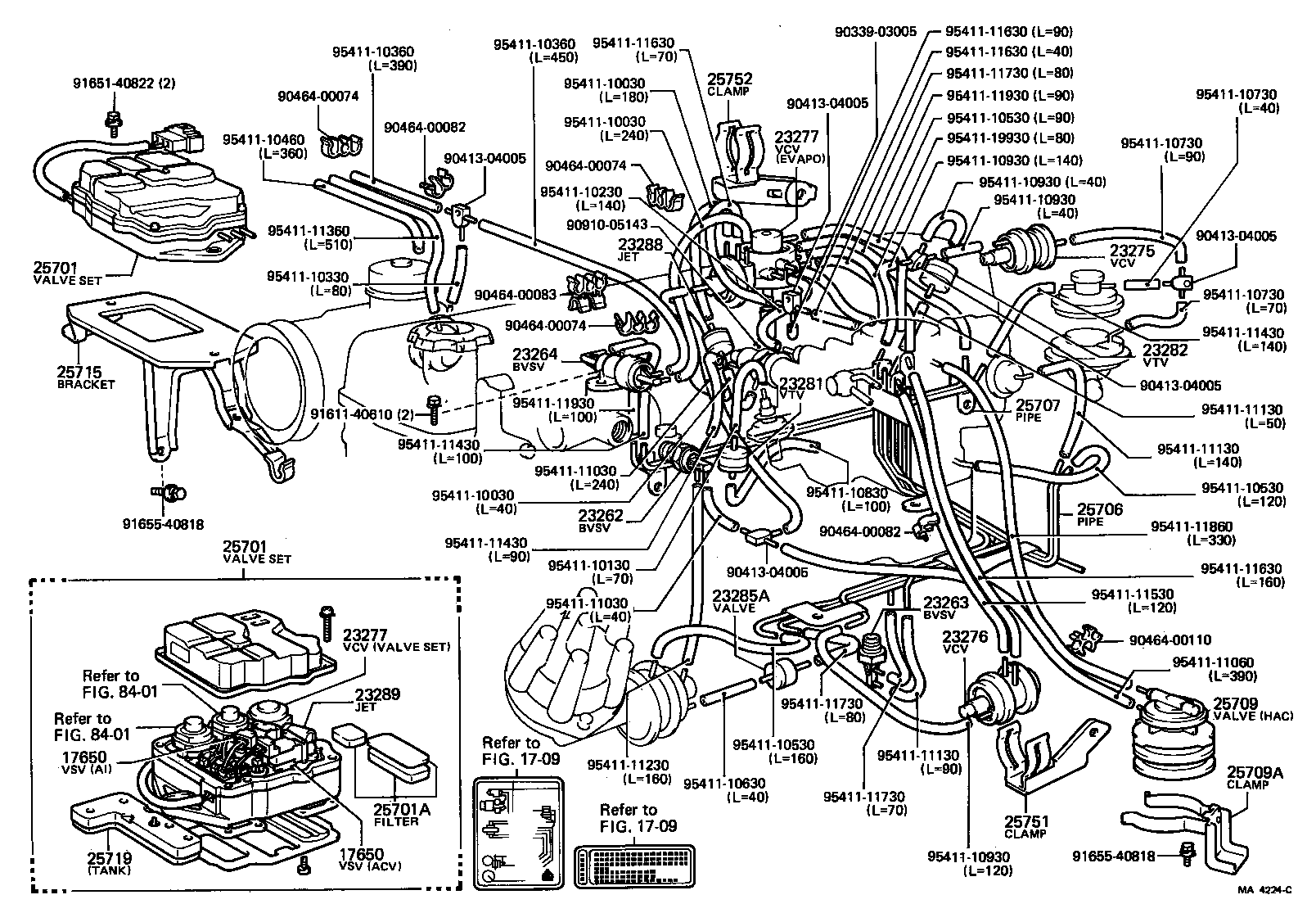

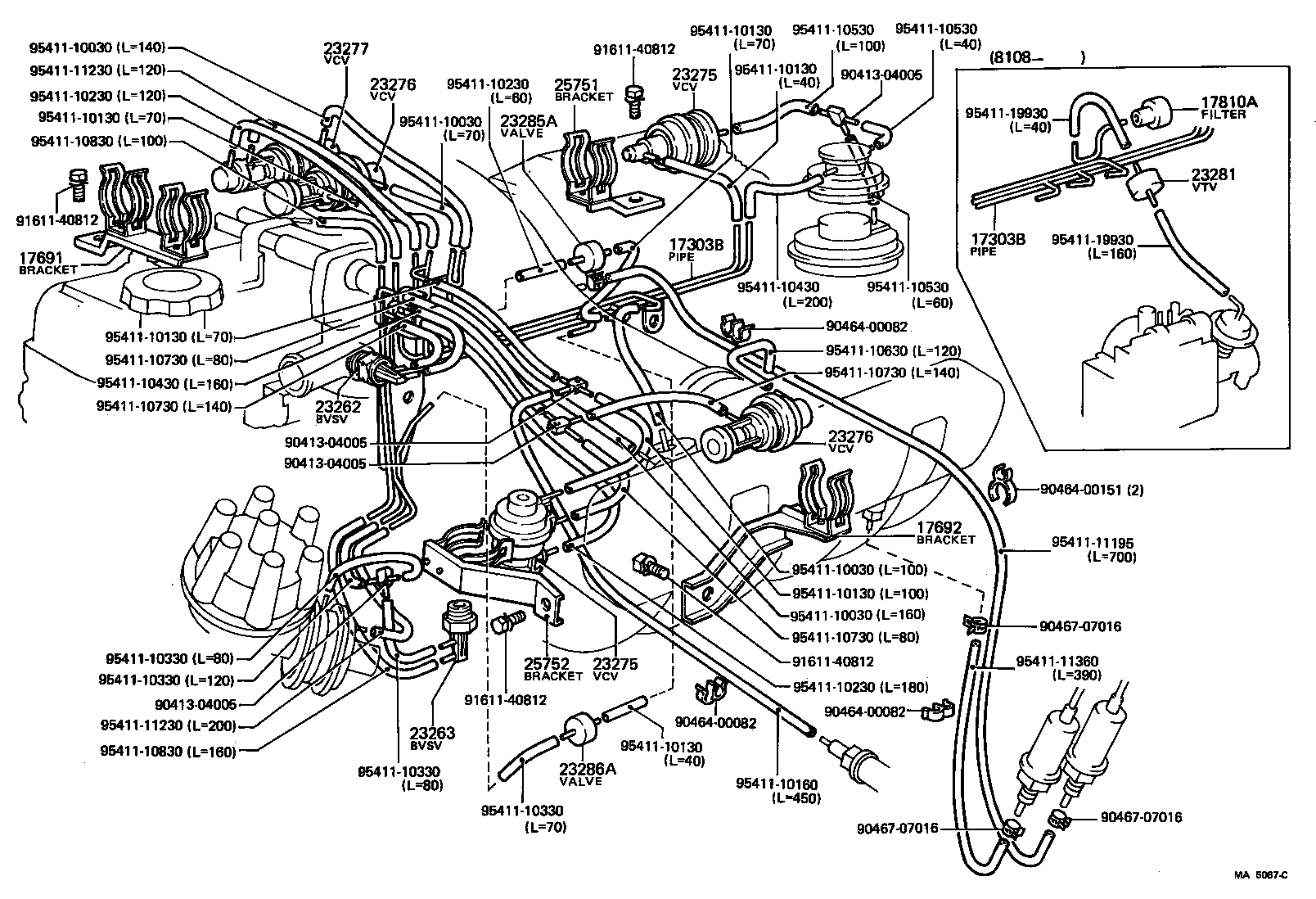

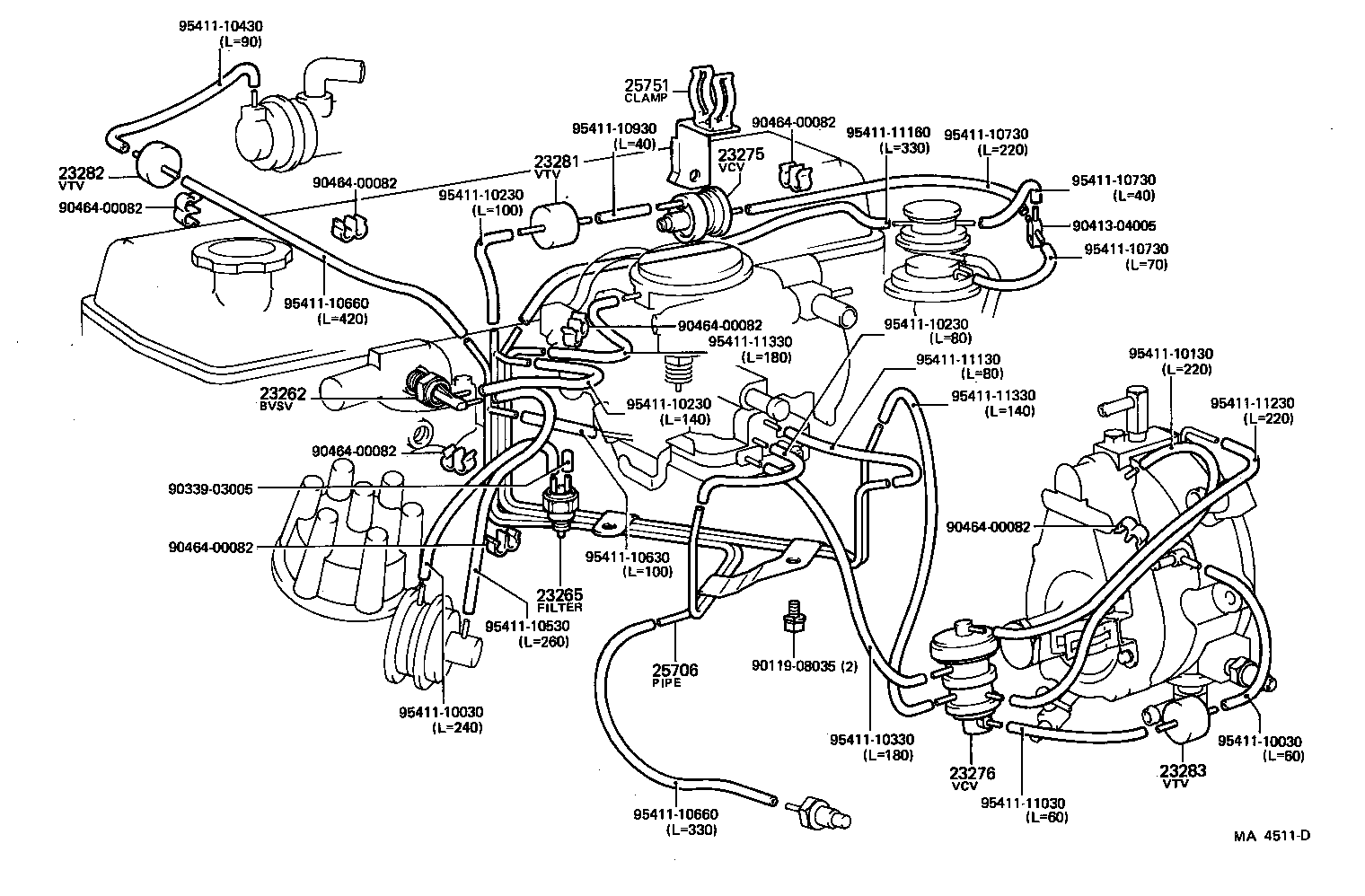

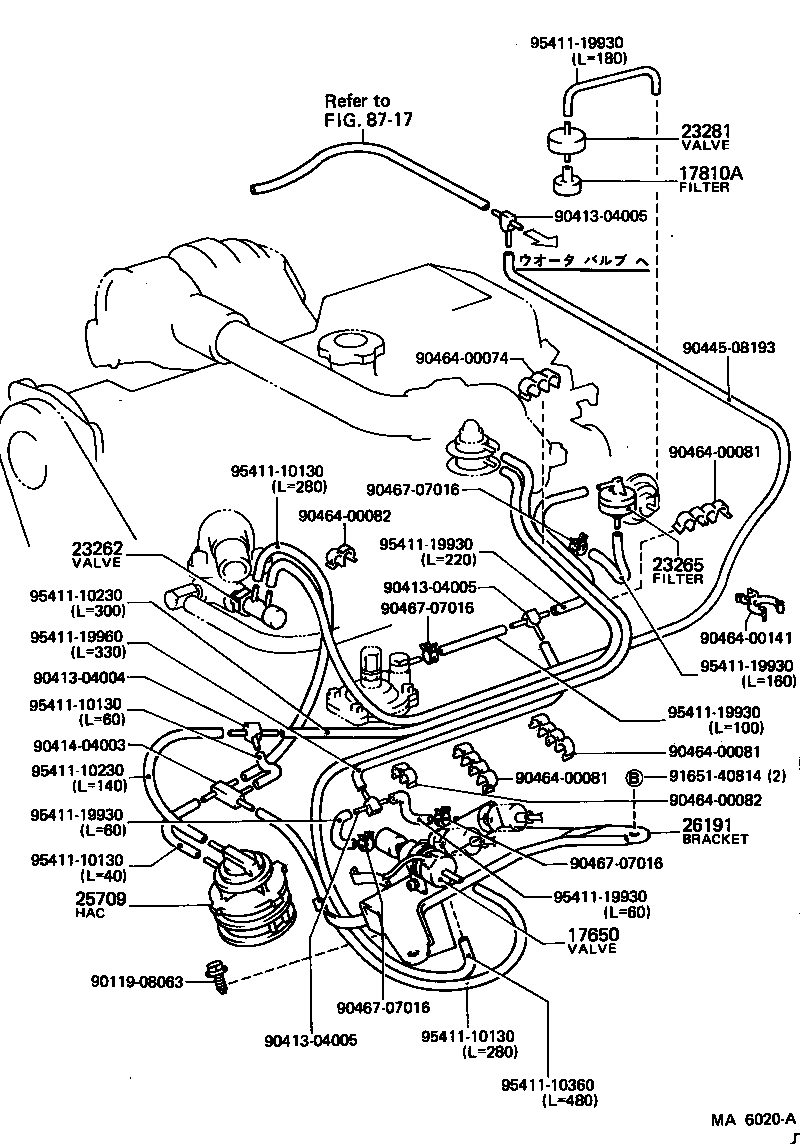

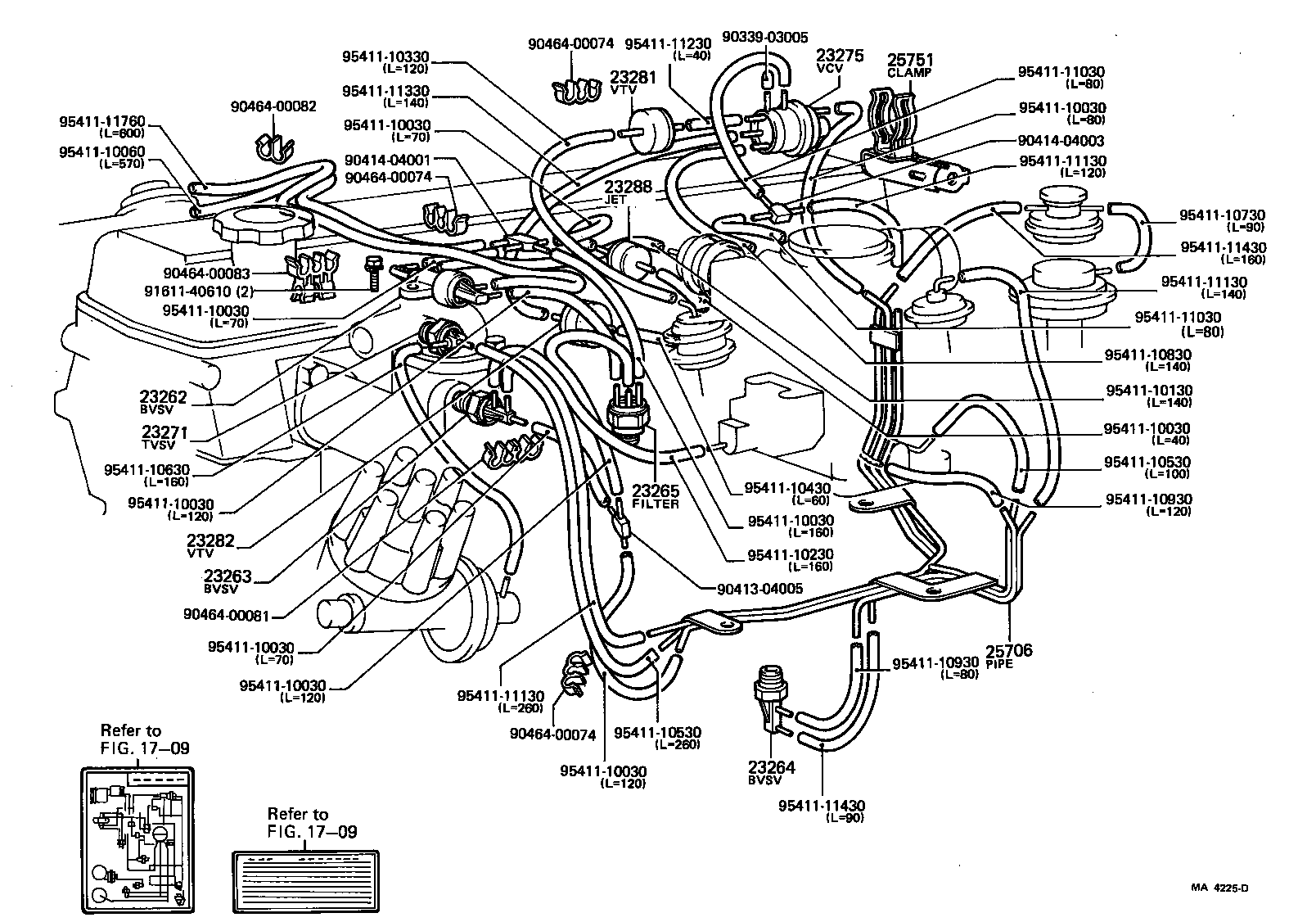

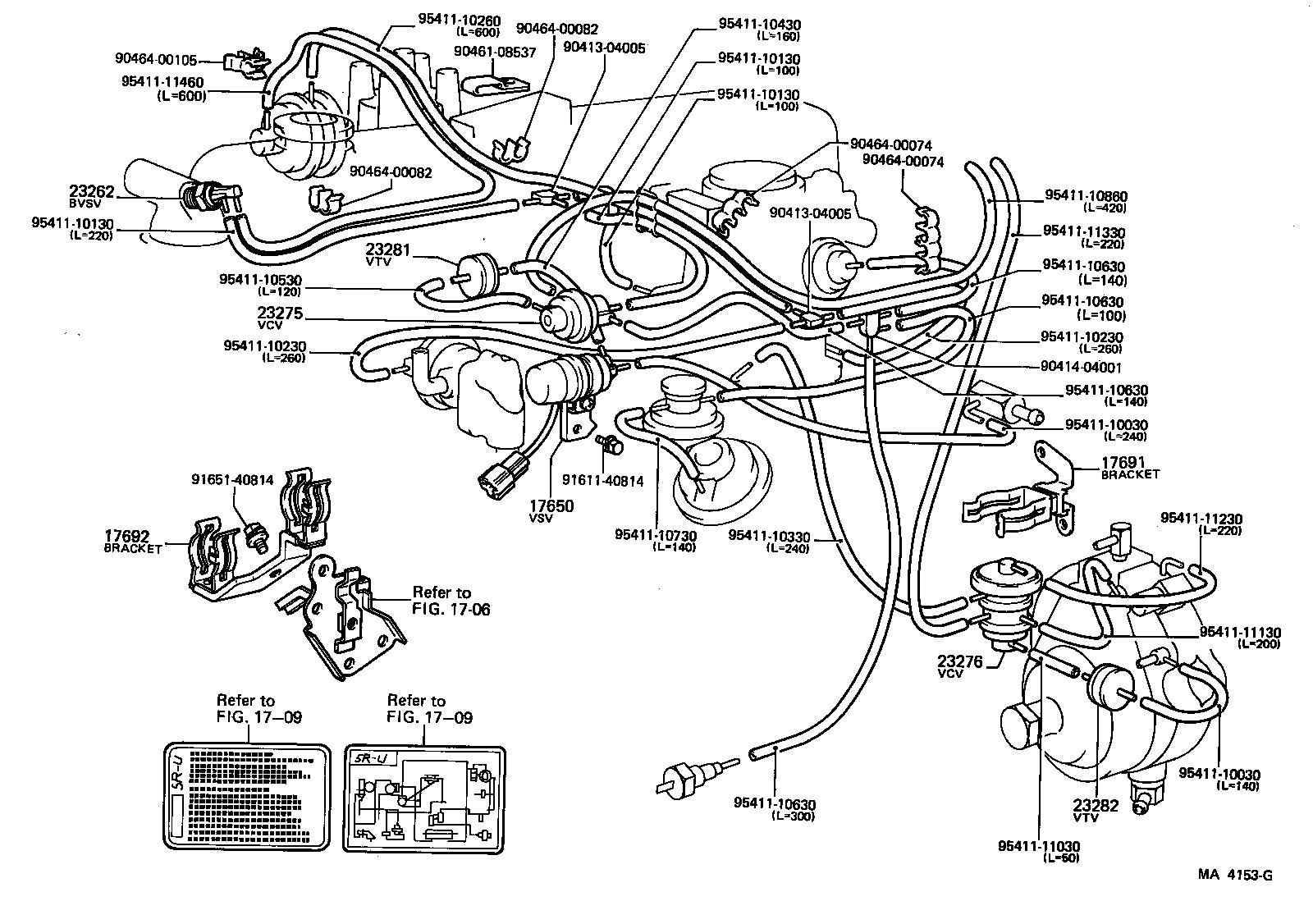

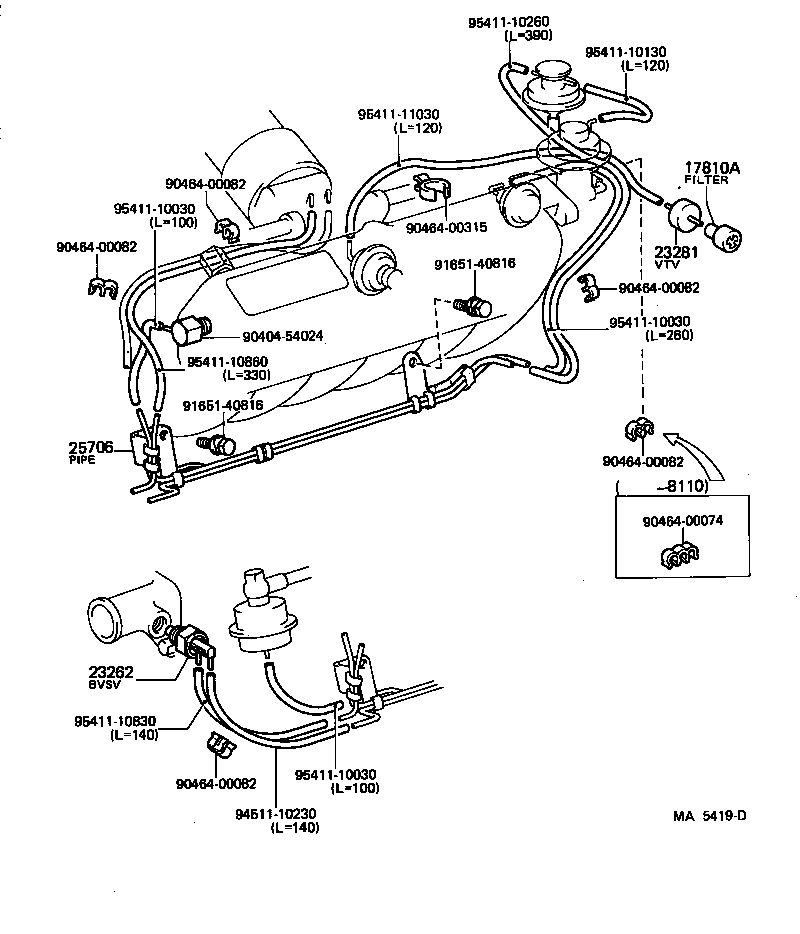

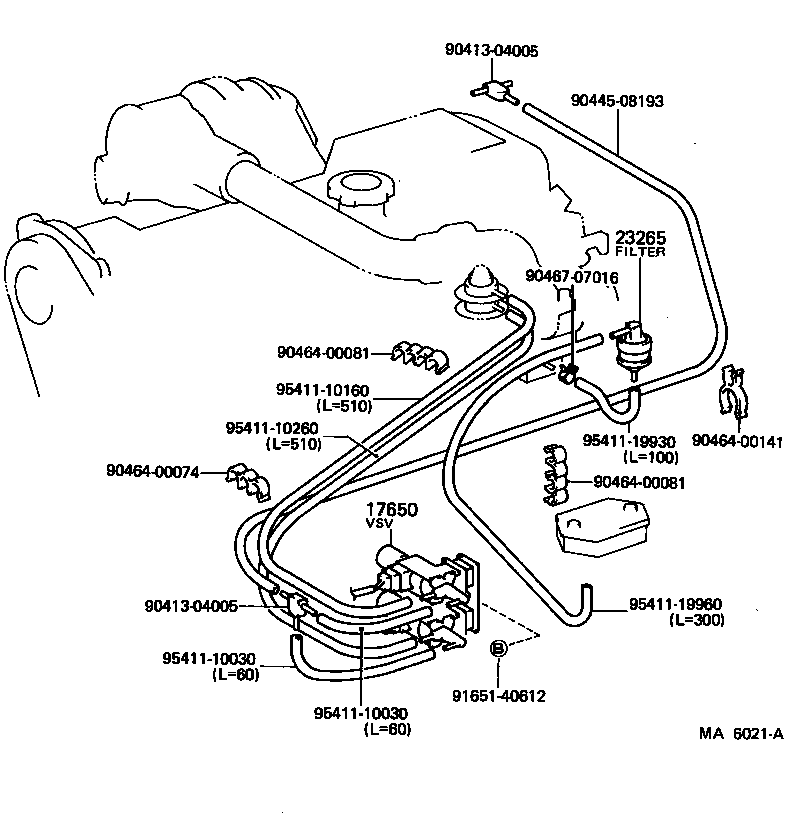

Figure MA9500 MA9500 1979-09 → — Figure MA5332 MA5332 1981-08 → 1982-08 Figure MA5923A MA5923A 1982-08 → — Figure MA4490A MA4490A 1981-08 → — Figure MA9500 MA9500 1979-09 → — Figure MA6020A MA6020A 1982-08 → — Figure MA6021A MA6021A 1982-08 → — Figure MA9500 MA9500 1979-09 → — Figure MA4224C MA4224C 1979-09 → — Figure MA4511D MA4511D 1979-12 → — Figure MA4225D MA4225D 1979-09 → 1982-08 Figure MA4226F MA4226F 1979-09 → — Figure MA5067C MA5067C 1980-10 → — Figure MA5419D MA5419D 1981-08 → — Figure MA5174A MA5174A 1981-08 → — Figure MA9500 MA9500 1979-09 → — Figure MA4153G MA4153G 1979-09 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17345B Hose, NO.5(FOR IDLE-UP)
17345C Clip, NO.5(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17691 Bracket, Vacuum Control Valve, NO.1
17692 Bracket, Vacuum Control Valve, NO.2
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23264 Valve, Bimetal Vacuum Switching, NO.3
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23277 Valve, Vacuum Control, NO.3
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
23289 Jet, NO.2
25701 Valve Set, Emission Control
25701A Filter, Air
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25709A Clamp(FOR HIGH ALTITUDE COMPENSATOR VALVE)
25715 Bracket, Emission Control Valve
25719 Tank, Vacuum Surge
25751 Clamp, Vacuum Control Valve, NO.1
25752 Clamp, Vacuum Control Valve, NO.2
26191 Bracket, Intake Air Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
