Toyota Crown
1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan
Discontinued model
Data version 1984-02

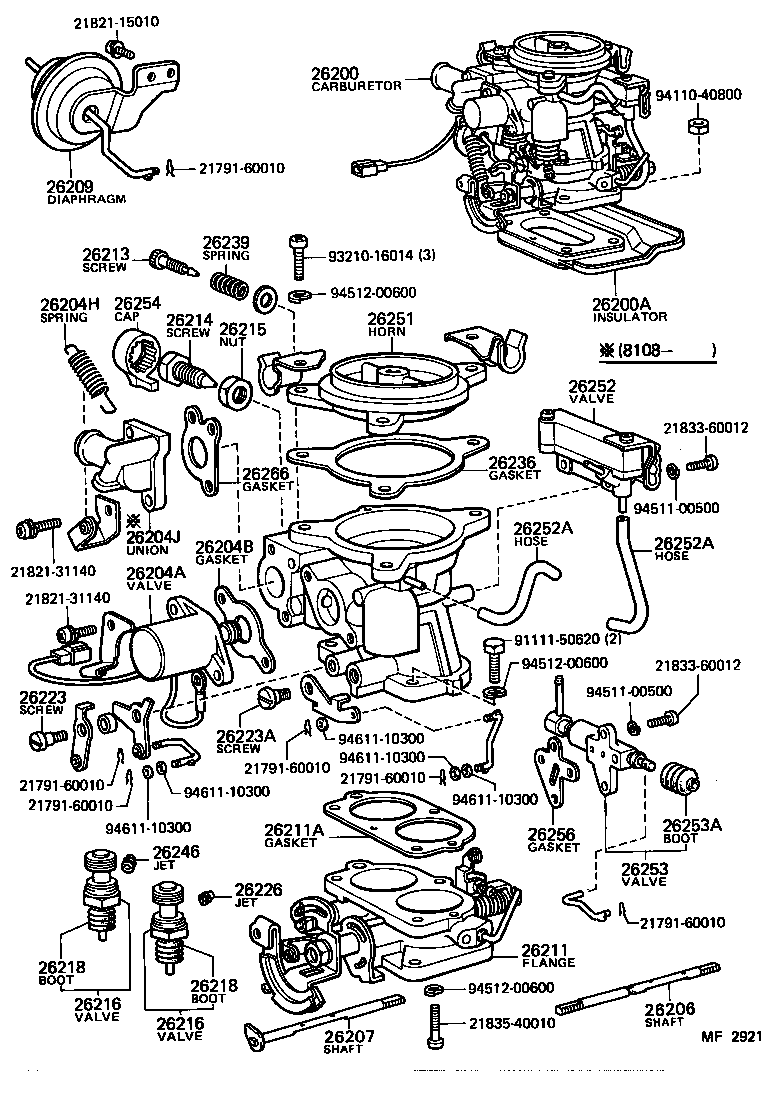

Lpg Carburetor
50 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 26200 | Carburetor Assy, Lpg |
| 26200A | Insulator, Lpg Carburetor Heat |
| 26200D | Spring, Back(FOR LPG) |
| 26204A | Valve, Throttle Solenoid(FOR LPG) |
| 26204B | Gasket, Solenoid Valve(FOR LPG) |
| 26204H | Spring, Throttle Return(FOR LPG) |
| 26204J | Union, NO.2 Fuel Hose(FOR LPG) |
| 26206 | Shaft, 1ST Throttle(FOR LPG) |
| 26206A | Arm, 1ST Throttle Shaft(FOR LPG) |
| 26206D | Shim, 1ST Throttle Shaft(FOR LPG) |
| 26206F | Screw, 1ST Throttle Valve Set(FOR LPG) |
| 26206K | Lever, Throttle Shaft(FOR LPG) |
| 26206R | Screw, Throttle Adjust(FOR LPG) |
| 26206S | Spring, Idle Adjust Screw(FOR LPG) |
| 26207 | Shaft, 2ND Throttle(FOR LPG) |
| 26207A | Spring, 2ND Throttle Back(FOR LPG) |
| 26207B | Lever, 2ND Throttle(FOR LPG) |
| 26207D | Valve, 2ND Throttle(FOR LPG) |
| 26207E | Screw, 2ND Throttle Valve Set(FOR LPG) |
| 26209 | Diaphragm Sub-assy(FOR LPG) |
| 26211 | Flange, Carburetor |
| 26211A | Gasket, Body Flange(FOR LPG) |
| 26213 | Screw, Adjust |
| 26214 | Screw, Power Adjust |
| 26215 | Nut, Power Adjust |
| 26216 | Valve, Power |
| 26218 | Boot(FOR POWER VALVE) |
| 26223 | Screw, Set(FOR POWER VALVE CAM) |
| 26223A | Screw, Set(FOR POWER VALVE LEVER) |
| 26224 | Cam, Power Valve, NO.1 |
| 26225 | Clamp(FOR THERMOSTATIC VALVE SET) |
| 26226 | Jet, Power |
| 26228 | Arm(FOR THERMOSTATIC VALVE) |
| 26233 | Stay, Stud |
| 26235 | Lever(FOR POWER VALVE) |
| 26236 | Gasket, Air Horn |
| 26239 | Spring |
| 26241 | Link, Connecting |
| 26242 | Lever, Throttle Shaft(FOR LPG) |
| 26243A | Support(FOR THERMOSTATIC VALVE) |
| 26246 | Jet |
| 26247 | Diaphragm |
| 26251 | Horn, Air |
| 26252 | Valve, Thermostatic |
| 26252A | Hose, Connecting |
| 26253 | Valve, Change(FOR SLOW) |
| 26253A | Boot(FOR CHANGE VALVE) |
| 26254 | Cap, Power Screw Limit |
| 26256 | Gasket, Change Valve |
| 26266 | Gasket, Fuel Inlet Union |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
