Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 6 illustrations

Illustrations

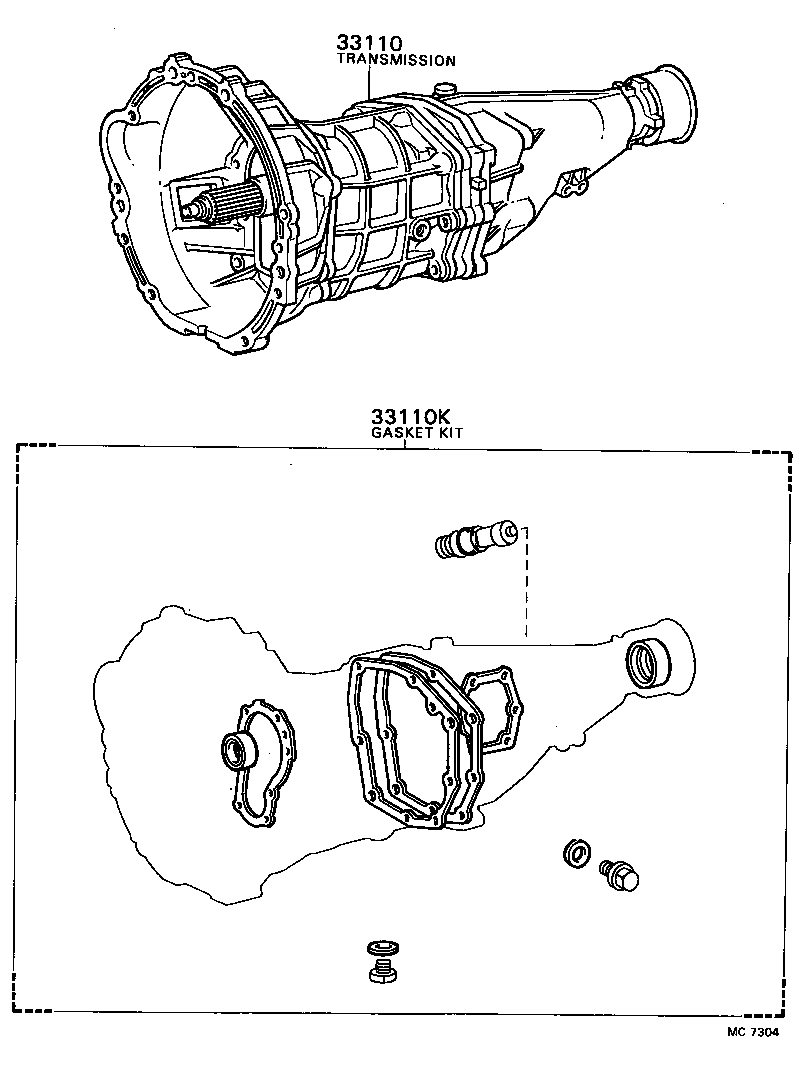

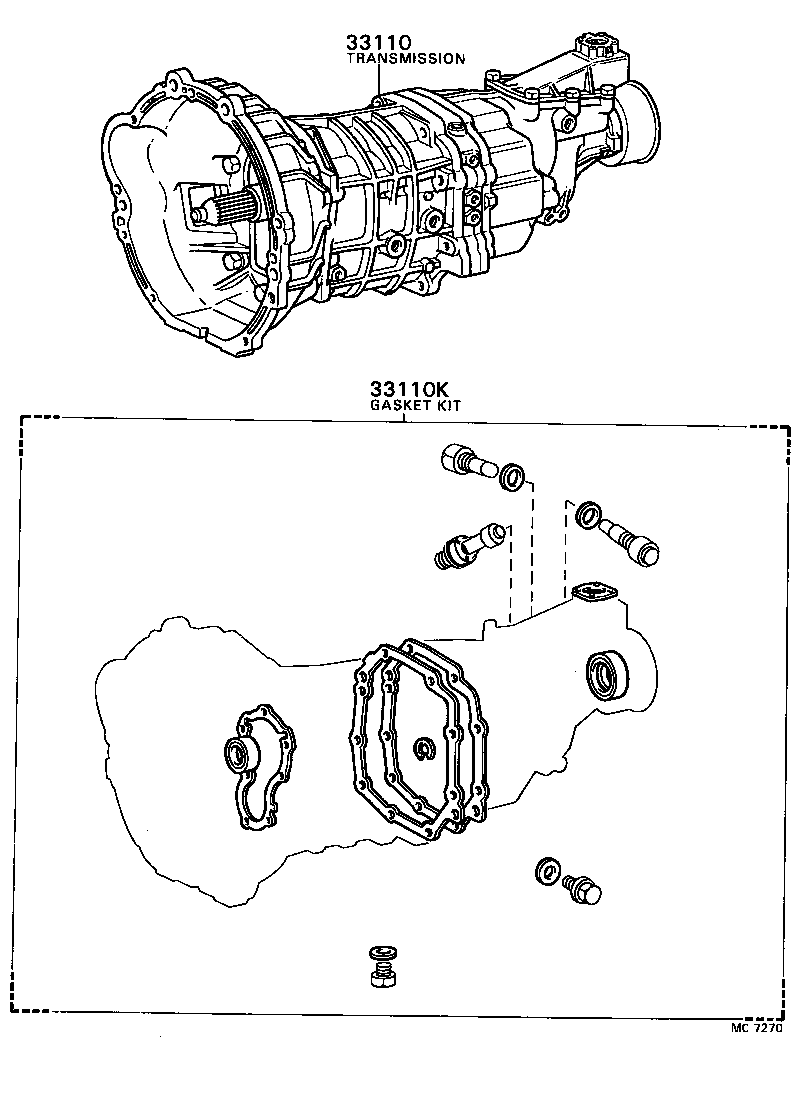

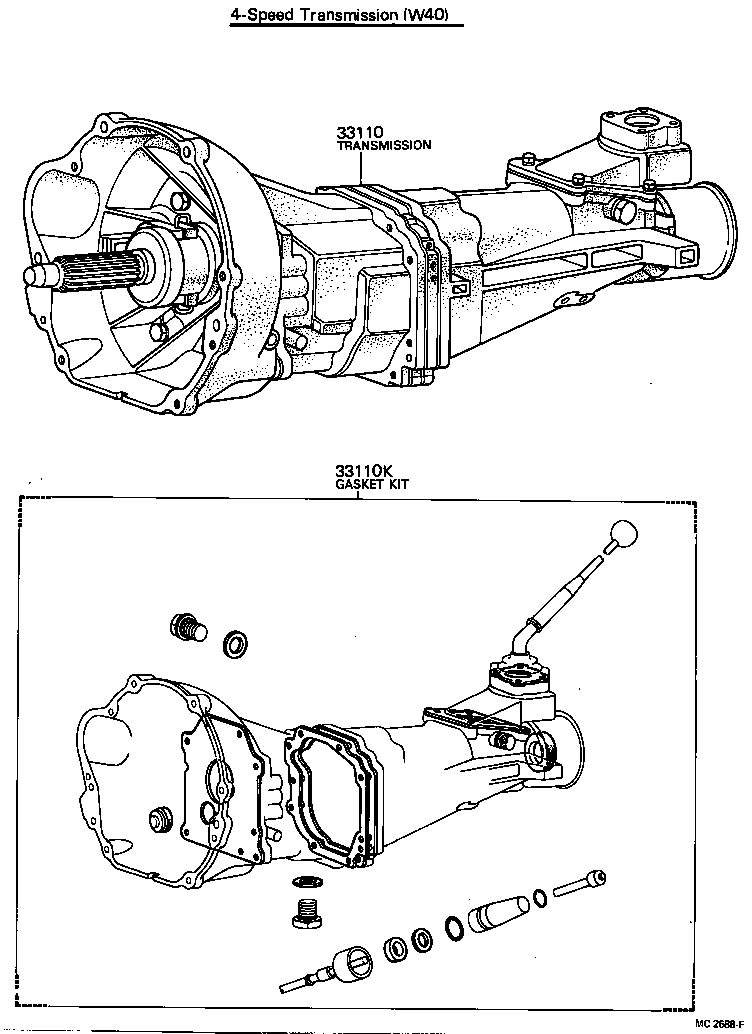

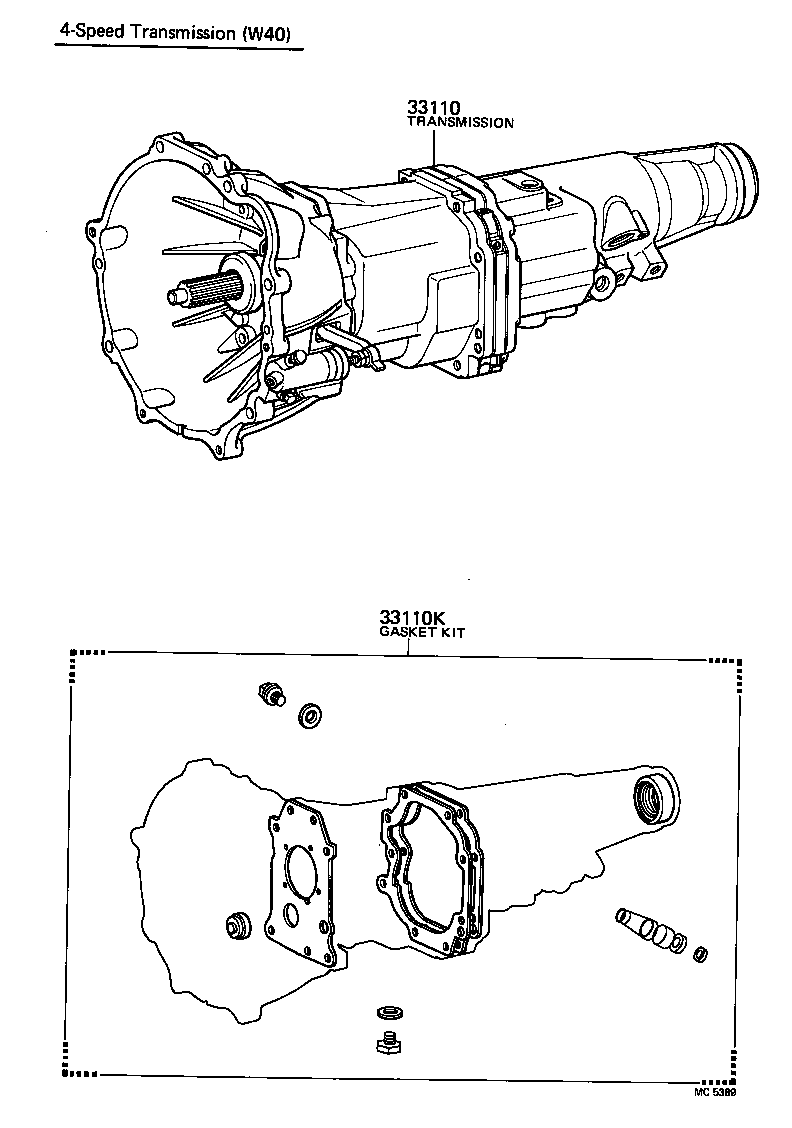

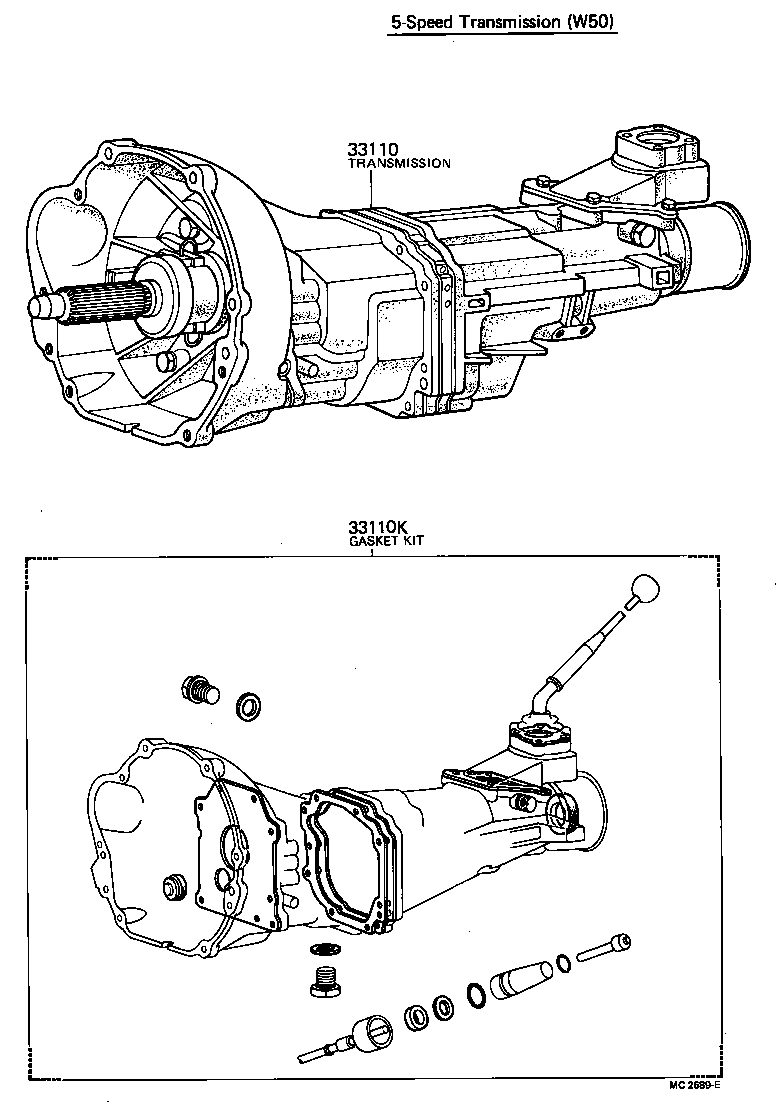

Figure MC4076B MC4076B 1979-09 → 1980-10 Figure MC7304 MC7304 1980-10 → — Figure MC2688F MC2688F 1979-09 → 1981-08 Figure MC5389 MC5389 1979-09 → 1980-10 Figure MC2689E MC2689E 1979-09 → 1981-08 Figure MC7270 MC7270 1981-08 → —

Part groups

PNCDescription
33110 Transmission Assy, Manual
33110K Gasket Kit, Manual Transmission Overhaul
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
