Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

18 part groups · 7 illustrations

Illustrations

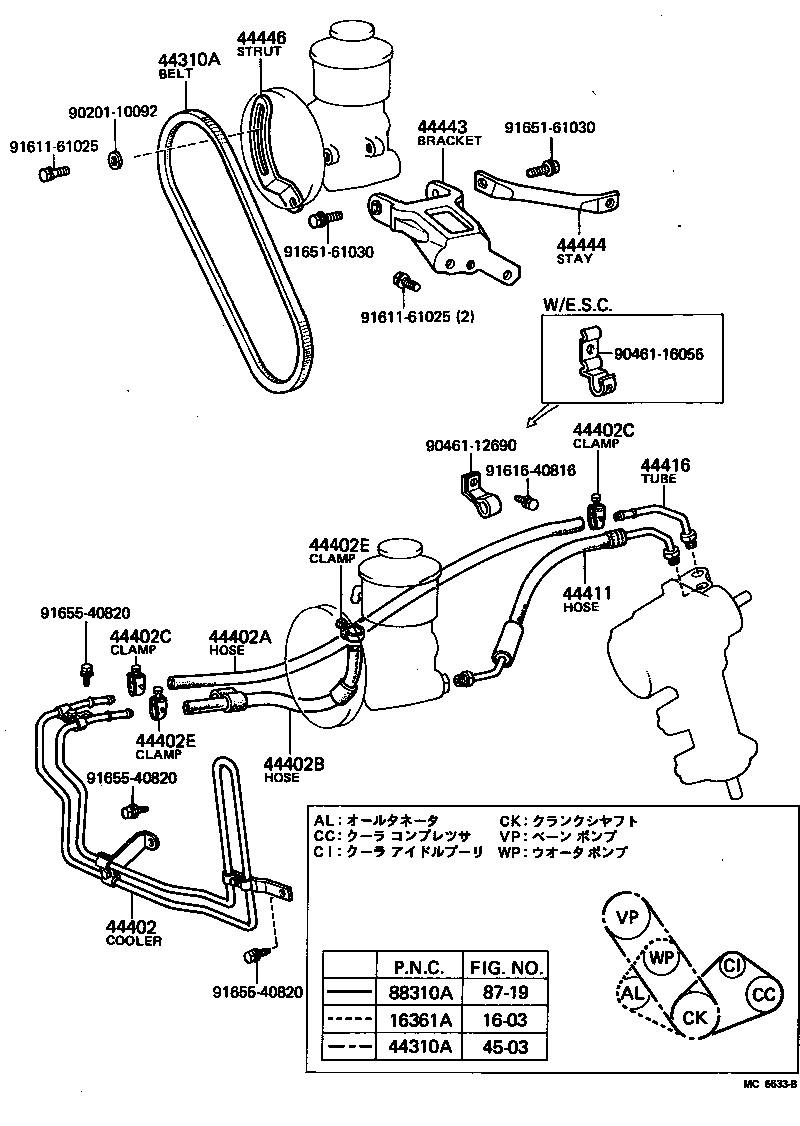

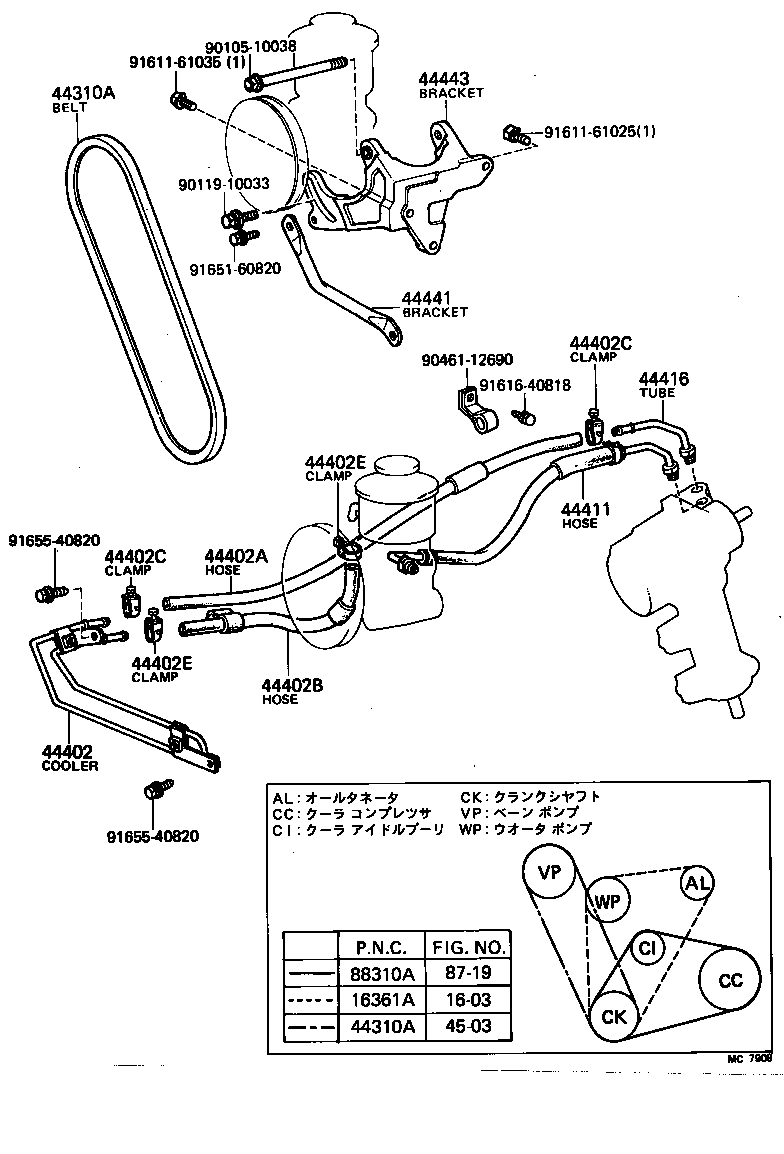

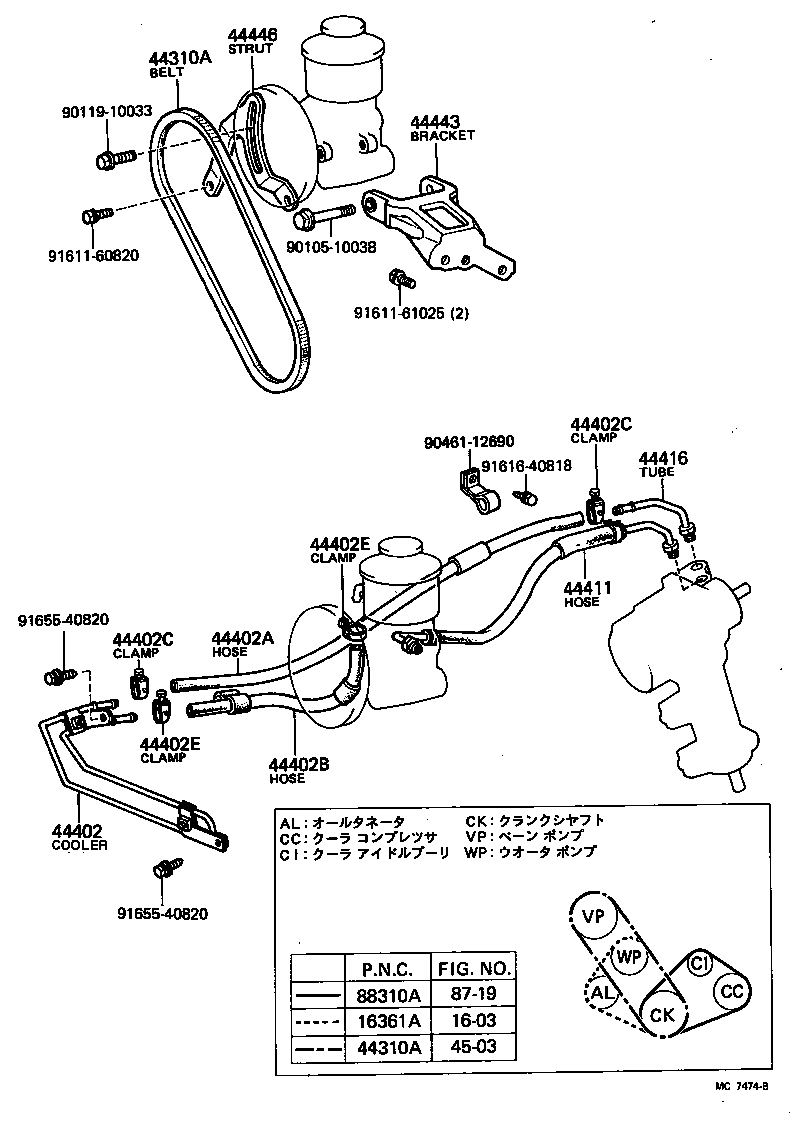

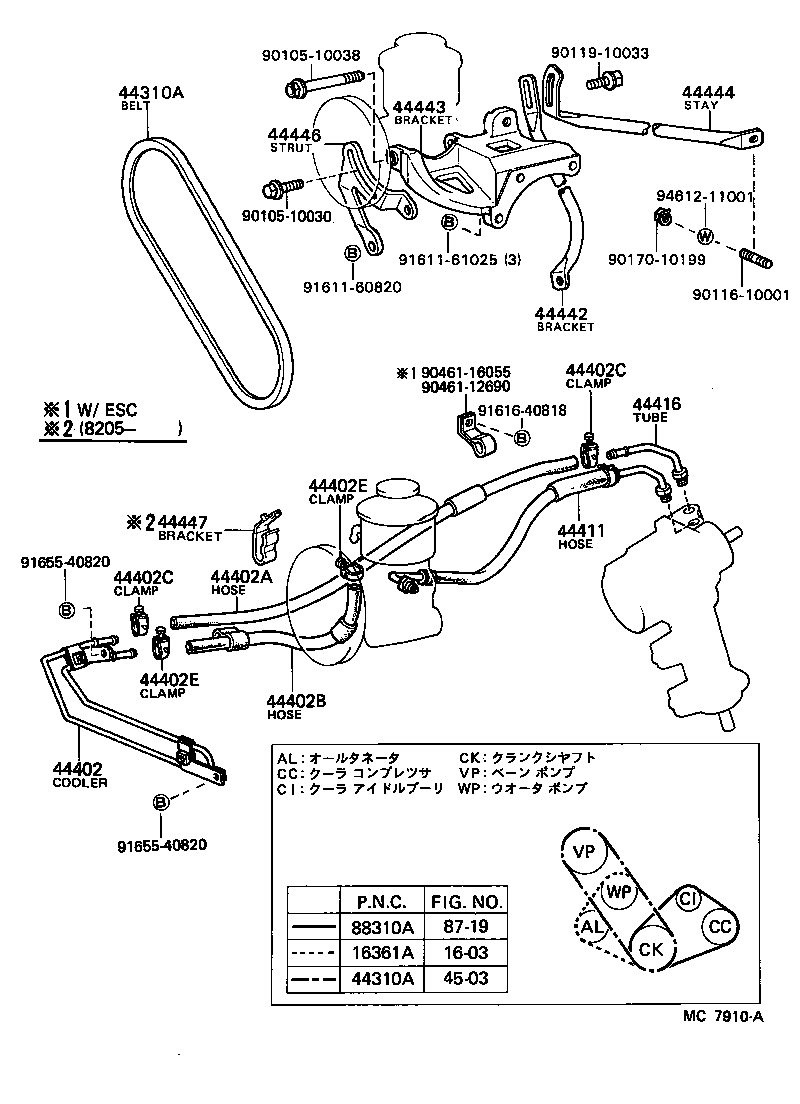

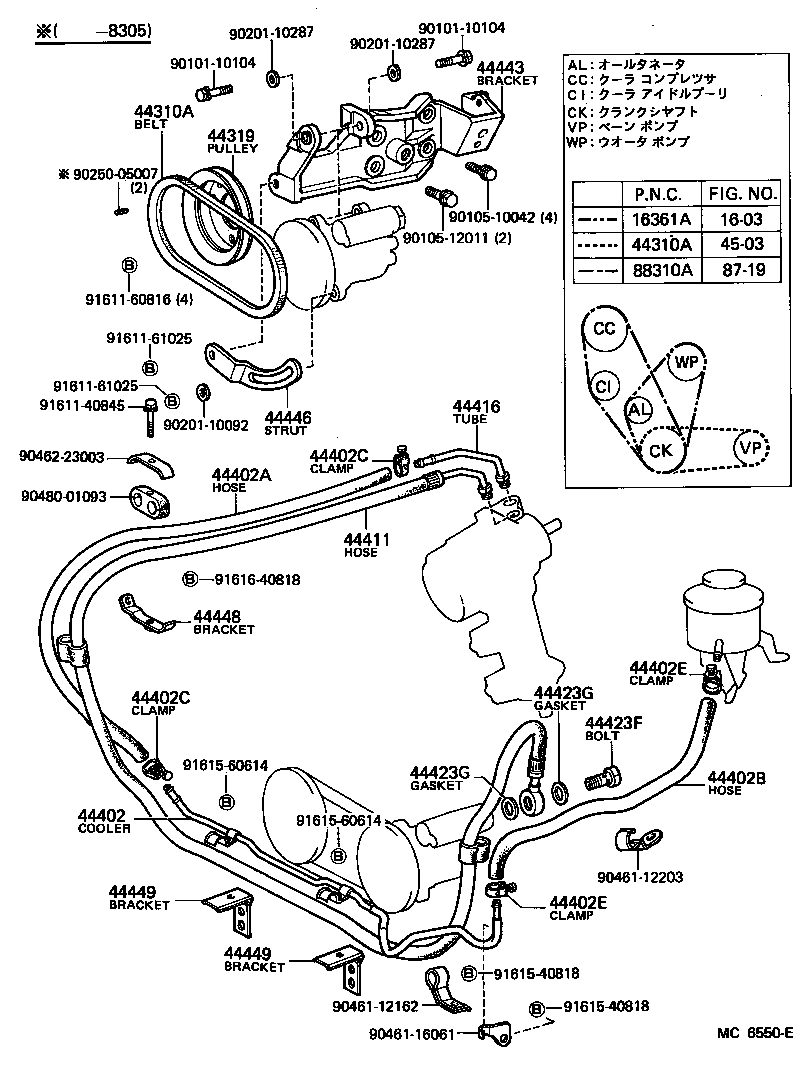

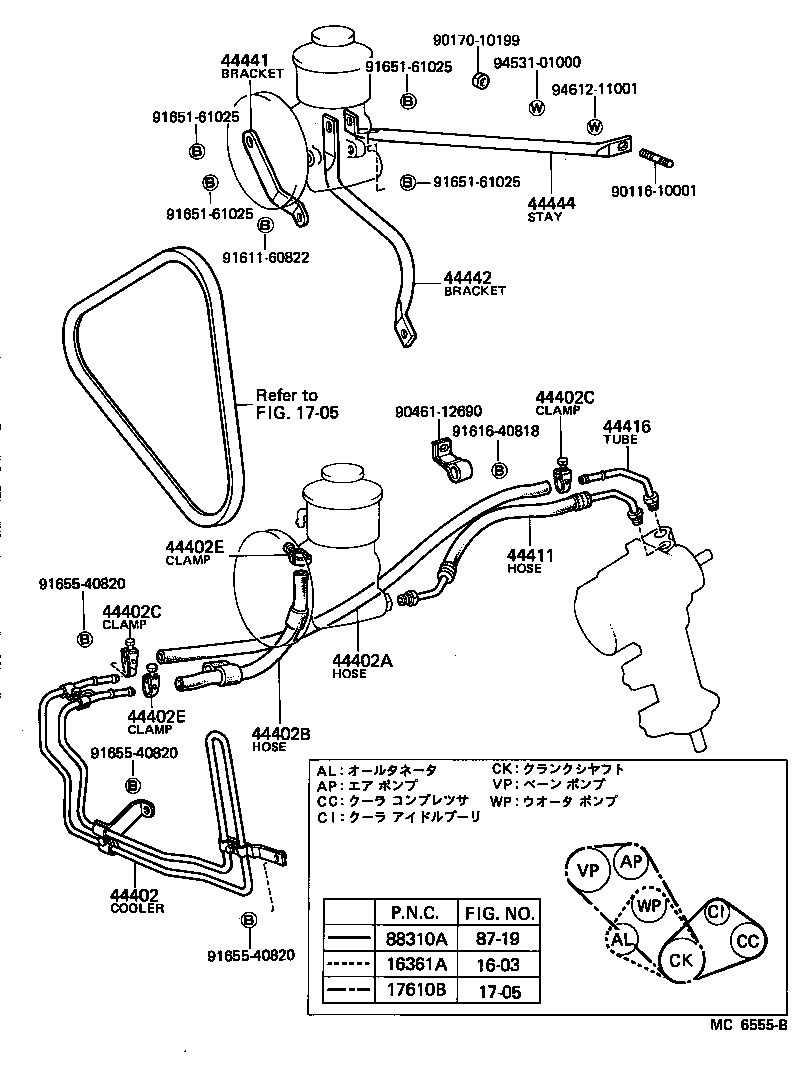

Figure MC6551C MC6551C 1979-09 → — Figure MC6555B MC6555B 1979-09 → — Figure MC6633B MC6633B 1979-09 → — Figure MC7474B MC7474B 1980-10 → — Figure MC7909 MC7909 1981-08 → — Figure MC7910A MC7910A 1981-08 → — Figure MC6550E MC6550E 1979-09 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44423F Bolt, Union
44423G Gasket, Union Bolt
44441 Bracket, Pump, Front
44442 Bracket, Pump, Rear
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
44447 Bracket, Power Steering Oil Cooler Tube Support
44448 Bracket, Pressure Feed Hose Support, NO.1
44449 Bracket, Pressure Feed Hose Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
