Toyota Crown
1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan
Discontinued model
Data version 1984-02
Brake Booster & Vacuum Tube
57 part groups · 11 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 44580 | Valve Assy, Actuator Check |
| 44580A | Way, 3, Actuator Vacuum |
| 44586 | Hose, Actuator Vacuum, NO.1 |
| 44586A | Clip(FOR ACTUATOR VACUUM HOSE) |
| 44601 | Band Sub-assy, Booster Body |
| 44601A | Diaphragm Plate Sub-assy, Booster, Front |
| 44601B | Diaphragm Plate Sub-assy, Booster, Rear |
| 44601C | Center Plate Sub-assy, Booster |
| 44605 | Plate & Seal Sub-assy, Booster |
| 44608 | Push Rod Sub-assy, Booster |

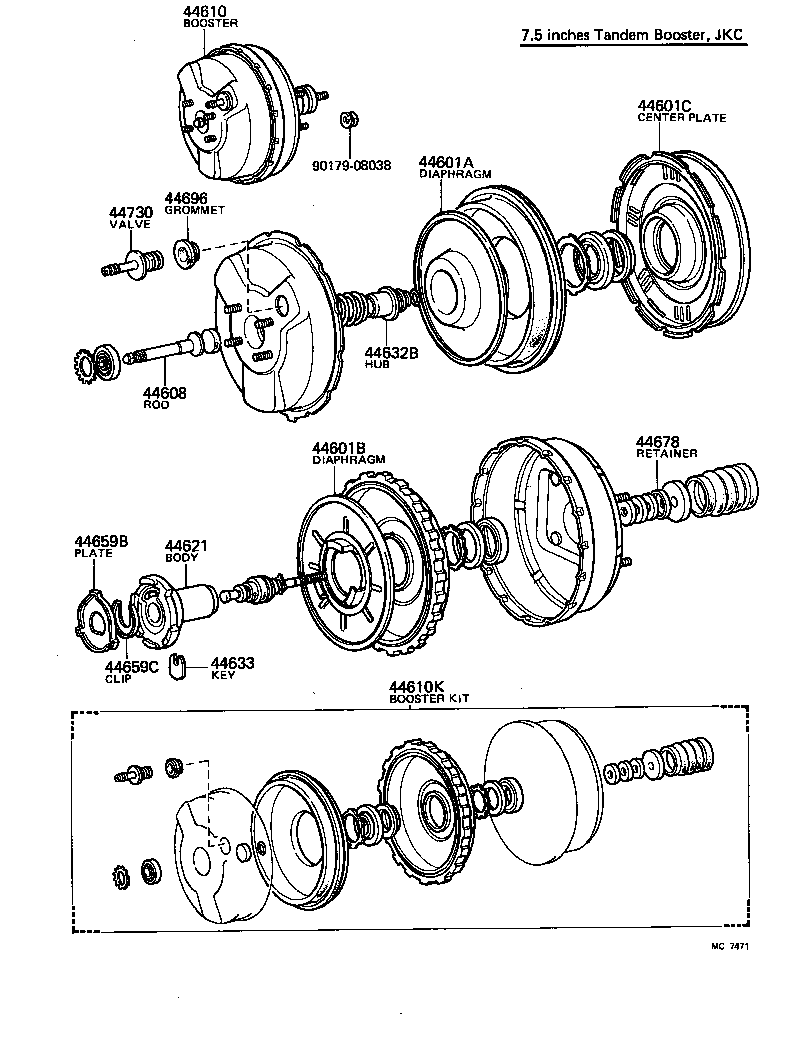

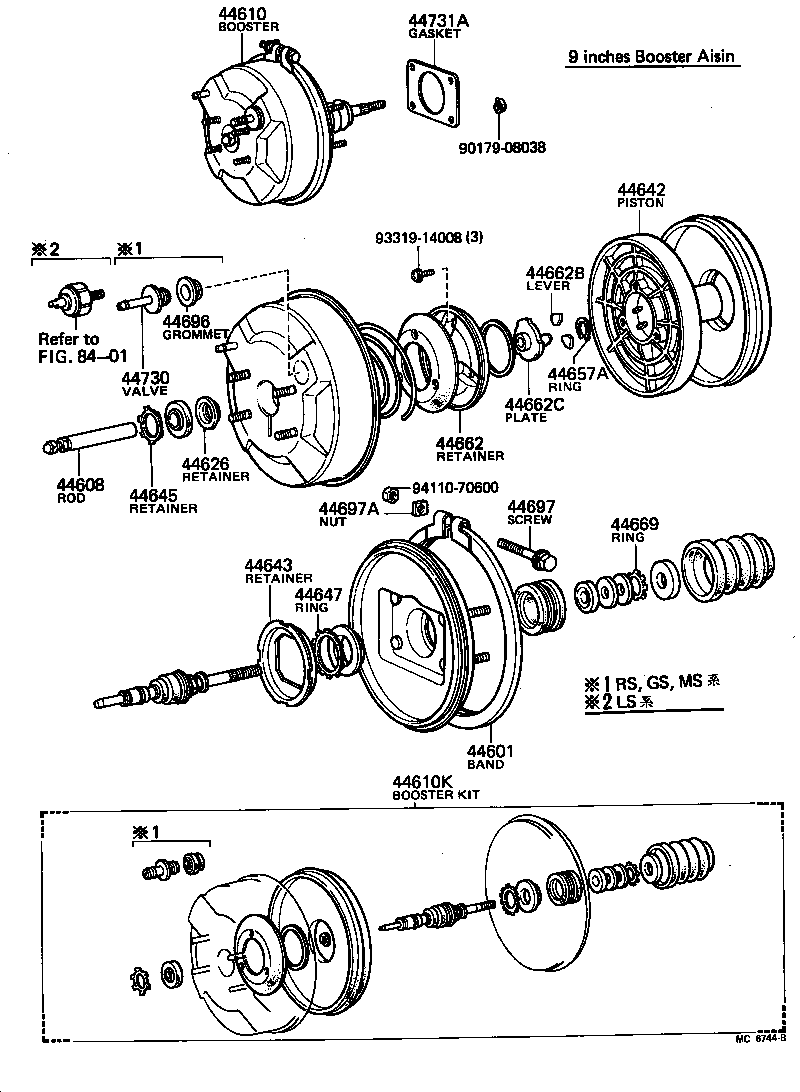

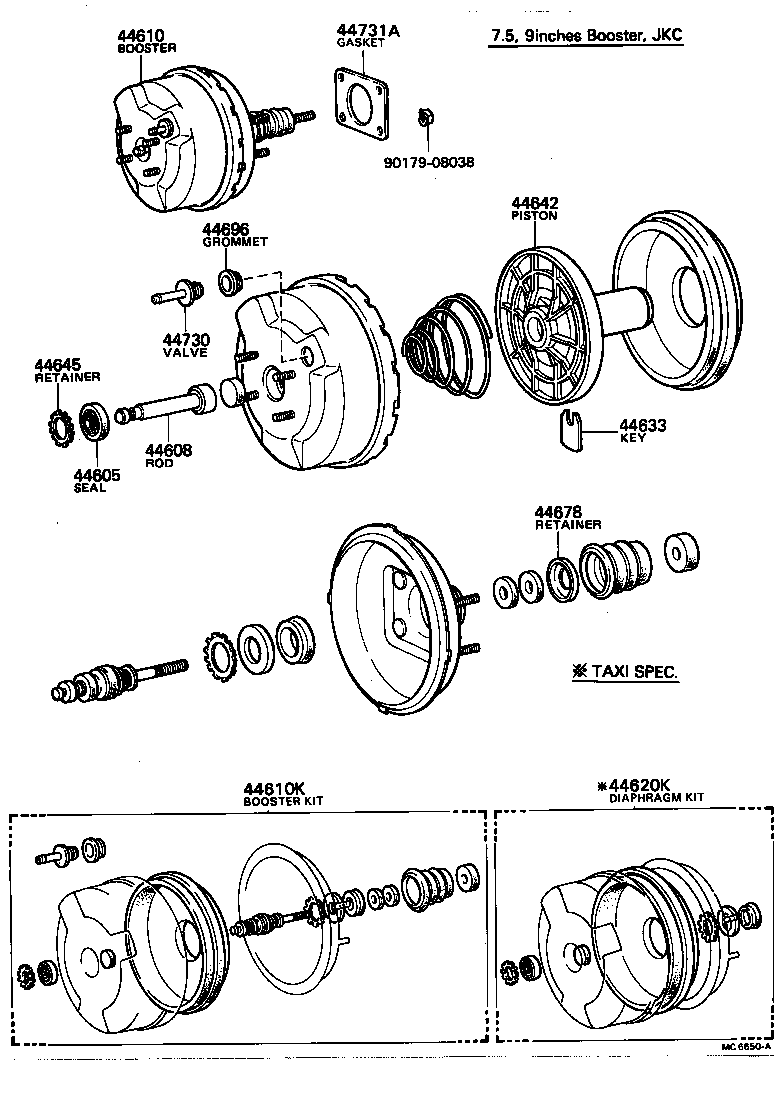

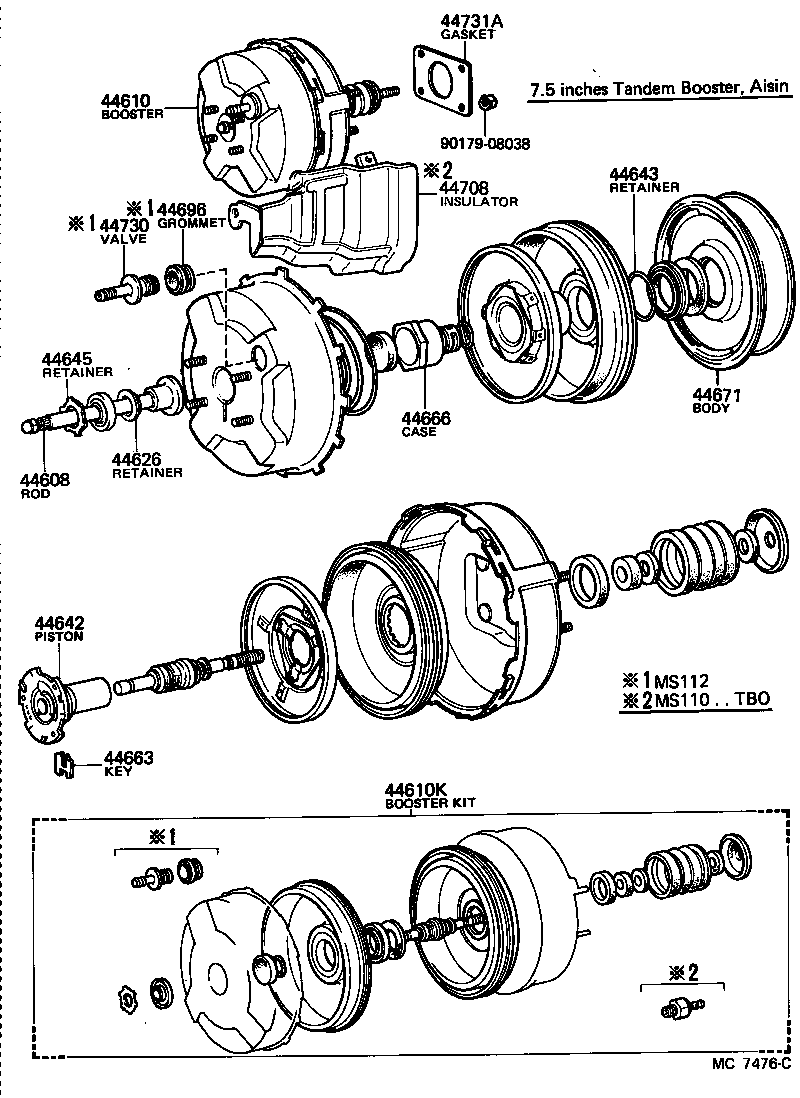

| 44610 | Booster Assy, Brake |
| 44610K | Booster Kit, Brake |
| 44620K | Diaphragm Kit, Brake Booster |
| 44621 | Body, Booster Valve |
| 44626 | Retainer, Booster Rod Cup |
| 44632B | Hub, Booster Reaction Disk |
| 44633 | Key, Booster Valve Plunger |
| 44642 | Piston, Brake Booster |
| 44643 | Retainer, Diaphragm |
| 44645 | Retainer, Booster Push Rod Seal |
| 44647 | Ring, Circular Internal(FOR BOOSTER BODY SEAL STOPPER) |
| 44657A | Ring, Snap(FOR BOOSTER AIR VALVE STOPPER) |
| 44657B | Washer, Plate(FOR BOOSTER AIR VALVE STOPPER) |
| 44659B | Plate, Booster Retainer |
| 44659C | Clip, Booster |
| 44662 | Retainer, Reaction, NO.1 |
| 44662B | Lever, Reaction |
| 44662C | Plate, Reaction, NO.1 |
| 44663 | Key, Valve Stopper |
| 44666 | Case, Reaction Disc |
| 44669 | Ring, Circular Internal(FOR AIR CLEANER ELEMENT STOPPER) |
| 44671 | Body Sub-assy, NO.3 |
| 44678 | Retainer, Booster Air Cleaner |
| 44683 | Connector, Booster Body |
| 44683A | Lock, Connector |
| 44696 | Grommet, Check Valve |
| 44697 | Screw, Booster Band Set |
| 44697A | Nut(FOR BOOSTER BAND SET) |

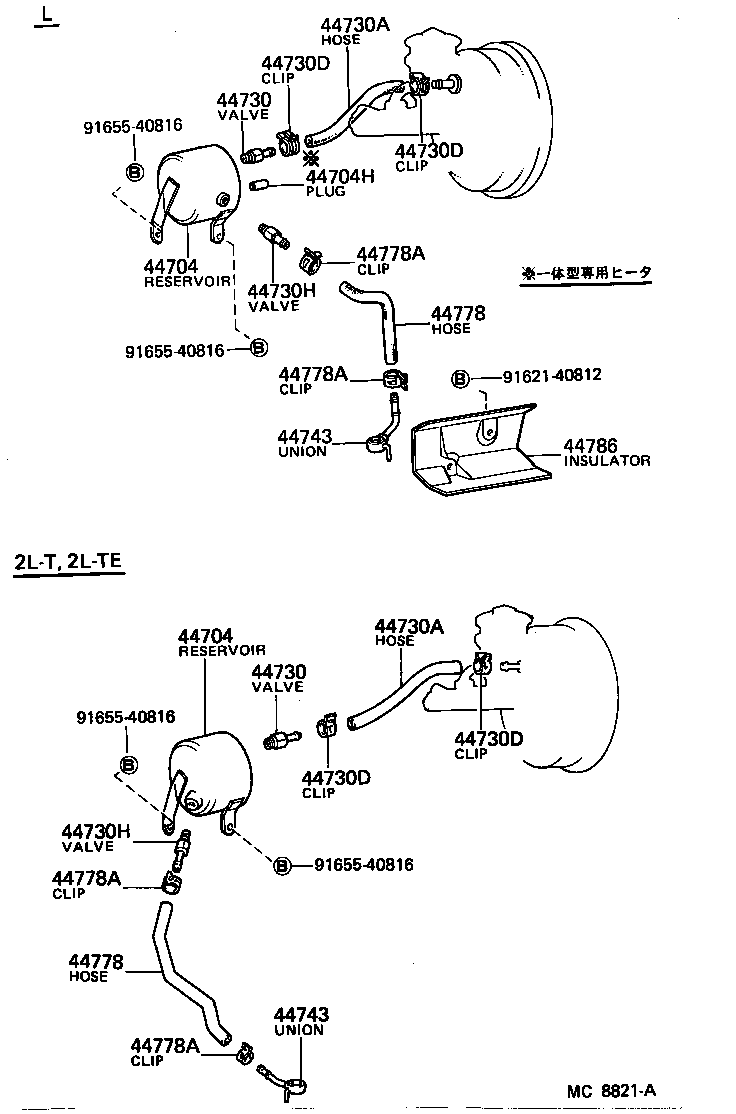

| 44704 | Reservoir Sub-assy, Vacuum |
| 44704H | Plug(FOR VACUUM RESERVOIR) |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730A | Hose, Vacuum, NO.1 |
| 44730D | Clip(FOR VACUUM HOSE, NO.1) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44730H | Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR) |
| 44731A | Gasket, Brake Booster Bracket |
| 44743 | Union(FOR VACUUM PUMP) |

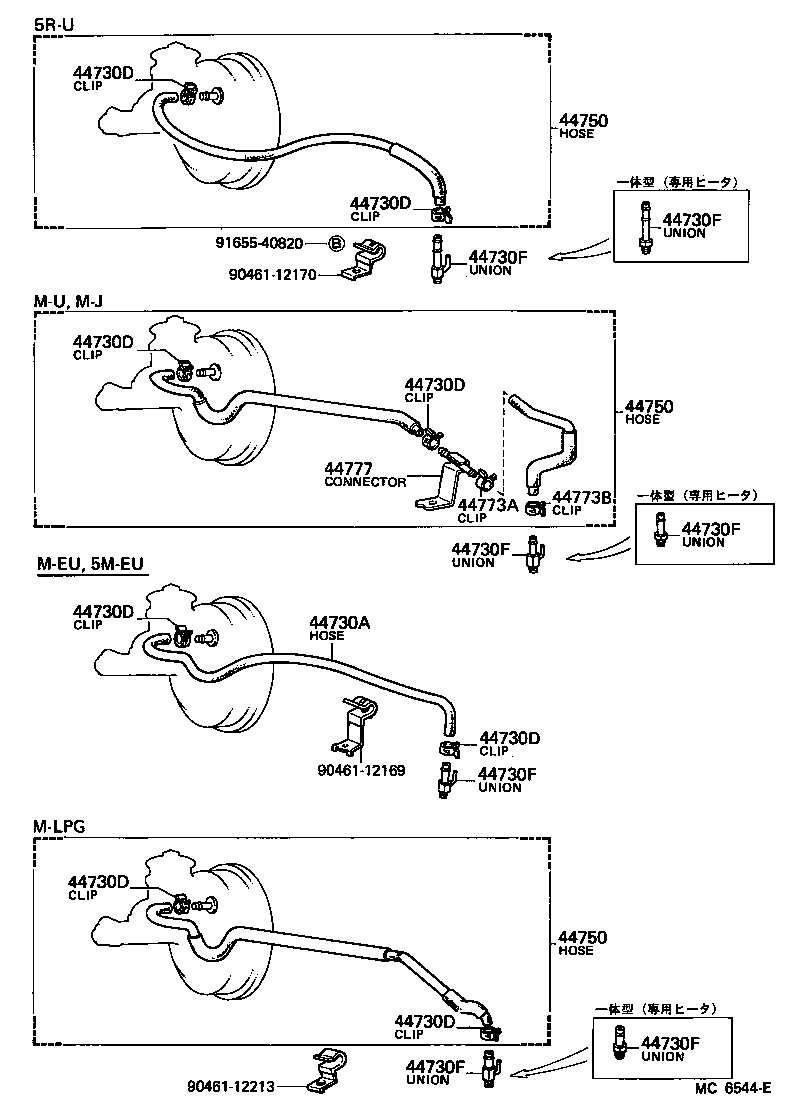

| 44750 | Hose Assy, Vacuum |
| 44763 | Tube, Booster Vacuum |

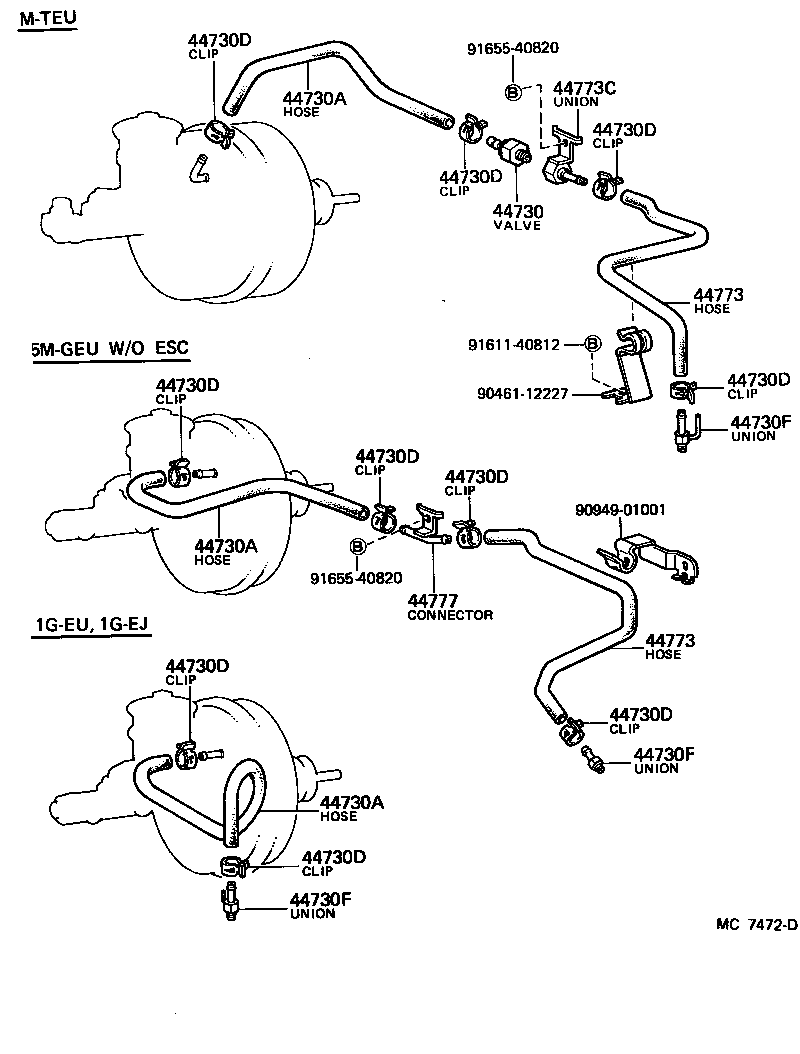

| 44773 | Hose, Vacuum, NO.2 |
| 44773A | Clip, NO.1(FOR VACUUM HOSE, NO.2) |
| 44773B | Clip, NO.2(FOR VACUUM HOSE, NO.2) |
| 44773C | Union, Vacuum Hose(FOR VACUUM HOSE, NO.2) |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44778 | Hose, Connector TO Check Valve |
| 44778A | Clip(FOR CONNECTOR TO CHECK VALVE HOSE) |
| 44786 | Insulator, Hose Heat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
