Toyota Crown
1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan
Discontinued model
Data version 1984-02

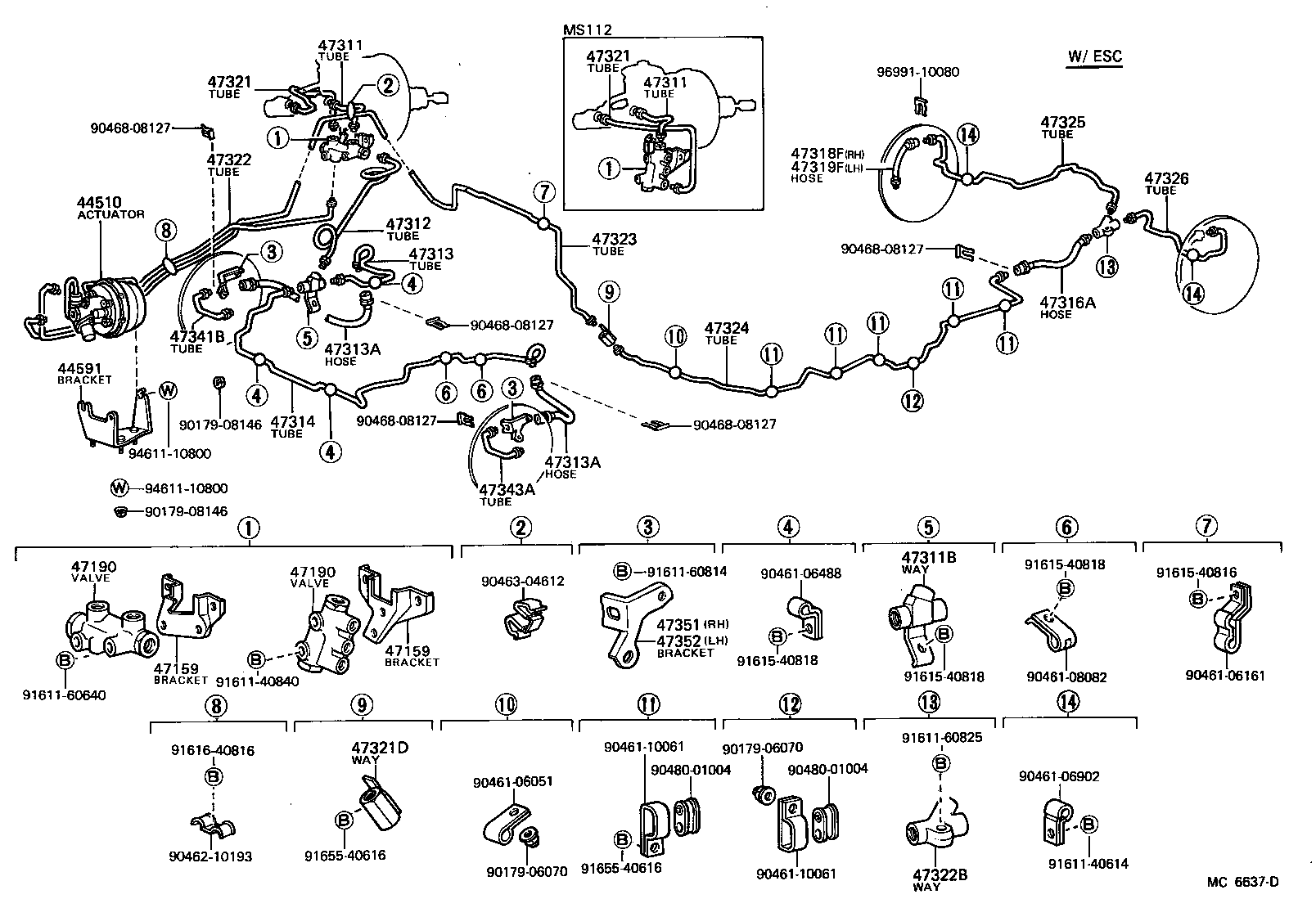

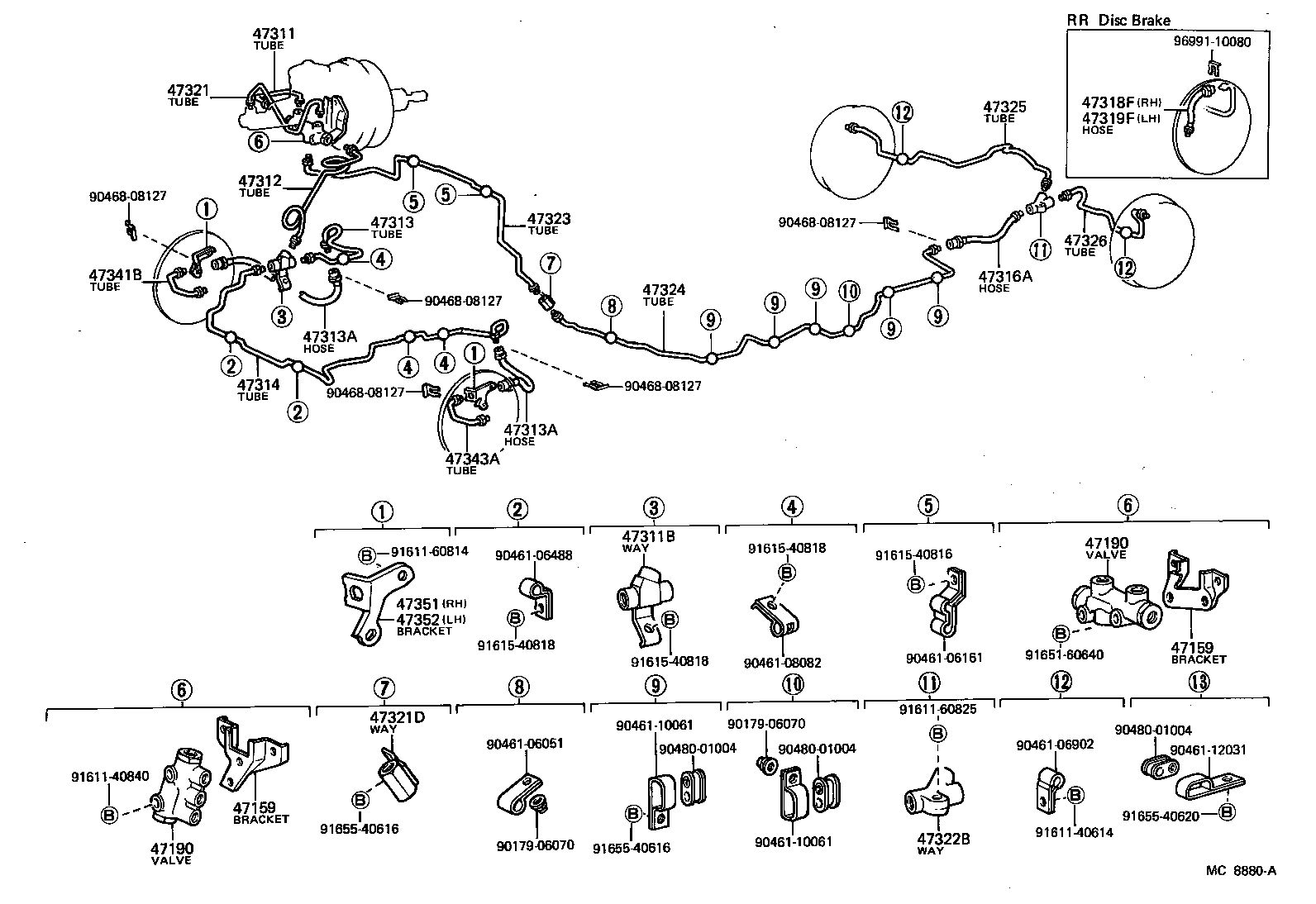

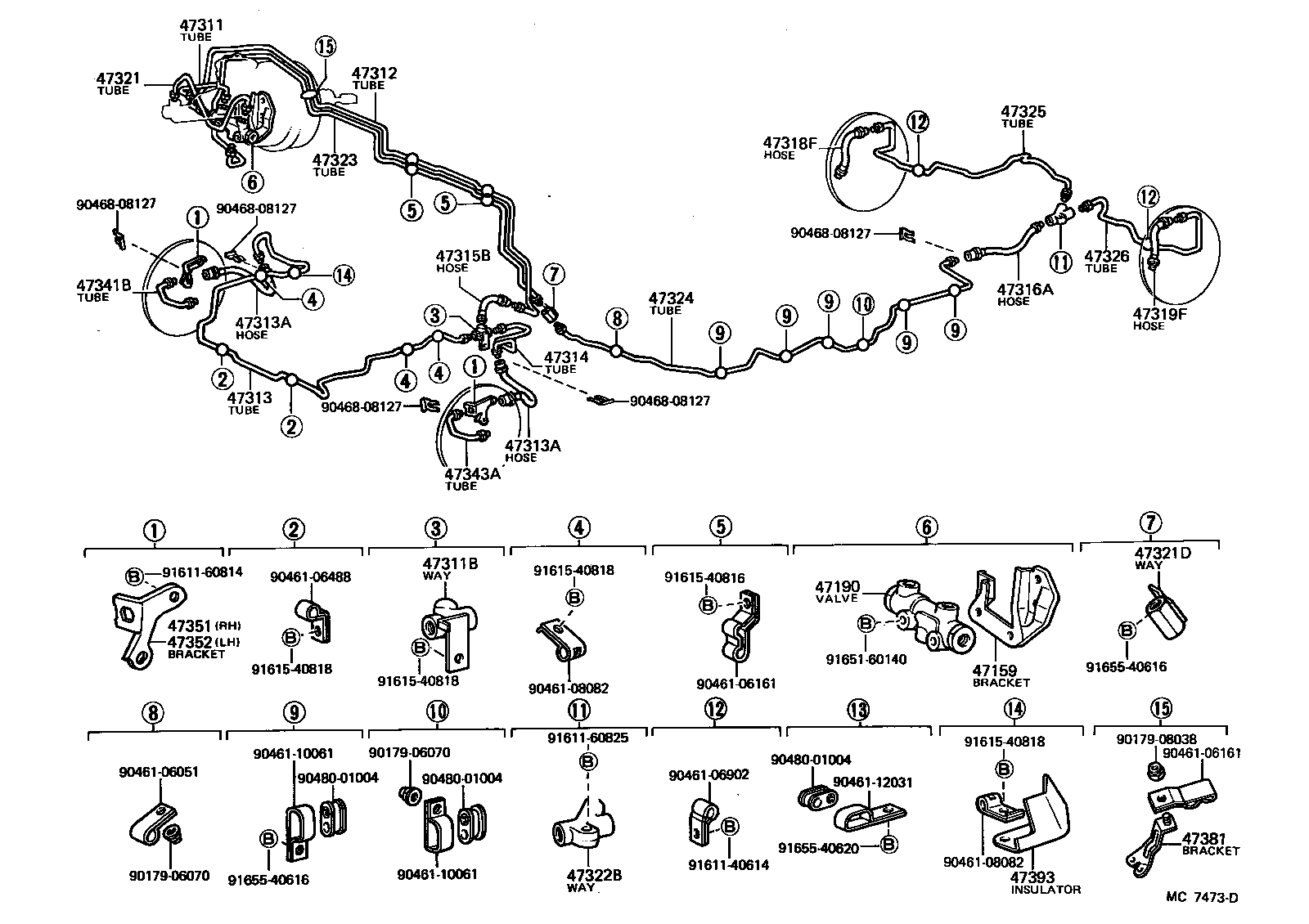

Brake Tube & Clamp
68 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

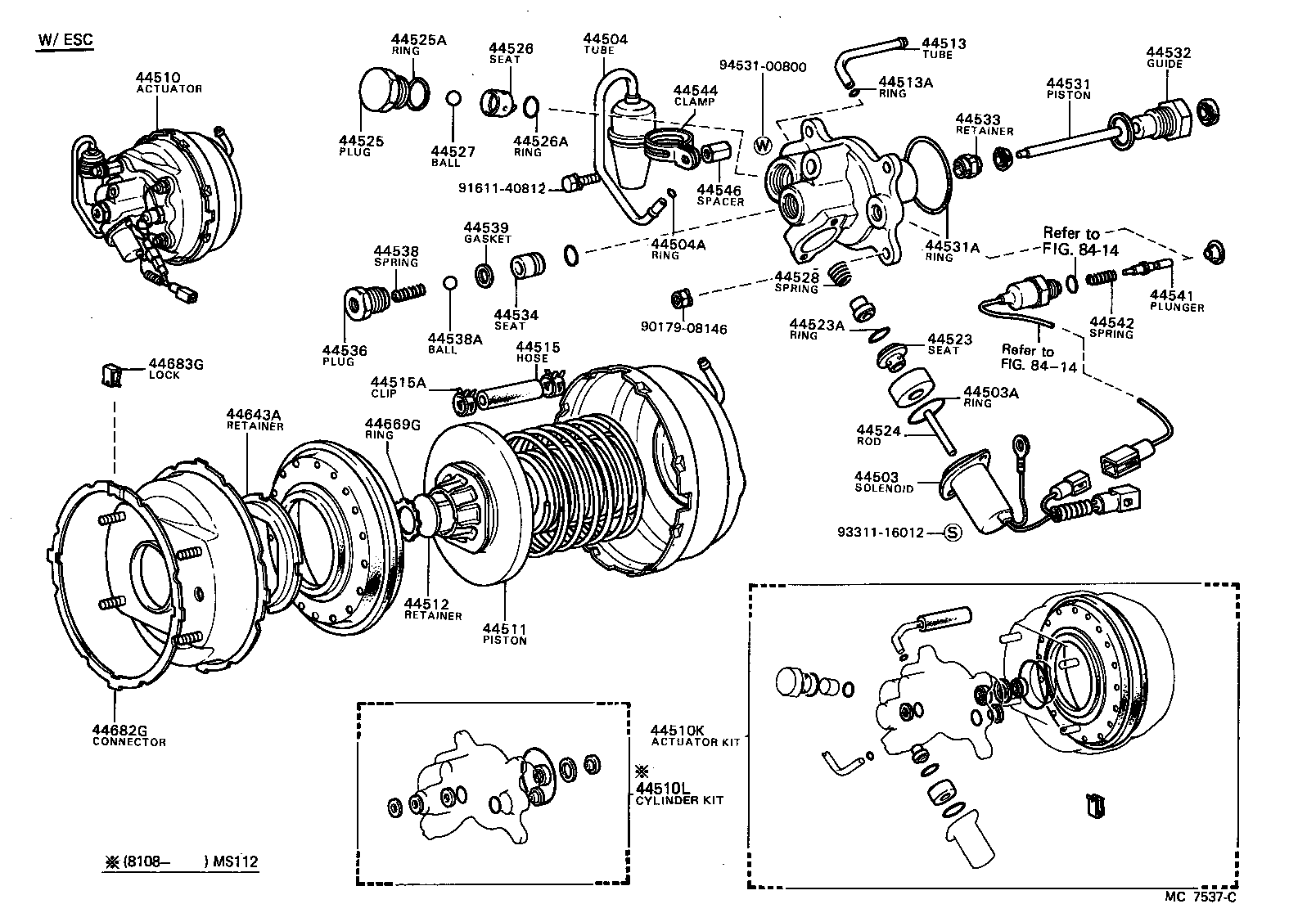

| 44503 | Solenoid Sub-assy, Brake Actuator |
| 44503A | Ring, O(FOR BRAKE ACTUATOR SOLENOID) |
| 44504 | Tube Sub-assy, Air Inlet |
| 44504A | Ring, O(FOR AIR INLET TUBE) |
| 44510 | Actuator Assy, Brake |
| 44510K | Actuator Kit, Brake |
| 44510L | Cylinder Kit, Brake Actuator |
| 44511 | Piston, Brake Actuator |
| 44512 | Retainer, Brake Actuator Piston |
| 44513 | Tube, Brake Actuator |
| 44513A | Ring, O(FOR BRAKE ACTUATOR TUBE) |
| 44515 | Hose, Brake Actuator |
| 44515A | Clip(FOR BRAKE ACTUATOR HOSE) |
| 44523 | Seat, Air Valve |
| 44523A | Ring, O(FOR AIR VALVE) |
| 44524 | Rod, Solenoid |
| 44525 | Plug, G Valve |
| 44525A | Ring, O(FOR G VALVE PLUG) |
| 44526 | Seat, G Valve |
| 44526A | Ring, O(FOR G VALVE) |
| 44527 | Ball, G Valve |
| 44528 | Spring, Air Valve |
| 44531 | Piston, Hydraulic Cylinder |
| 44531A | Ring, O(FOR HYDRAULIC CYLINDER BODY) |
| 44532 | Guide, Hydraulic Cylinder Piston |
| 44533 | Retainer, Cylinder Cap(FOR BRAKE ACTUATOR) |
| 44534 | Seat, Cut Valve (FOR BRAKE ACTUATOR) |
| 44536 | Plug, Brake Actuator Inlet |
| 44538 | Spring, Cut Valve |
| 44538A | Ball, Cut Valve |
| 44539 | Gasket, Brake Actuator Body |
| 44541 | Plunger, Switch |
| 44542 | Spring, Switch |
| 44544 | Clamp, Tube |
| 44546 | Spacer, Air Inlet |
| 44591 | Bracket, Brake Actuator, NO.1 |
| 44643A | Retainer, Diaphragm(FOR BRAKE ACTUATOR) |
| 44669G | Ring, Circular Internal(FOR BRAKE ACTUATOR) |
| 44682G | Connector, Booster Body(FOR BRAKE ACTUATOR) |
| 44683G | Lock, Connector(FOR BRAKE ACTUATOR) |
| 47159 | Bracket, Proportioning Valve |
| 47190 | Valve Assy, Proportioning & By-pass |
| 47311 | Tube, Front Brake, NO.1 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315B | Hose, Flexible(FOR BRAKE TUBE) |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47322B | Way, NO.2(FOR REAR BRAKE TUBE) |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47341B | Tube, Wheel Cylinder, Front RH NO.1 |
| 47342 | Tube, Wheel Cylinder, Front RH NO.2 |
| 47343A | Tube, Wheel Cylinder, Front LH NO.1 |
| 47344 | Tube, Wheel Cylinder, Front LH NO.2 |
| 47351 | Bracket, Flexible Hose(FOR FRONT RH) |
| 47352 | Bracket, Flexible Hose(FOR FRONT LH) |
| 47381 | Bracket, Brake Tube Clamp NO.1 |
| 47393 | Insulator, Brake Tube Heat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
