Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

35 part groups · 2 illustrations

Illustrations

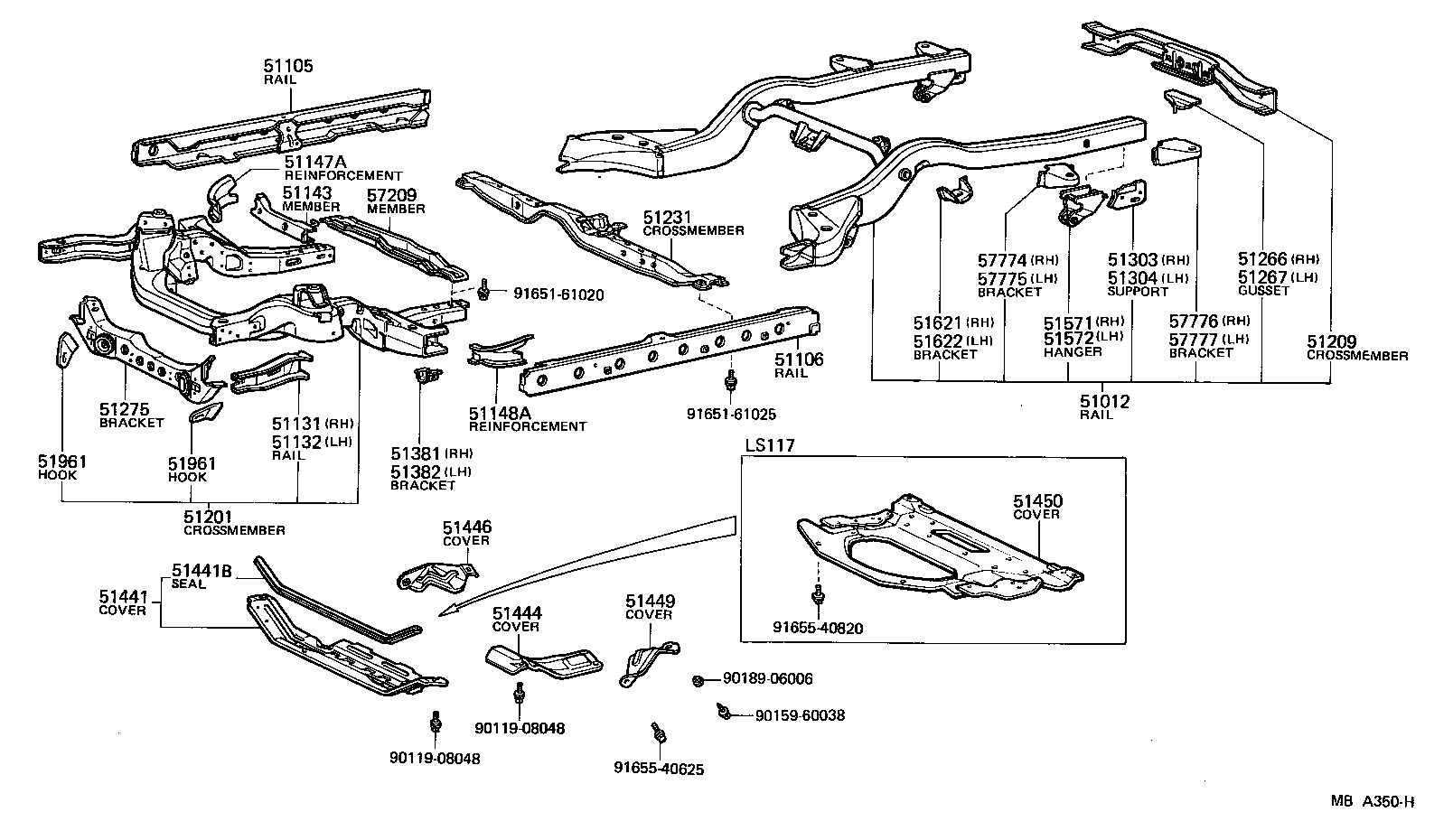

Figure MBA349K MBA349K 1979-09 → — Figure MBA350H MBA350H 1979-09 → —

Part groups

PNCDescription
51012 Rail Sub-assy, Rear Frame
51105 Rail Sub-assy, Center Frame, RH
51106 Rail Sub-assy, Center Frame, LH
51131 Rail, Front Frame, RH
51132 Rail, Front Frame, LH
51143 Reinforcement, Side Rail, Rear RH
51147A Reinforcement, Center Frame Rail, Front RH
51148A Reinforcement, Center Frame Rail Front, LH
51201 Crossmember Sub-assy, Front Suspension
51209 Crossmember Sub-assy, Frame, NO.8
51231 Crossmember, Center Support Bearing
51266 Gusset, Frame Crossmember, RH
51267 Gusset, Frame Crossmember, LH
51275 Bracket Sub-assy, Strut Bar
51303 Support Sub-assy, Rear Bumper Arm, RH
51304 Support Sub-assy, Rear Bumper Arm, LH
51381 Bracket, Jack UP Front, RH
51382 Bracket, Jack UP Front, LH
51441 Cover, Engine Under, NO.1
51441B Seal, Engine Under Cover TO Radiator Support
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51446 Cover, Front Frame Under, RH
51449 Cover, Front Frame Under, LH
51450 Cover Assy, Engine Under, Rear
51571 Hanger, Rear Spring, Front RH
51572 Hanger, Rear Spring, Front LH
51621 Bracket, Rear Bound Stopper, RH
51622 Bracket, Rear Bound Stopper, LH
51961 Hook, NO.1
57209 Member Sub-assy, Engine Rear Support
57774 Bracket, Rear Frame Rear Body Mounting, NO.7 RH
57775 Bracket, Rear Frame Rear Body Mounting, NO.7 LH
57776 Bracket, Rear Frame Rear Body Mounting, NO.8 RH
57777 Bracket, Rear Frame Rear Body Mounting, NO.8 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
