Toyota Crown
1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan
Discontinued model
Data version 1984-02

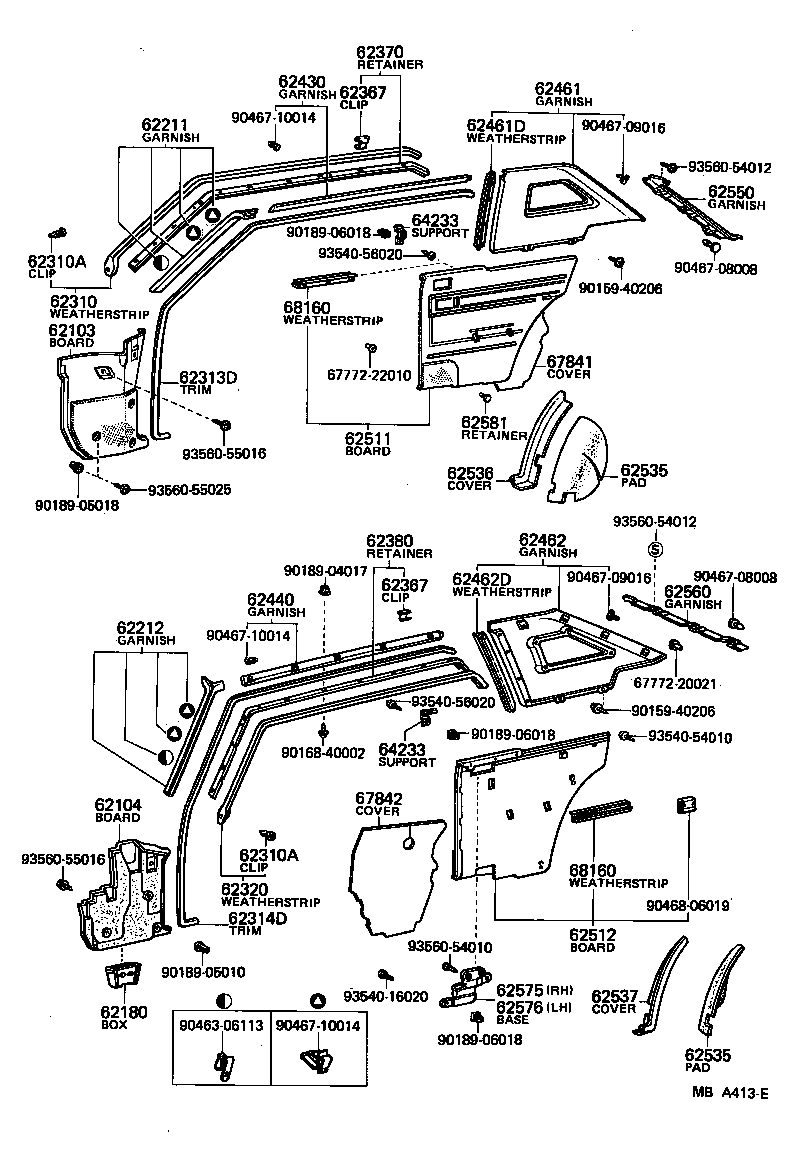

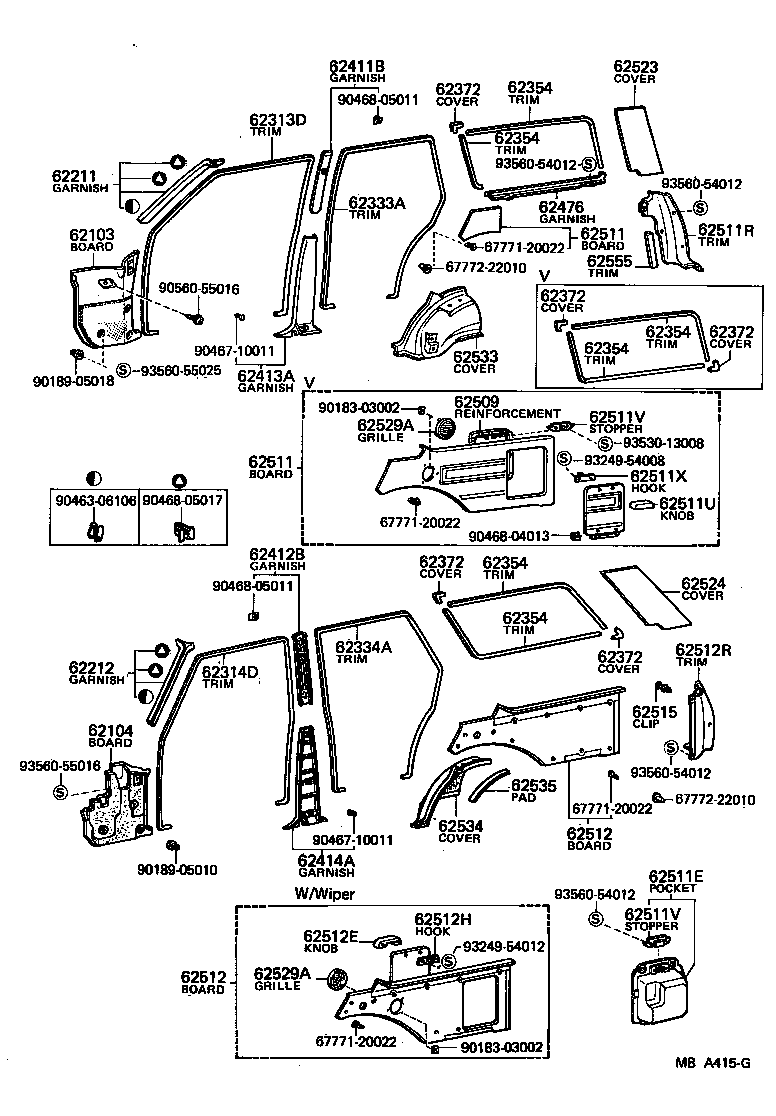

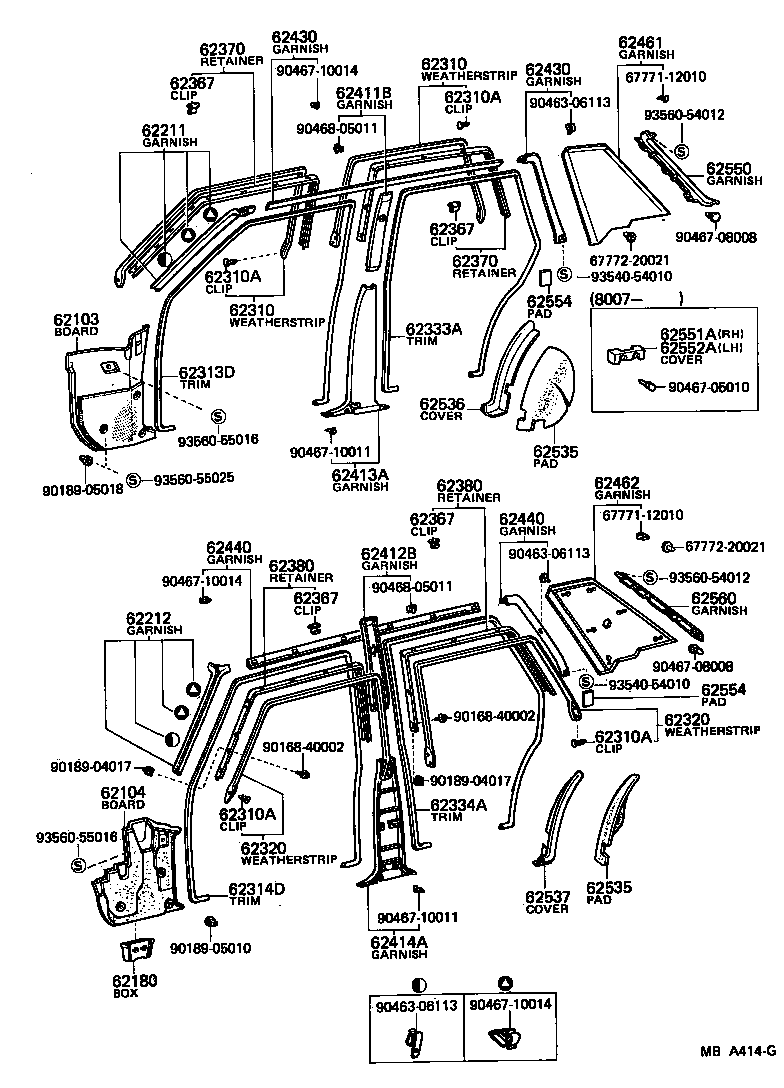

Inside Trim Board & Door Opening Trim Moulding
59 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62180 | Box Assy, Cowl Side Trash, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62310 | Weatherstrip, Roof Side Rail, RH |
| 62310A | Clip, Roof Side Rail Weatherstrip |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62320 | Weatherstrip, Roof Side Rail, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62354 | Trim, Quarter Window, Inside |
| 62367 | Clip, Door Window Glass, NO.1 |
| 62370 | Retainer Assy, Roof Side Rail Weatherstrip, RH |
| 62372 | Cover, Quarter Window Inside Trim |
| 62380 | Retainer Assy, Roof Side Rail Weatherstrip, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62461 | Garnish, Roof Side Trim, RH |
| 62461D | Weatherstrip Assy, Quarter Glass, Inner Rear RH |
| 62462 | Garnish, Roof Side Trim, LH |
| 62462D | Weatherstrip Assy, Quarter Glass, Inner Rear LH |
| 62476 | Garnish, Spare Wheel Cover End |
| 62509 | Reinforcement Sub-assy, Quarter Trim |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511E | Pocket, Quarter Trim |
| 62511R | Trim, Rear Body Inside, Rear RH |
| 62511U | Knob, Jack Cover |
| 62511V | Stopper, Jack Cover |
| 62511X | Hook, Jack Cover |
| 62512 | Board, Quarter Inside Trim, LH |
| 62512E | Knob, Rear Washer Tank Cover |
| 62512H | Hook, Rear Washer Tank Cover |
| 62512R | Trim, Rear Body Inside, Rear LH |
| 62515 | Clip, Quarter Inside Trim |
| 62523 | Cover, Rear Pillar Upper Garnish, RH |
| 62524 | Cover, Rear Pillar Upper Garnish, LH |
| 62529A | Grille, Speaker |
| 62533 | Cover, Quarter Wheel House Side Trim, RH |
| 62534 | Cover, Quarter Wheel House Side Trim, LH |
| 62535 | Pad, Quarter Wheel House Trim |
| 62536 | Cover, Quarter Wheel House Trim Front, RH |
| 62537 | Cover, Quarter Wheel House Trim Front, LH |
| 62550 | Garnish Assy, Rear Body Pillar, RH |
| 62554 | Pad, Rear Seat Side |
| 62555 | Trim, Back Side |
| 62560 | Garnish Assy, Rear Body Pillar, LH |
| 62575 | Base, Quarter Trim Upper Belt Hole Cover, RH |
| 62576 | Base, Quarter Trim Upper Belt Hole Cover, LH |
| 62581 | Retainer, Quarter Trim |
| 64233 | Support, Quarter Trim |
| 67841 | Cover, Quarter Service Hole, NO.1 RH |
| 67842 | Cover, Quarter Service Hole, NO.1 LH |
| 68160 | Weatherstrip Assy, Rear Quarter, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
