Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

20 part groups · 5 illustrations

Illustrations

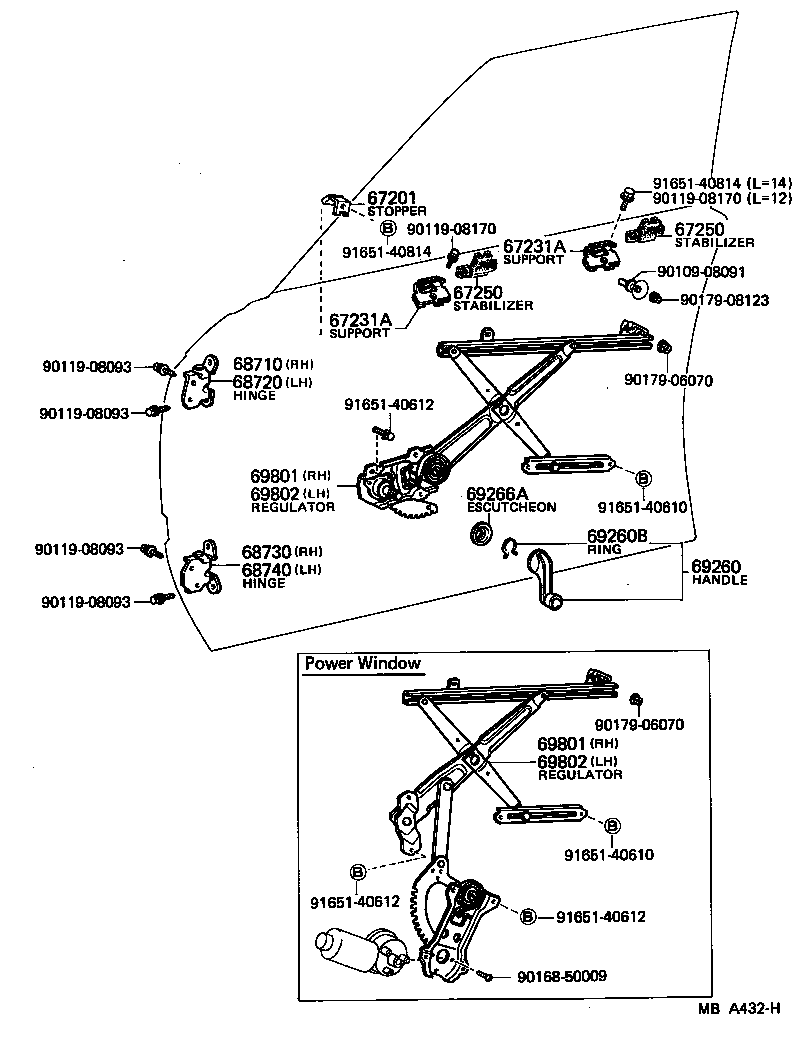

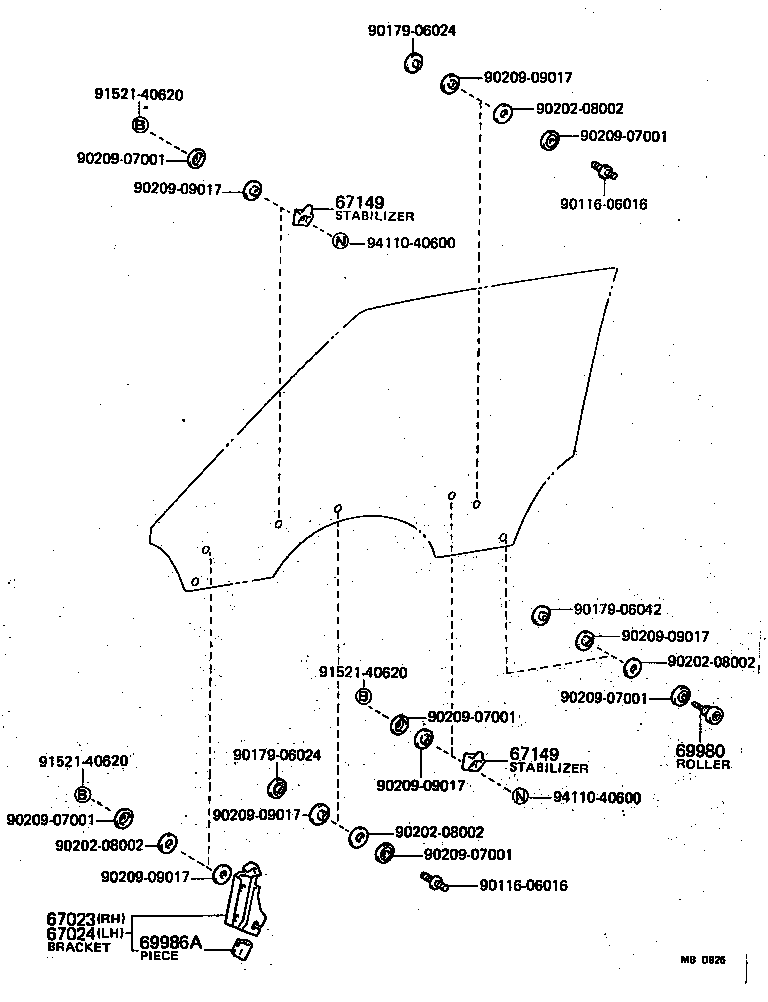

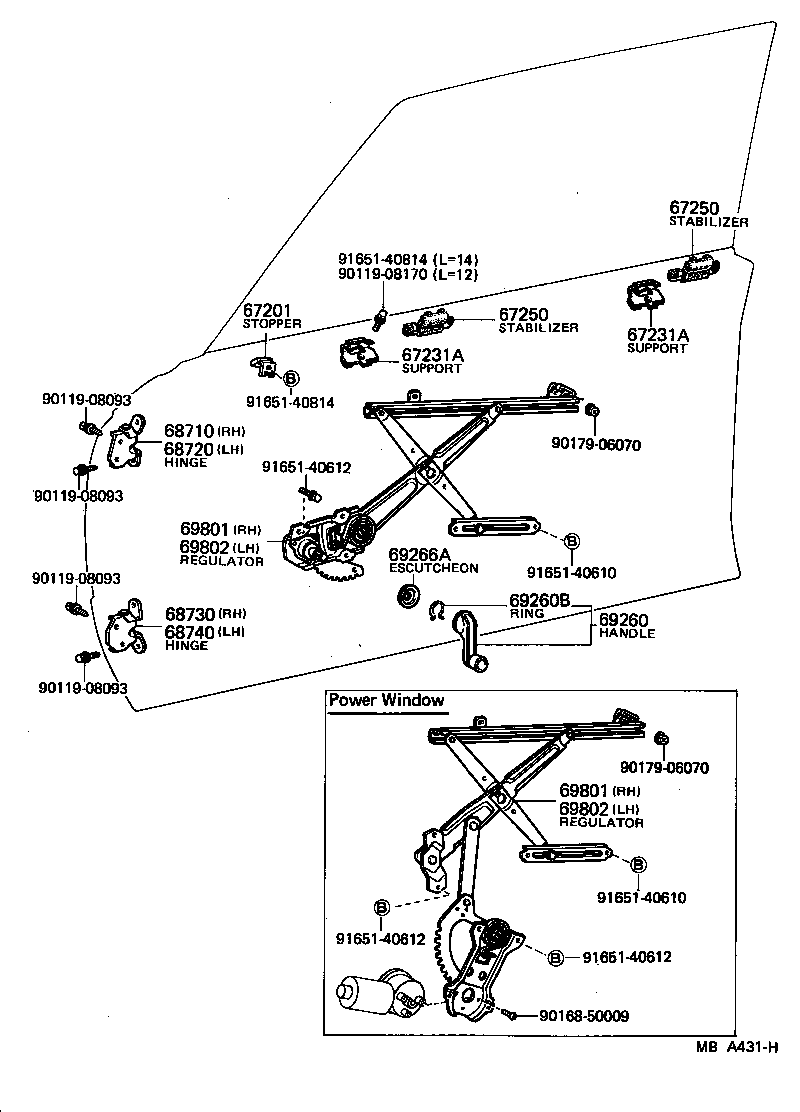

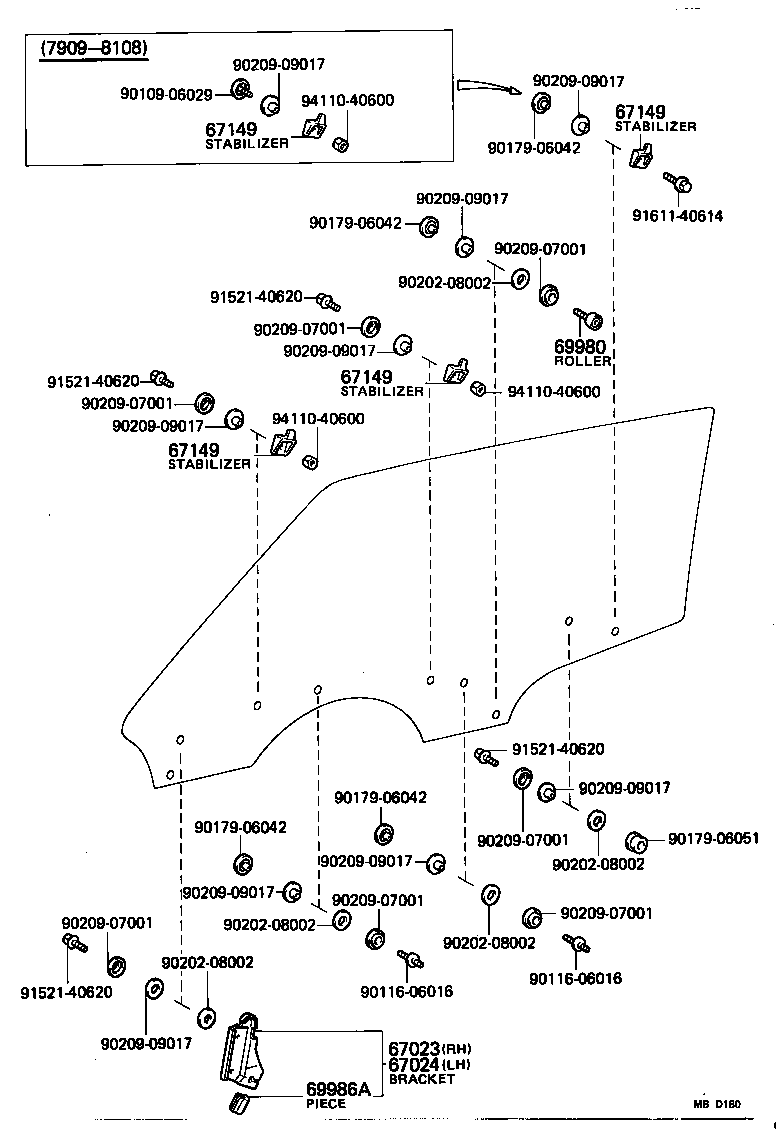

Figure MBA430D MBA430D 1979-09 → — Figure MBA431H MBA431H 1979-09 → — Figure MBD180 MBD180 1979-09 → — Figure MBA432H MBA432H 1979-09 → — Figure MBD925 MBD925 1979-09 → —

Part groups

PNCDescription
67023 Bracket Sub-assy, Front Door Glass Support, RH
67024 Bracket Sub-assy, Front Door Glass Support, LH
67149 Stabilizer, Front Door Glass
67201 Stopper Assy, Door Glass(FOR FRONT DOOR)
67231A Support, Front Door Trim
67250 Stabilizer Assy, Front Door Glass
68171 Weatherstrip, Front Door Glass Channel
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69260 Handle Assy, Front Door Window Regulator
69260B Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69266A Escutcheon, Door Regulator Handle(FOR FRONT DOOR)
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69901 Channel Sub-assy, Front Door Glass, RH
69902 Channel Sub-assy, Front Door Glass, LH
69980 Roller Assy, Front Door Glass Guide
69986A Piece, Front Door Glass Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
