Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

21 part groups · 3 illustrations

Illustrations

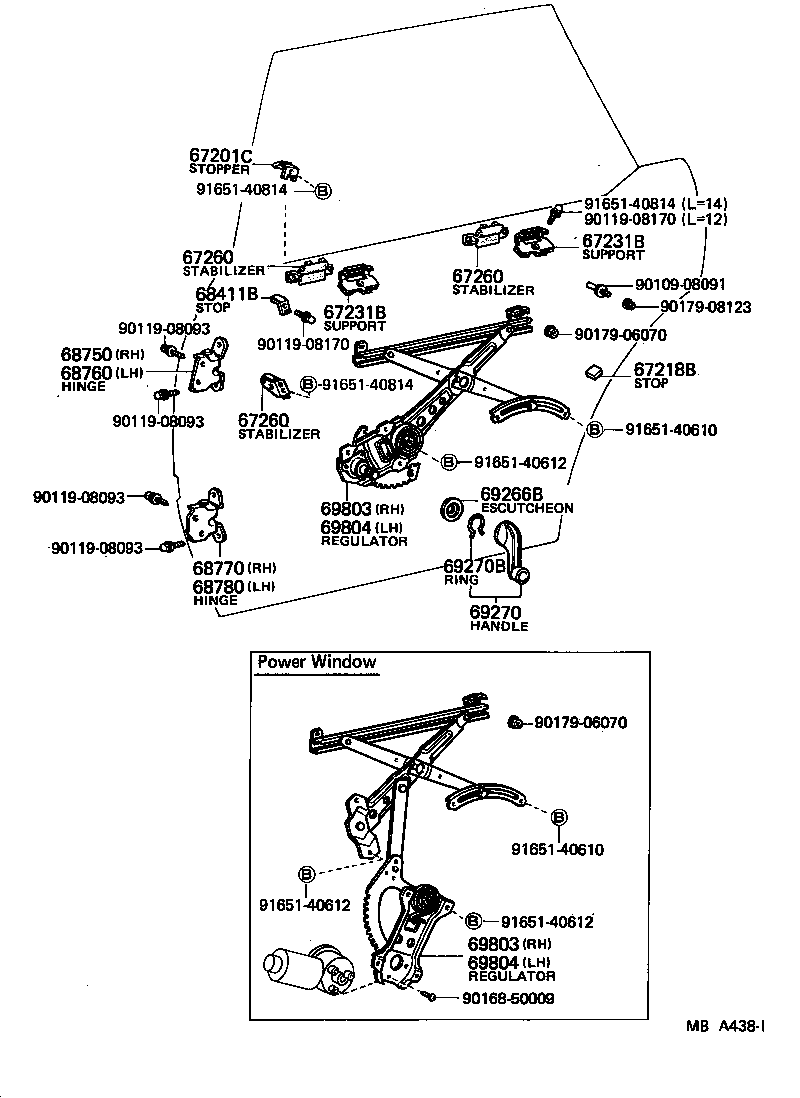

Figure MBA437D MBA437D 1979-09 → — Figure MBA438I MBA438I 1979-09 → — Figure MBD926 MBD926 1979-09 → —

Part groups

PNCDescription
67148A Stabilizer, Rear Door Glass Male, RH
67148B Stabilizer, Rear Door Glass Male, LH
67201C Stopper Assy, Door Glass(FOR REAR DOOR)
67218B Stop, Rear Door Window, Lower Rear
67231B Support, Rear Door Trim
67260 Stabilizer, Rear Door Glass
68117 Plate, Door Glass
68173 Weatherstrip, Rear Door Glass Channel
68411B Stop, Rear Door Window Glass
68750 Hinge Assy, Rear Door, Upper RH
68760 Hinge Assy, Rear Door, Upper LH
68770 Hinge Assy, Rear Door, Lower RH
68780 Hinge Assy, Rear Door, Lower LH
69266B Escutcheon, Door Regulator Handle(FOR REAR DOOR)
69270 Handle Assy, Rear Door Window Regulator
69270B Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
69903 Channel Sub-assy, Rear Door Glass, RH
69904 Channel Sub-assy, Rear Door Glass, LH
69980A Roller Assy, Rear Door Glass Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
