Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

13 part groups · 3 illustrations

Illustrations

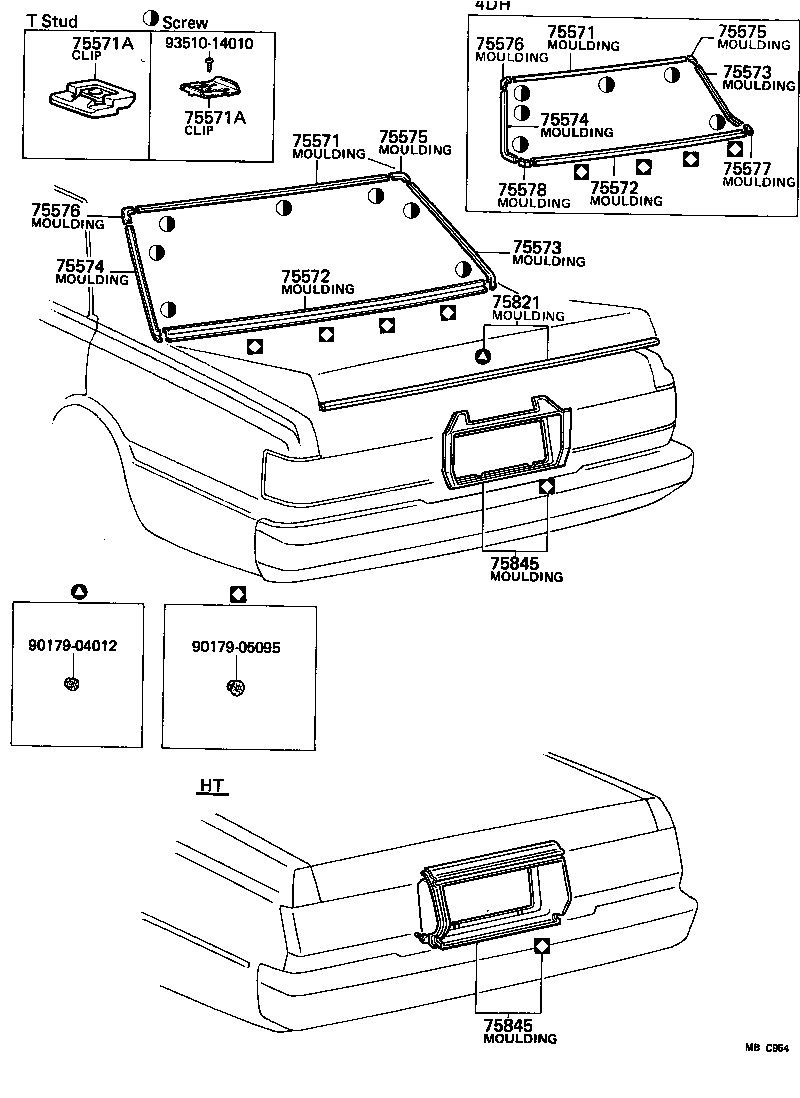

Figure MBA482F MBA482F 1979-09 → 1981-08 Figure MBC954 MBC954 1981-08 → — Figure MBA484 MBA484 1979-09 → —

Part groups

PNCDescription
75083 Panel Sub-assy, Lower Back Finish, RH
75084 Panel Sub-assy, Lower Back Finish, LH
75571 Moulding, Back Window, Outside Upper
75571A Clip(FOR BACK WINDOW MOULDING SET)
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75821 Moulding, Luggage Compartment Door Back
75845 Moulding, Body Lower Back Panel, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
