Toyota Crown
1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan
Discontinued model
Data version 1984-02

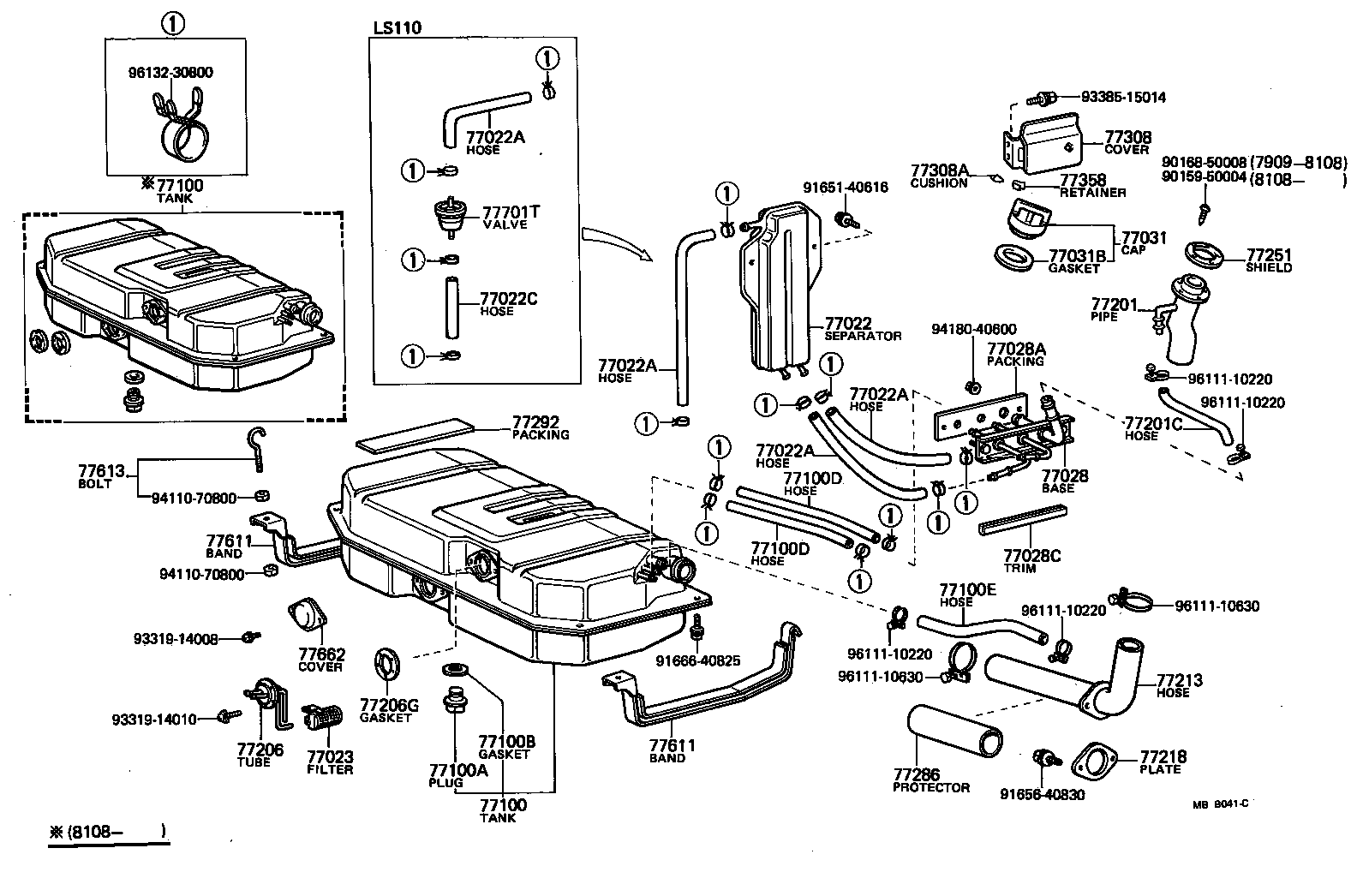

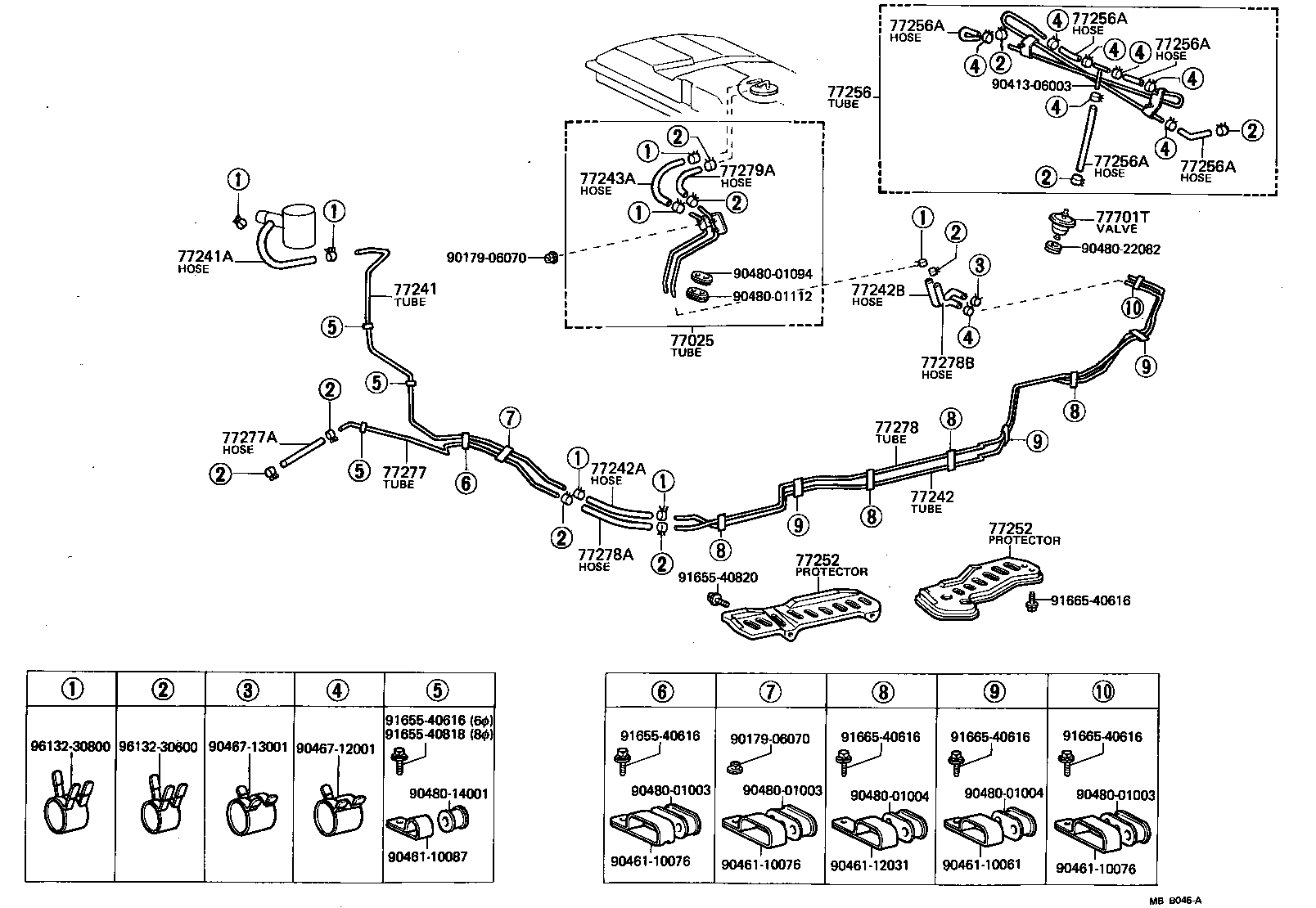

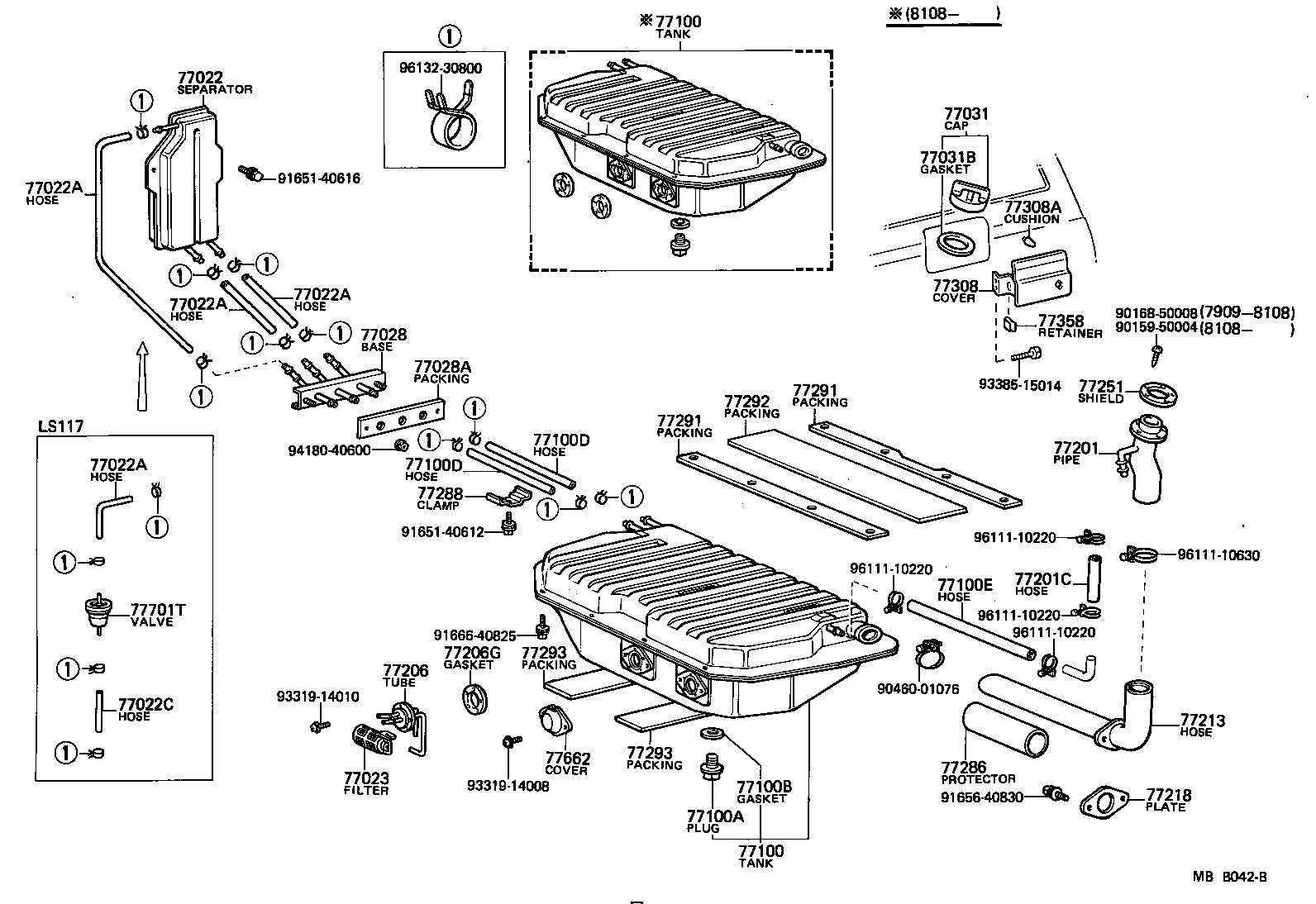

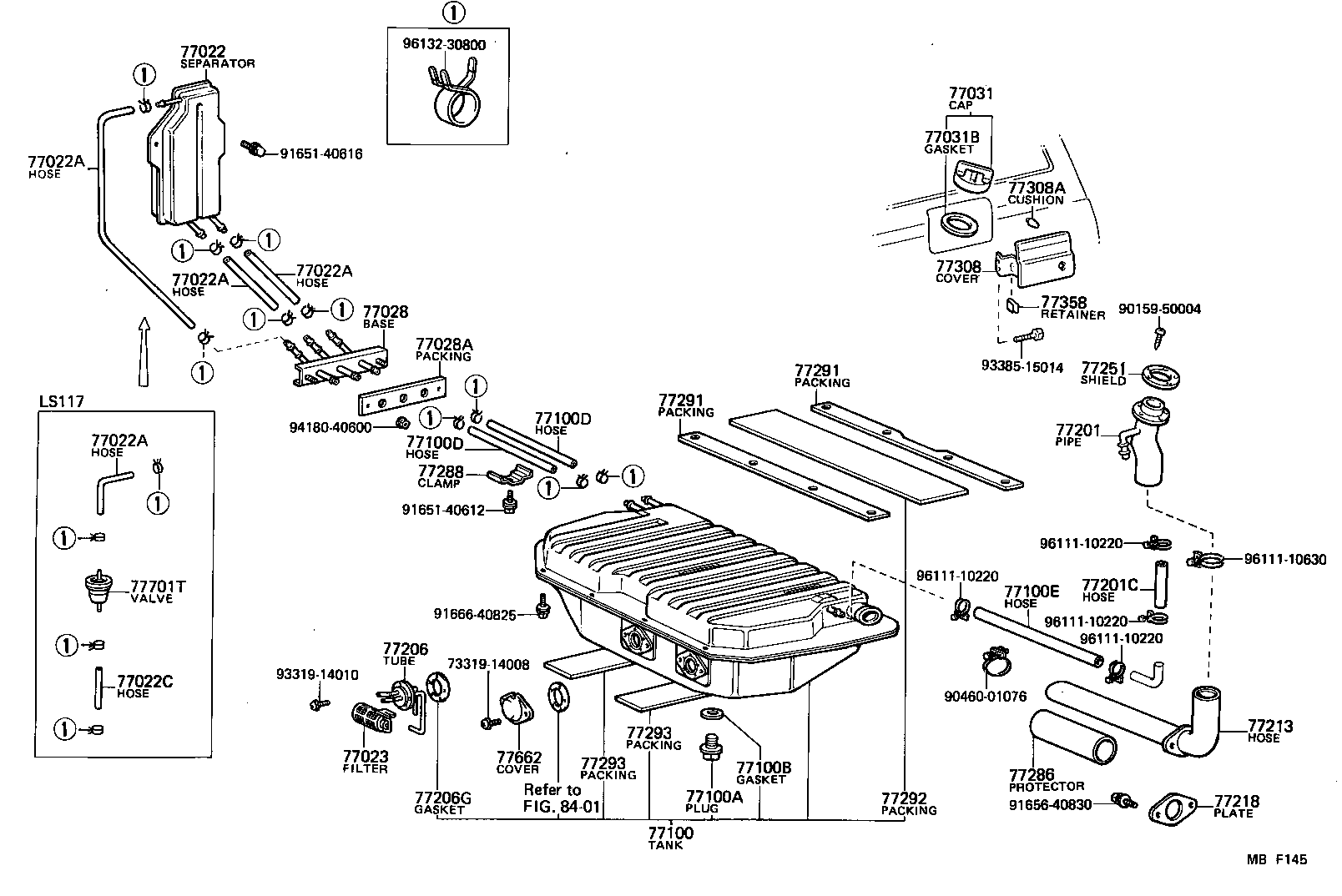

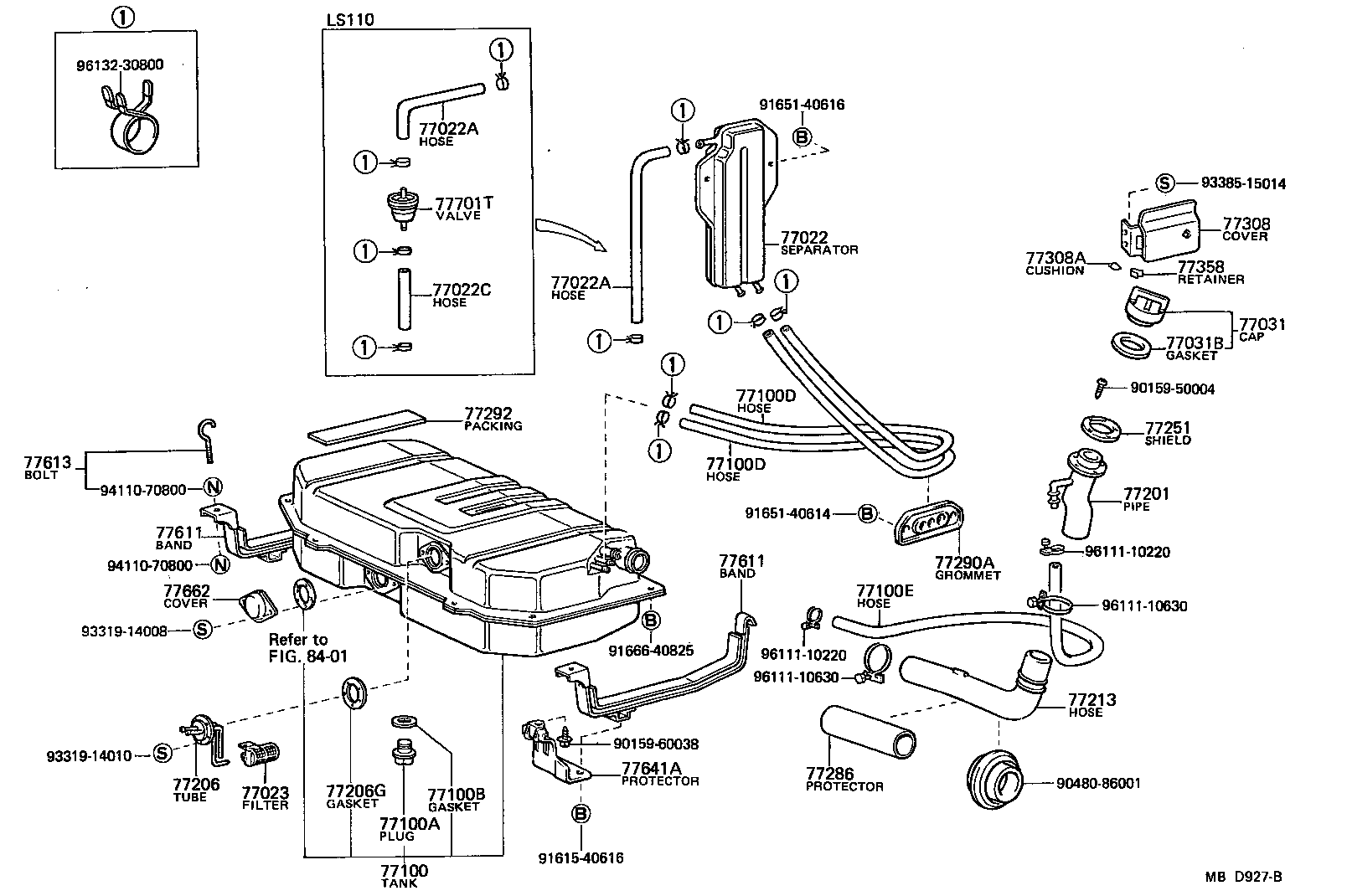

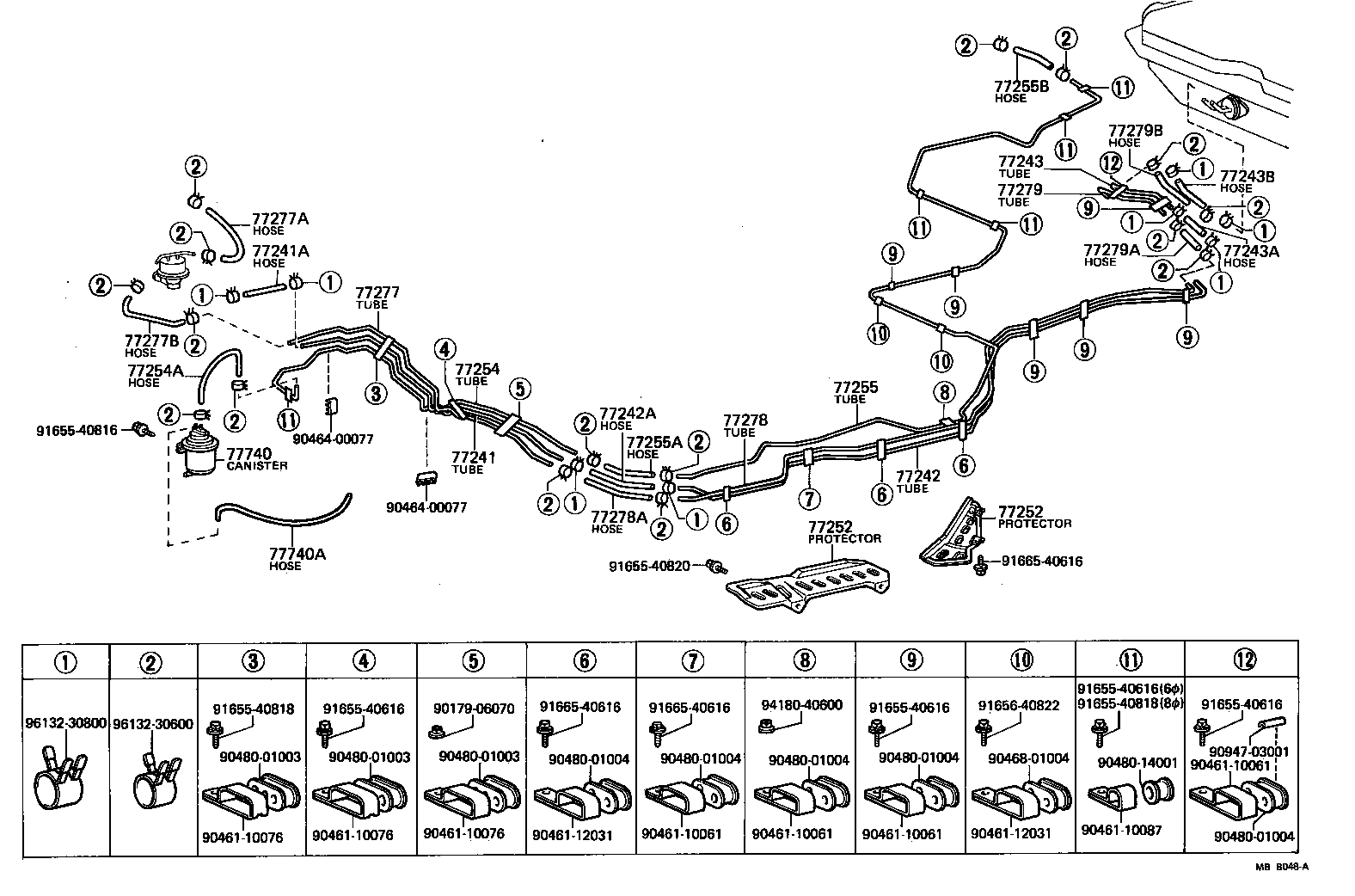

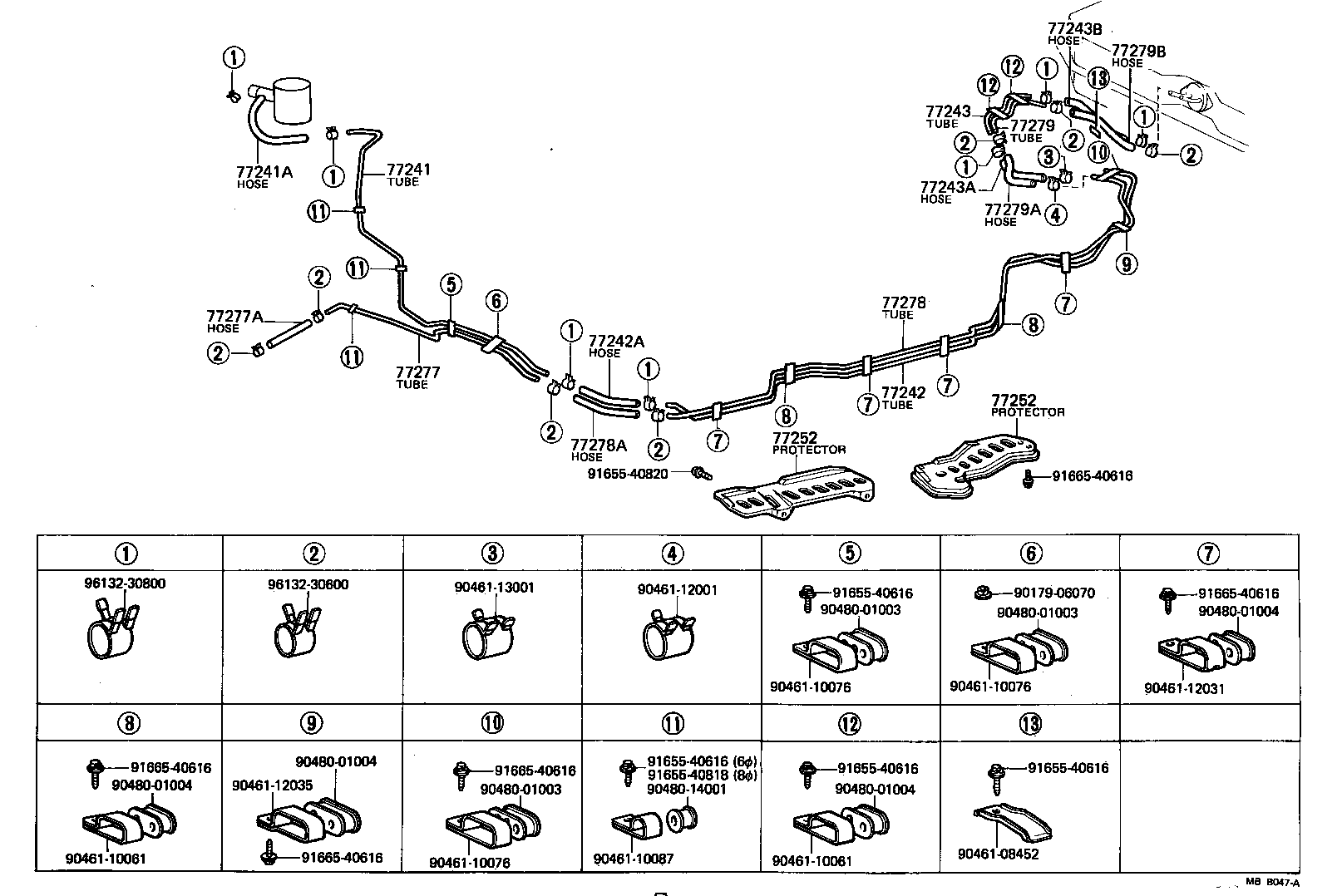

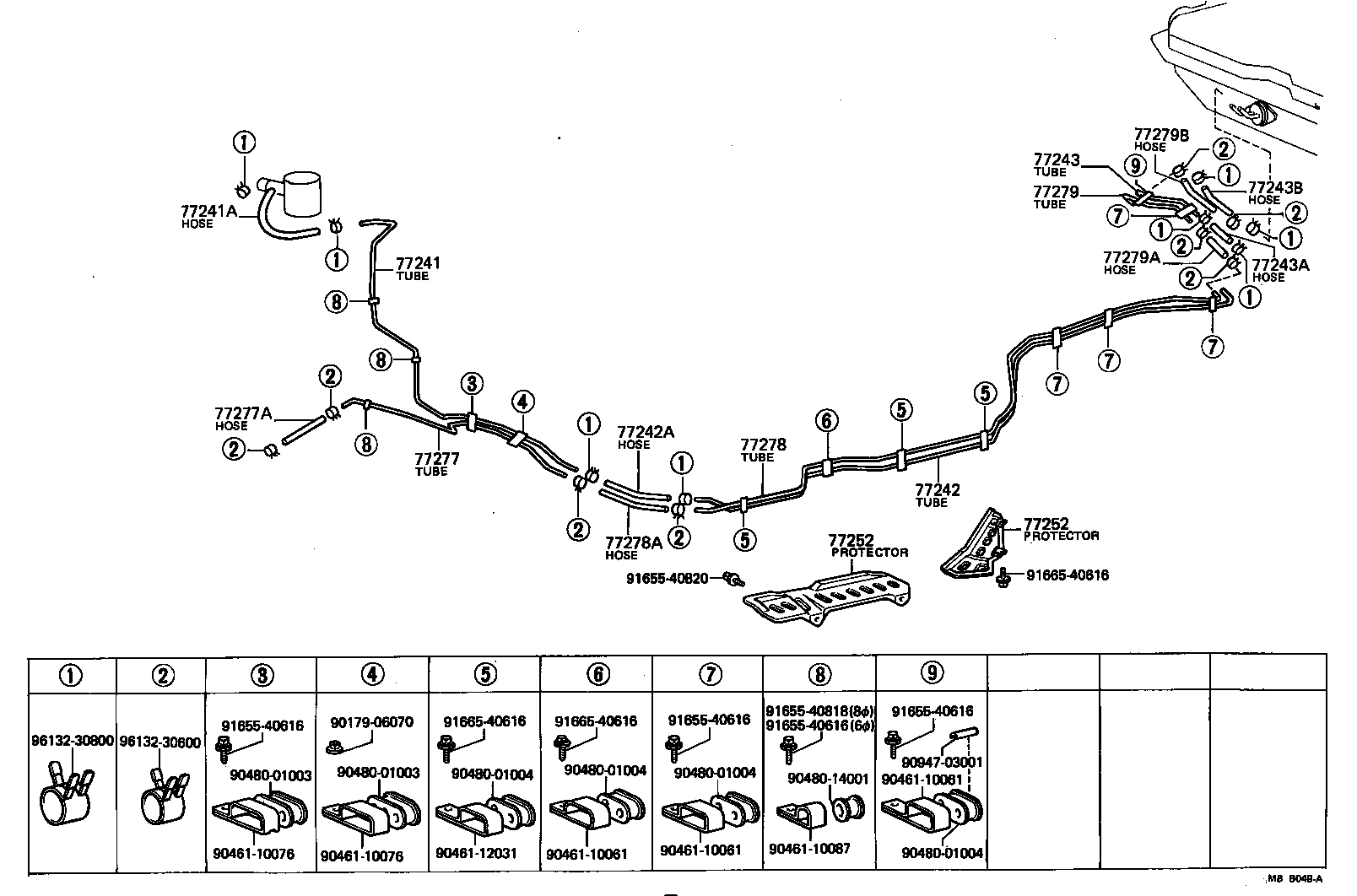

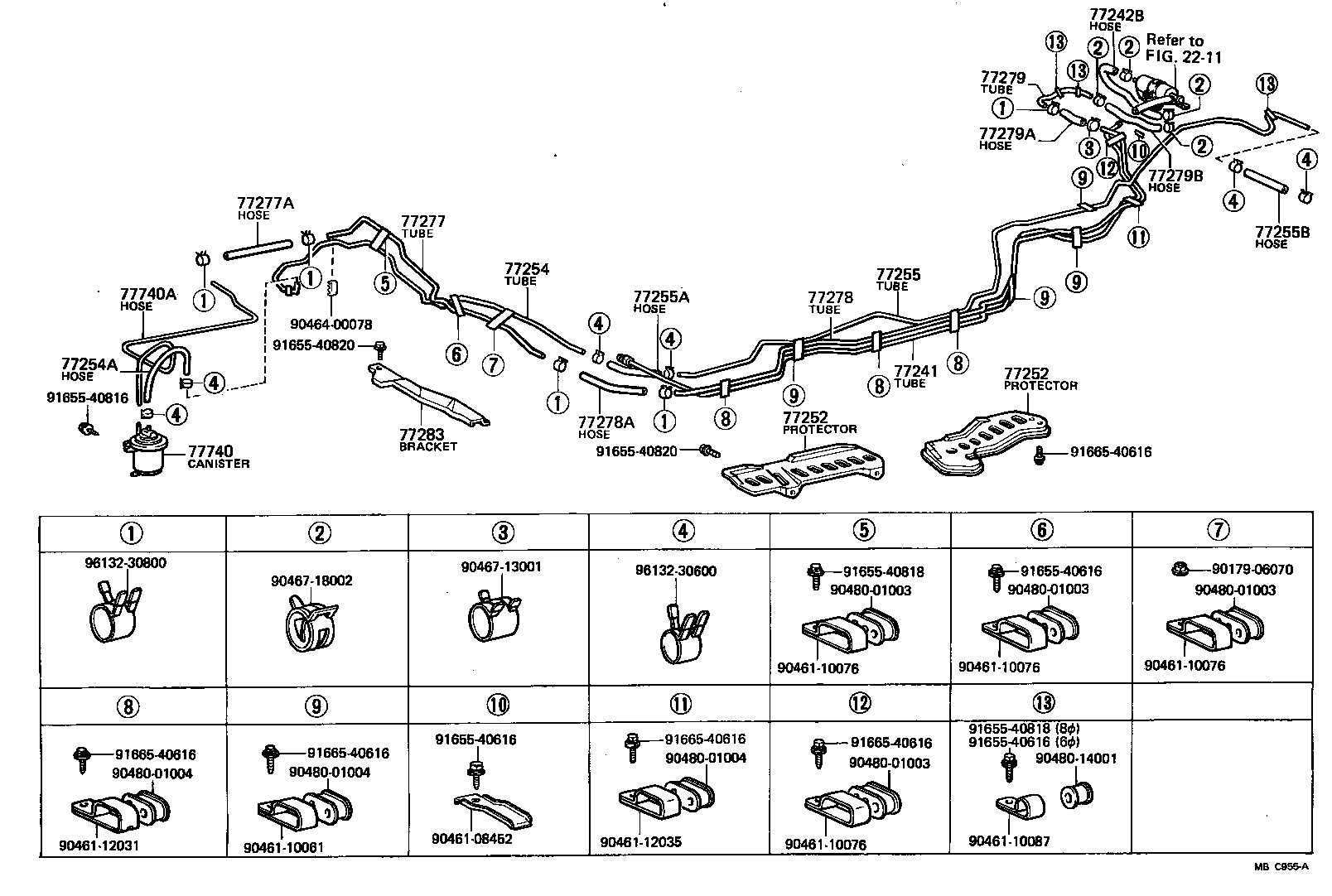

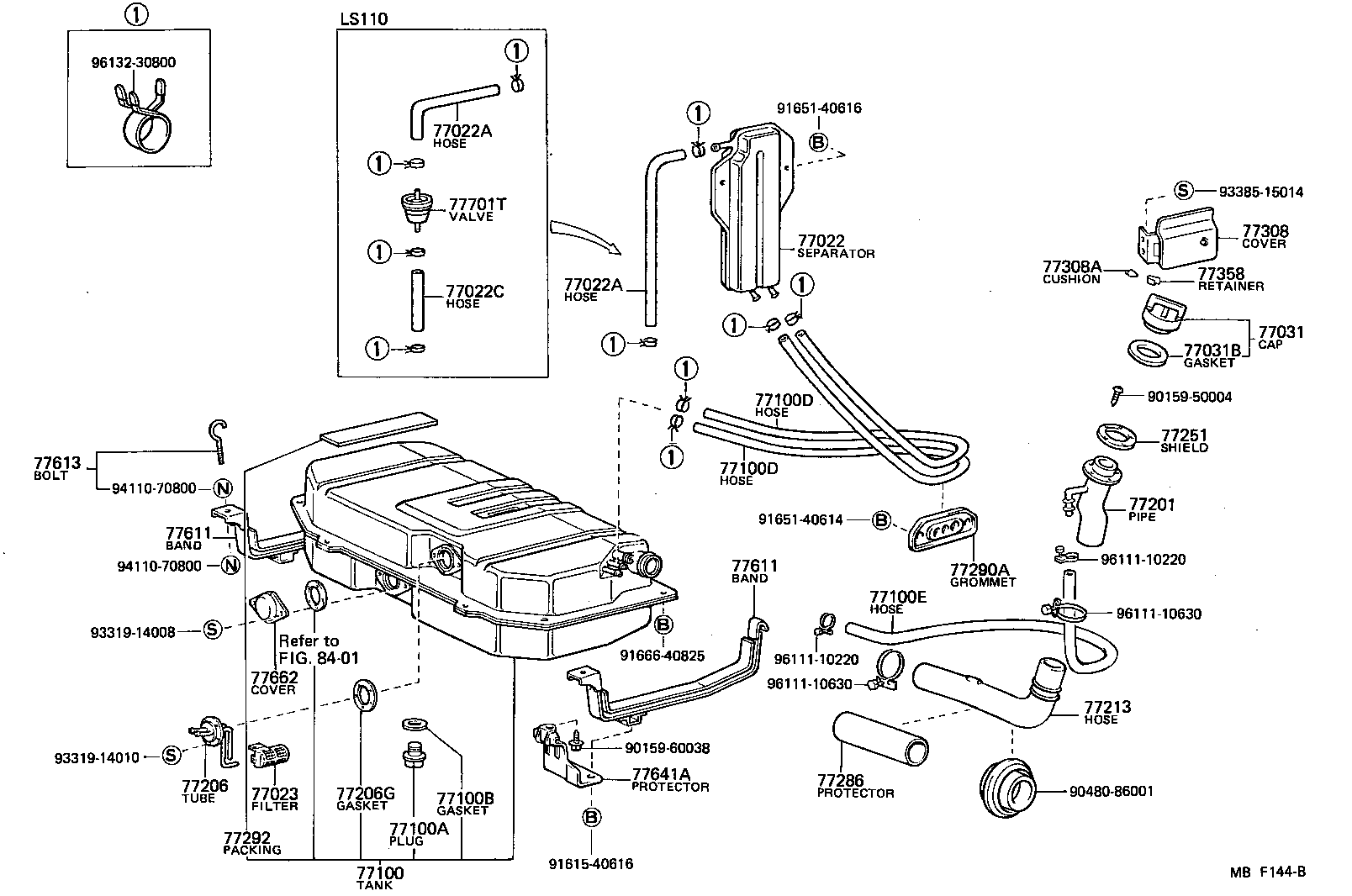

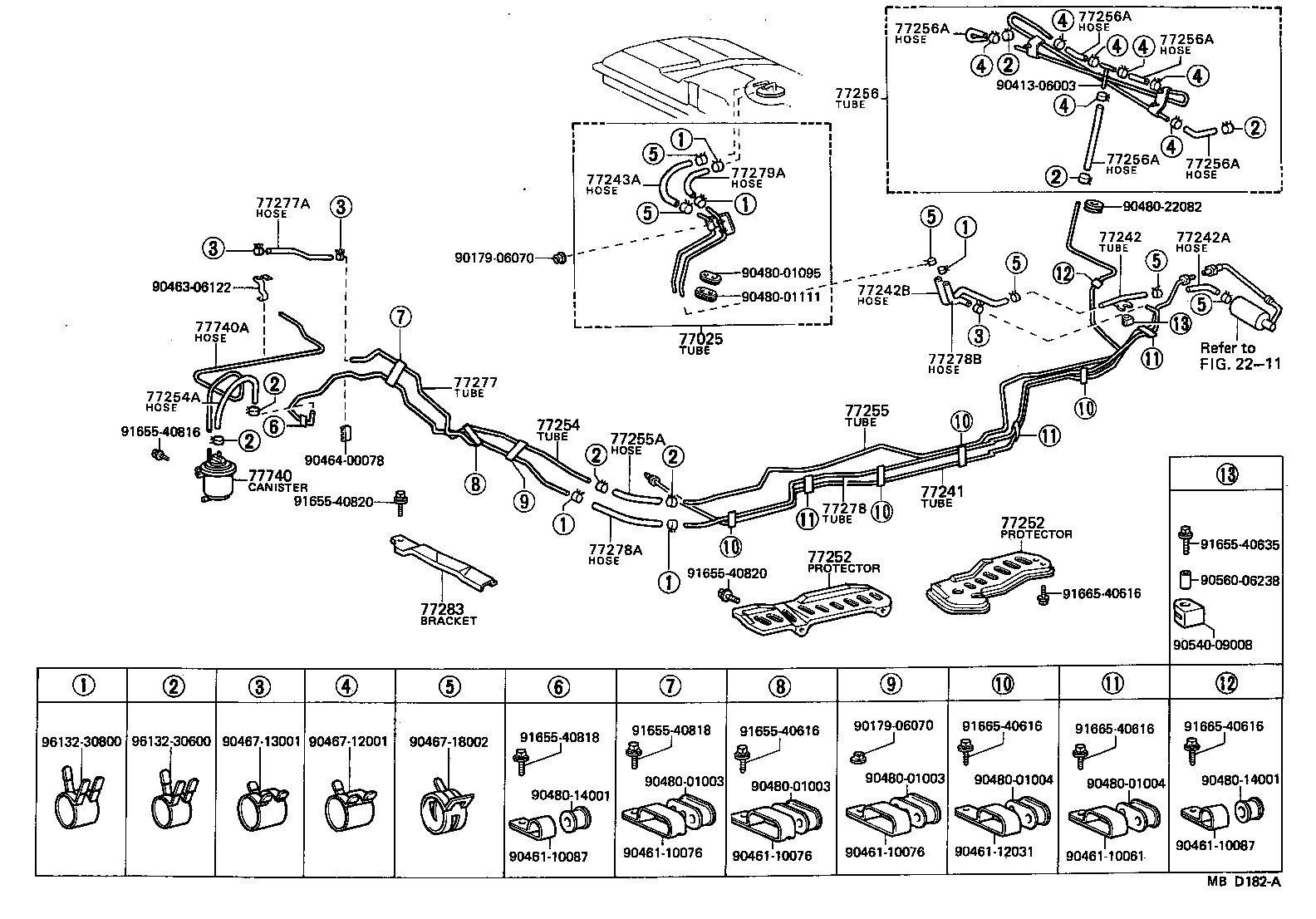

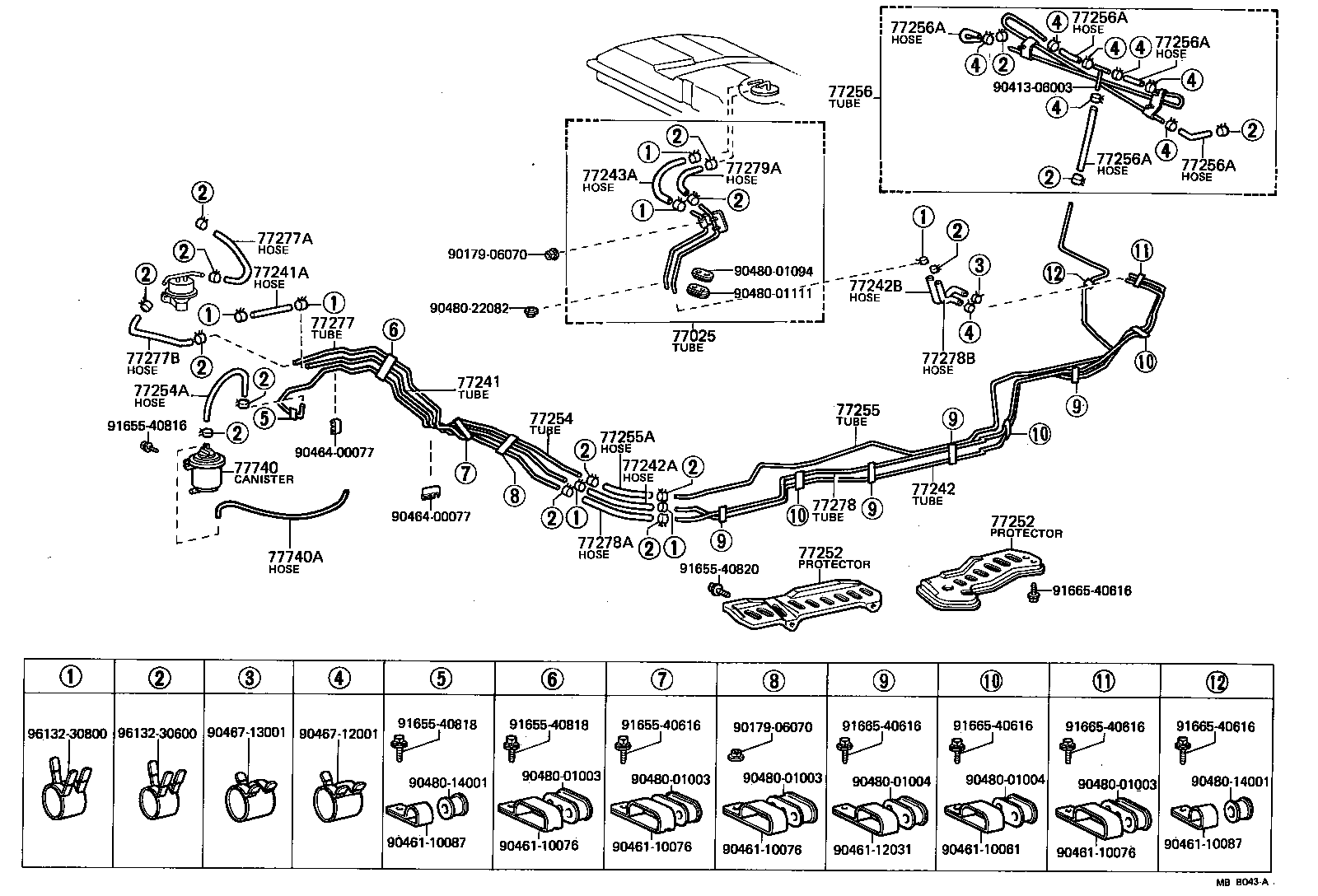

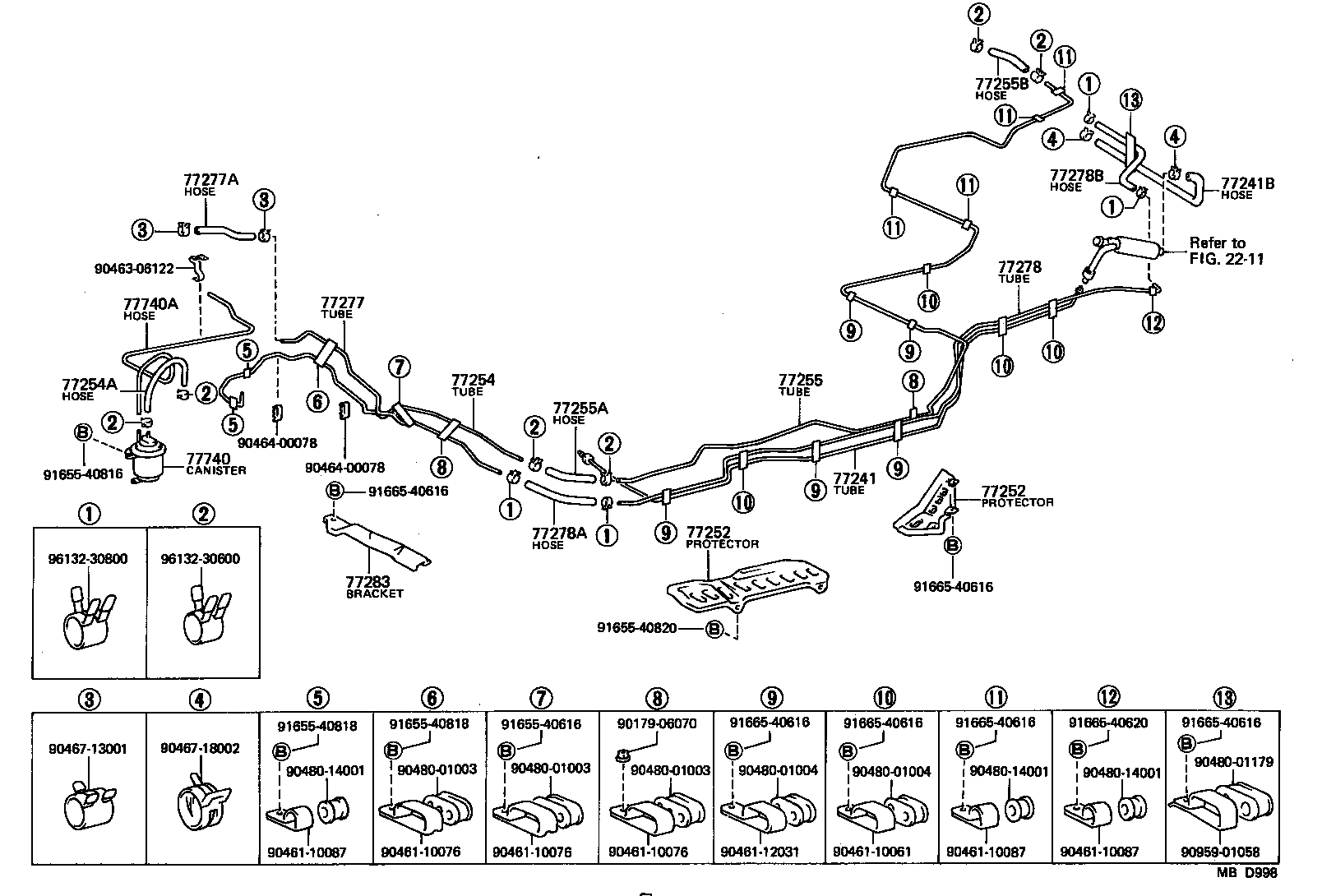

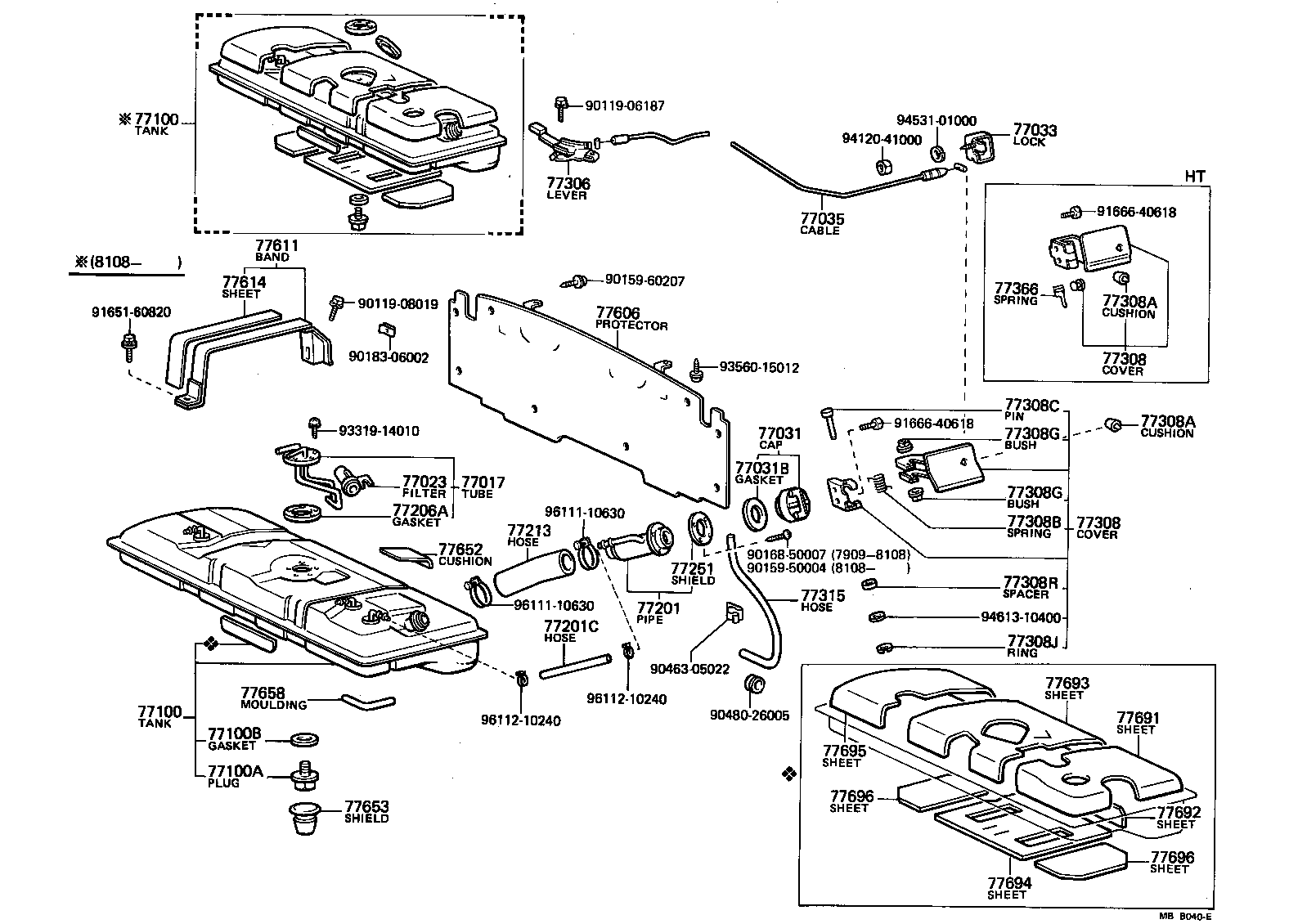

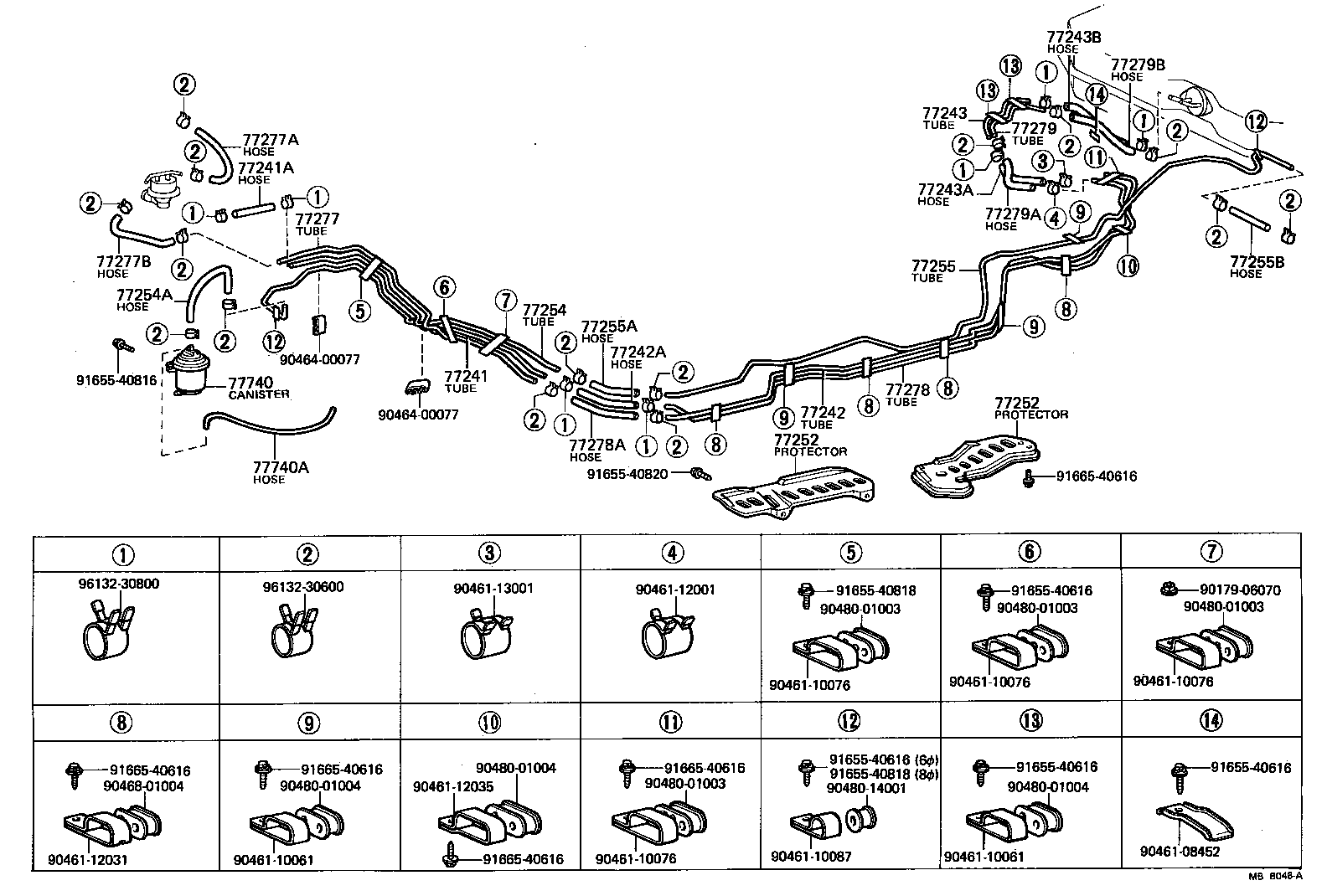

Fuel Tank & Tube
112 part groups · 16 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 77001 | Tank Assy, Fuel (LPG) |
| 77001B | Valve (FOR LPG TANK) |
| 77001F | Plug, Lpg Tank |
| 77017 | Tube Sub-assy, Fuel And Evaporation Vent |
| 77022 | Separator Sub-assy, Fuel Evaporative |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77022C | Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77025 | Tube Sub-assy, Fuel Main & Return, Rear |
| 77028 | Base Sub-assy, Breather Joint, NO.1 |
| 77028A | Packing, NO.1 (FOR BREATHER JOINT, NO.1) |
| 77028C | Trim, Hose Protector |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77033 | Lock Sub-assy, Fuel Tank Cap |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77100E | Hose, Fuel, NO.2(FOR FUEL TANK) |
| 77128 | Glass, Fuel Tank Window |
| 77161 | Bracket, Fuel Tank, Front RH |
| 77162 | Bracket, Fuel Tank, Front LH |
| 77163 | Bracket, Fuel Tank, Rear RH |
| 77164 | Bracket, Fuel Tank, Rear LH |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201C | Hose, Fuel, NO.3(FOR FUEL TANK INLET PIPE) |
| 77206 | Tube Sub-assy, Fuel Tank Suction |
| 77206A | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77206G | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77218 | Plate, Fuel Inlet Pipe Set |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77242 | Tube, Fuel Main, NO.2 |
| 77242A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2) |
| 77242B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2) |
| 77243 | Tube, Fuel Main, NO.3 |
| 77243A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3) |
| 77243B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3) |
| 77251 | Shield, Fuel Tank, Inlet, NO.1 |
| 77252 | Protector, Fuel Tube |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77255 | Tube, Fuel Emission, NO.2 |
| 77255A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2) |
| 77255B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.2) |
| 77256 | Tube, Fuel Emission, NO.3 |
| 77256A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.3) |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77278 | Tube, Fuel Return, NO.2 |
| 77278A | Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2) |
| 77278B | Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2) |
| 77279 | Tube, Fuel Return, NO.3 |
| 77279A | Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.3) |
| 77279B | Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.3) |
| 77283 | Bracket, Fuel Tube |
| 77286 | Protector, Fuel Tank Inlet Pipe |
| 77288 | Clamp, Breather Hose |
| 77290A | Grommet Assy, Fuel Hose |
| 77291 | Packing, Fuel Tank Support, Upper |
| 77292 | Packing, Fuel Tank, Center |
| 77293 | Packing, Fuel Tank, Lower |
| 77305 | Lock Sub-assy, Fuel Tank Cap |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77308B | Spring, Torsion(FOR FUEL INLET BOX COVER) |
| 77308C | Pin, Straight(FOR FUEL INLET BOX COVER) |
| 77308G | Bush(FOR FUEL INLET BOX COVER) |
| 77308J | Ring(FOR FUEL INLET BOX COVER) |
| 77308R | Spacer(FOR FUEL INLET BOX COVER) |
| 77315 | Hose, Fuel Filler Opening |
| 77338 | Rod, Fuel Tank Cap Lock |
| 77358 | Retainer, Fuel Inlet Cushion |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77390 | Valve Assy, Fuel Tank Inlet |
| 77602 | Case Sub-assy, Fuel Tank, Upper |
| 77603 | Case Sub-assy, Fuel Tank, Lower |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77611 | Band, Fuel Tank |
| 77613 | Bolt, Fuel Tank Band Set |
| 77614 | Seat, Fuel Tank Band |
| 77617 | Gasket, Fuel Tank Case Cover |
| 77618 | Gasket, Case Window |
| 77623A | Frame, Tank Cover Window Glass |
| 77623B | Ring, O (FOR TANK COVER WINDOW GLASS FRAME) |
| 77628 | Glass, Case Cover Window |
| 77638A | Ring, O (FOR TANK VALVE JOINT SLEEVE) |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77652 | Cushion, Fuel Tank, NO.1 |
| 77653 | Shield, Fuel Tank Drain Plug |
| 77656 | Gasket, Breather Cover, Upper |
| 77657 | Gasket, Breather Cover, Lower |
| 77658 | Moulding, Fuel Tank Edge |
| 77661A | Cover, Fuel Tank Filler Hose |
| 77662 | Cover, Fuel Tank Gage |
| 77669 | Protector, Fuel Tank Rear Mounting Bracket Edge |
| 77691 | Sheet, Fuel Tank Silencer, Upper NO.1 |
| 77692 | Sheet, Fuel Tank Silencer, Lower NO.1 |
| 77693 | Sheet, Fuel Tank Silencer, Upper NO.2 |
| 77694 | Sheet, Fuel Tank Silencer, Lower NO.2 |
| 77695 | Sheet, Fuel Tank Silencer, Upper NO.3 |
| 77696 | Sheet, Fuel Tank Silencer, Lower NO.3 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
