Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

20 part groups · 12 illustrations

Illustrations

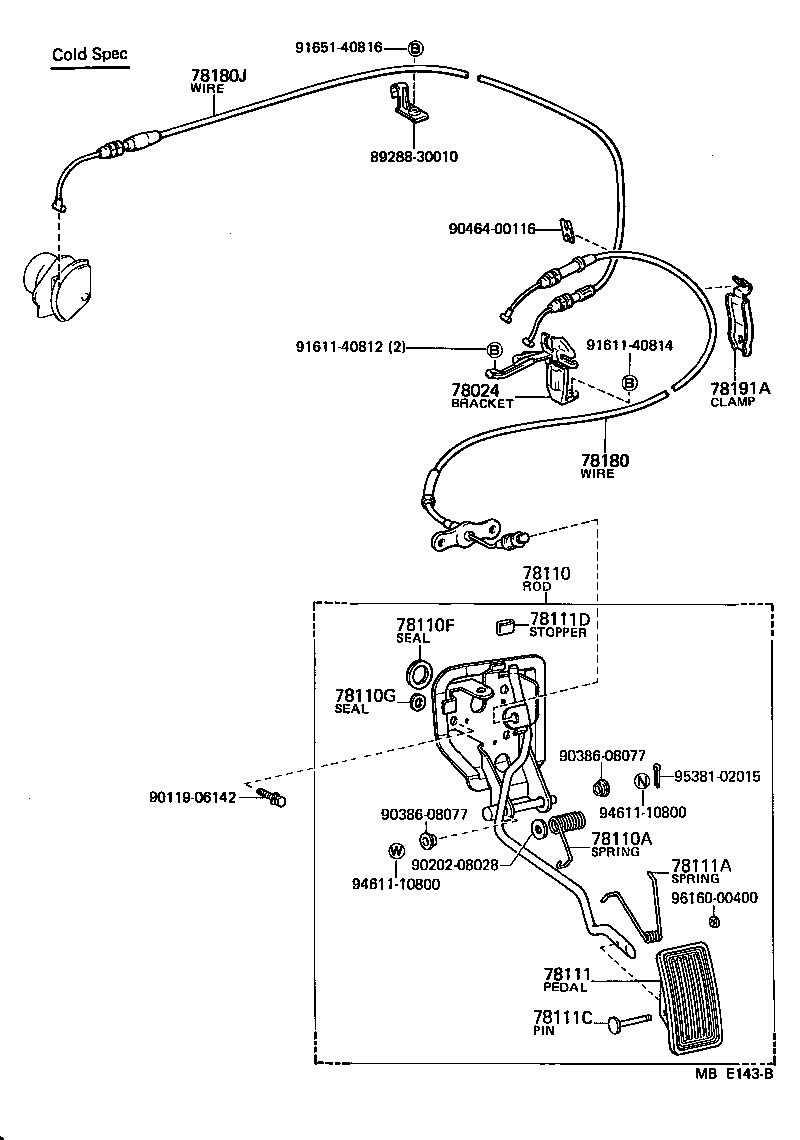

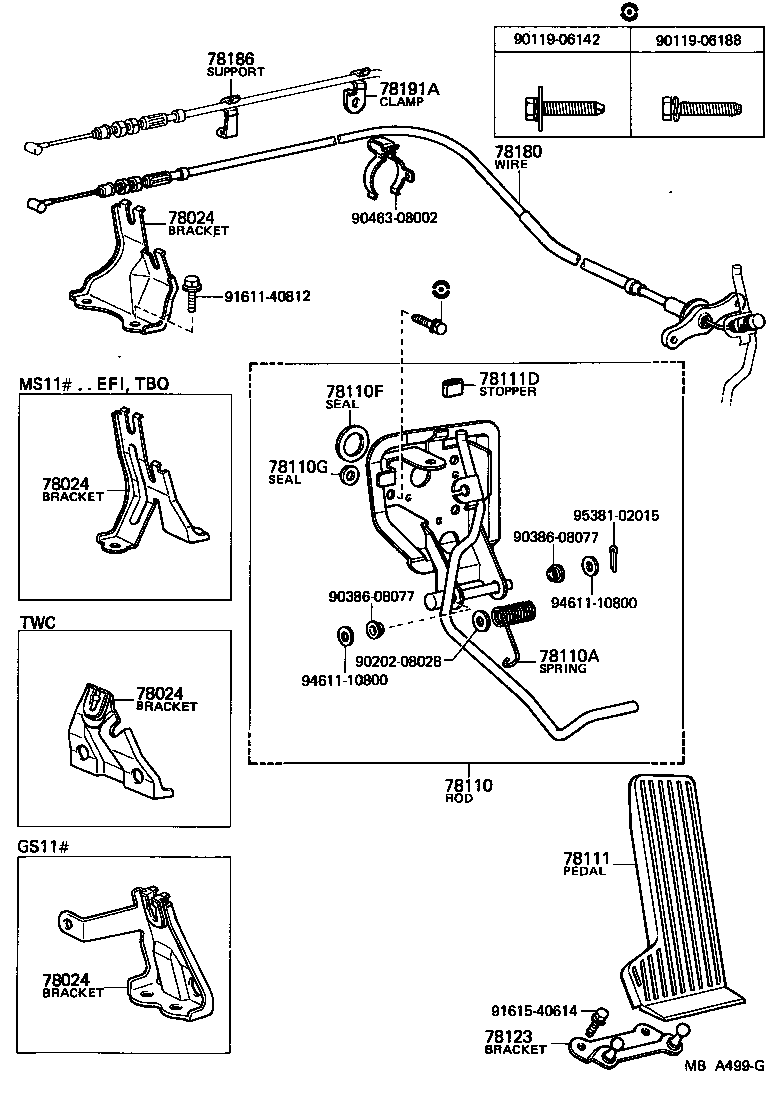

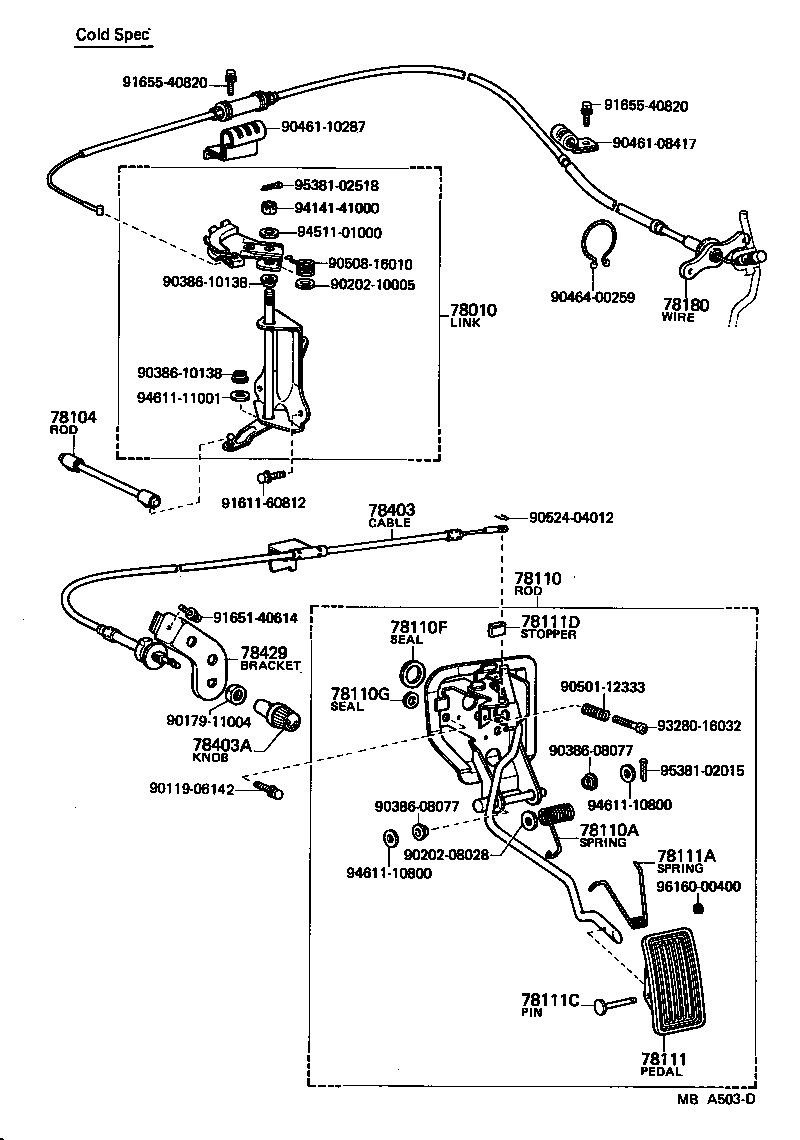

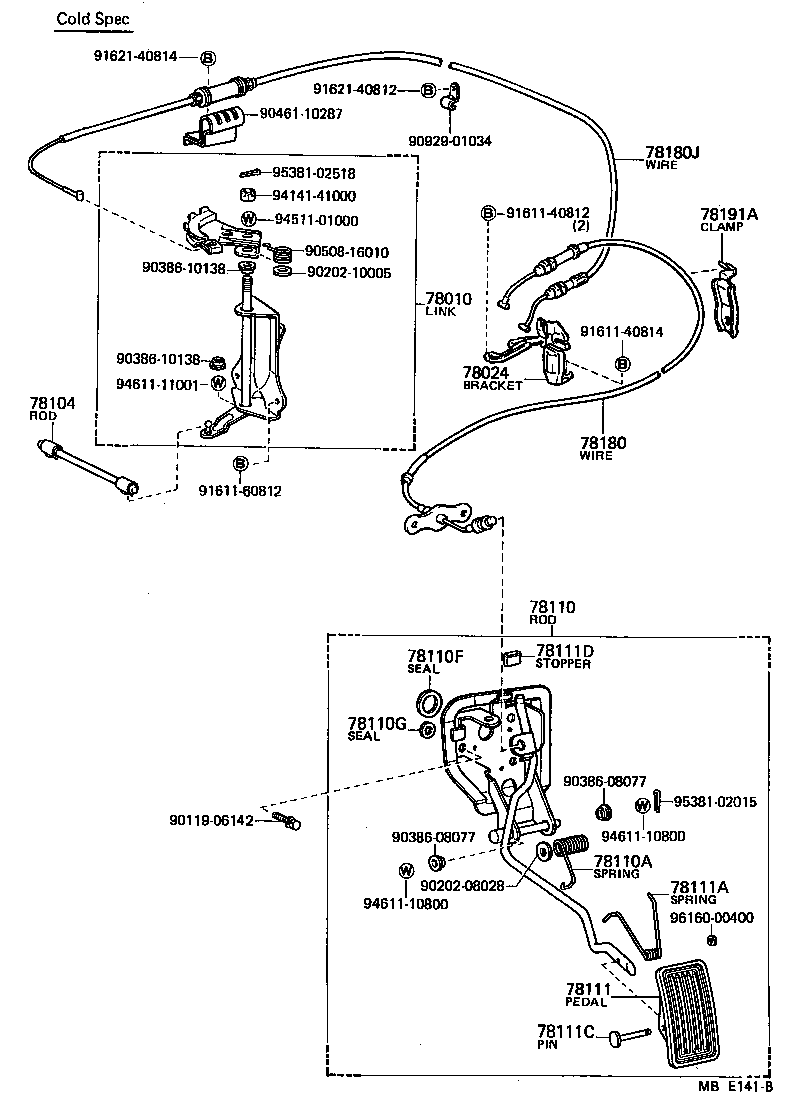

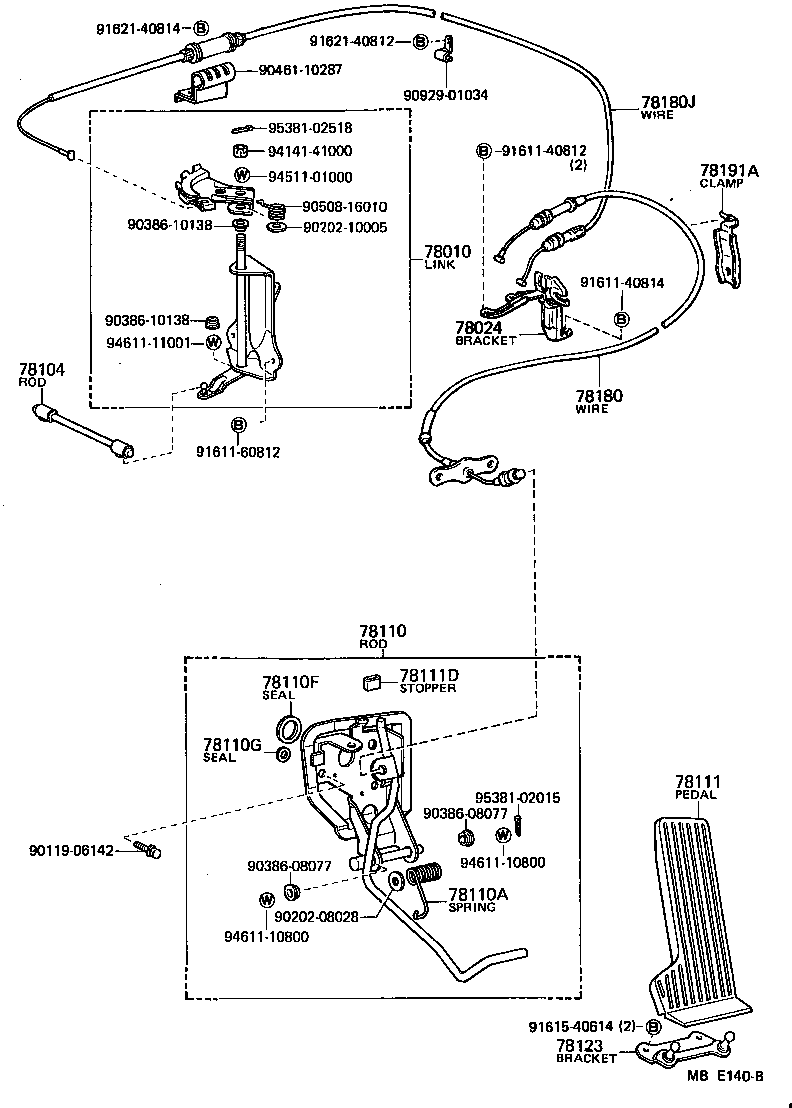

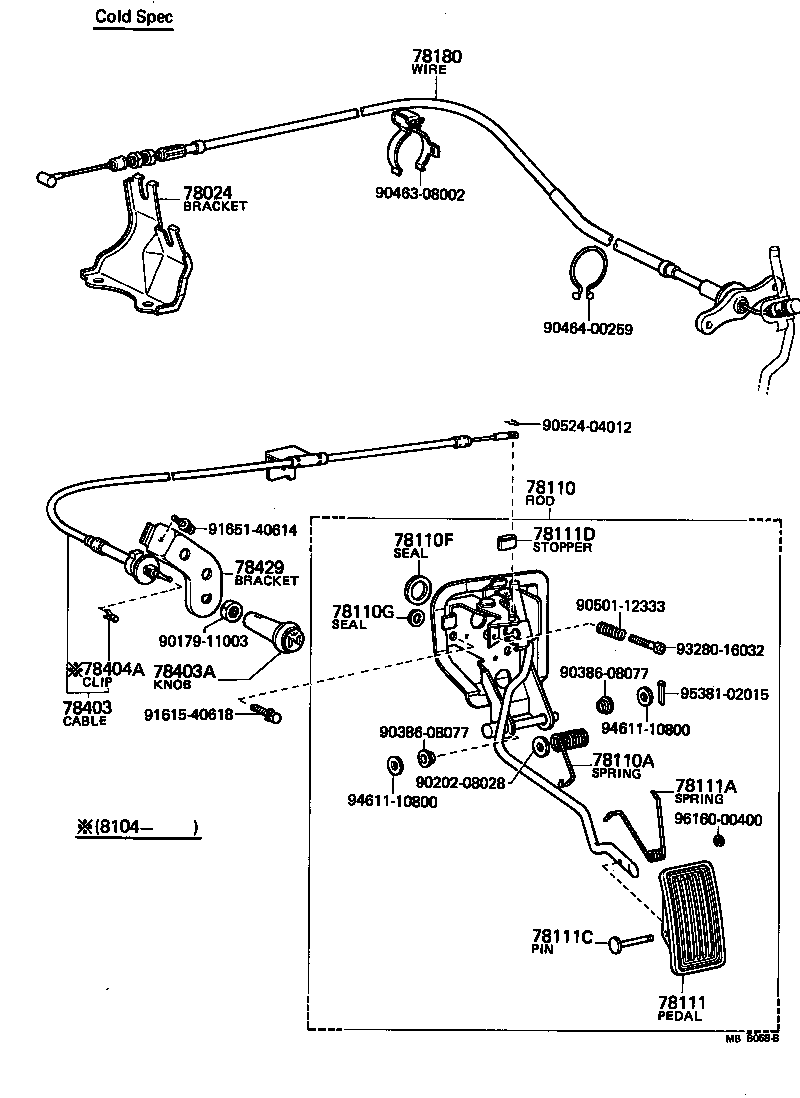

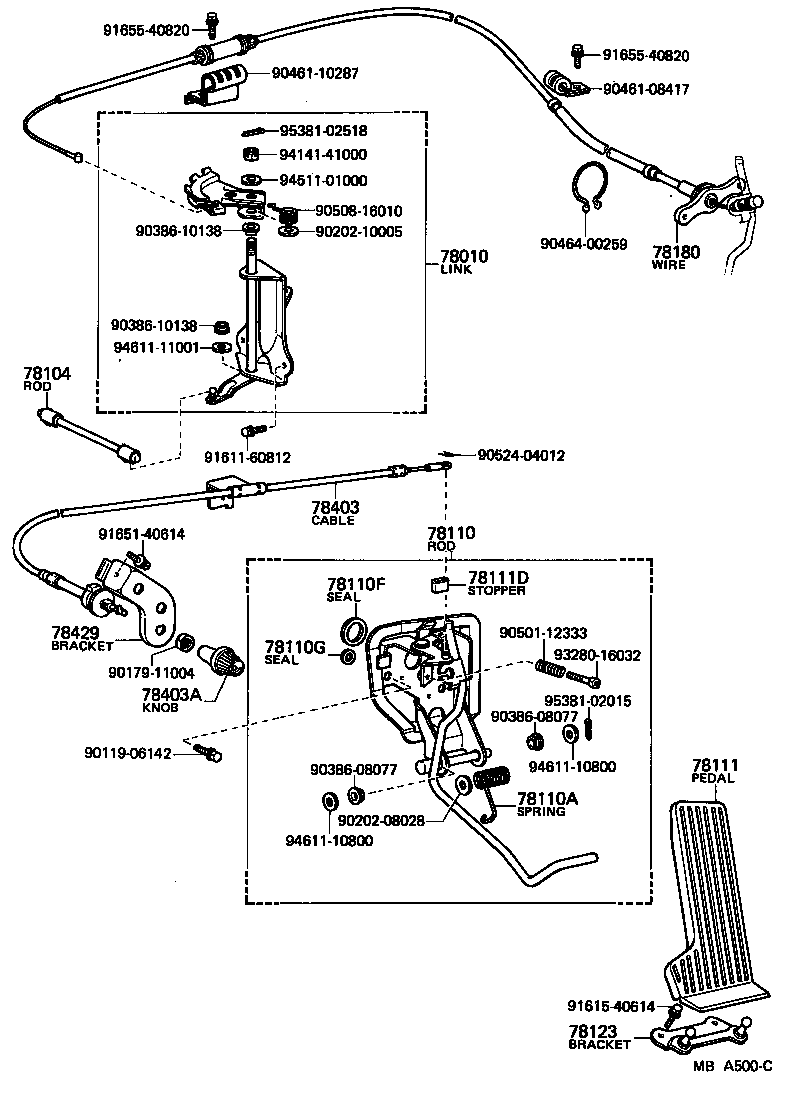

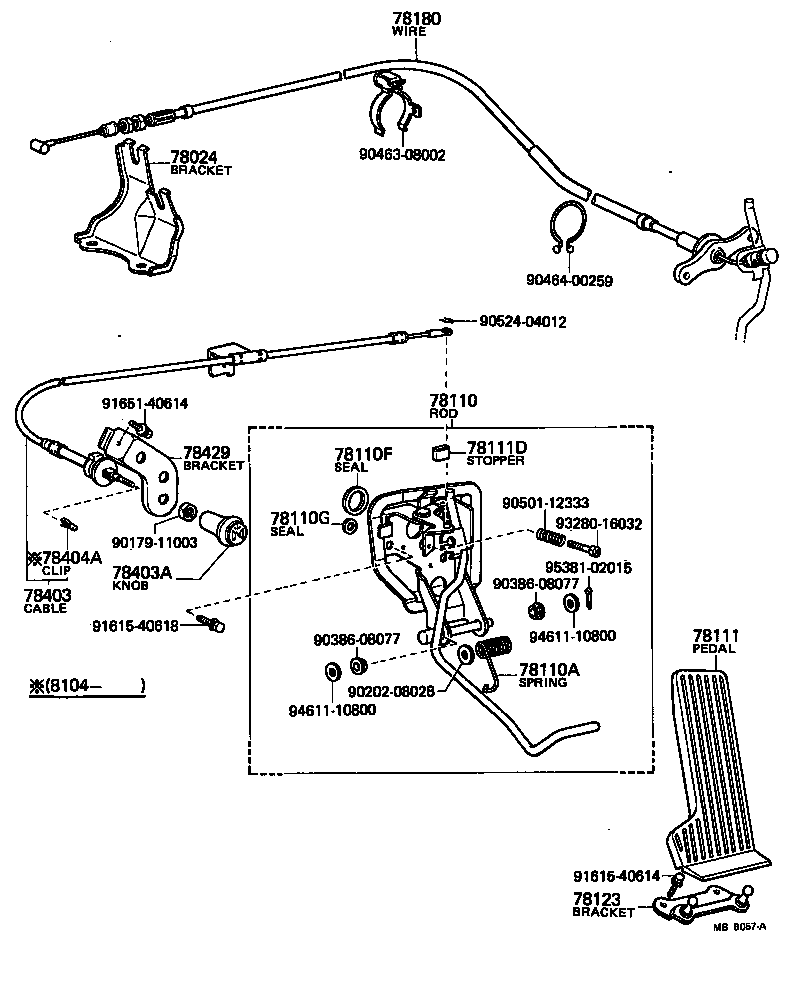

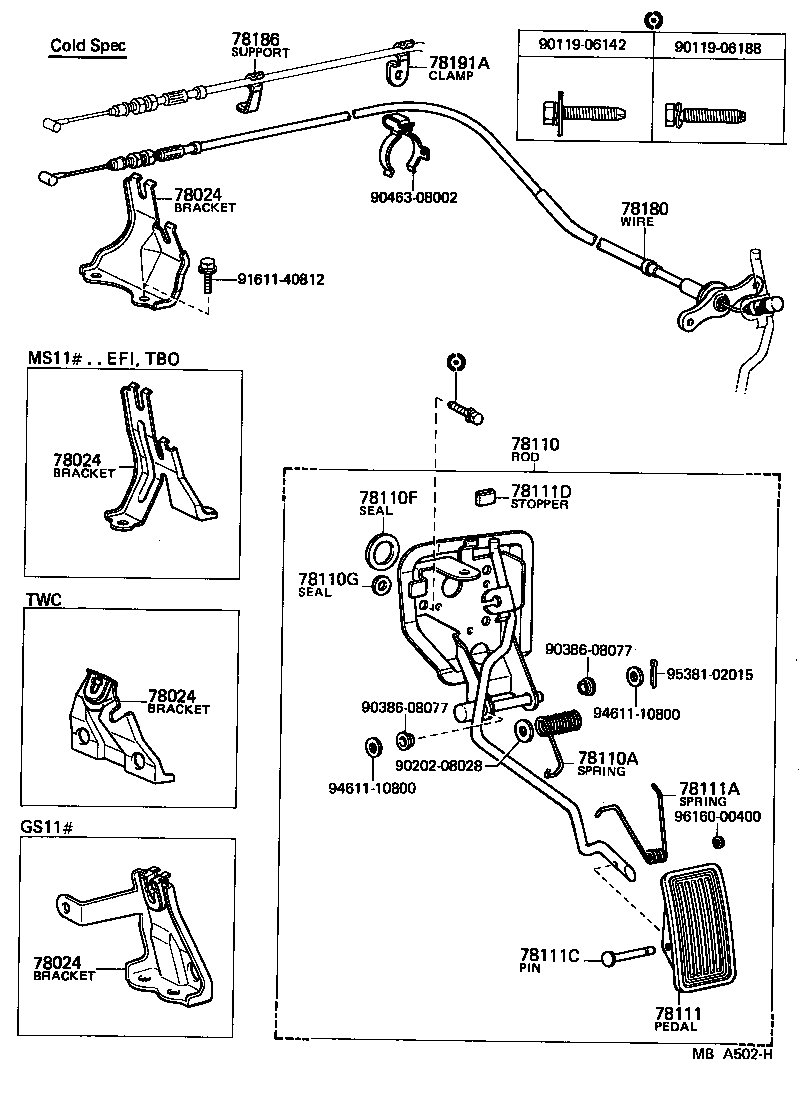

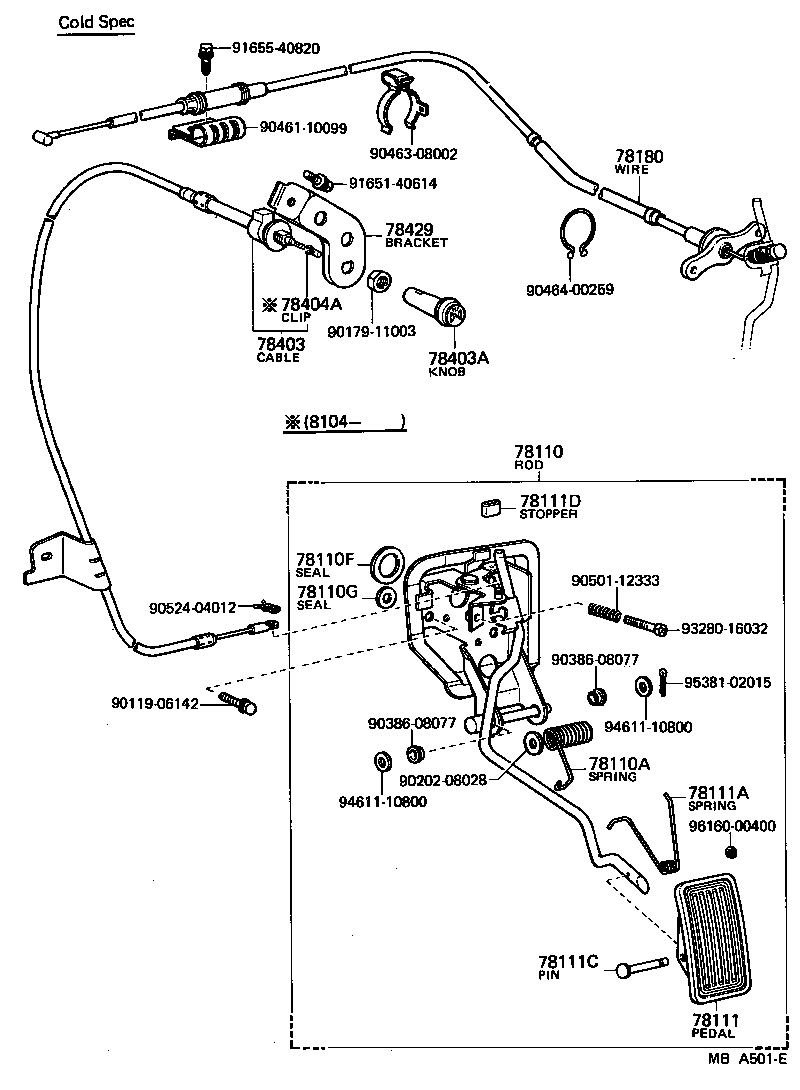

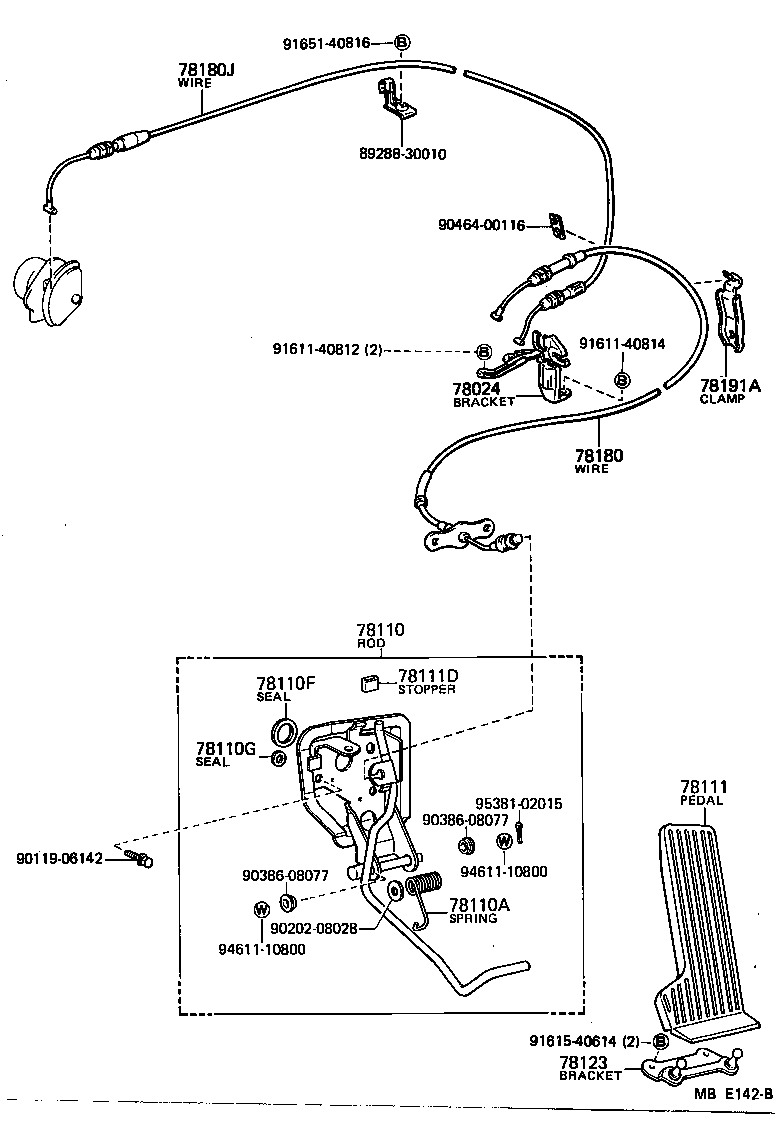

Figure MBA498D MBA498D 1979-09 → — Figure MBA501E MBA501E 1979-09 → — Figure MBB057A MBB057A 1979-12 → — Figure MBB058B MBB058B 1979-12 → — Figure MBA499G MBA499G 1979-09 → — Figure MBA502H MBA502H 1979-09 → — Figure MBA500C MBA500C 1979-09 → — Figure MBA503D MBA503D 1979-09 → — Figure MBE140B MBE140B 1982-08 → — Figure MBE141B MBE141B 1982-08 → — Figure MBE142B MBE142B 1982-08 → — Figure MBE143B MBE143B 1982-08 → —

Part groups

PNCDescription
78010 Link, Accelerator
78024 Bracket Sub-assy, Accelerator Control Cable
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78110F Seal, NO.1 (FOR ACCELERATOR PEDAL ROD)
78110G Seal, NO.2 (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78111D Stopper (FOR ACCELERATOR PEDAL)
78123 Bracket, Accelerator Pedal Support
78180 Wire Assy, Accelerator
78180J Wire Assy, Accelerator, NO.2
78186 Support, Accelerator Control Cable, NO.1
78191A Clamp (FOR ACCELERATOR WIRE SET)
78403 Cable Sub-assy, Throttle Control
78403A Knob, Throttle Control
78404A Clip, Throttle Flexible Wire
78429 Bracket, Throttle Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
