Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

14 part groups · 4 illustrations

Illustrations

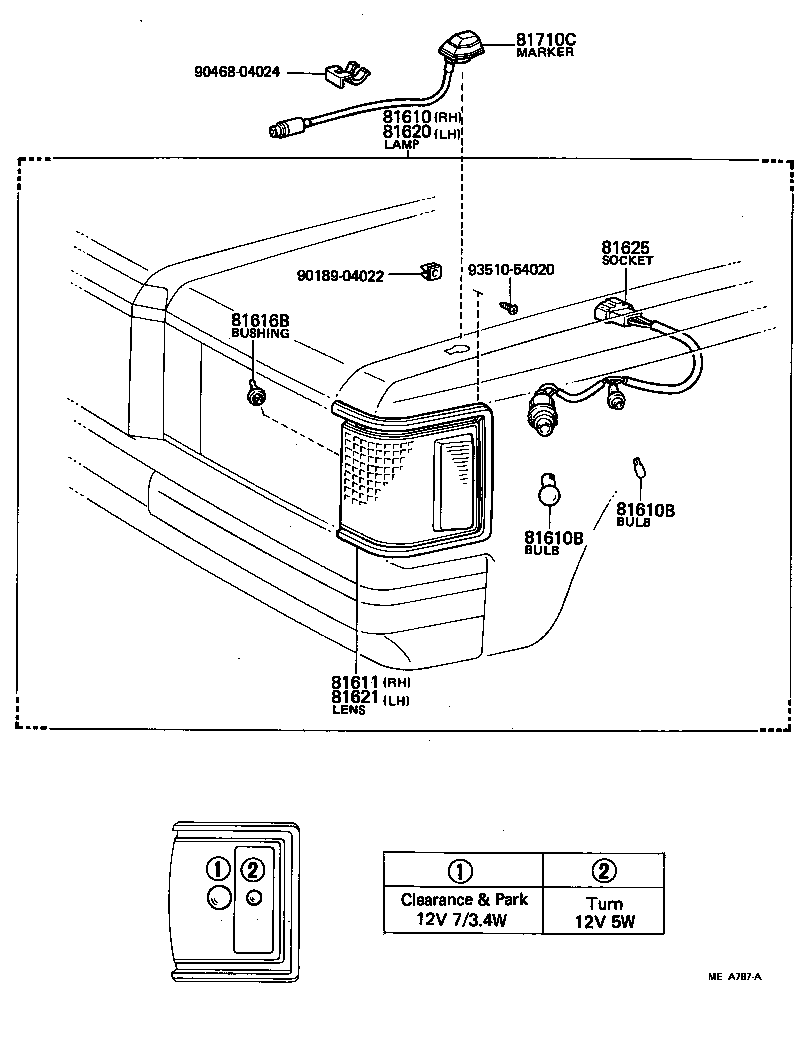

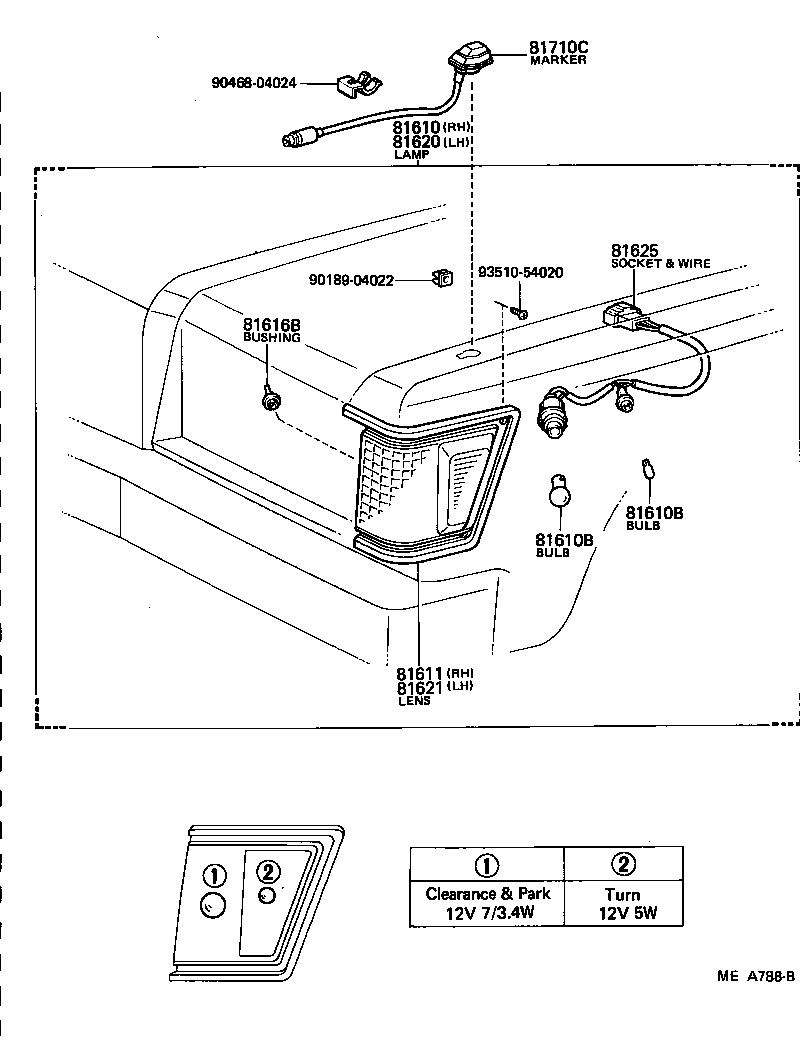

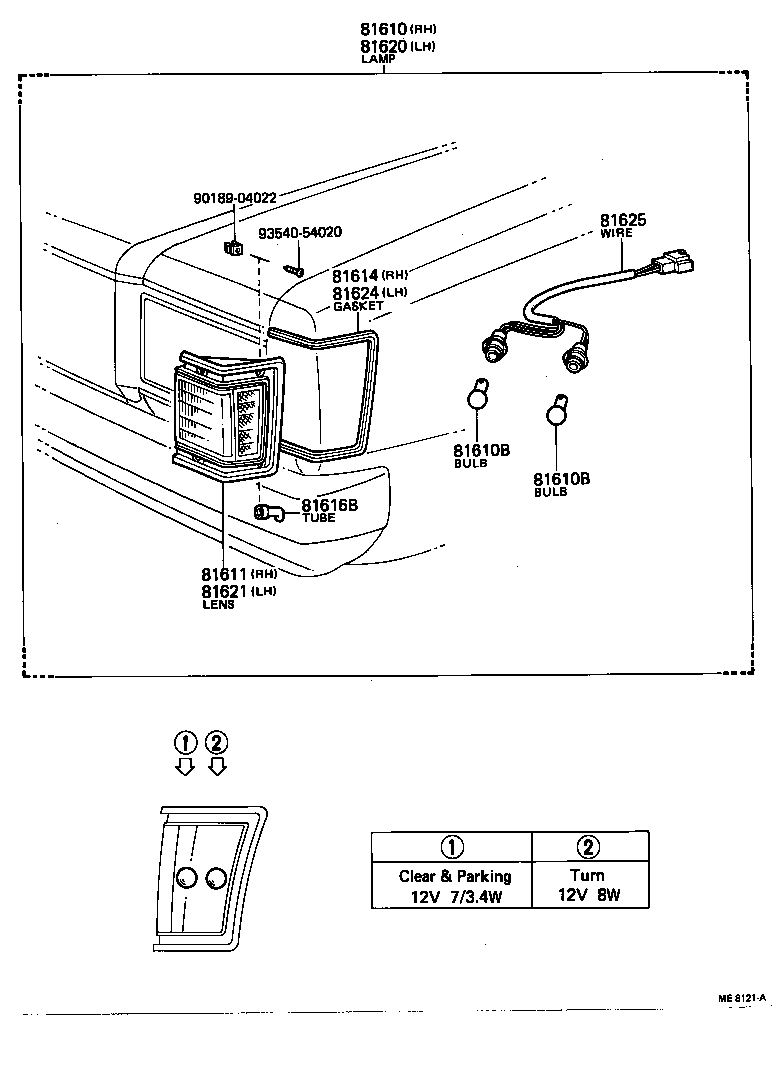

Figure ME8120B ME8120B 1979-09 → 1981-08 Figure MEA787A MEA787A 1981-08 → — Figure ME8121A ME8121A 1979-09 → 1981-08 Figure MEA788B MEA788B 1981-08 → —

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81614 Gasket, Parking And Clearance Lamp Body, RH
81614A Gasket, Parking And Clearance Lamp Body, NO.1 RH
81616B Tube, Parking And Clearance Lamp
81618 Bracket, Parking And Clearance Lamp, RH
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81624 Gasket, Parking And Clearance Lamp Body, LH
81624A Gasket, Parking And Clearance Lamp Body, NO.1 LH
81625 Socket And Wire, Parking And Clearance Lamp
81628 Bracket, Parking And Clearance Lamp, LH
81710C Marker Assy, Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
