Toyota Crown
1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan
Discontinued model
Data version 1984-02

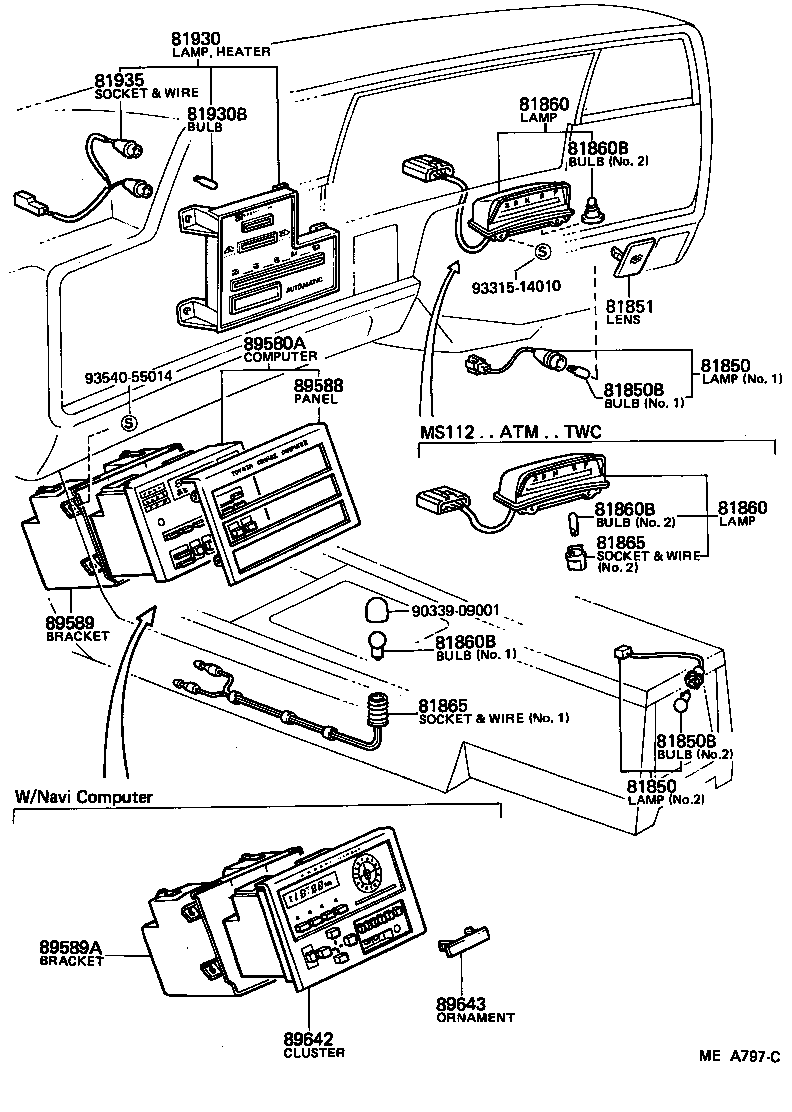

Indicator
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81850 | Lamp Assy, Indicator |
| 81850B | Bulb, Indicator Lamp |
| 81851 | Lens, Indicator Lamp |
| 81860 | Lamp Assy, Transmission Indicator |
| 81860B | Bulb, Transmission Indicator Lamp |
| 81865 | Socket And Wire, Transmission Indicator Lamp |
| 81930 | Lamp Assy, Heater Control Indicator, NO.1 |
| 81930B | Bulb, Heater Control Indicator Lamp |
| 81935 | Socket And Wire, Heater Control Indicator Lamp |
| 82231 | Wire, Position Indicator Lamp |
| 89580A | Computer Assy, Cruise Pilot |
| 89588 | Panel, Cruise Pilot Computer |
| 89589 | Bracket, Cruise Pilot Computer |
| 89589A | Bracket, Drive Pilot Computer |
| 89642 | Cluster, Compass Display |
| 89643 | Ornament, Compass Display |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
