Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

12 part groups · 3 illustrations

Illustrations

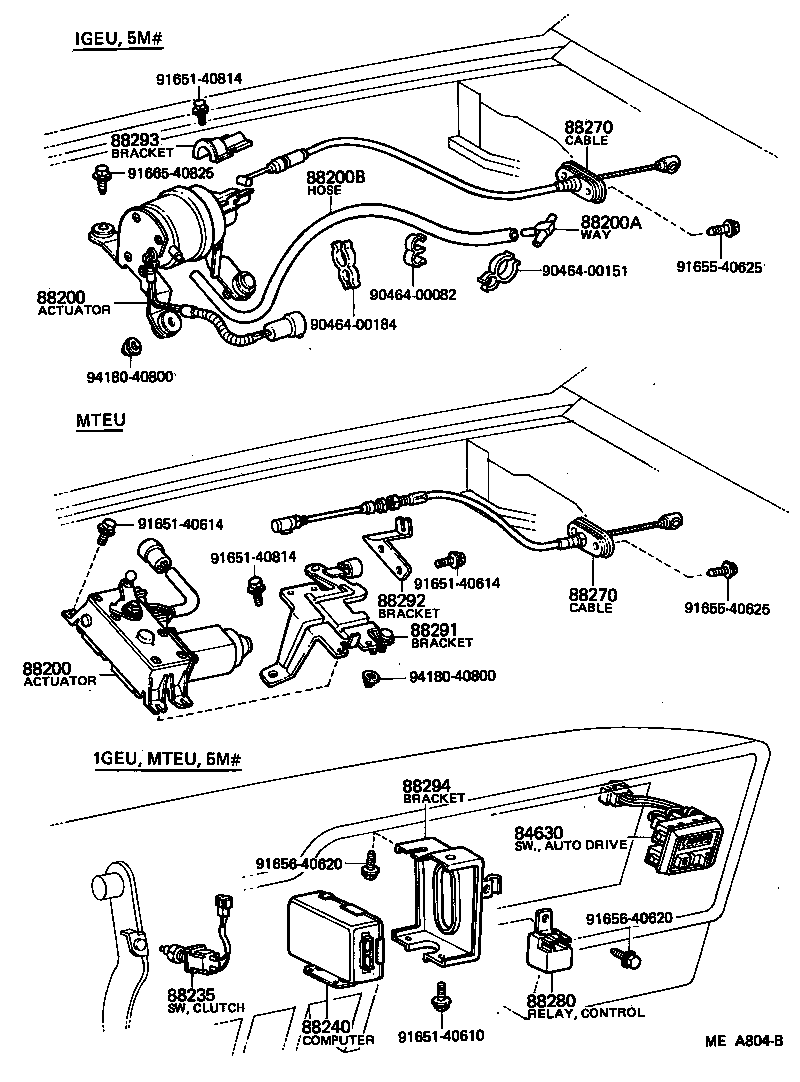

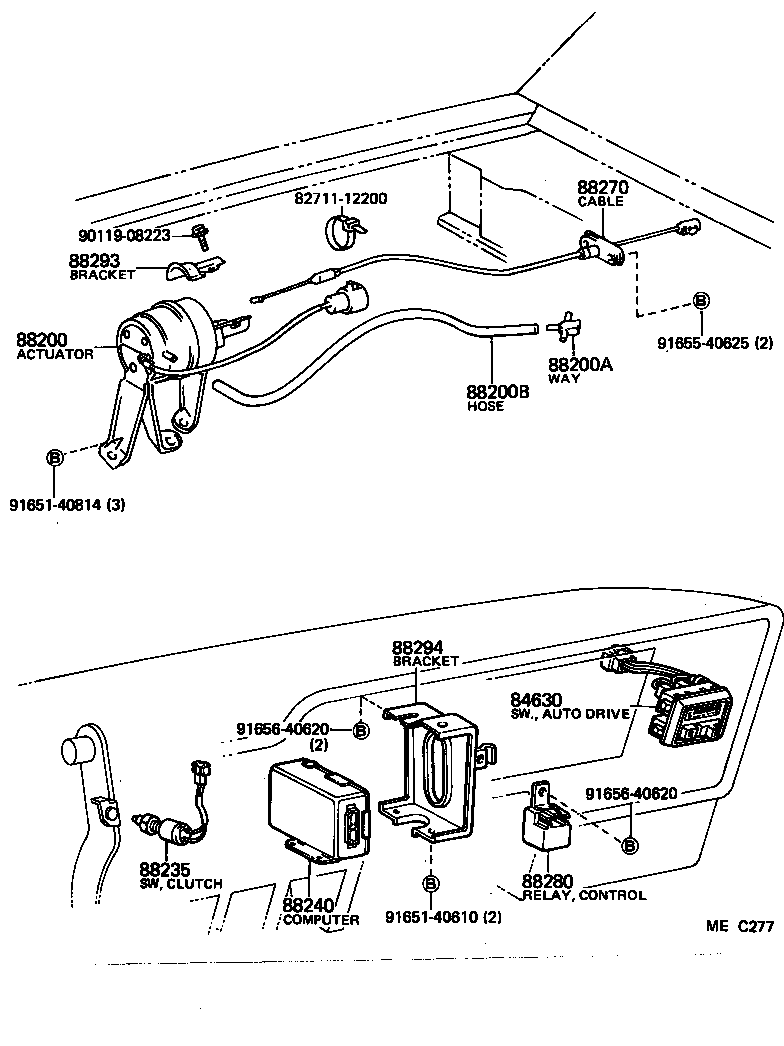

Figure ME8136B ME8136B 1979-09 → 1981-08 Figure MEA804B MEA804B 1981-08 → — Figure MEC277 MEC277 1982-08 → —

Part groups

PNCDescription
84630 Switch Assy, Cruise Control Main
88200 Cruise Control Assy
88200A Union OR Way, Cruise Control Vacuum
88200B Hose, Cruise Control Vacuum
88235 Switch Assy, Cruise Control(AUTO DRIVE) Release
88240 Computer Assy, Cruise Control
88270 Cable Assy, Cruise Control(AUTO DRIVE)
88280 Relay Assy, Cruise Control(AUTO DRIVE), B
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
88292 Bracket, Cruise Control(AUTO DRIVE), NO.2
88293 Bracket, Cruise Control Accelerator Wire Support
88294 Bracket, Cruise Control(AUTO DRIVE) Main Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
