Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

12 part groups · 5 illustrations

Illustrations

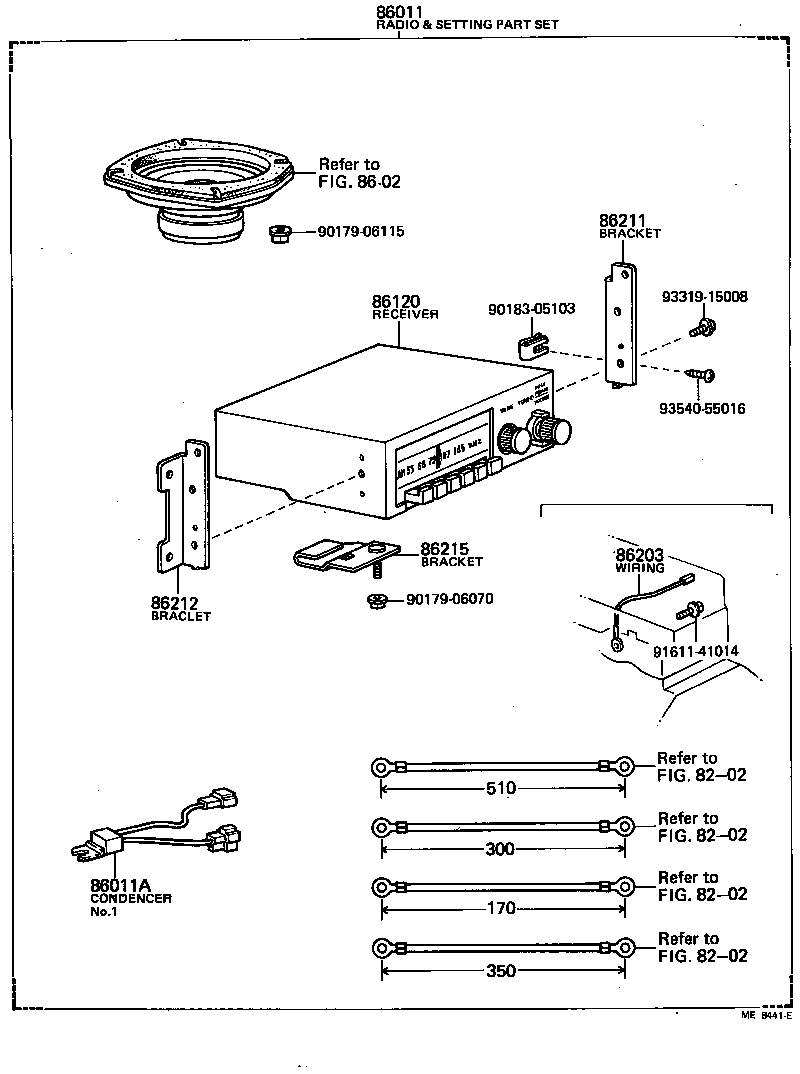

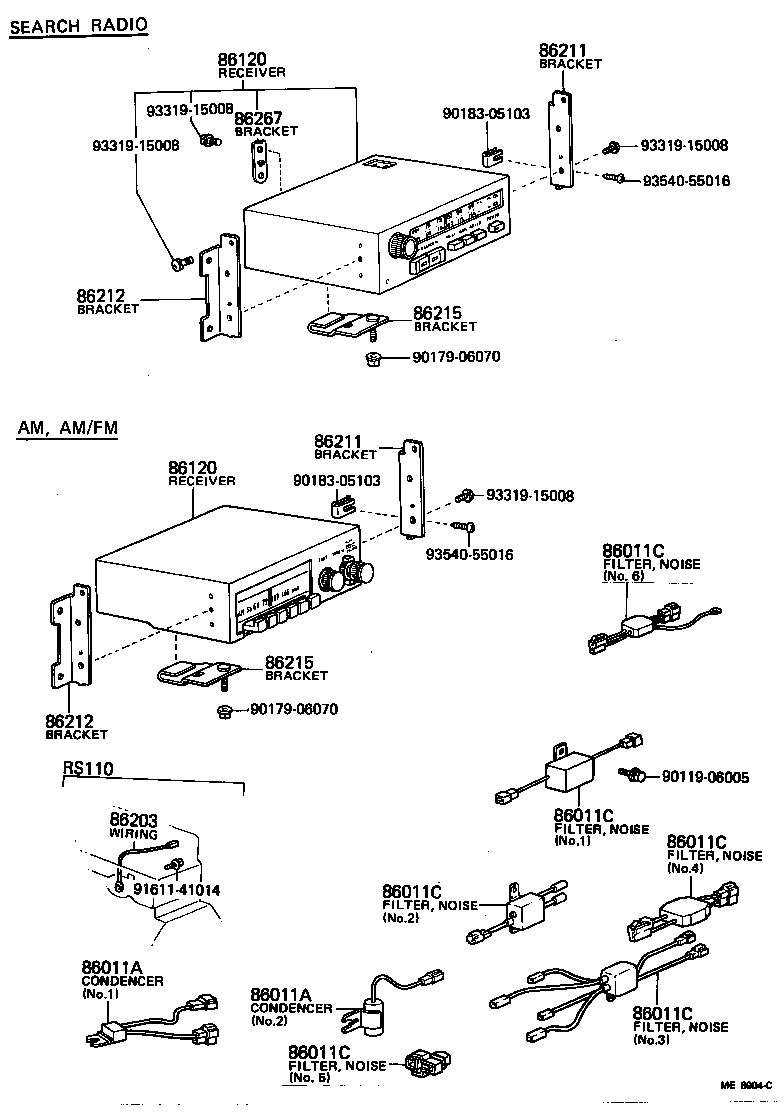

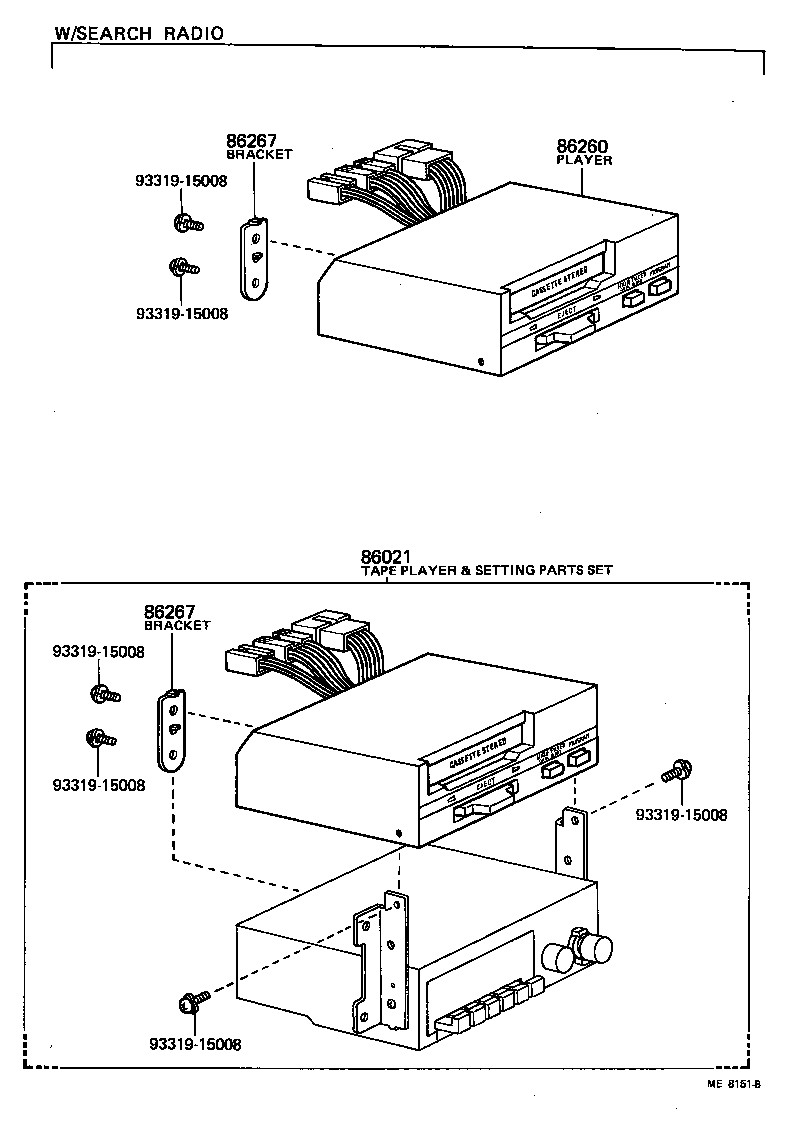

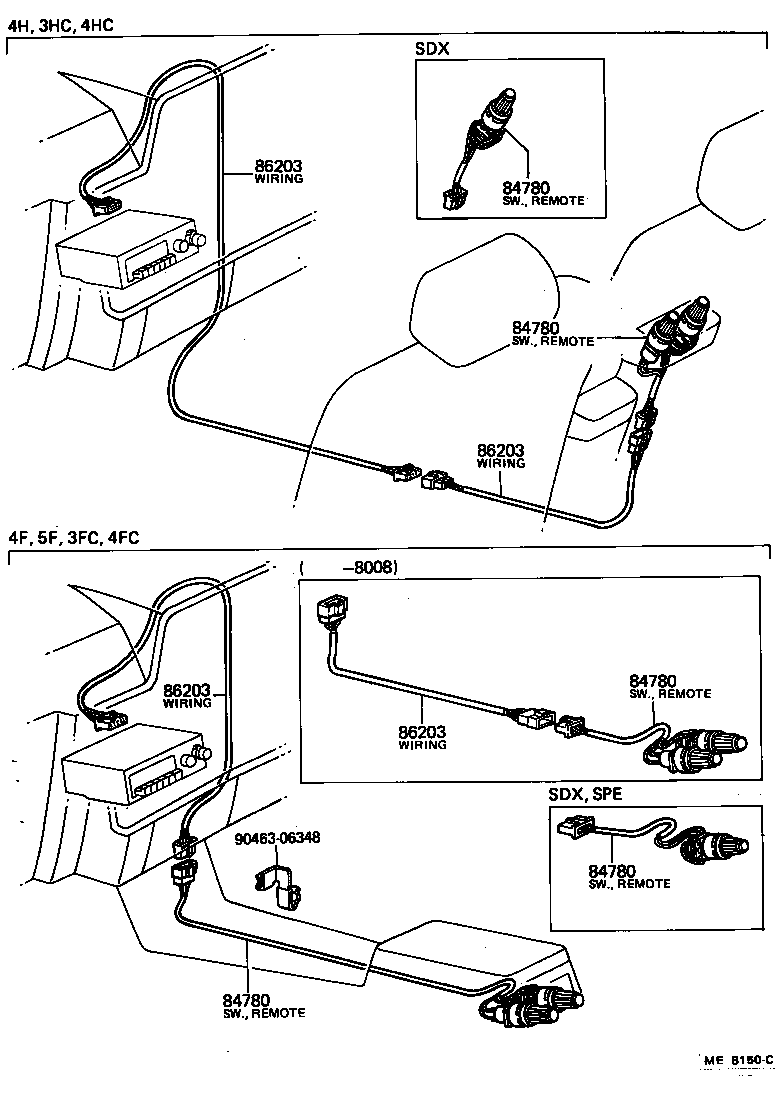

Figure ME8147F ME8147F 1979-09 → — Figure ME8441E ME8441E 1979-09 → — Figure ME8904C ME8904C 1979-09 → — Figure ME8151B ME8151B 1979-09 → — Figure ME8150C ME8150C 1979-09 → —

Part groups

PNCDescription
84780 Switch Assy, Radio Remote Tuning
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86011C Filter, Noise
86021 Tape Player And Setting Parts Set
86120 Receiver Assy, Radio
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86215 Bracket, Radio, NO.5
86260 Tape Player Assy
86267 Bracket, Tape Player, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
