Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

30 part groups · 5 illustrations

Illustrations

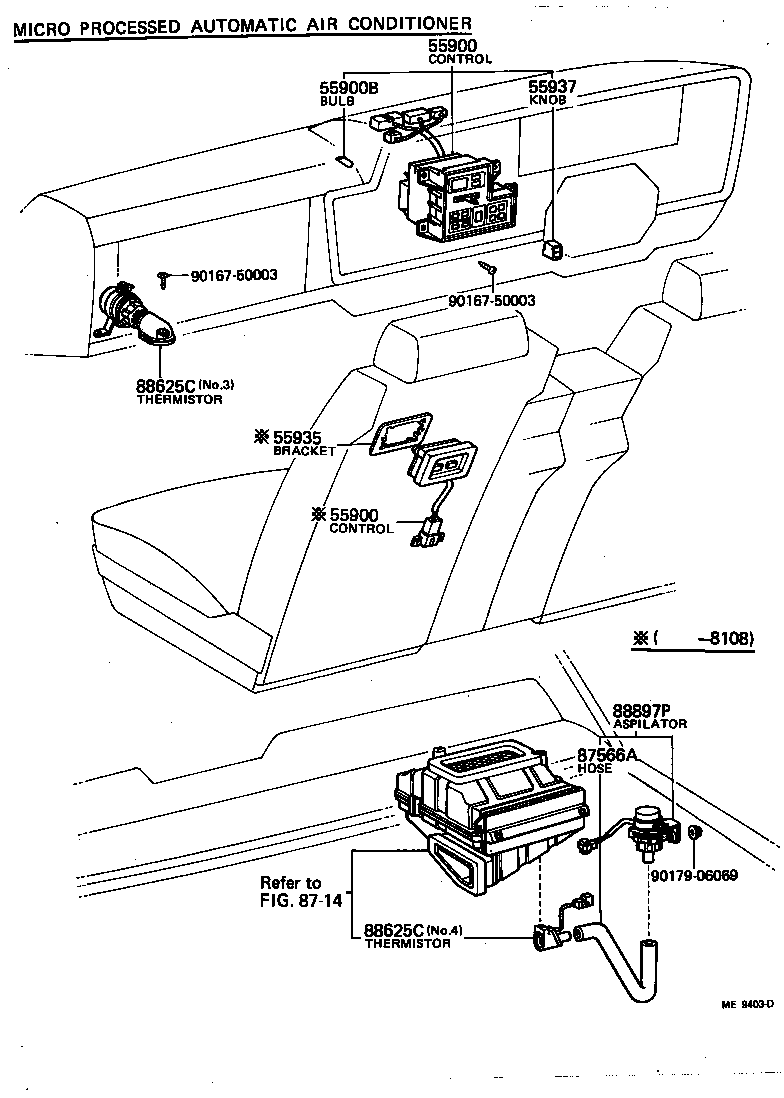

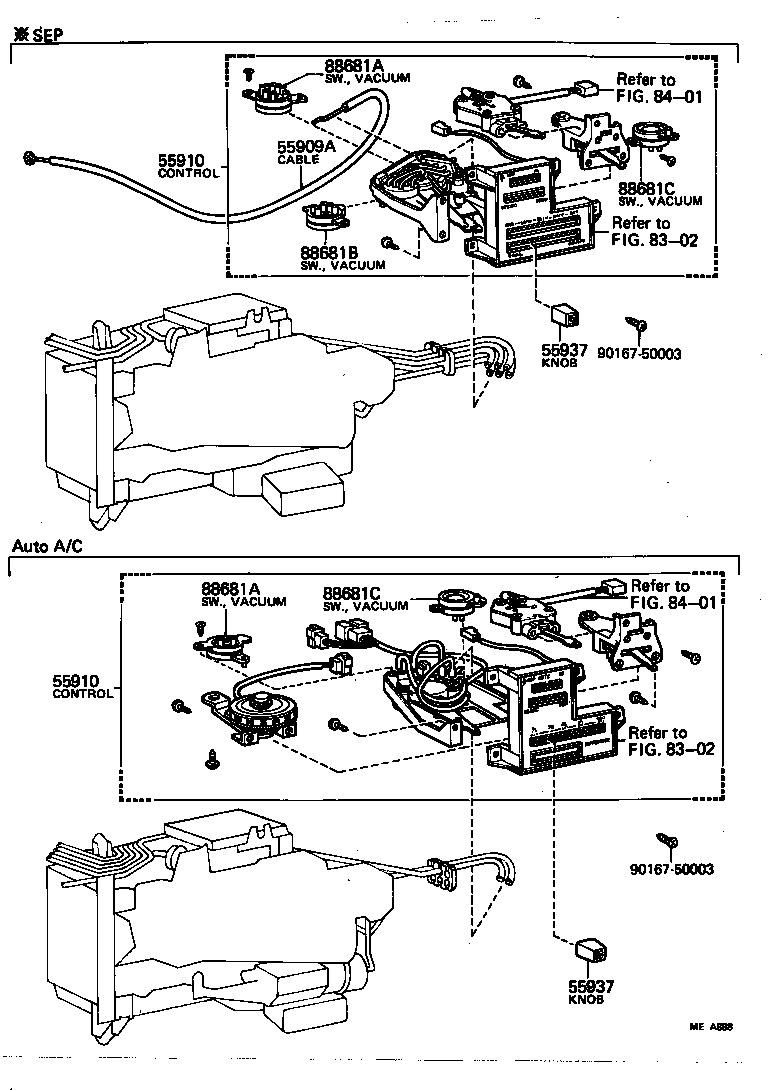

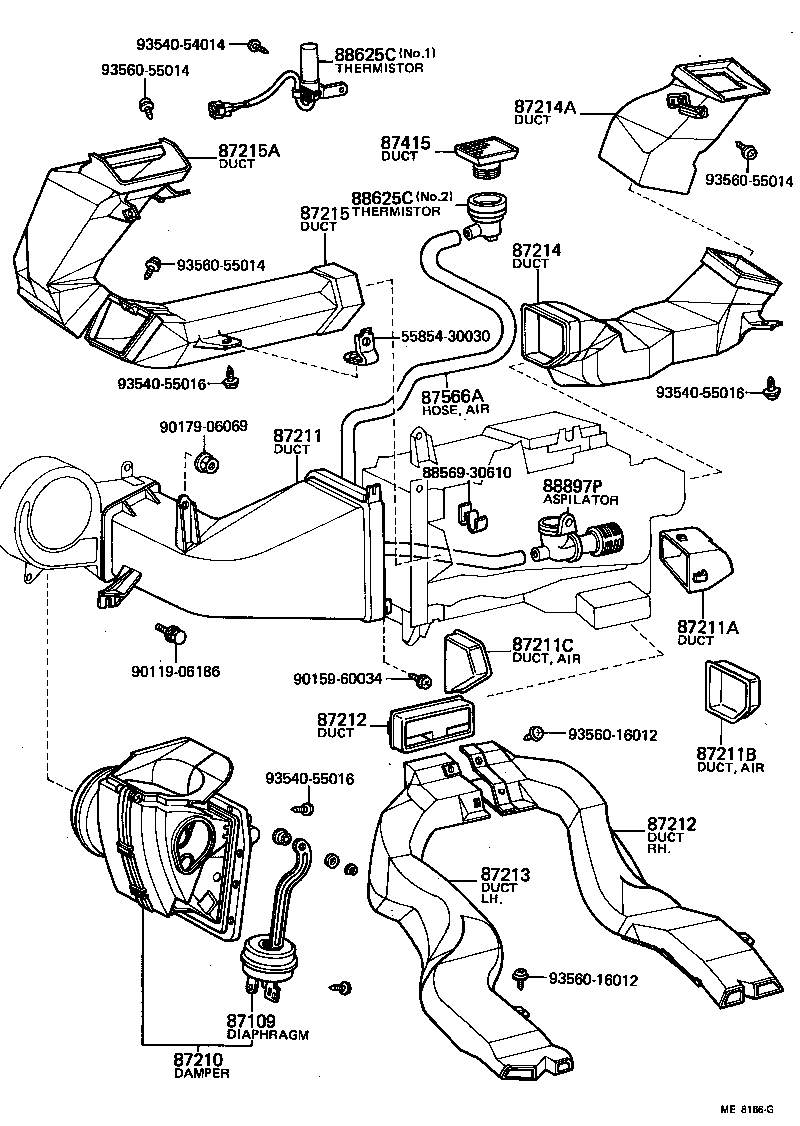

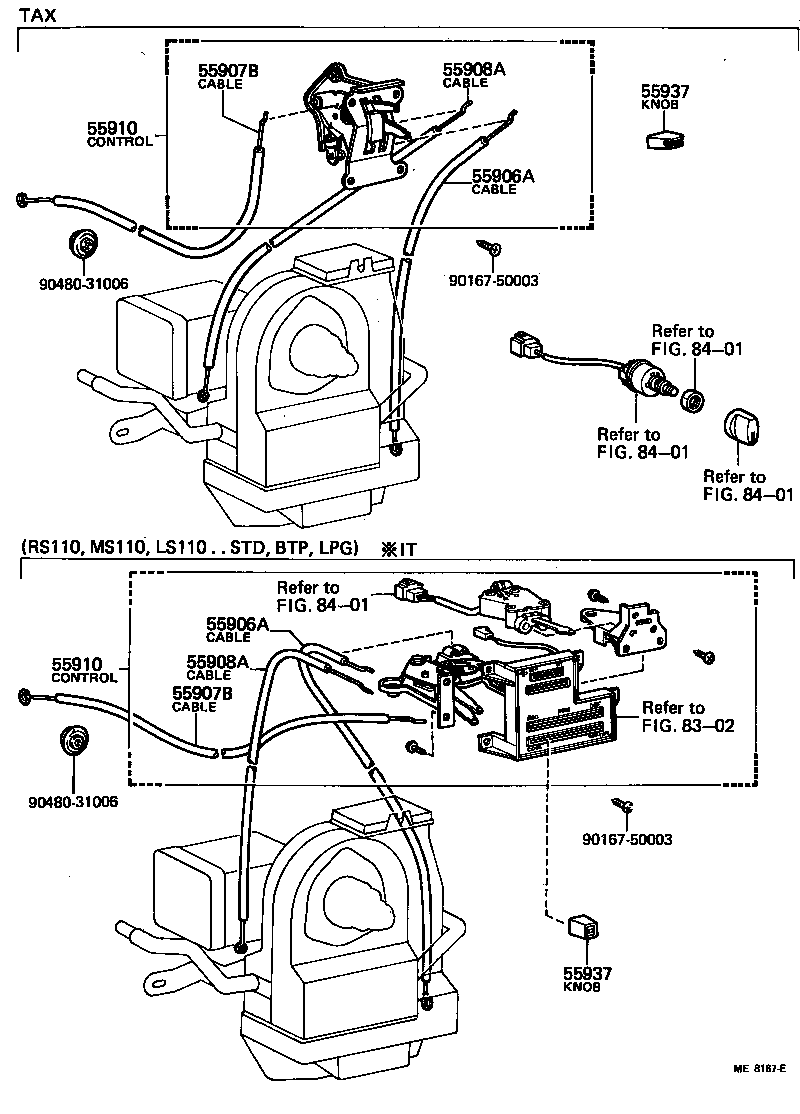

Figure ME8165C ME8165C 1979-09 → — Figure ME8166G ME8166G 1979-09 → — Figure ME9403D ME9403D 1980-10 → — Figure ME8167E ME8167E 1979-09 → — Figure MEA888 MEA888 1979-09 → —

Part groups

PNCDescription
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55906A Cable Sub-assy, Defroster Damper Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55935 Bracket
55937 Knob, Heater Control Lever
87109 Diaphragm Sub-assy, Air Door Control
87201B Duct Sub-assy, Air, NO.2
87210 Damper Assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87226 Adapter, Air Duct
87415 Duct, Air
87566A Hose, Air Duct
88625C Thermistor, Cooler
88681A Switch, Heater Control Vacuum, NO.1
88681B Switch, Heater Control Vacuum, NO.2
88681C Switch, Heater Control Vacuum, NO.3
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
