Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

15 part groups · 6 illustrations

Illustrations

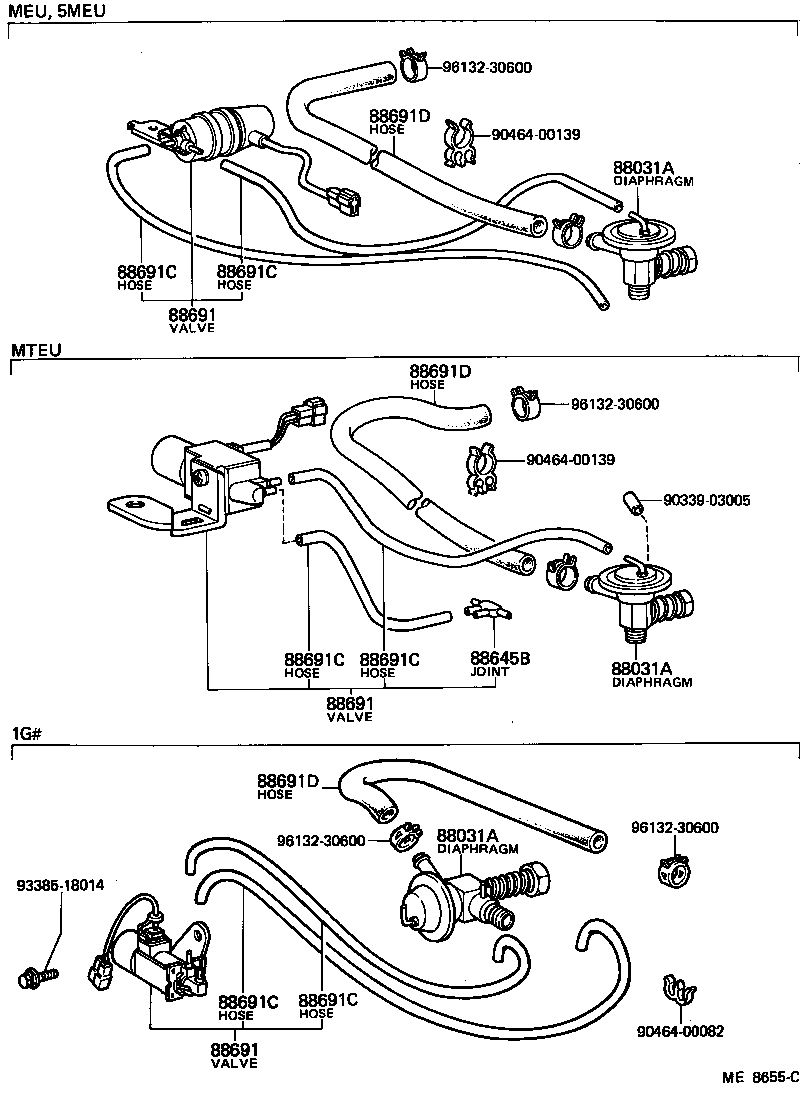

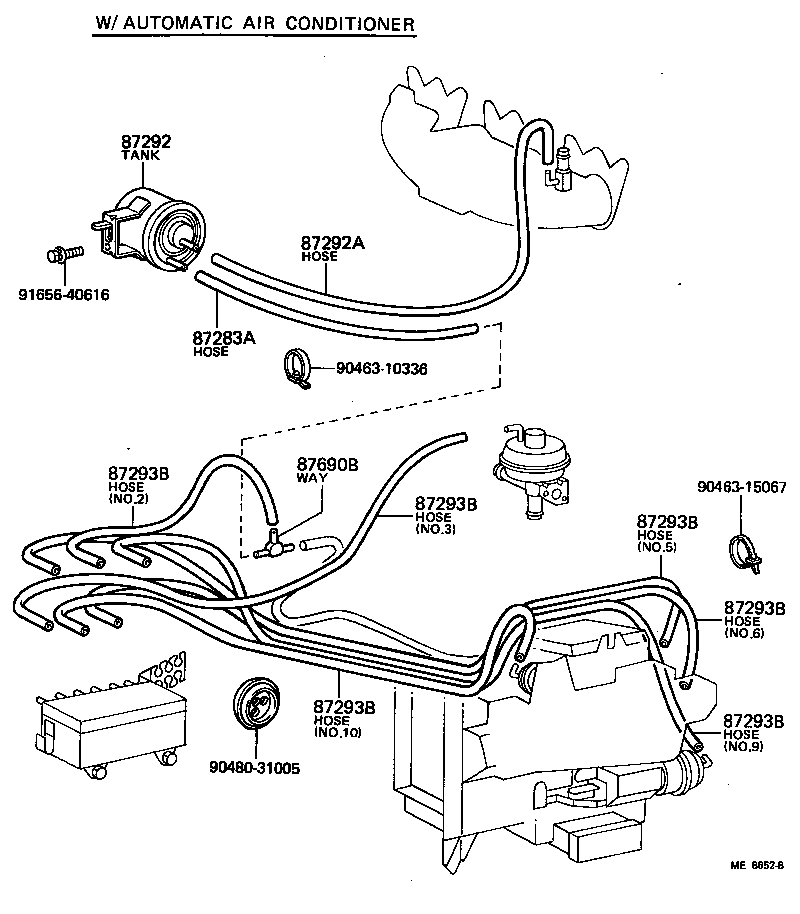

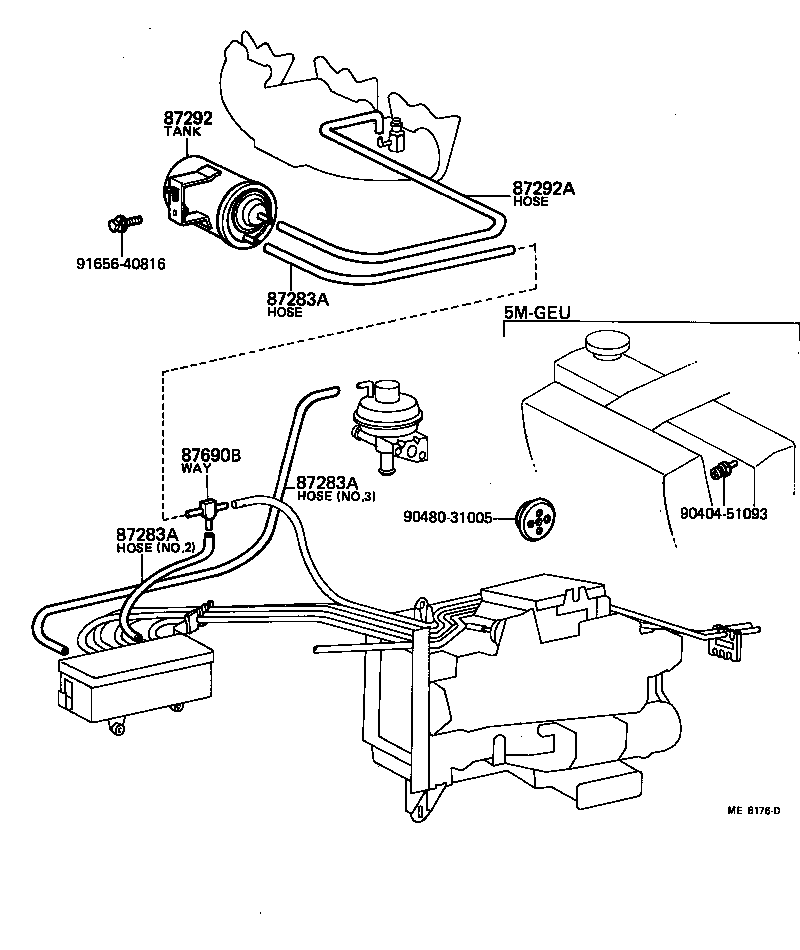

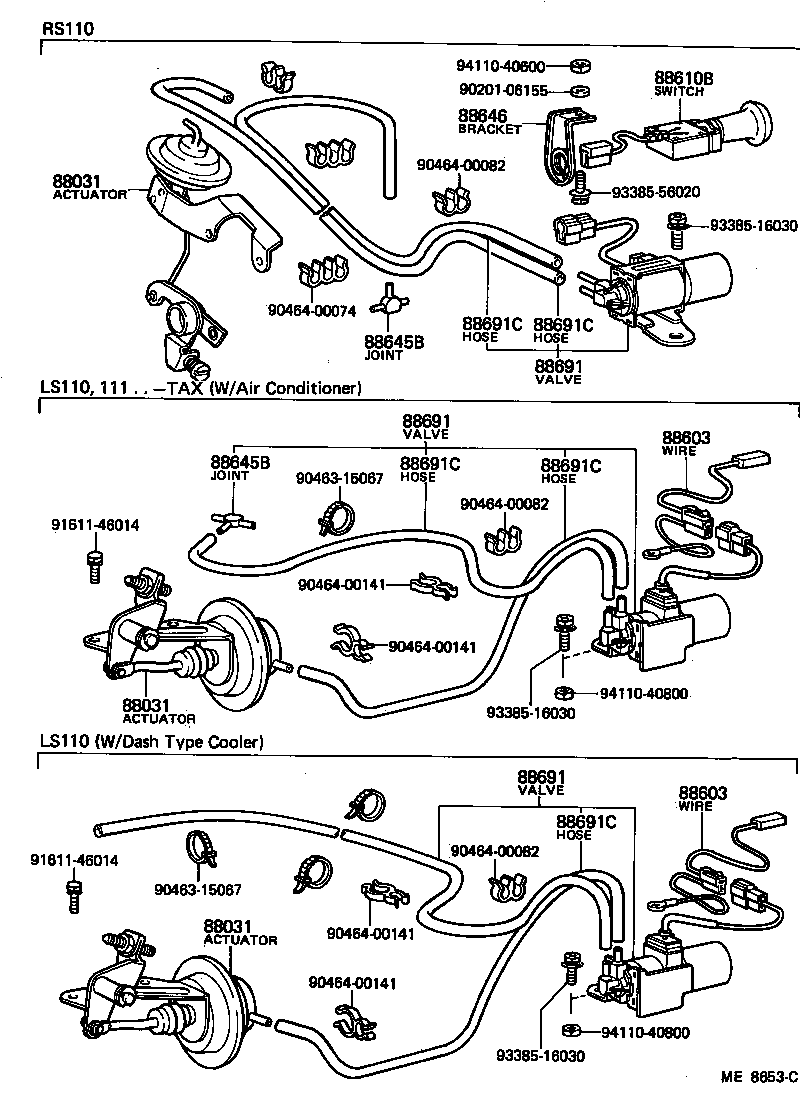

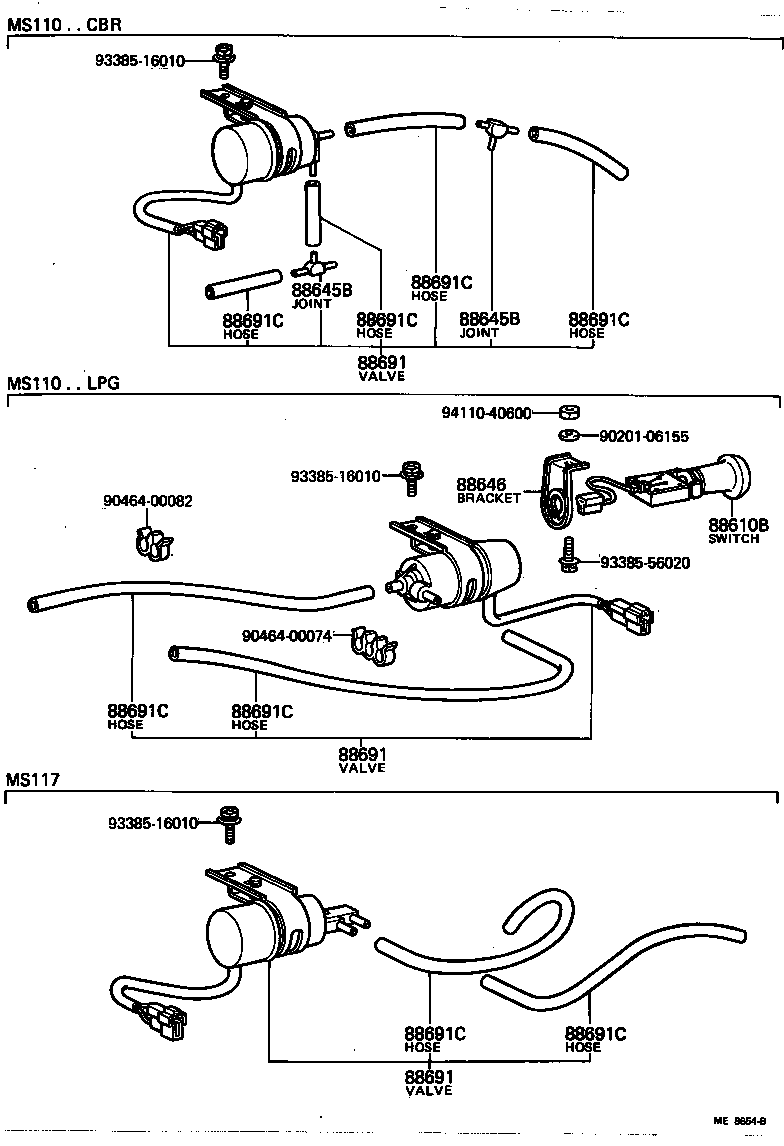

Figure ME8175G ME8175G 1979-09 → — Figure ME8176D ME8176D 1979-09 → — Figure ME8652B ME8652B 1979-09 → — Figure ME8653C ME8653C 1979-09 → — Figure ME8654B ME8654B 1979-09 → — Figure ME8655C ME8655C 1979-09 → —

Part groups

PNCDescription
87283A Hose, NO.1
87292 Tank, Vacuum
87292A Hose, Vacuum Tank
87293B Hose, NO.2
87293E Union, Hose
87690B Way, 3
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88603 Wire, Idle UP Device
88610B Switch Assy, Idle UP Device
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88646 Bracket, Idle UP Device, NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
