Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

28 part groups · 8 illustrations

Illustrations

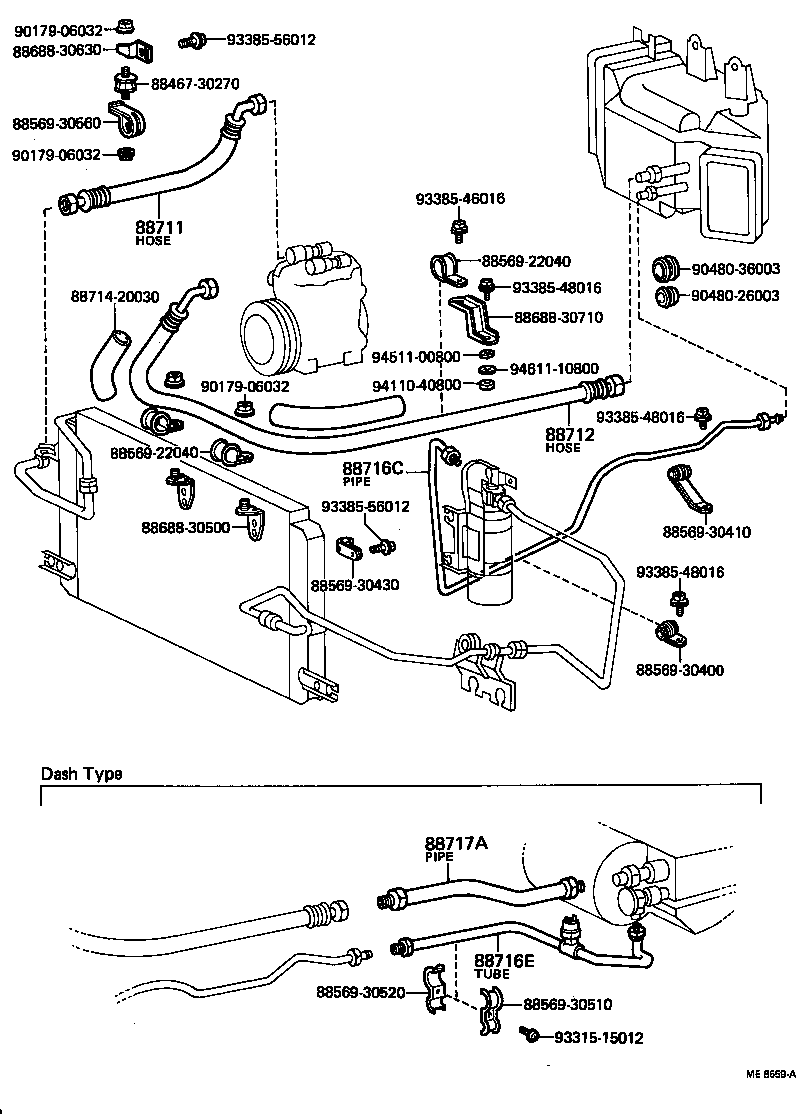

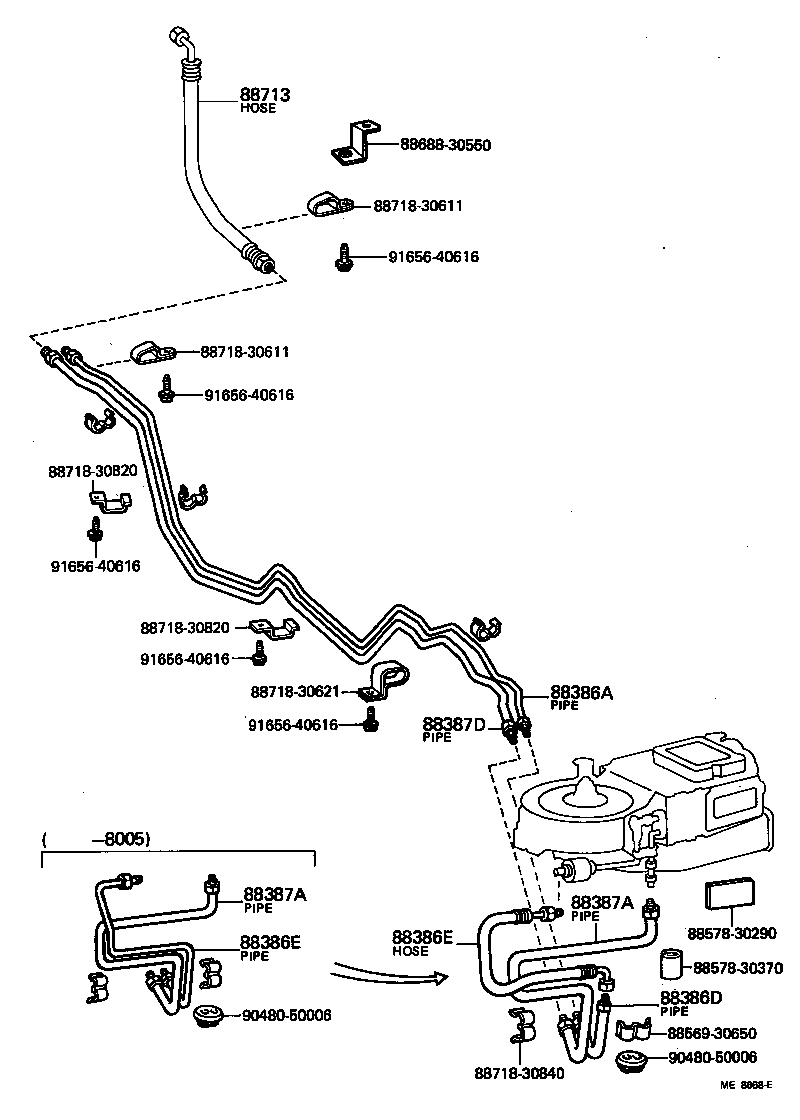

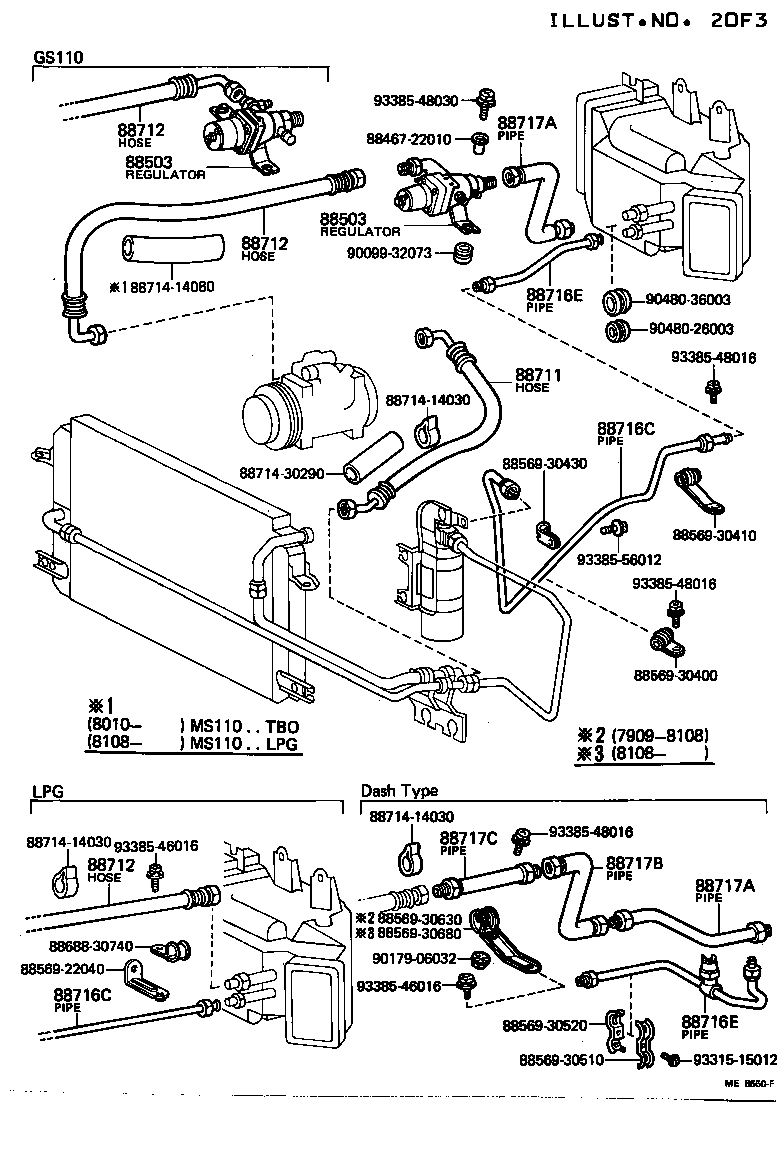

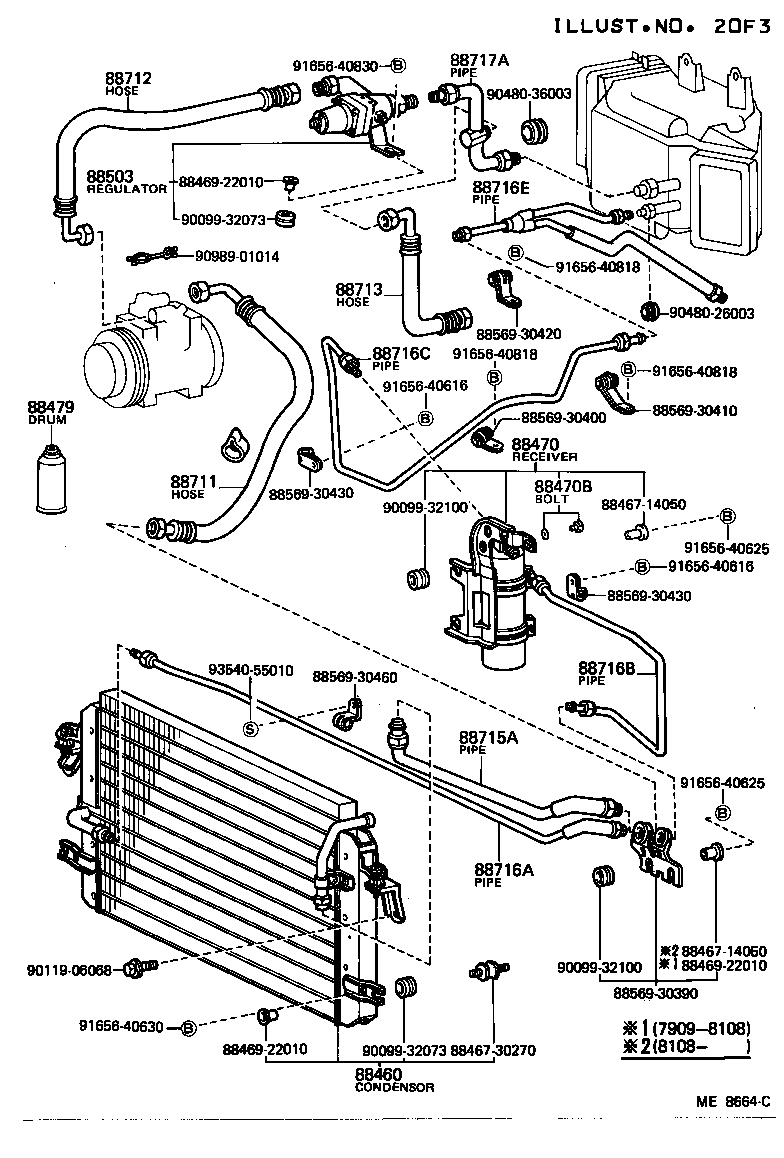

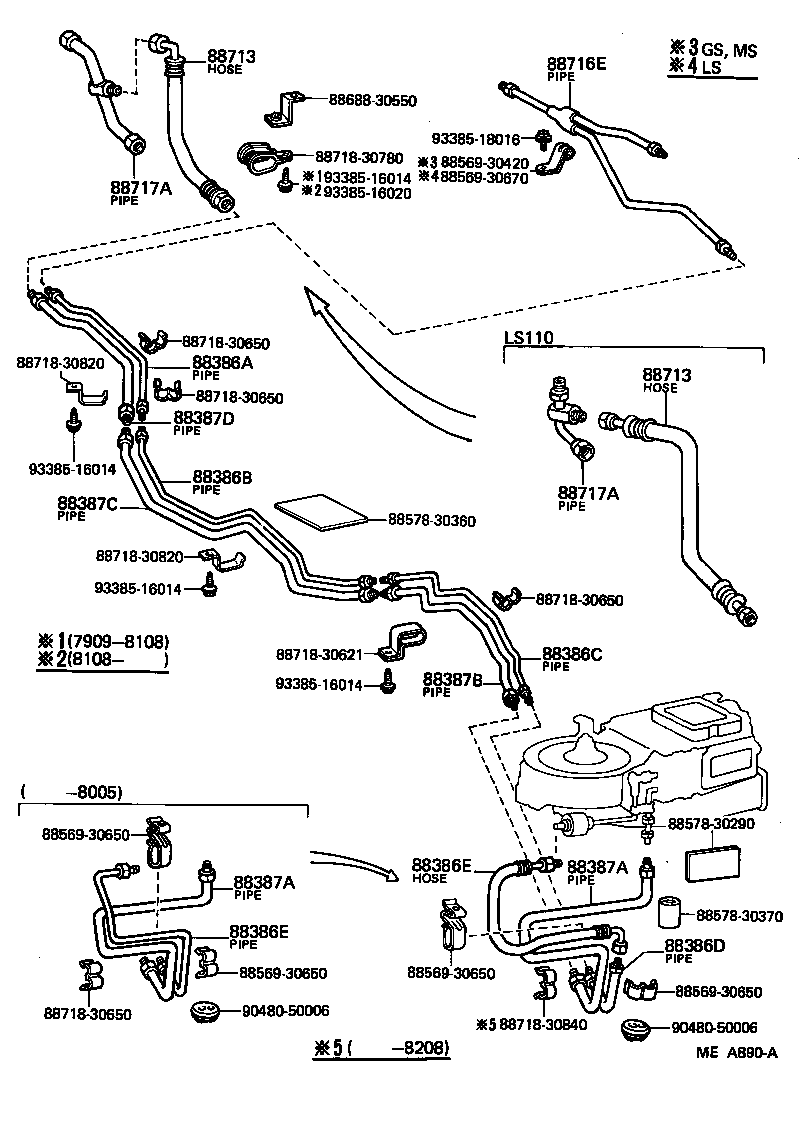

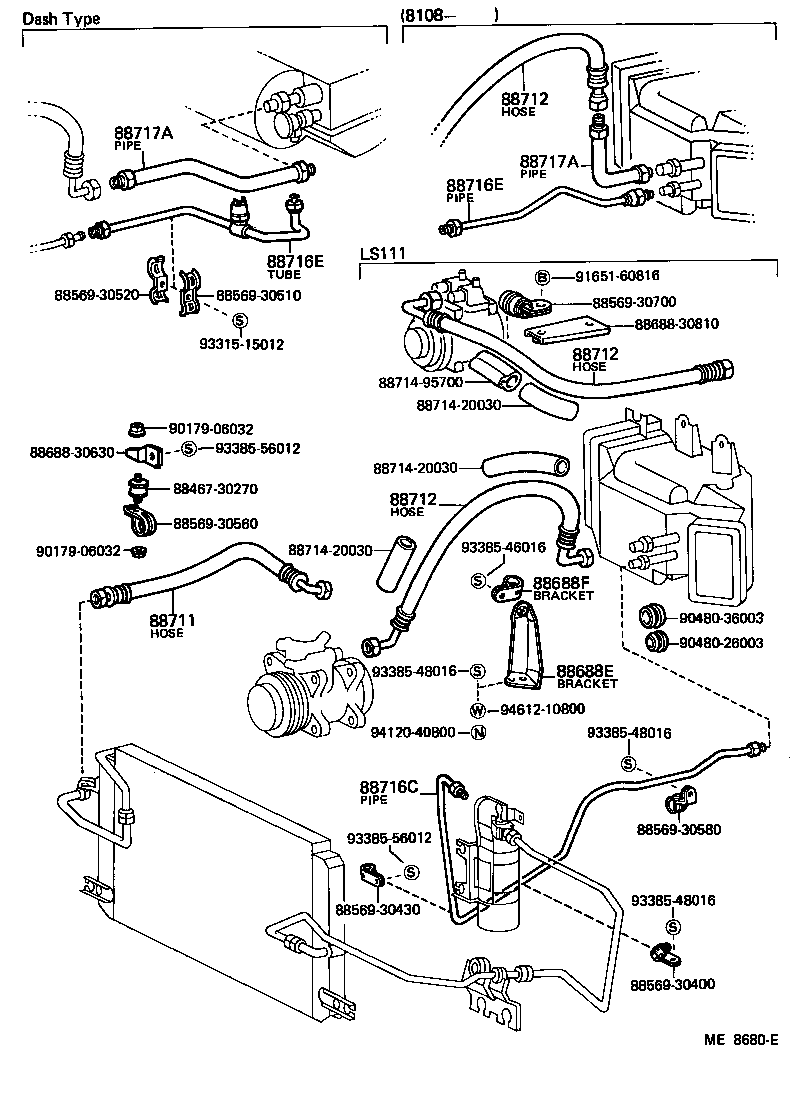

Figure MEA889B MEA889B 1979-09 → — Figure ME8659A ME8659A 1979-09 → — Figure ME8660F ME8660F 1979-09 → — Figure ME8680E ME8680E 1979-09 → — Figure ME8664C ME8664C 1979-09 → — Figure MEA890A MEA890A 1979-09 → — Figure MEA890A MEA890A 1981-08 → — Figure ME8668E ME8668E 1979-09 → —

Part groups

PNCDescription
88386A Pipe, Rear Cooler Refrigerant Liquid, A (FROM CONDENSER)
88386B Pipe, Rear Cooler Refrigerant Liquid, B
88386C Pipe, Rear Cooler Refrigerant Liquid, C
88386D Pipe, Rear Cooler Refrigerant Liquid, D
88386E Pipe, Rear Cooler Refrigerant Liquid, E (TO COOLER UNIT)
88387A Pipe, RR Cooler Refrigerant Suction, A (FROM COOLER UNIT)
88387B Pipe, Rear Cooler Refrigerant Suction, B
88387C Pipe, Rear Cooler Refrigerant Suction, C
88387D Pipe, Rear Cooler Refrigerant Suction, D
88460 Condenser Assy, Cooler
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88713 Hose, Cooler Refrigerant Suction, NO.2
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
