Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

7 part groups · 7 illustrations

Illustrations

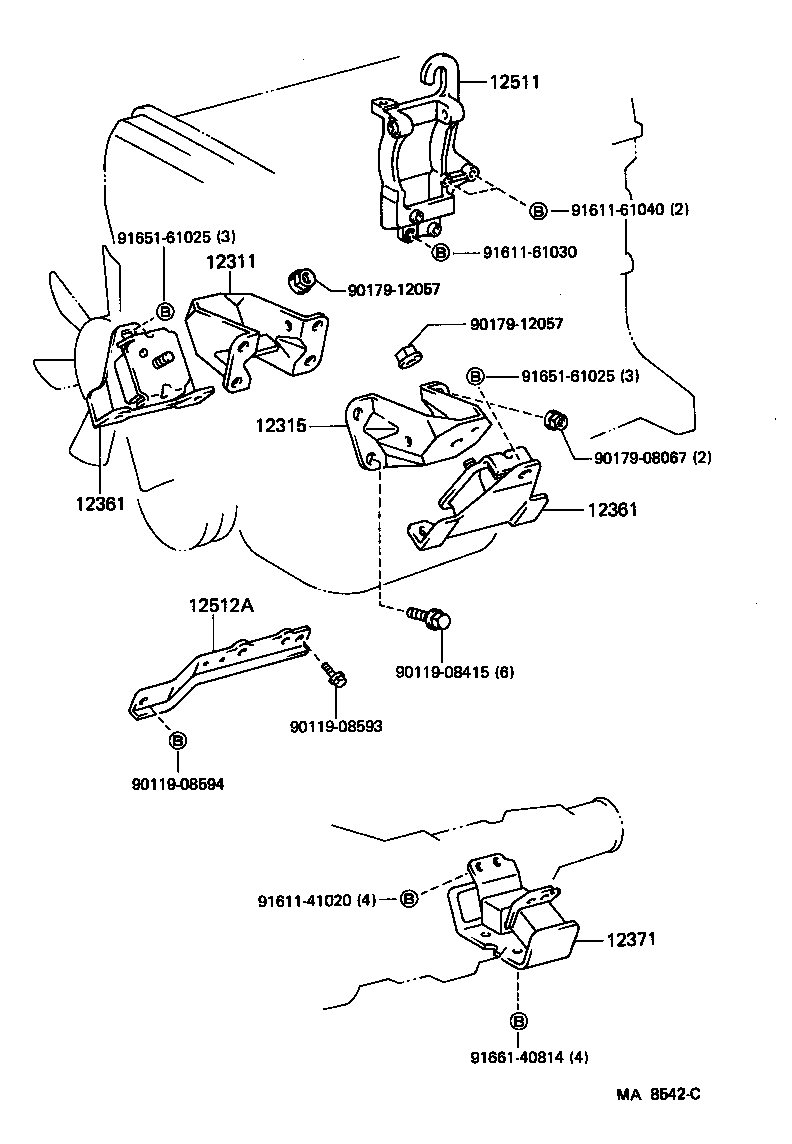

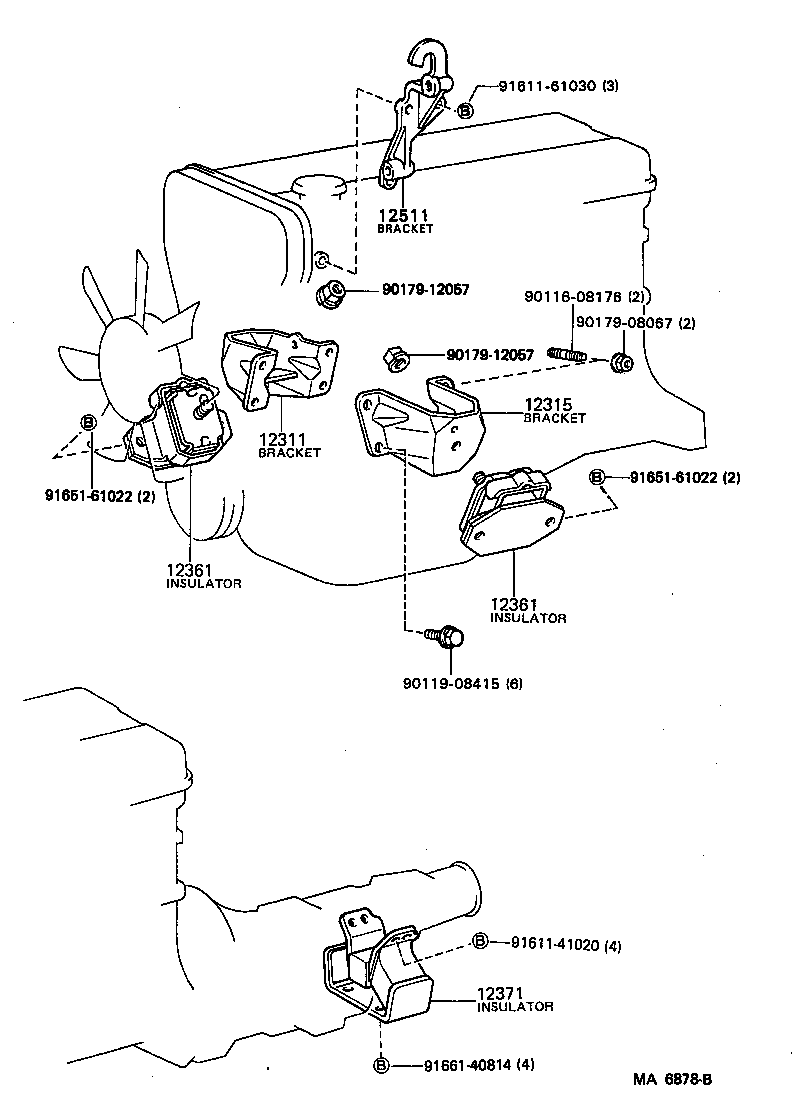

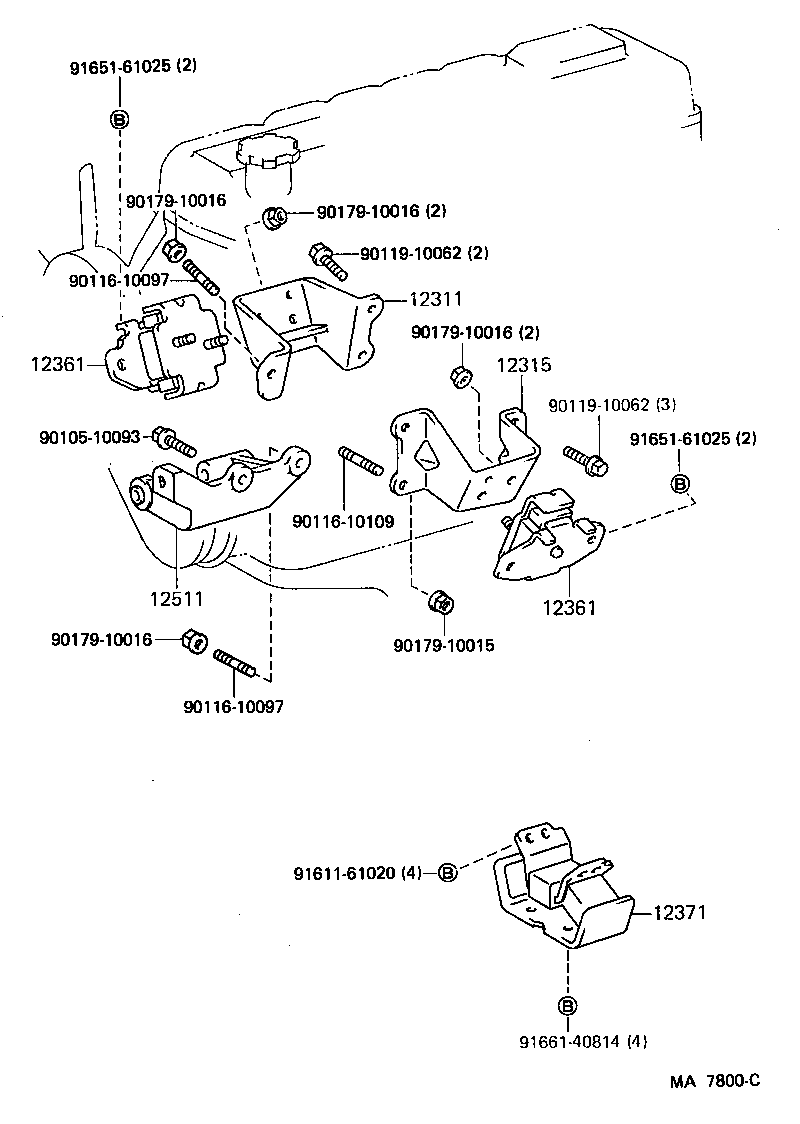

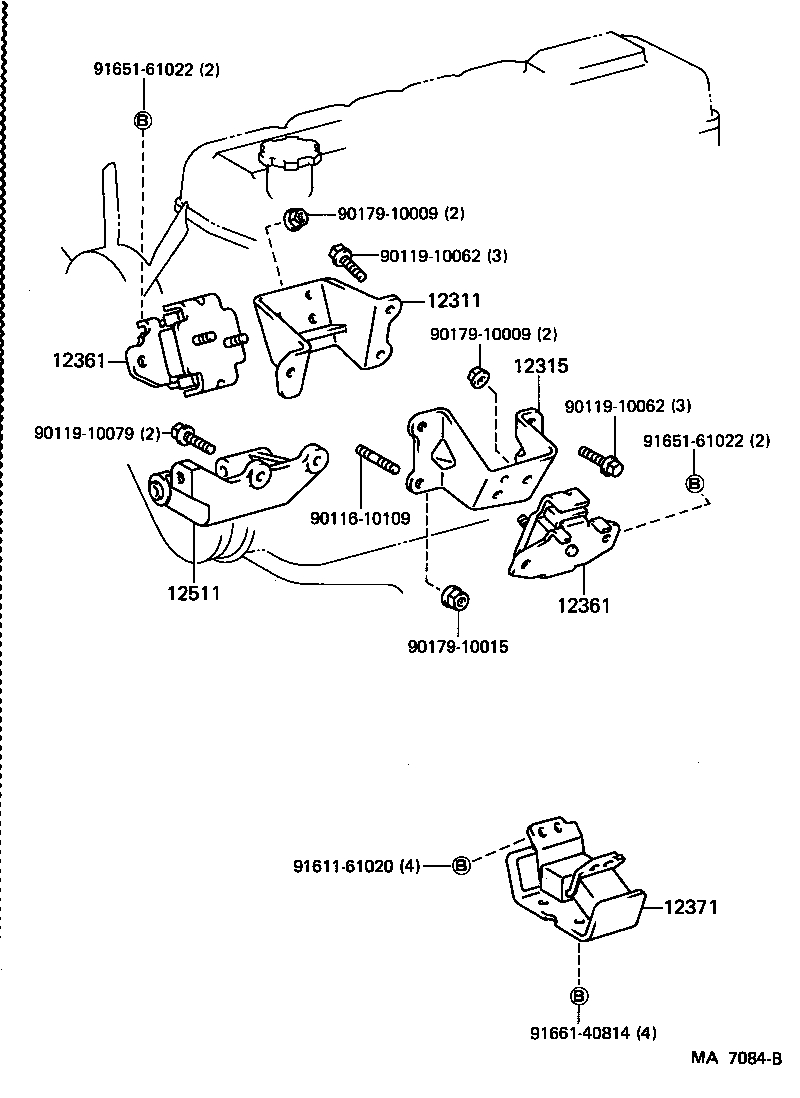

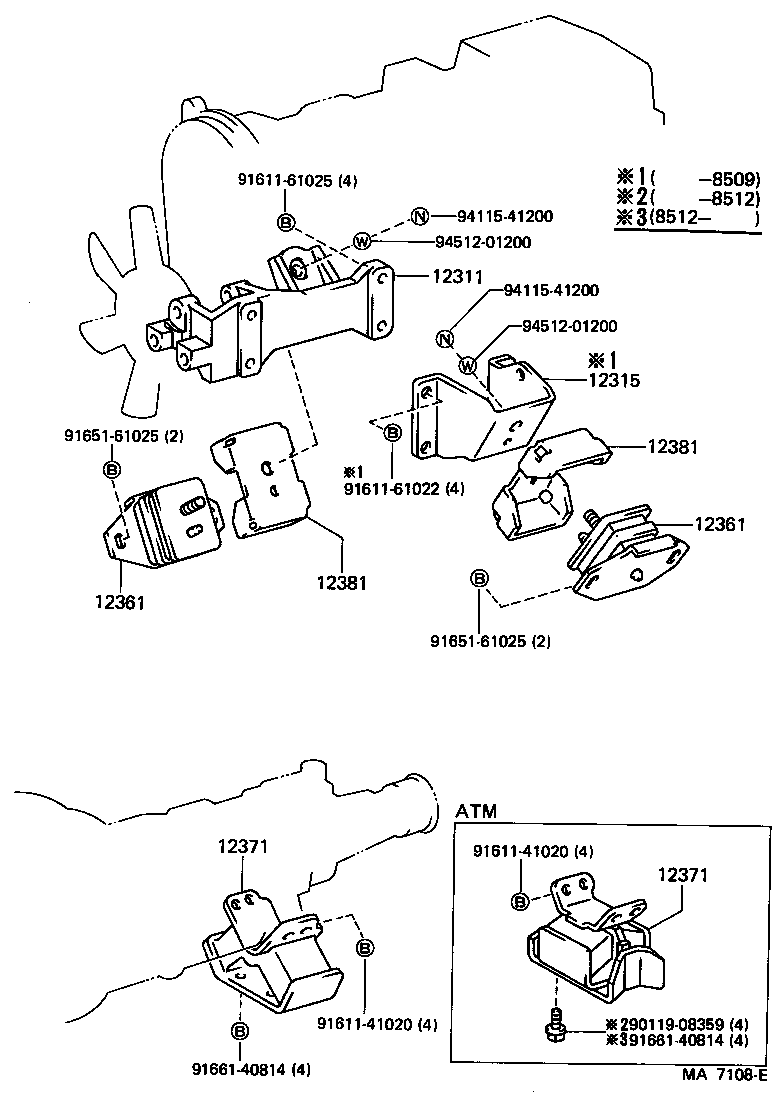

Figure MA6850A MA6850A 1983-08 → — Figure MA6878B MA6878B 1983-08 → — Figure MA8542C MA8542C 1985-09 → — Figure MA7108E MA7108E 1983-08 → — Figure MA7084B MA7084B 1983-08 → 1984-08 Figure MA7800C MA7800C 1984-08 → — Figure MA6951B MA6951B 1983-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12511 Bracket, Alternator, NO.1
12512A Bracket, Alternator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
