Toyota Crown
1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan
Discontinued model
Data version 1988-01

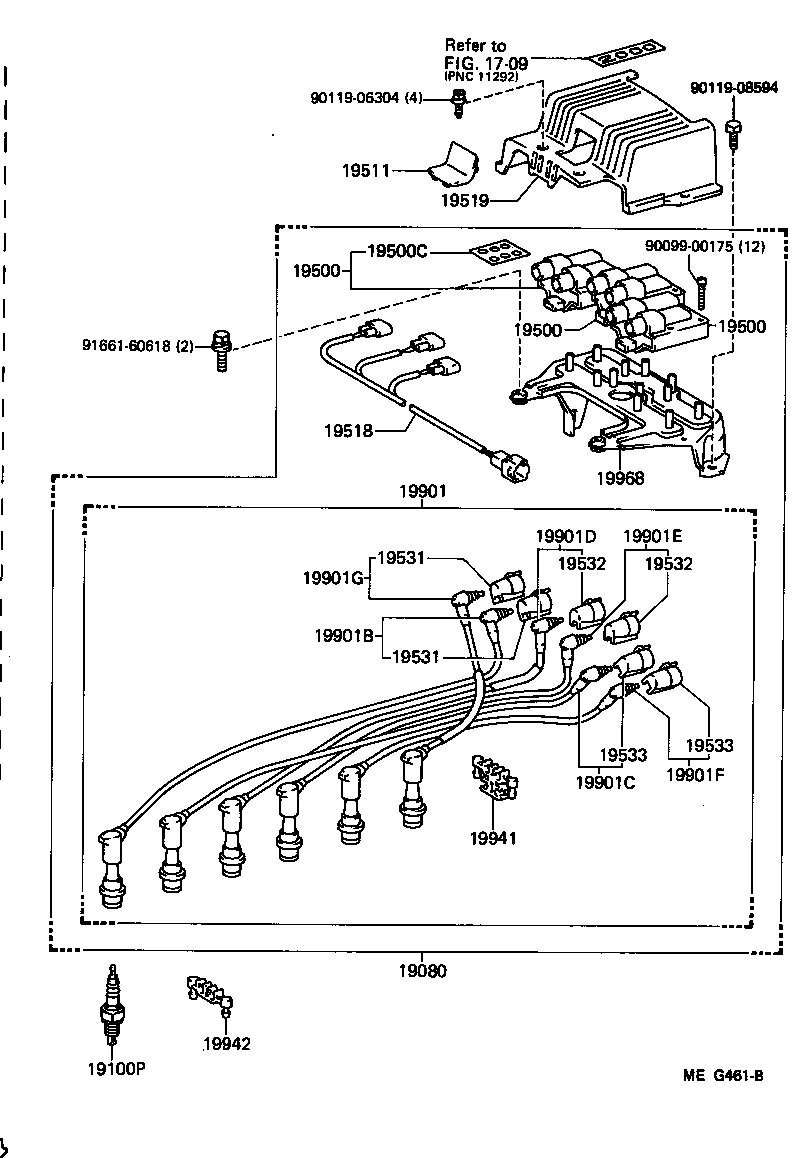

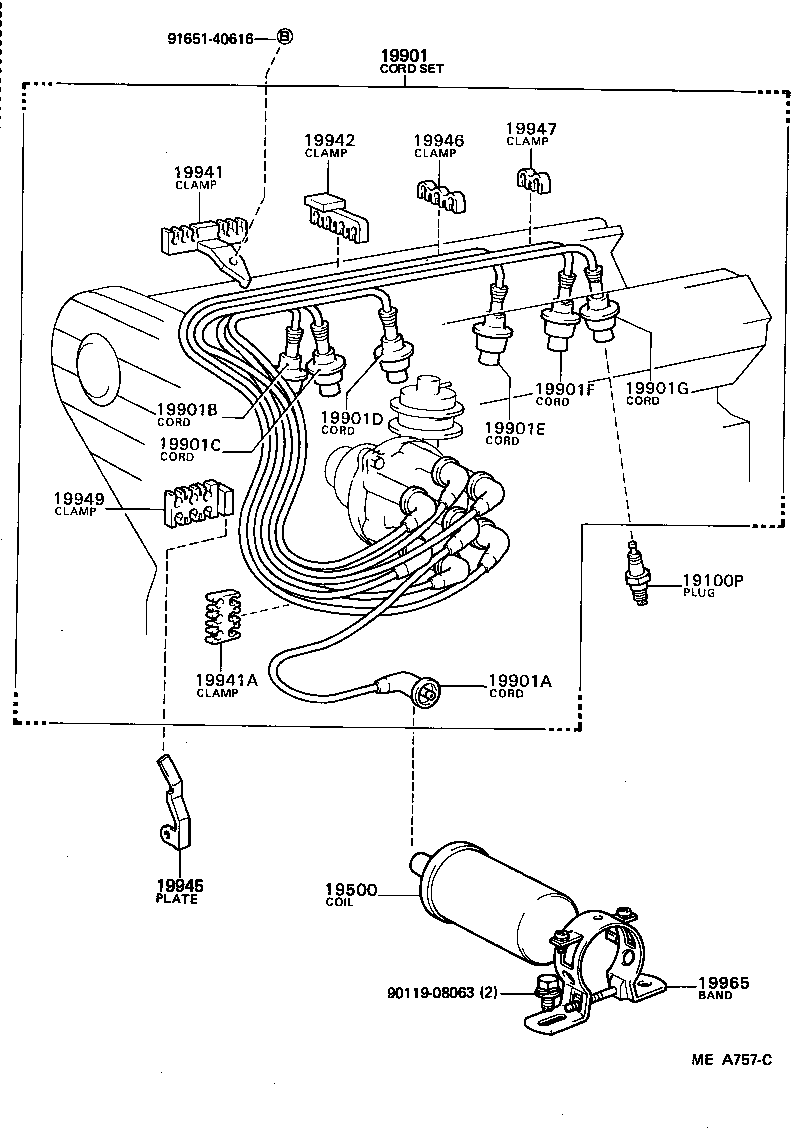

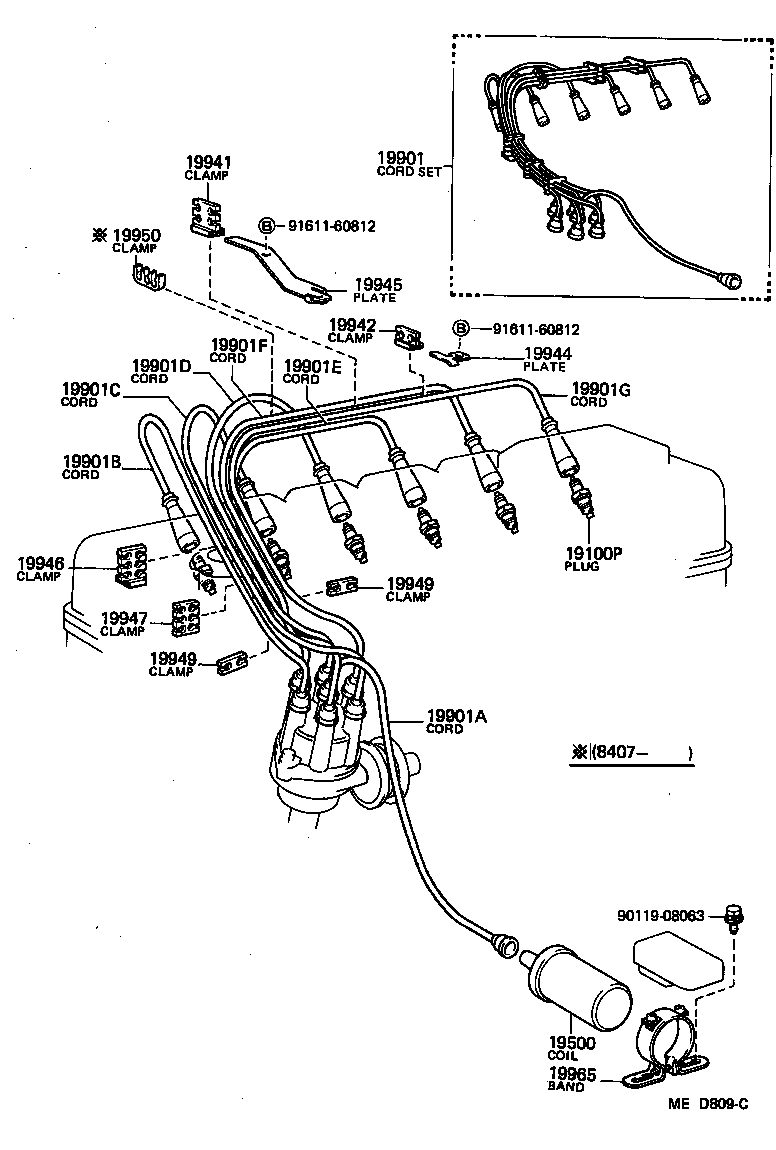

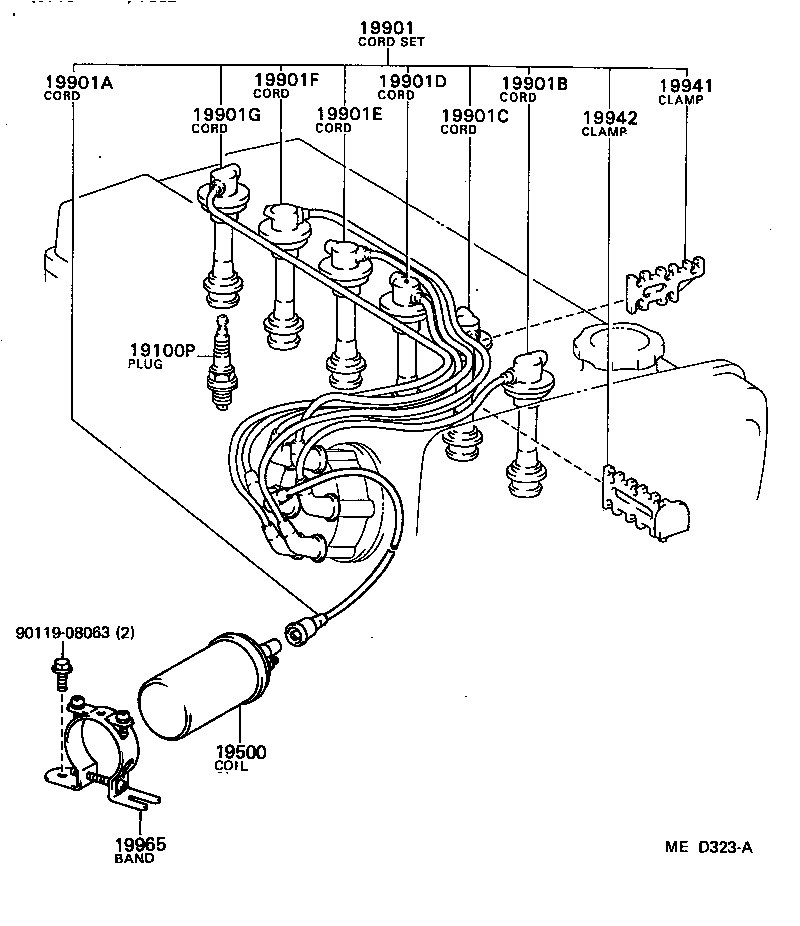

Ignition Coil & Spark Plug / Glow Plug
34 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 19080 | Coil Assy, W/Bracket & Cord |
| 19100P | Plug, Spark |
| 19500 | Coil Assy, Ignition |
| 19500C | Plate(FOR IGNITION COIL) |
| 19511 | Cover, Ignition Coil, NO.2 |
| 19518 | Wire, Ignition Coil |
| 19519 | Cover, Ignition Coil |
| 19531 | Holder, Resistive Cord, NO.1 |
| 19532 | Holder, Resistive Code, NO.2 |
| 19533 | Holder, Resistive Cord, NO.3 |
| 19539 | Holder, Resistive Code, NO.4 |
| 19850 | Plug Assy, Glow |
| 19850B | Grommet, Screw(FOR GLOW PLUG) |
| 19856 | Nut, Connecting(FOR GLOW PLUG) |
| 19871 | Connector, Glow Plug NO.1 |
| 19901 | Cord Set, Coil & Spark, W/Resistive |
| 19901A | Cord, Coil Resistive |
| 19901B | Cord, Spark Plug Resistive, NO.1 |
| 19901C | Cord, Spark Plug Resistive, NO.2 |
| 19901D | Cord, Spark Plug Resistive, NO.3 |
| 19901E | Cord, Spark Plug Resistive, NO.4 |
| 19901F | Cord, Spark Plug Resistive, NO.5 |
| 19901G | Cord, Spark Plug Resistive, NO.6 |
| 19941 | Clamp, Resistive Cord, NO.1 |
| 19941A | Clamp(FOR RESISTIVE CORD) |
| 19942 | Clamp, Resistive Cord, NO.2 |
| 19944 | Plate, Resistive Cord Clamp Support, NO.2 |
| 19945 | Plate, Resistive Cord Clamp Support, NO.3 |
| 19946 | Clamp, Resistive Cord, NO.3 |
| 19947 | Clamp, Resistive Cord, NO.4 |
| 19949 | Clamp, Resistive Cord, NO.5 |
| 19950 | Clamp, Resistive Cord, NO.6 |
| 19965 | Band, Ignition Coil, NO.1 |
| 19968 | Bracket, Ignition Coil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
