Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Body

106 part groups · 9 illustrations

Illustrations

MF3235C 1983-08 → 1984-06

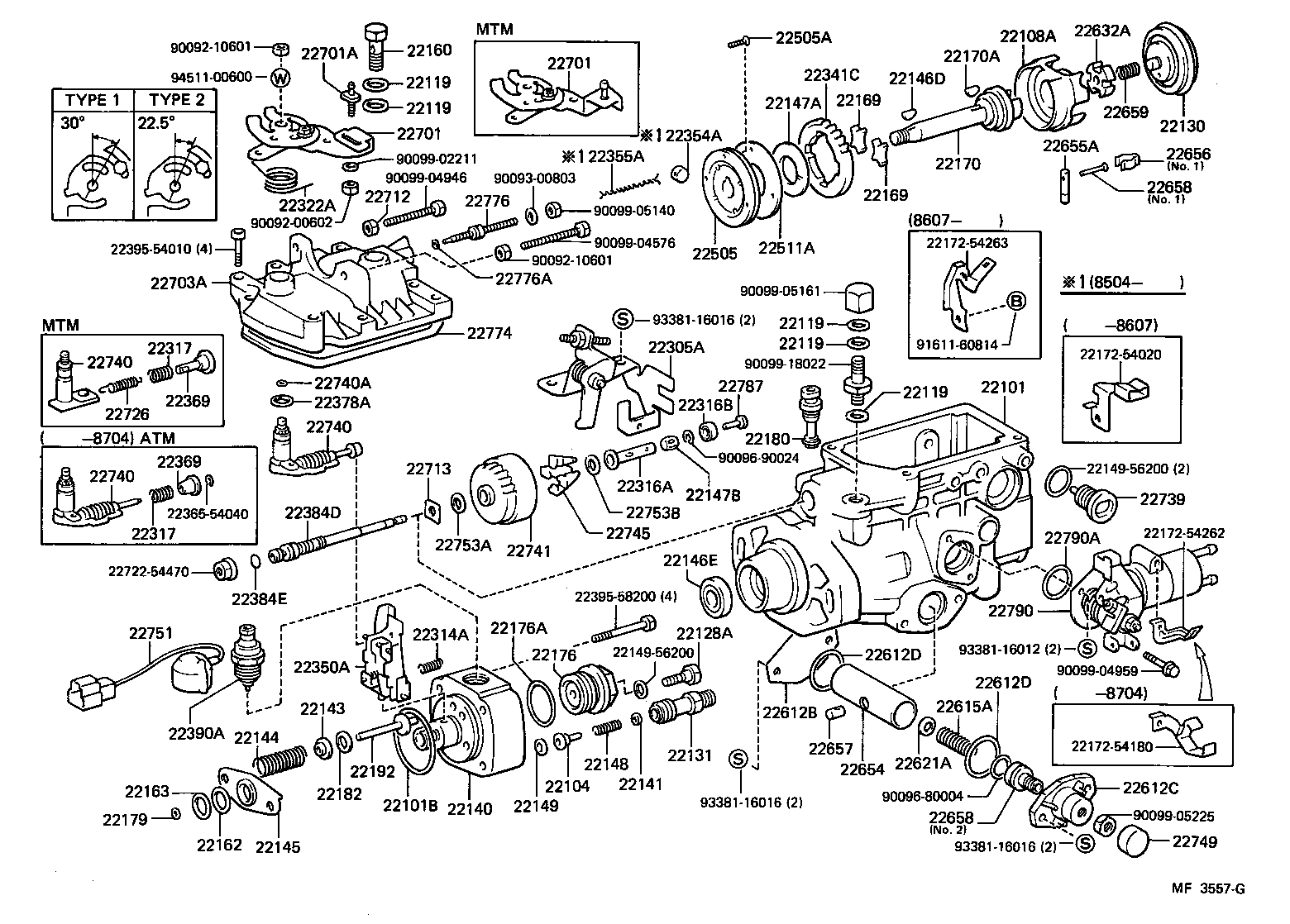

MF3557G 1984-06 → —

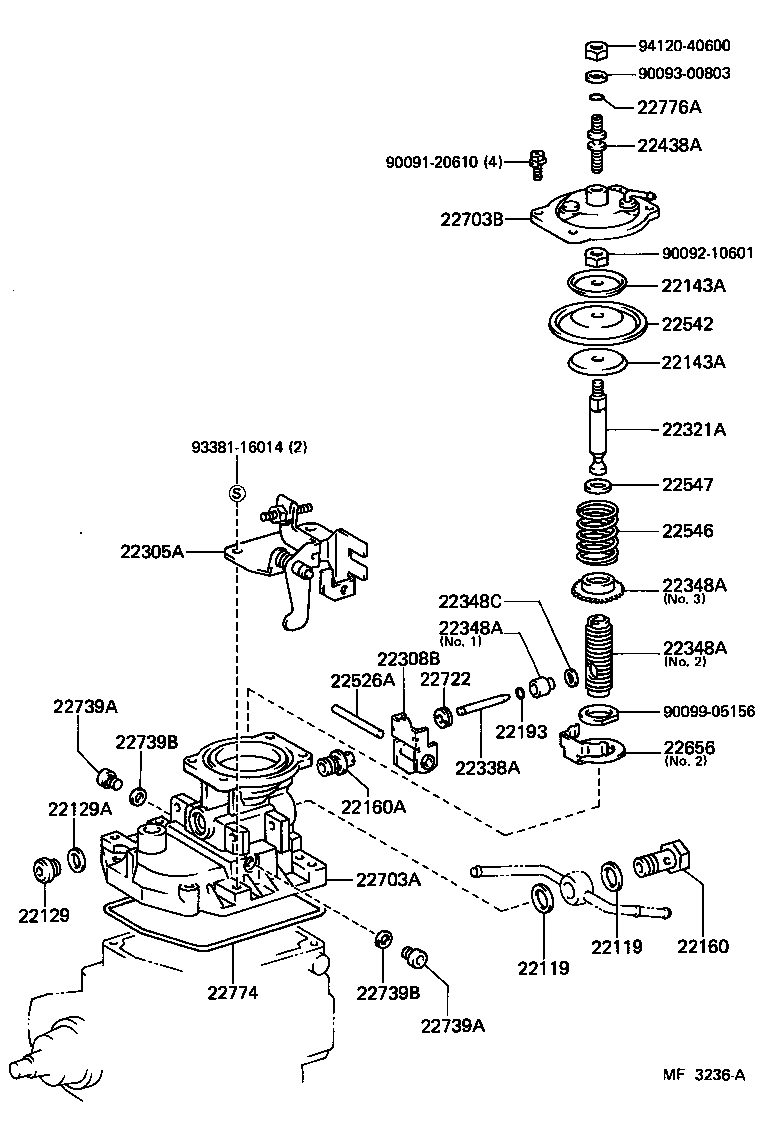

MF3236A 1983-08 → 1984-06

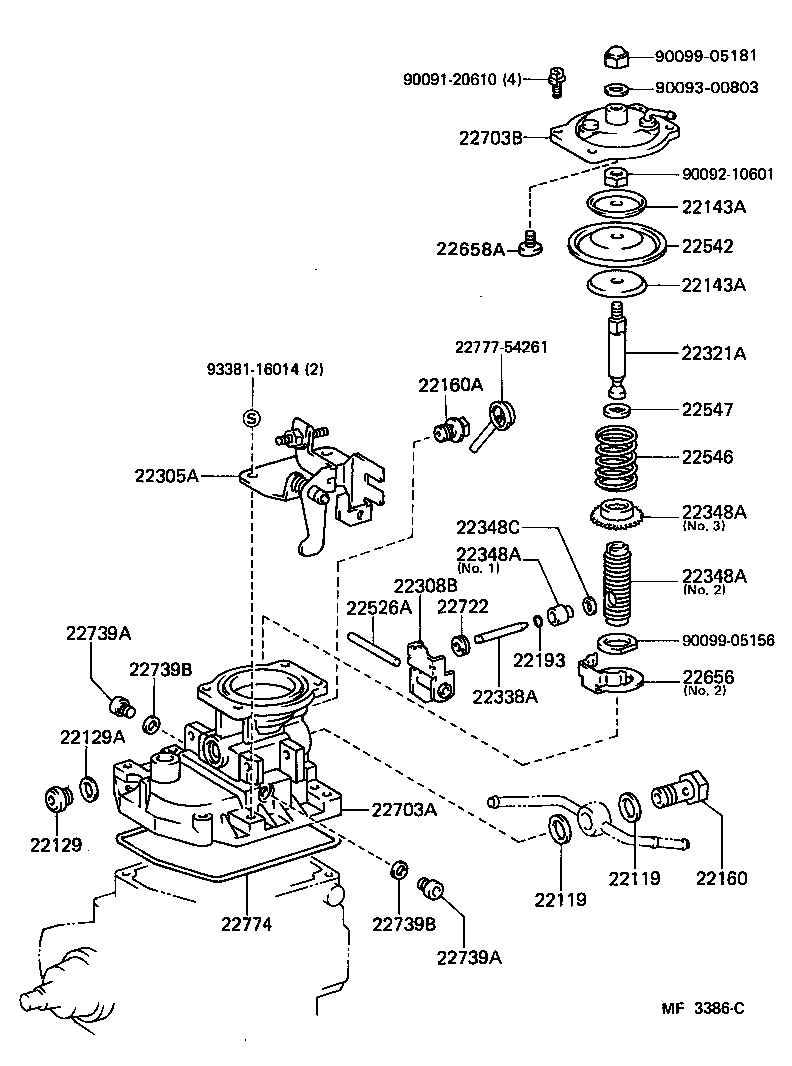

MF3386C 1984-06 → —

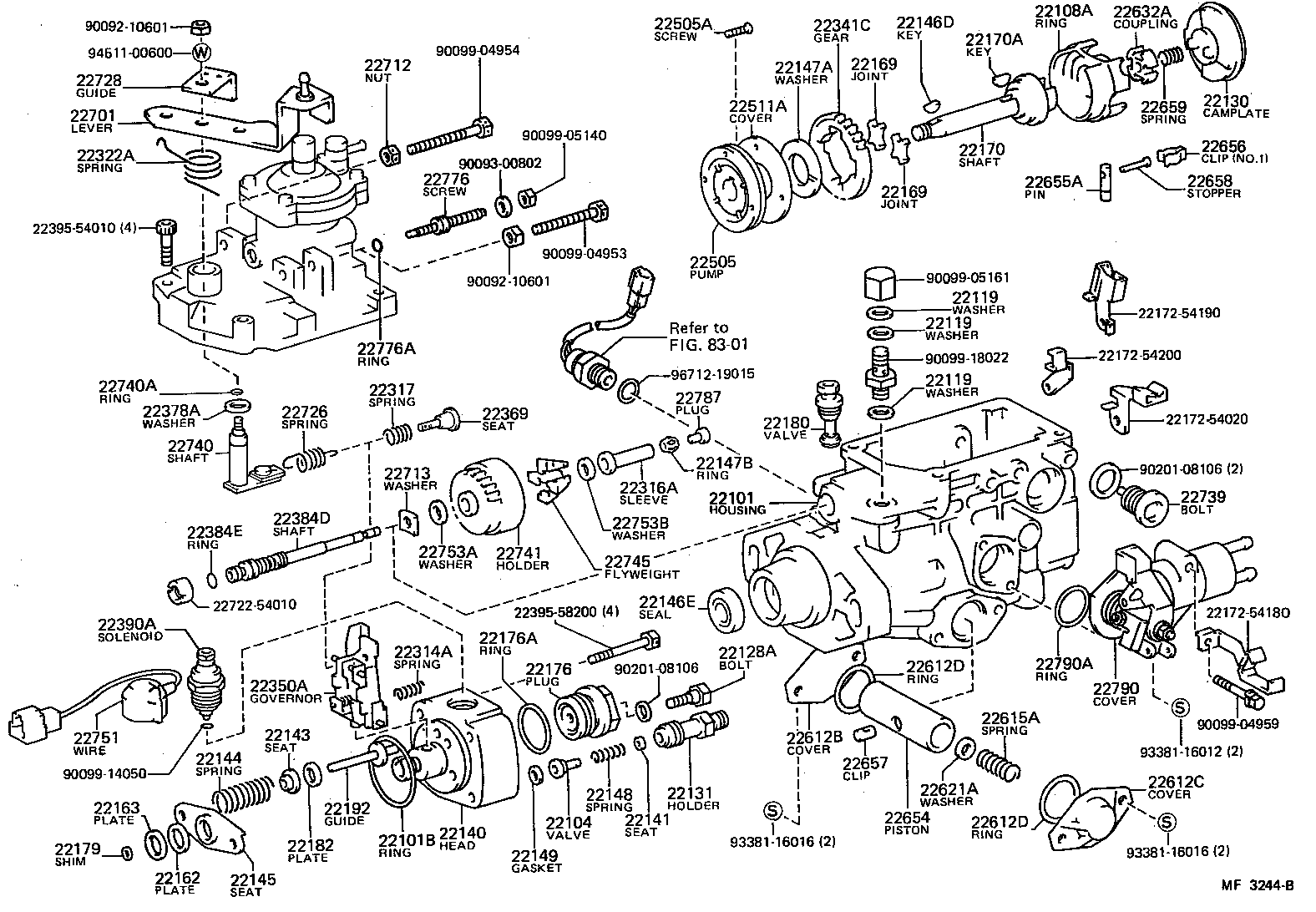

MF3244B 1983-08 → 1984-06

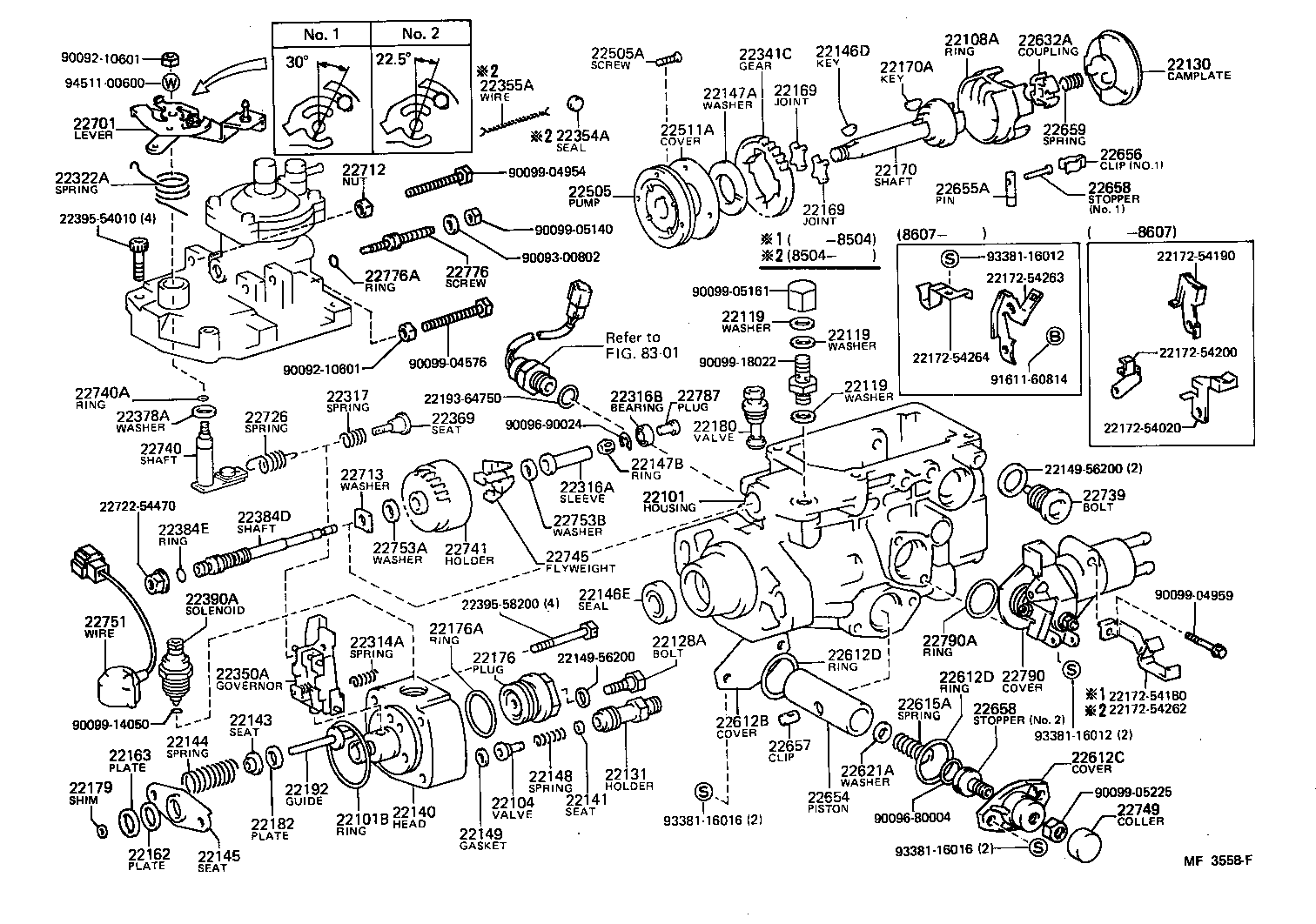

MF3558F 1984-06 → —

MF3110A 1983-08 → 1984-08

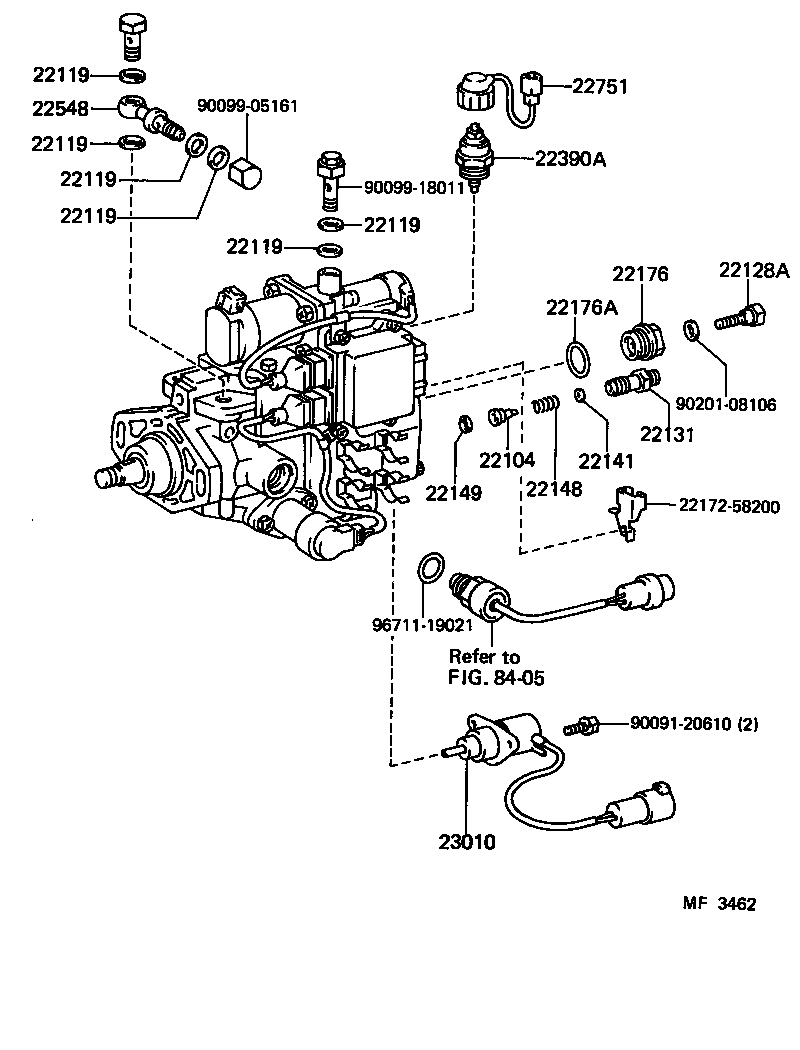

MF3462 1984-08 → 1985-09

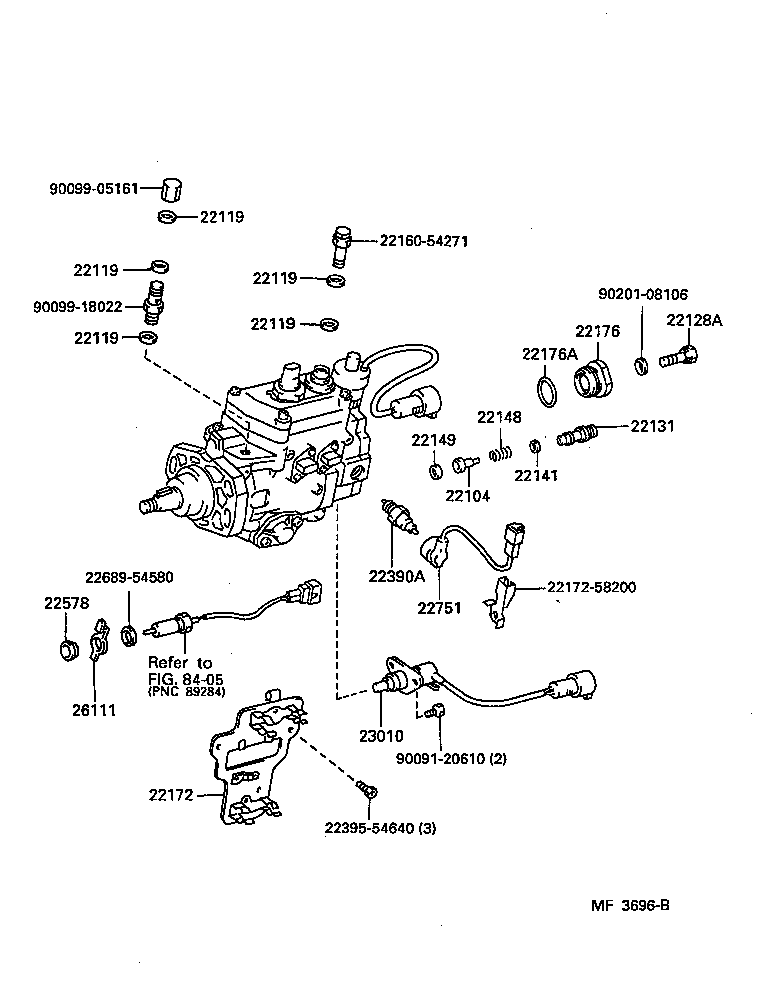

MF3696B 1985-09 → —

Part groups

PNC	Description
22101	Housing Sub-assy, Injection Pump
22101B	Ring, O(FOR INJECTION PUMP HOUSING)
22104	Valve Sub-assy, Injection Pump Delivery
22108A	Ring Sub-assy, Roller
22119	Washer, Air Bleeder Nipple
22128A	Bolt, Distributive Head
22129	Plug, Screw
22129A	Washer, Air Bleeder Nipple(FOR SCREW PLUG)
22130	Camplate Sub-assy, Face
22131	Holder, Delivery Valve
22140	Head Sub-assy, Distributive Pump
22141	Seat, Delivery Valve Spring
22143	Seat, Spring Upper
22143A	Seat, Spring Upper, NO.2
22144	Spring, Pump Plunger
22145	Seat, Spring, Lower
22146D	Key(FOR DRIVE GEAR)
22146E	Seal(FOR DRIVE SHAFT)
22147A	Washer, Drive Shaft
22147B	Ring, Governor Sleeve
22148	Spring, Delivery Valve
22149	Gasket, Delivery Valve
22160	Screw Sub-assy, Overflow
22160A	Screw Sub-assy, Over Flow, NO.2
22162	Plate, Plunger Upper
22163	Plate, Plunger Lower
22169	Joint, Rubber
22170	Shaft Sub-assy, Drive
22170A	Key(FOR DRIVE SHAFT)
22176	Plug, Distributive Head
22176A	Ring, O(FOR DISTRIBUTIVE HEAD PLUG)
22179	Shim, Plunger Adjusting
22180	Valve Sub-assy, Regulator
22182	Plate, Tappet Adjusting Shim
22192	Guide Sub-assy, Plunger Spring
22193	Ring, O(FOR LEVER CONNECTING PIN)
22305A	Idle-up Sub-assy
22308B	Lever Sub-assy, Control
22314A	Spring, Lever Support
22316A	Sleeve, Governor
22317	Spring, Governor Domper
22321A	Rod, Push
22322A	Spring, Return
22338A	Pin, Lever Connecting
22341C	Gear, Governor Drive
22348A	Bushing, Guide
22348C	Washer(FOR GUIDE BUSHING)
22350A	Governor Assy, Torque Control
22354A	Seal, Rod
22355A	Wire, Governor Housing Seal
22369	Seat, Governor Spring
22378A	Washer, Governor Thrust
22384D	Shaft, Governor
22384E	Ring, O(FOR GOVERNOR MAIN SHAFT)
22390A	Solenoid Assy, Fuel Cut
22438A	Screw, Stop(FOR PUSH ROD SETTING)
22505	Pump Sub-assy, Fuel Feed
22505A	Screw(FOR FUEL FEED PUMP)
22511A	Cover, Feed Pump
22526A	Pin, Lever Support
22542	Diaphragm(FOR BOOST COMPENSATOR)
22546	Spring, Boost Compensator
22547	Shim, Boost Compensator
22548	Nipple, Swivel
22578	Collar(FOR INJECTION PUMP)
22612B	Cover, Timer
22612C	Cover, Timer
22612D	Ring, O(FOR TIMER COVER)
22615A	Spring, Timer Outer
22621A	Washer, Timer Adjusting
22632A	Coupling, Injection Pump
22654	Piston, Timer
22655A	Pin, Timer Slide
22656	Clip, Timer
22657	Clip, Timer
22658	Stopper, Timer
22658A	Stopper, Timer Slide
22659	Spring, Coupling
22701	Lever Sub-assy, Adjusting
22701A	Joint, Ball(FOR ADJUSTING LEVER)
22703A	Cover Sub-assy, Governor
22703B	Cover, Governor
22712	Nut, Rock
22713	Washer, Governor Gear Adjusting
22722	Nut, Governor Shaft Rock
22726	Spring, Speed Control
22728	Guide, Return Spring
22739	Bolt, Governor Link Support
22739A	Bolt, Governor Link Support NO.2
22739B	Washer(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
22740	Shaft Sub-assy, Governor Adjusting
22740A	Ring, O(FOR GOVERNOR ADJUSTING SHAFT)
22741	Holder Sub-assy, Flyweight
22745	Flyweight, Distributive Pump
22751	Wire Sub-assy, Fuel Cut Solenoid
22753A	Washer, Flyweight, NO.1
22753B	Washer, Flyweight, NO.2
22774	Gasket, Governor Cover
22776	Screw, Smoke Set Adjusting
22776A	Ring, O(FOR SMOKE SET SCREW)
22787	Plug, Governor Sleeve
22790	Cover Sub-assy, Timer
22790A	Ring, O(FOR TIMER COVER)
23010	Valve Assy, Timing Control
23032	Valve Assy, Spill Control
26111	Lever(FOR CRANK SENSOR ADJUSTING)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
