Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

64 part groups · 12 illustrations

Illustrations

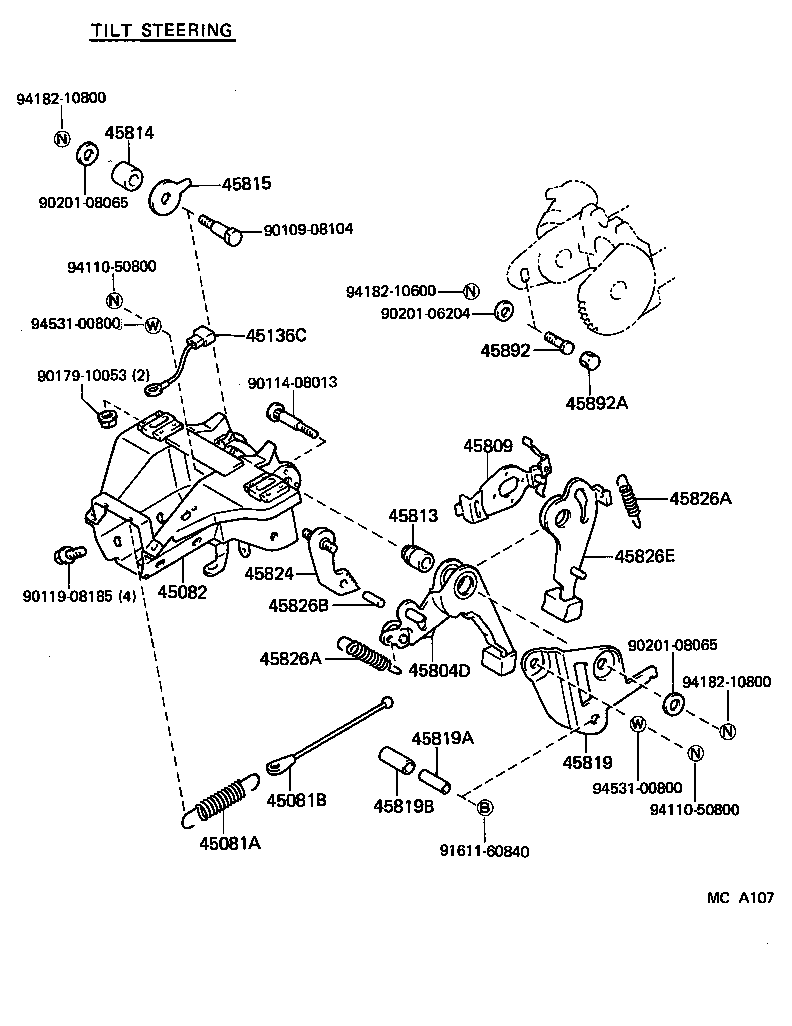

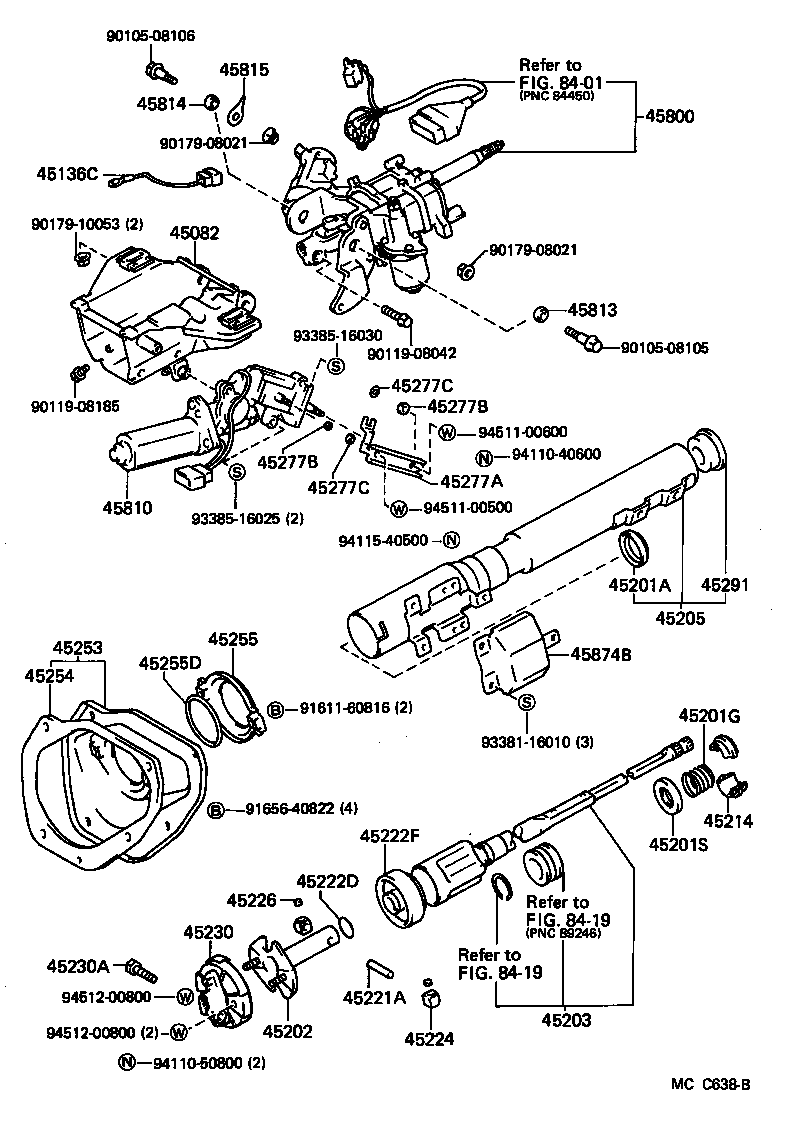

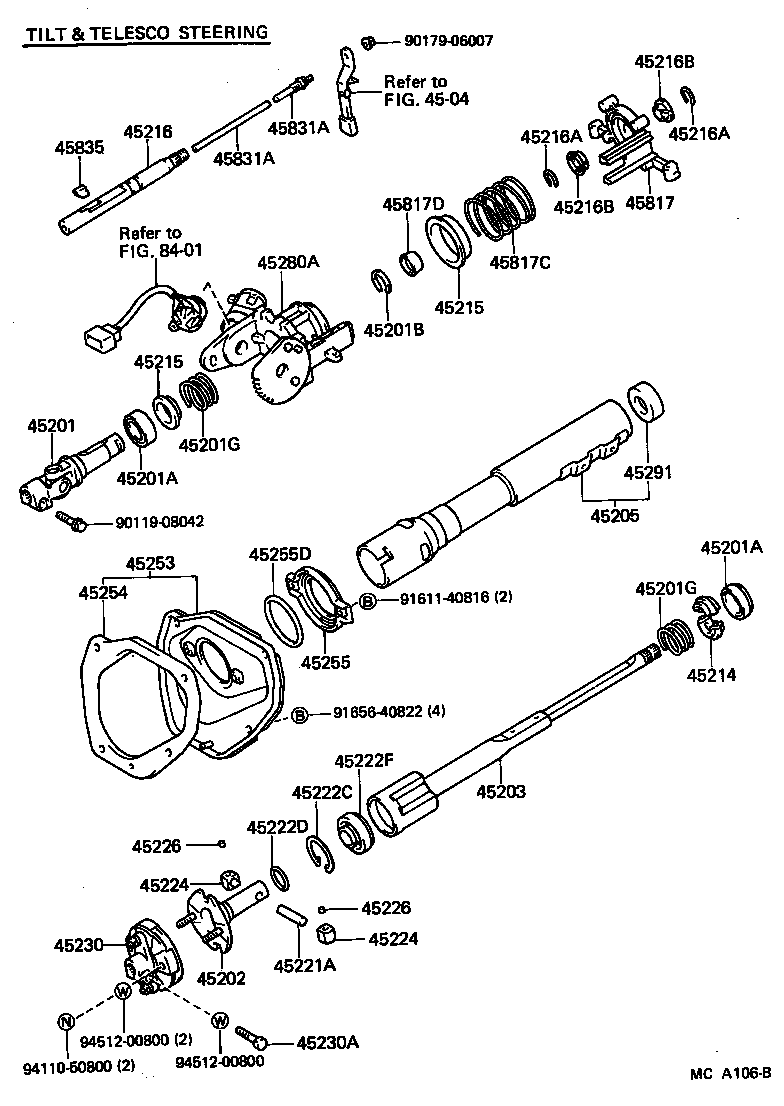

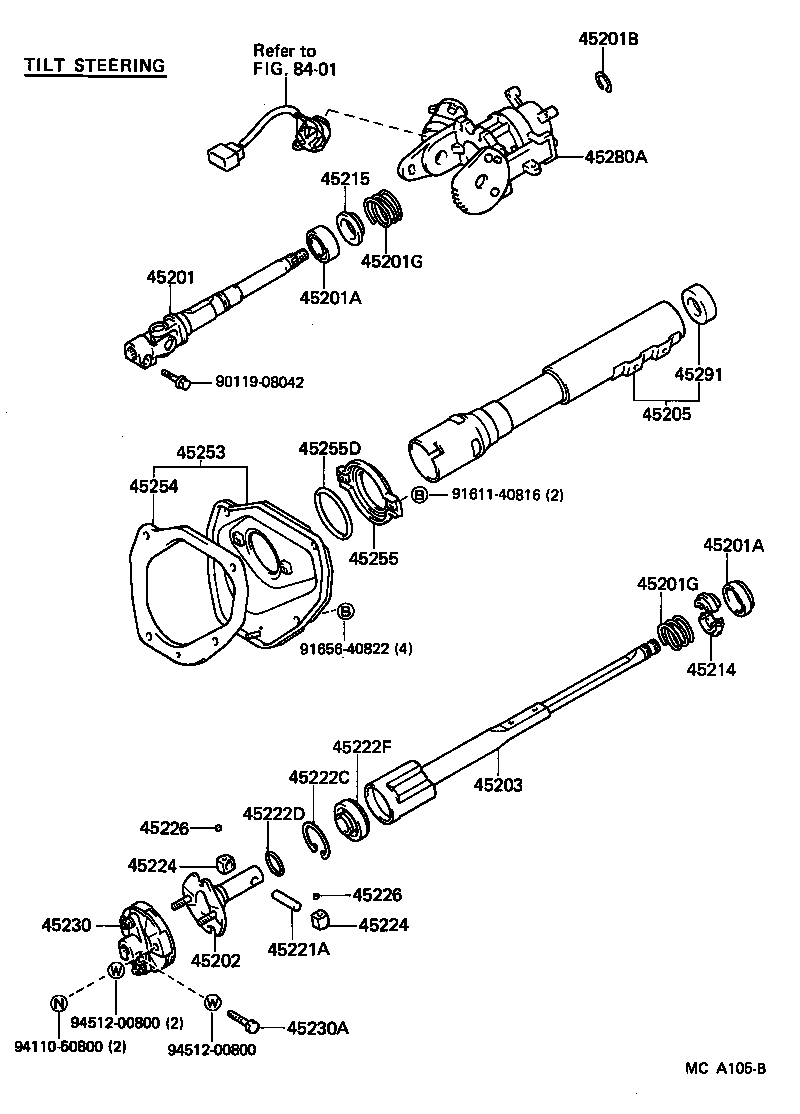

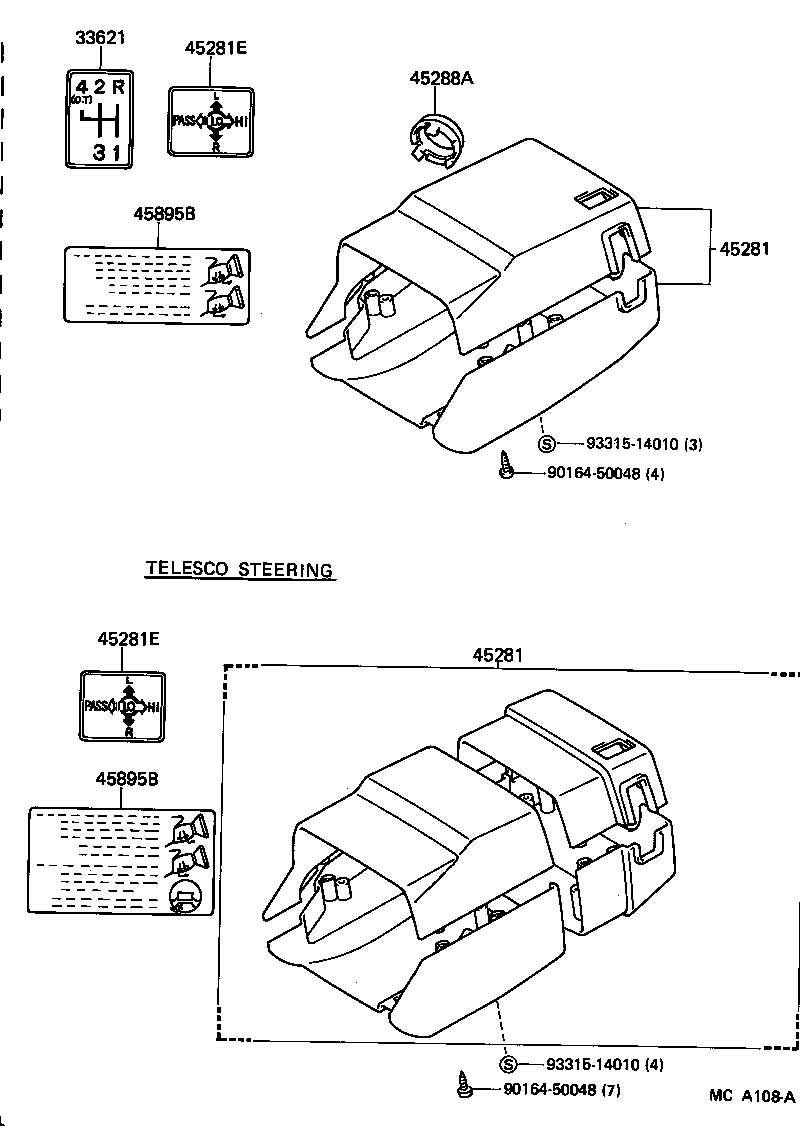

Figure MCA104B MCA104B 1983-08 → — Figure MCA104B MCA104B 1983-08 → — Figure MCA105B MCA105B 1983-08 → 1985-09 Figure MCA105B MCA105B 1983-08 → — Figure MCA105B MCA105B 1984-05 → 1985-09 Figure MCA106B MCA106B 1983-08 → — Figure MCA106B MCA106B 1984-05 → 1985-09 Figure MCC638B MCC638B 1985-09 → — Figure MCA107 MCA107 1983-08 → 1985-09 Figure MCA107 MCA107 1983-08 → — Figure MCA108A MCA108A 1983-08 → — Figure MCC639 MCC639 1985-09 → —

Part groups

PNCDescription
33621 Plate, Control Lever Caution
45081A Spring, Tension(FOR TILT STEERING)
45081B Cord(FOR TILT STEERING)
45082 Bracket Sub-assy, Break Away W/Capsule
45136C Cable, Bond(FOR HORN EARTH)
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45201S Spacer(FOR STEERING MAIN SHAFT SPRING)
45202 Shaft Sub-assy, Steering Intermediate
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45205 Tube Sub-assy, Steering Column
45214 Retainer, Main Shaft Spring
45215 Collar, Main Shaft Bearing Thrust
45216 Shaft, Steering Sliding
45216A Ring, Shaft Snap(FOR STEERING SLIDING SHAFT)
45216B Bush(FOR STEERING SLIDING SHAFT)
45221A Pin(FOR STEERING INTERMEDIATE SHAFT)
45222C Ring, Hole Snap(FOR DUST COVER)
45222D Ring, O(FOR DUST COVER)
45222F Cover, Dust
45224 Block, Bearing(FOR STEERING FLEXIBLE COUPLING)
45226 Anti-rattle(FOR STEERING FLEXIBLE COUPLING)
45230 Coupling Assy, Flexible
45230A Bolt, Hexagon(FOR STEERING FLEXIBLE COPLING SET)
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45255 Plate, Steering Column Hole Cover
45255D Ring, O(FOR STEERING COLUMN HOLE COVER PLATE)
45269 Retainer, Main Shaft Bearing
45277A Support, Tilt Steering
45277B Cushion(FOR TILT STEERING SUPPORT)
45277C Spacer(FOR TILT STEERING SUPPORT)
45280A Bracket Assy, Steering Column, Upper
45281 Housing, Steering Column
45281E Plate, Safety Caution
45288A Spacer, Column Cover
45291 Seal, Main Shaft Upper Dust
45800 Gear Assy, Telescopic Steering, W/Motor
45804D Lever Sub-assy, Steering Tilt(FOR TILT UP CONTROL)
45809 Cover Sub-assy, Adjuster Memory
45810 Gear Assy, Tilt Steering, W/Motor
45813 Collar, Tilt Steering Support, NO.1
45814 Collar, Tilt Steering Support, NO.2
45815 Shim, Tilt Steering Support
45817 Stopper, Steering Shaft Thrust
45817C Spring, Compression(FOR STEERING SHAFT THRUST STOPPER)
45817D Cushion(FOR STEERING SHAFT THRUST STOPPER)
45819 Retainer, Tilt Lever
45819A Collar(FOR TILT LEVER RETAINER)
45819B Cushion(FOR TILT LEVER RETAINER)
45824 Pawl, Tilt Steering
45826A Spring, Tension(FOR STEERING TILT LEVER)
45826B Pin(FOR STEERING TILT LEVER)
45826D Lever, Steering Telescopic
45826E Lever, Steering Tilt(FOR TILT ADJUST)
45831A Bolt, Telescope Lever Lock
45835 Wedge, Lock
45874B Protector, Steering Column, NO.1
45892 Bolt, Tilt Steering Support Stopper
45892A Cover, Tilt Steering Support Stopper
45895A Plate, Tilt Steering Caution
45895B Plate, Tilt Lever Instruction
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
