Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

20 part groups · 3 illustrations

Illustrations

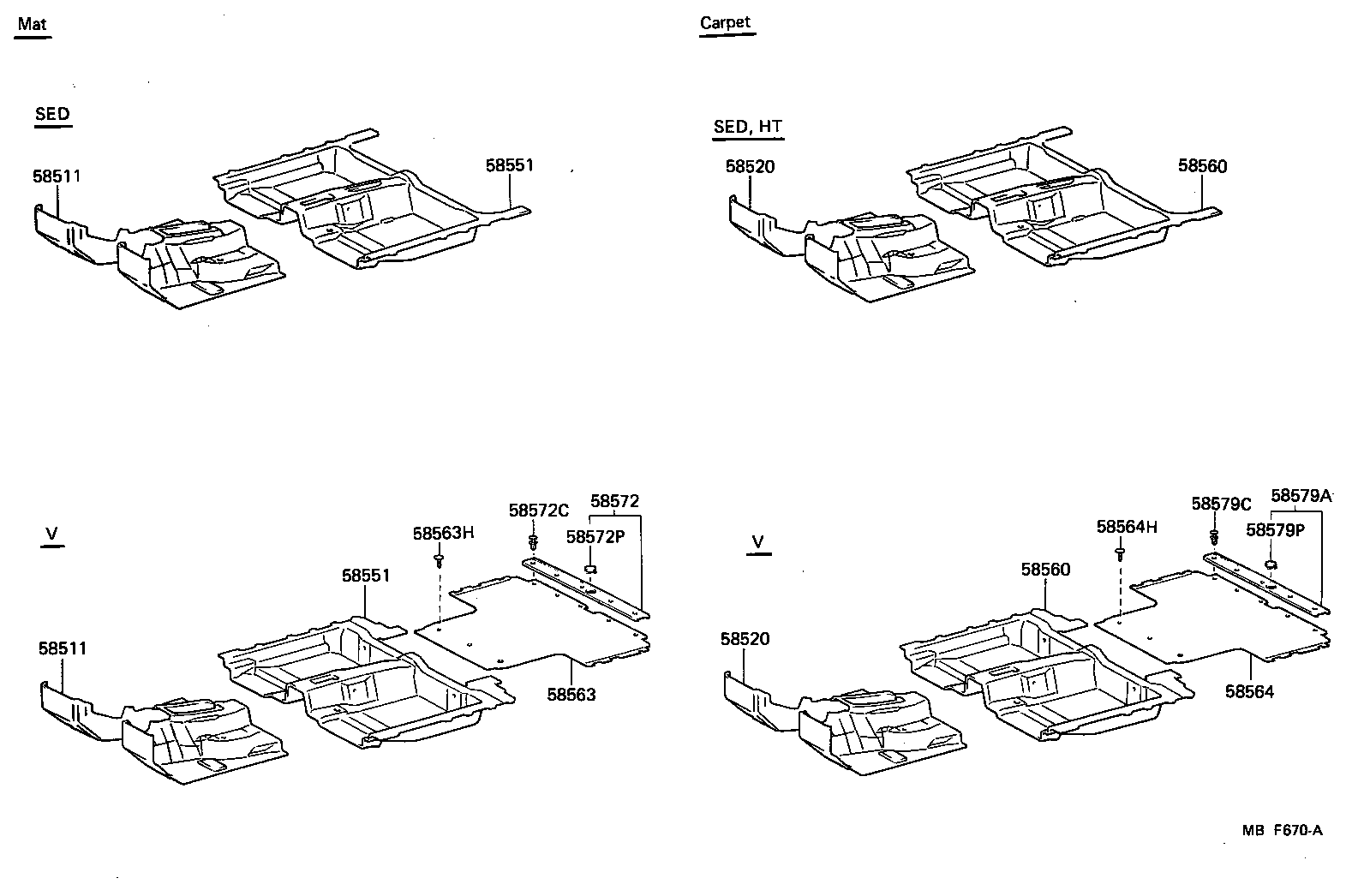

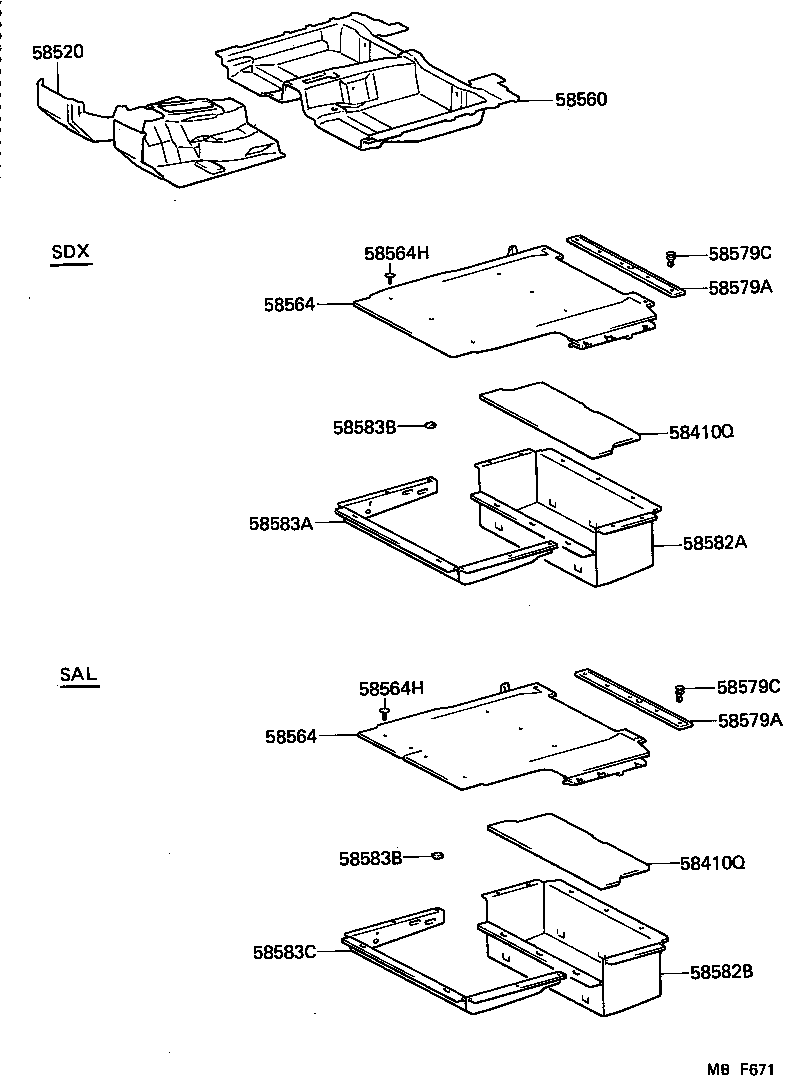

Figure MBF669 MBF669 1983-08 → — Figure MBF670A MBF670A 1983-08 → — Figure MBF671 MBF671 1983-08 → —

Part groups

PNCDescription
58410Q Board Assy, 3RD Seat Floor
58511 Mat, Floor, Front
58520 Carpet Assy, Front Floor
58551 Mat, Floor, Rear
58560 Carpet Assy, Floor, Rear
58563 Mat, Rear Floor
58563H Clip(FOR REAR FLOOR MAT)
58564 Carpet, Rear Floor
58564H Clip(FOR REAR FLOOR CARPET)
58572 Set Plate, Rear Floor Mat, Rear
58572C Clip, Rear Floor Mat Set
58572P Plug, Hole(FOR SET PLATE)
58579A Set Plate, Rear Floor Carpet, NO.2
58579C Clip, Rear Floor Carpet Set
58579P Plug, Hole(FOR SET PLATE)
58582A Mat, 3RD Seat Floor, NO.1
58582B Carpet, 3RD Seat Floor, NO.1
58583A Mat, 3RD Seat Floor, NO.2
58583B Stopper, 3RD Seat Cushion(FOR FLOOR)
58583C Carpet, 3RD Seat Floor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
