Toyota Crown
1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan
Discontinued model
Data version 1988-01

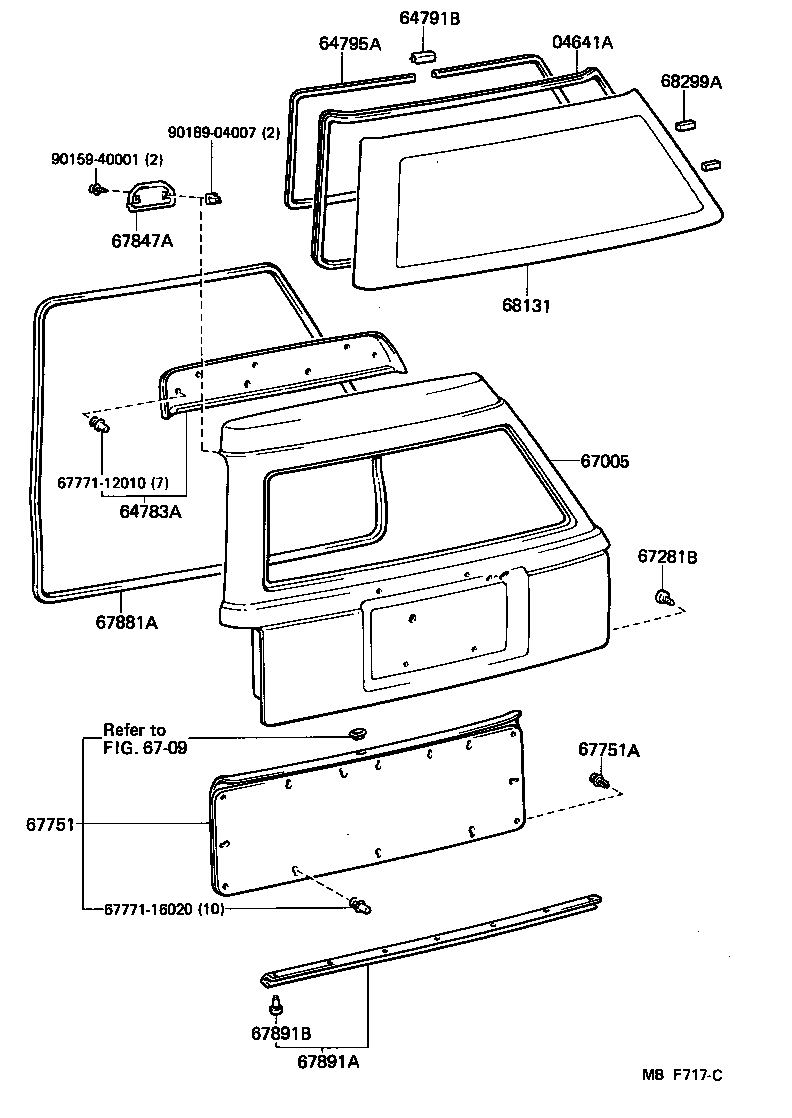

Back Door Panel & Glass
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641A | Dam Kit, Back Window Glass Adhesive |
| 64783A | Trim, Back Window Panel, Upper |
| 64791B | Cover, Back Door Trim |
| 64795A | Trim, Back Window Opening |
| 67005 | Panel Sub-assy, Back Door |
| 67281B | Stopper, Back Door, Lower |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67847A | Cover, Back Door Service Hole |
| 67881A | Weatherstrip, Back Door |
| 67891A | Seal, Back Door |
| 67891B | Clip(FOR BACK DOOR SEAL) |
| 68131 | Glass, Back Door |
| 68291 | Weatherstrip, Back Door Glass |
| 68299A | Spacer, Back Door Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
