Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

16 part groups · 2 illustrations

Illustrations

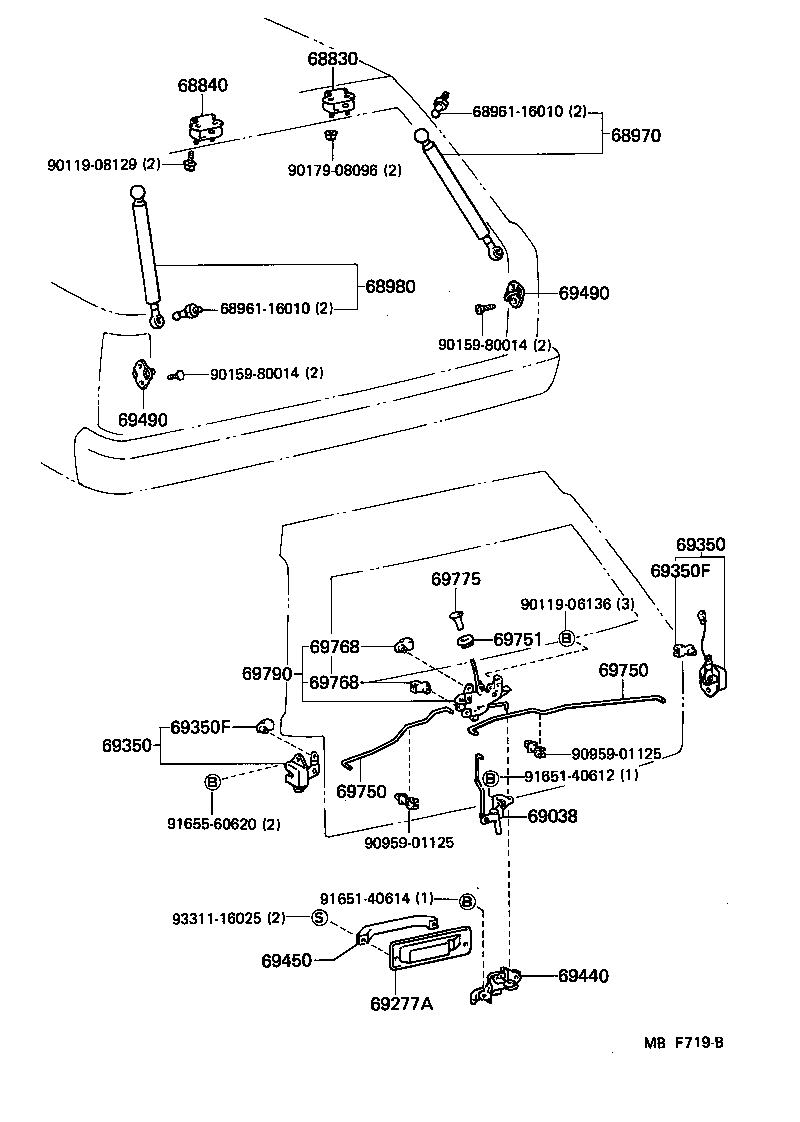

Figure MBF718B MBF718B 1983-08 → — Figure MBF719B MBF719B 1983-08 → —

Part groups

PNCDescription
68830 Hinge Assy, Back Door, RH
68840 Hinge Assy, Back Door, LH
68970 Stay Assy, Back Door, RH
68980 Stay Assy, Back Door
69038 Protector Sub-assy, Back Door Child
69277A Bezel, Back Door Inside Handle
69350 Lock Assy, Back Door
69350F Snap, Door Lock Control Rod
69440 Handle Assy, Back Door Inside
69450 Handle Assy, Back Door Pull
69490 Striker Assy, Back Door Lock
69750 Link Sub-assy, Back Door Remote Control
69751 Holder, Door Lock Control Knob
69768 Snap, Back Door Lock Control Link
69775 Button, Door Locking(FOR BACK DOOR)
69790 Control Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
