Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

117 part groups · 14 illustrations

Illustrations

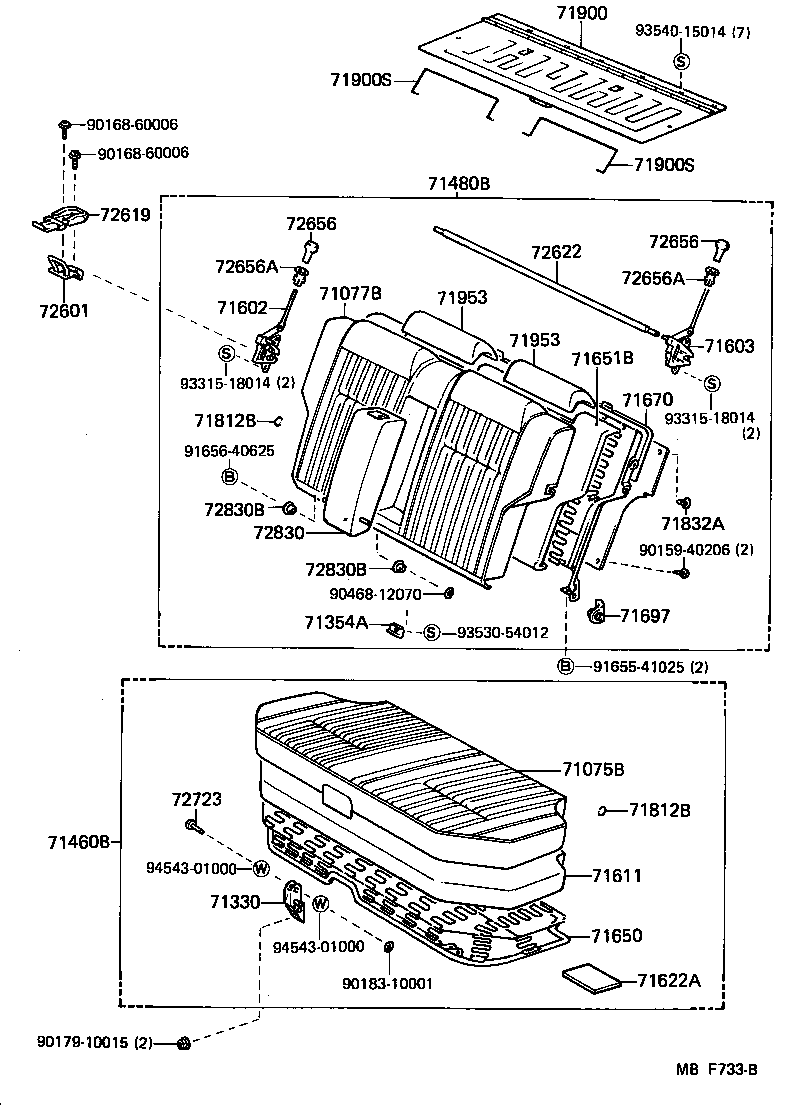

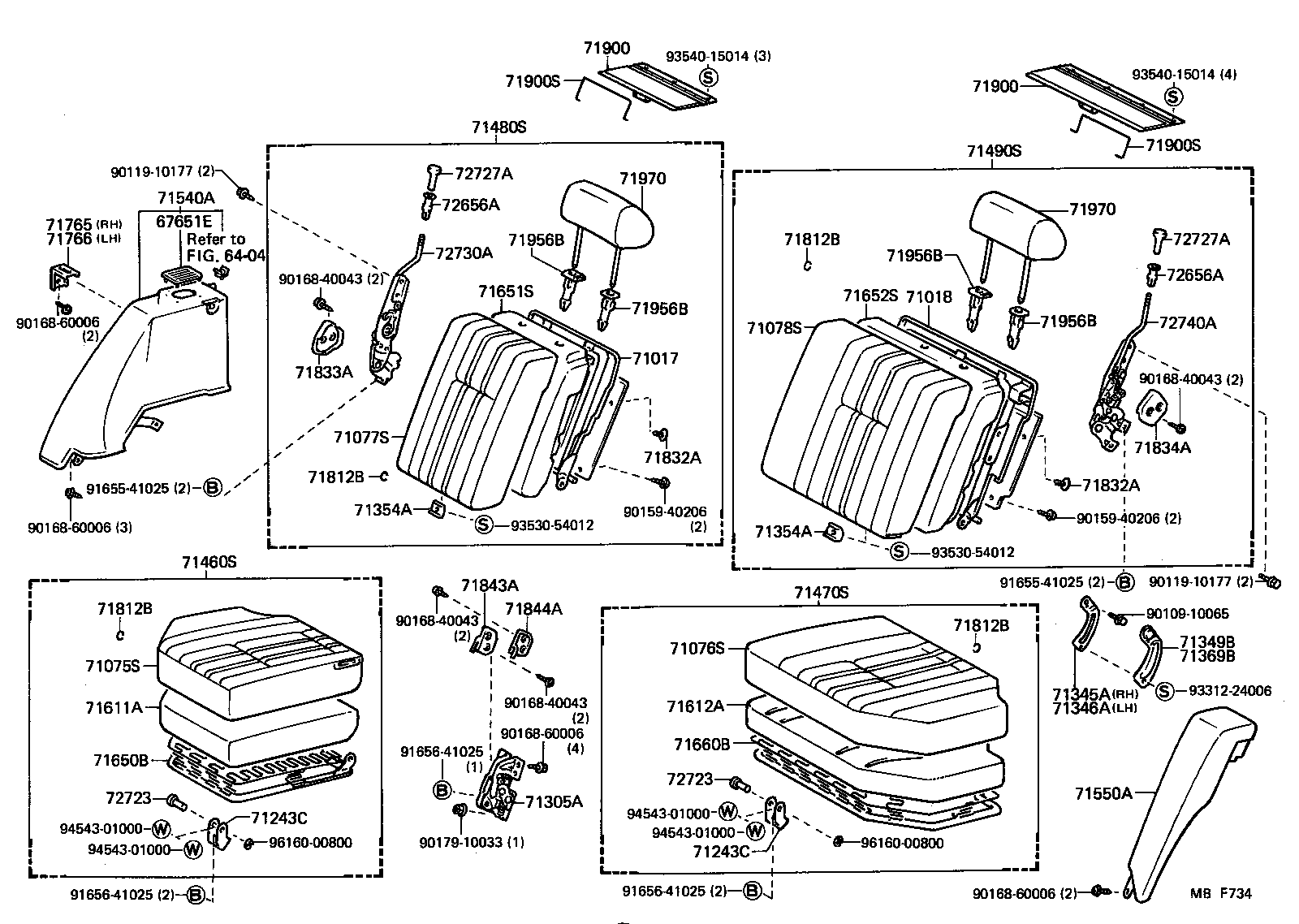

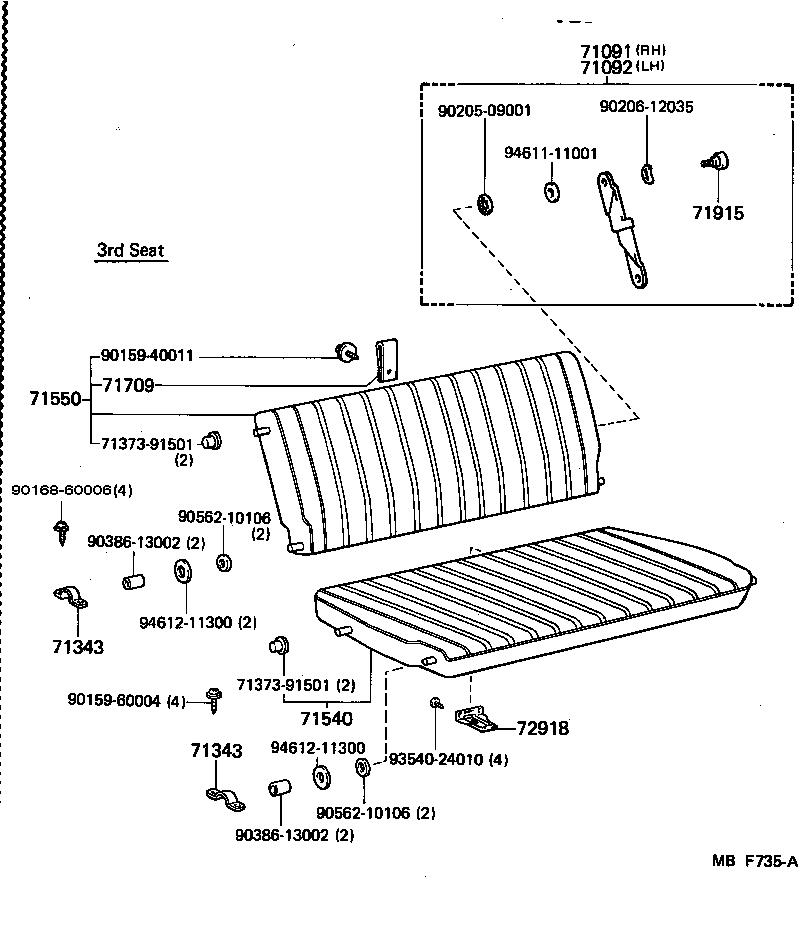

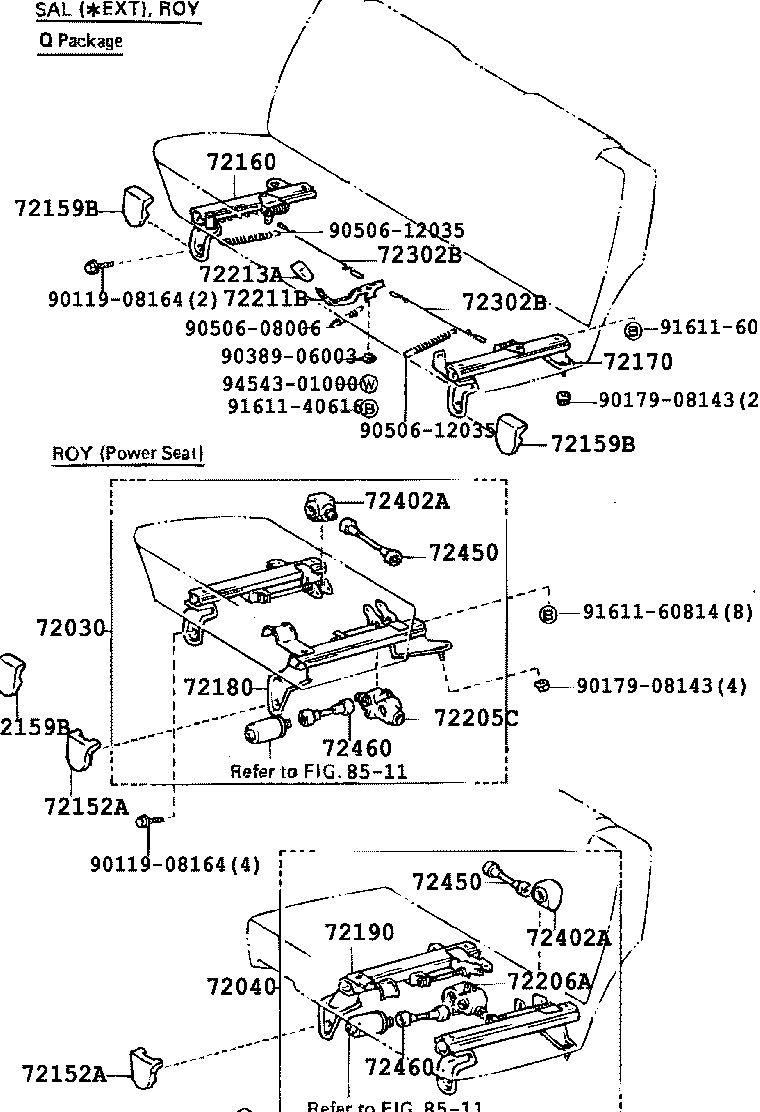

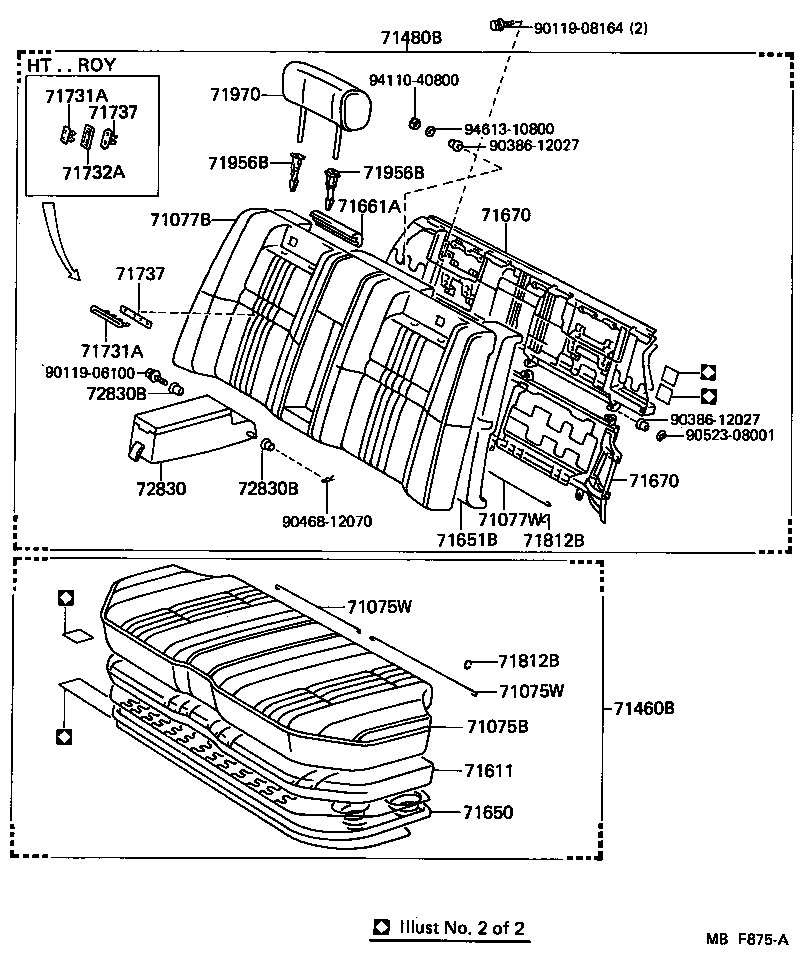

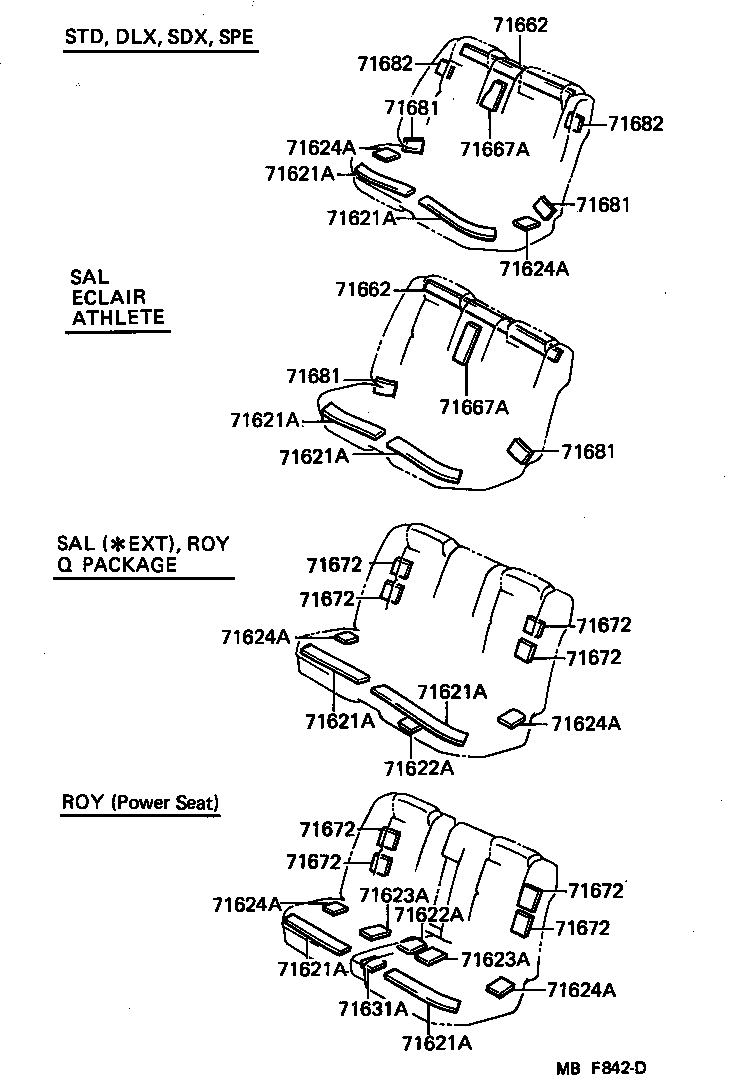

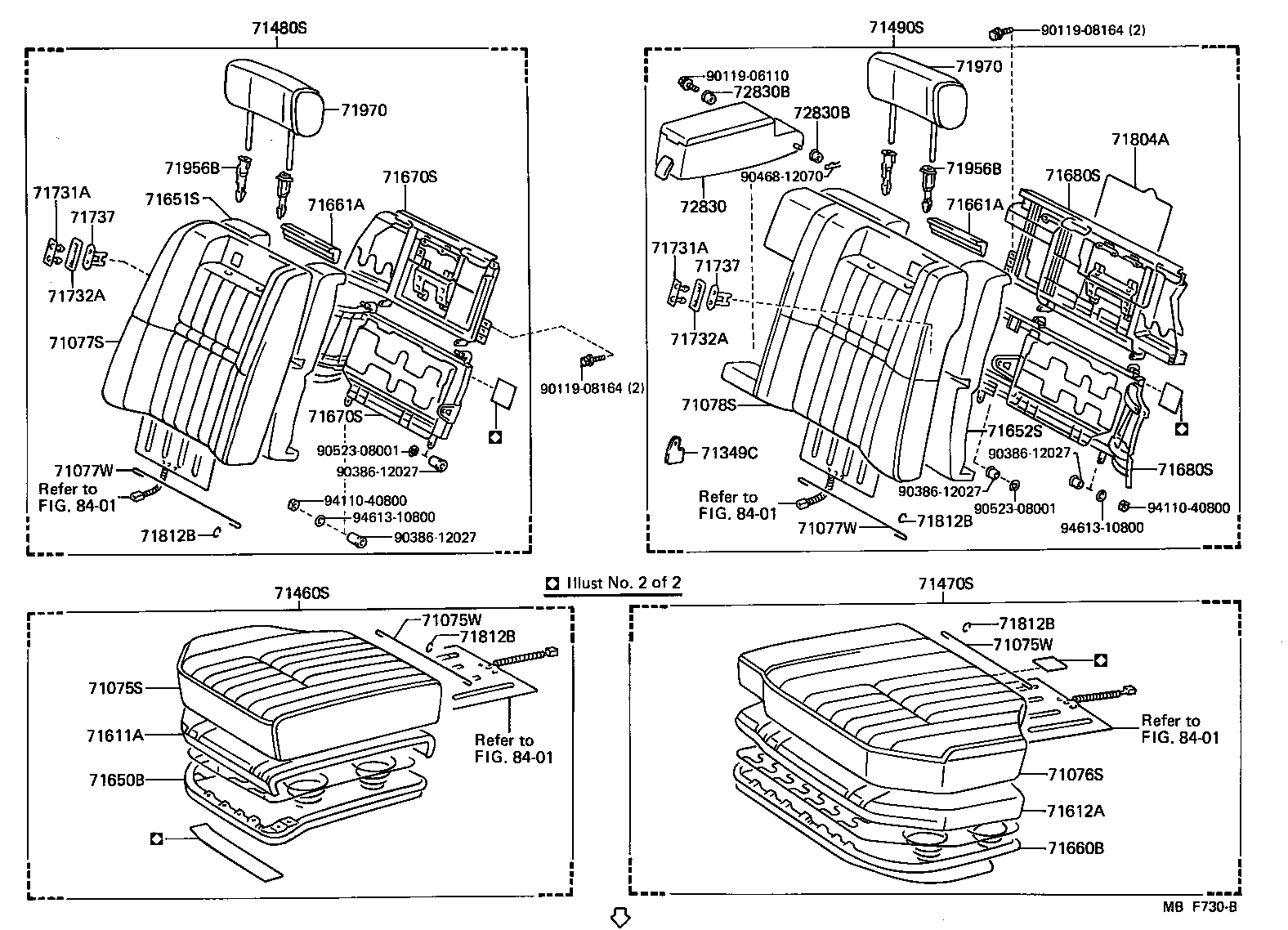

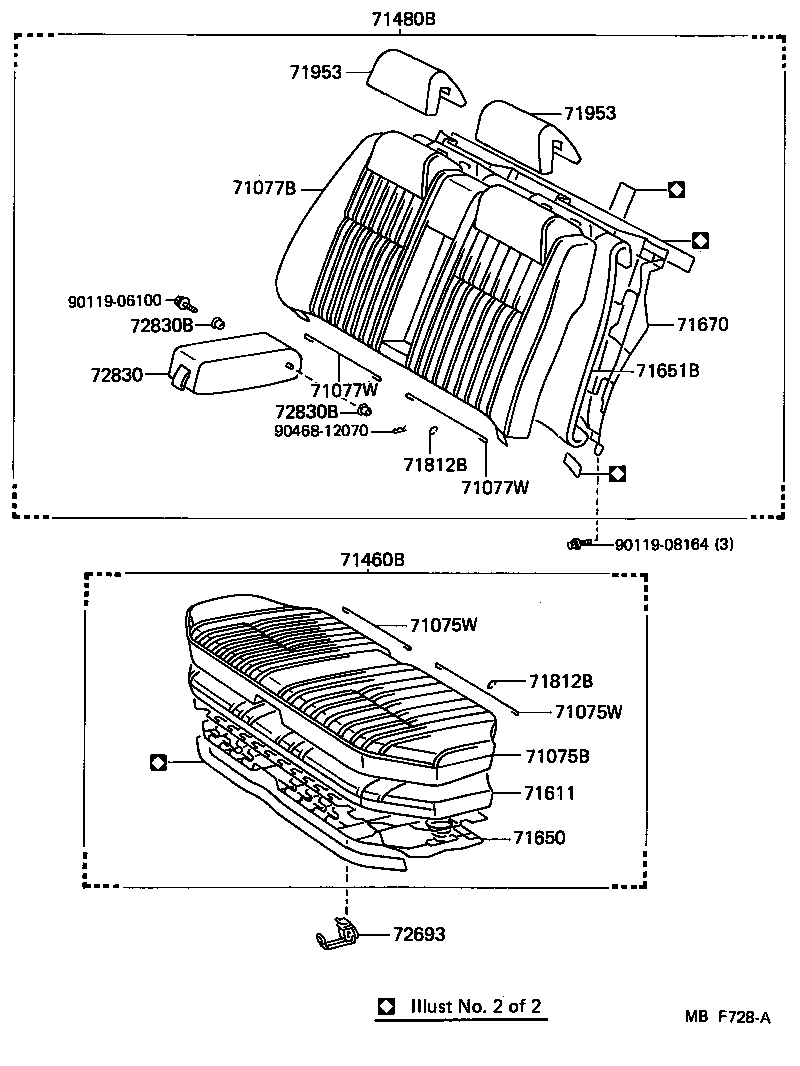

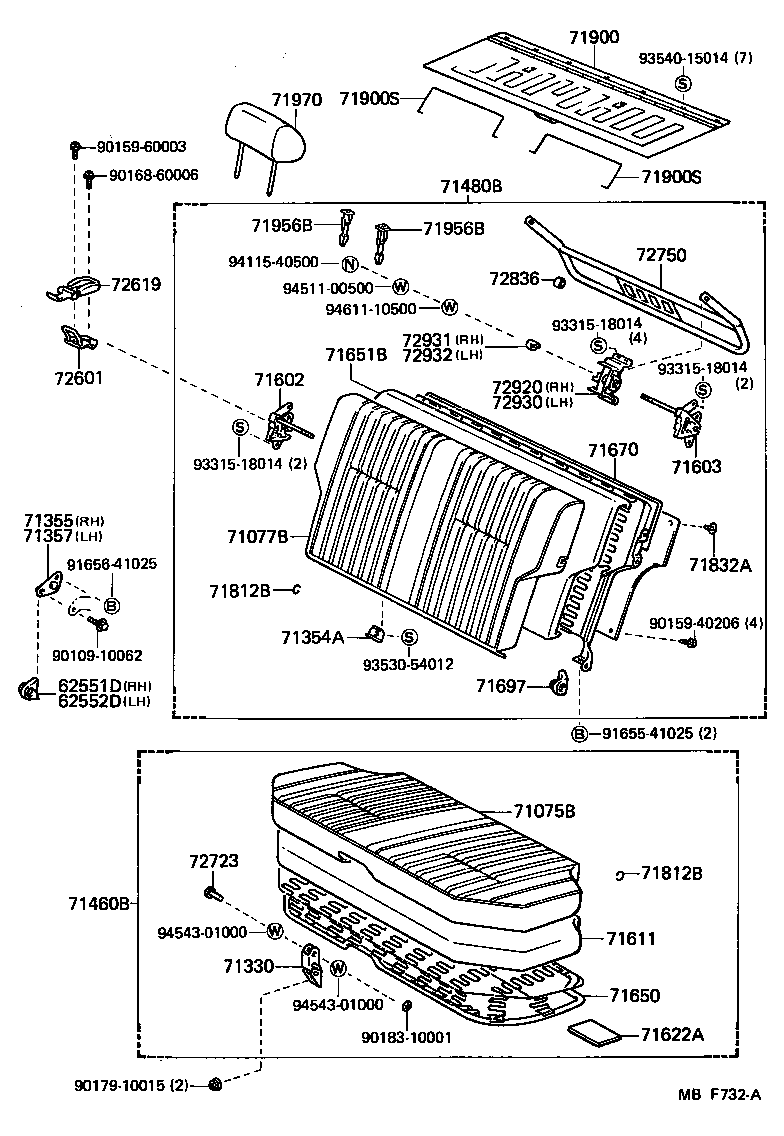

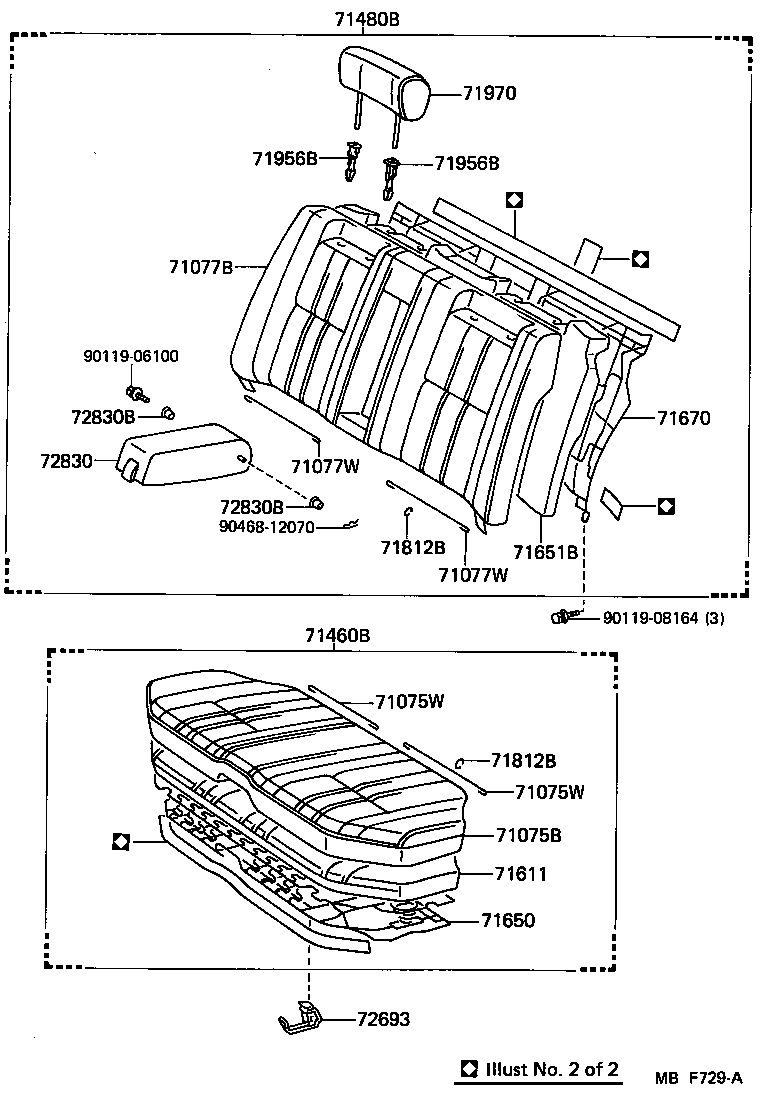

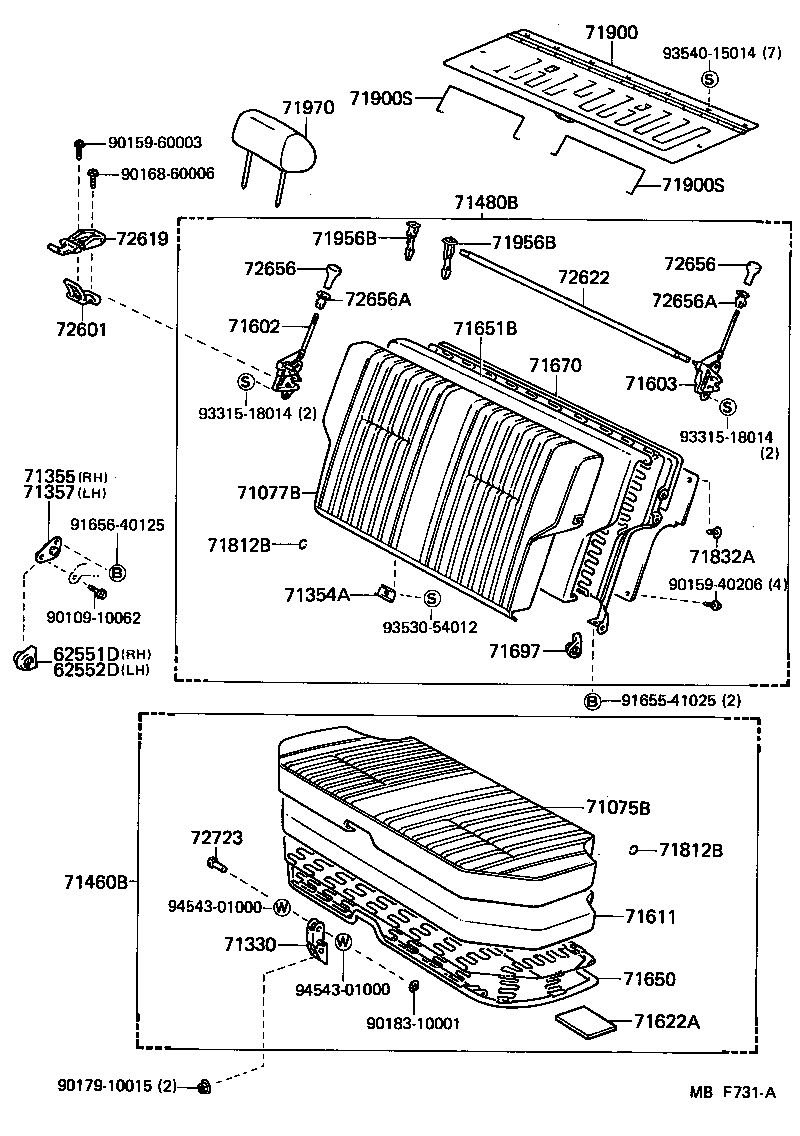

Figure MBF727 MBF727 1983-08 → 1984-08 Figure MBF727 MBF727 1984-08 → — Figure MBF728A MBF728A 1983-08 → 1984-08 Figure MBF728A MBF728A 1984-08 → — Figure MBF729A MBF729A 1983-08 → — Figure MBF875A MBF875A 1983-08 → — Figure MBF730B MBF730B 1983-08 → — Figure MBF842D MBF842D 1983-08 → — Figure MBF731A MBF731A 1983-08 → — Figure MBF732A MBF732A 1983-08 → — Figure MBF733B MBF733B 1983-08 → — Figure MBF734 MBF734 1983-08 → — Figure MBF735A MBF735A 1983-08 → — Figure 718929 718929 1983-08 → —

Part groups

PNCDescription
62551D Garnish, Rear Seat Side, RH
62552D Garnish, Rear Seat Side, LH
67651E Grille, Speaker Rear Seat
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71075W Wire, Rear Seat Cushion Cover
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077W Wire, Rear Seatback Cover
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71091 Link Sub-assy, 3RD Seat, RH
71092 Link Sub-assy, 3RD Seat, LH
71243C Bracket, Rear Seat Cushion Hinge
71305A Hinge Sub-assy, Rear Seatback, Center
71330 Hinge Assy, Rear Seat Cushion
71343 Bracket, 3RD Seatback
71345A Stay, Rear Seatback, RH
71346A Stay, Rear Seatback, LH
71349B Cover, Rear Seatback Stay, RH
71349C Cover, Rear Seatback Hinge
71354A Plate, Rear Seatback Set
71355 Plate, Rear Seatback Hinge, Outer RH
71357 Plate, Rear Seatback Hinge, Outer LH
71369B Cover, Rear Seatback Stay, LH
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71540 Cushion Assy, 3RD Seat
71540A Back Assy, Rear Side Seat, RH
71550 Back Sub-assy, Side Seat
71550A Back Assy, Rear Side Seat, LH
71602 Lock Sub-assy, Rear Seatback, RH
71603 Lock Sub-assy, Rear Seatback, LH
71611 Pad, Rear Seat Cushion
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71621A Pad, Rear Seat Cushion Silencer, A
71622A Pad, Rear Seat Cushion Silencer, B
71623A Pad, Rear Seat Cushion Silencer, C
71624A Pad, Rear Seat Cushion Silencer, D
71631A Pad, Rear Seat Cushion Corner
71650 Spring Assy, Rear Seat Cushion
71650B Spring Assy, Rear Seat Cushion, RH
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71660B Spring Assy, Rear Seat Cushion, LH
71661A Pad, Rear Seatback, Upper A
71662 Pad, Rear Seatback, Upper B
71667A Pad, Rear Seatback, Center A
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71670S Spring Assy, Rear Seatback, RH(FOR SEPARATE SEAT)
71672 Pad, Rear Seatback Silencer, B
71680S Spring Assy, Rear Seatback, LH(FOR SEPARATE SEAT)
71681 Pad, Rear Seatback Corner, A
71682 Pad, Rear Seatback Corner, B
71697 Protector, Rear Seatback Edge
71709 Strap Sub-assy, 3RD Seatback
71731A Fastener, Seat Cover, A (FOR REAR SEAT)
71732A Fastener, Seat Cover, B (FOR REAR SEAT)
71737 Retainer, Seat Cover Fastener, B (FOR REAR SEAT)
71765 Bracket, Rear Side Seatback Set, Front RH
71766 Bracket, Rear Side Seatback Set, Front LH
71804A Board Sub-assy, Rear Seat Armrest Hole
71812B Clip(FOR REAR SEAT CUSHION COVER)
71832A Clip, Rear Seatback Carpet OR Mat
71833A Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71900 Floor Assy, Rear Seat
71900S Spring (FOR REAR SEAT FLOOR)
71915 Bolt, Seat Link Connecting
71953 Pad, Rear Seat Headrest
71956B Support, Rear Seat Headrest
71970 Headrest Assy, Rear Seat
72030 Adjuster Assy, Rear NO.1 Seat
72040 Adjuster Assy, Rear NO.2 Seat
72152A Cover, Rear Seat Track Bracket, Inner
72159B Cover, Rear Seat Track Bracket, Outer
72160 Track Assy, Rear Seat, Outer RH
72170 Track Assy, Rear Seat, Outer LH
72180 Track Assy, Rear Seat, Inner RH
72190 Track Assy, Rear Seat Inner, LH
72205C Housing Sub-assy, Power Seat, NO.1
72206A Housing Sub-assy, Power Seat, NO.2
72211B Handle, Seat Track Adjusting
72213A Knob, Seat Track Adjusting Handle
72302B Wire Sub-assy, Rear Seat Track Equalizing
72402A —
72450 Cable Assy, Seat Adjuster Drive, NO.5
72460 Cable Assy, Seat Adjuster Drive, NO.6
72601 Striker Sub-assy, Rear Seat Lock
72619 Cover, Rear Seatback Lock Striker
72622 Rod, Rear Seatback Stopper Connecting
72656 Button, Rear Seatback Stop Release
72656A Grommet, Rear Seatback Stop Button
72693 Hook, Rear Seat Cushion Lock
72723 Pin, Rear Seat Cushion, NO.2
72727A Knob, Rear Seat Reclining Control Lever
72730A Adjuster Assy, Rear Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72750 Protector Assy, Rear Seatback
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72836 Silencer, Protector Pipe
72918 Cover, 3RD Seat Cushion Lock
72920 Clutch Assy, Rear Seatback Protector, RH
72930 Clutch Assy, Rear Seatback Protector, LH
72931 Clutch, Rear Seatback Lock, RH
72932 Clutch, Rear Seatback Lock, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
