Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

12 part groups · 2 illustrations

Illustrations

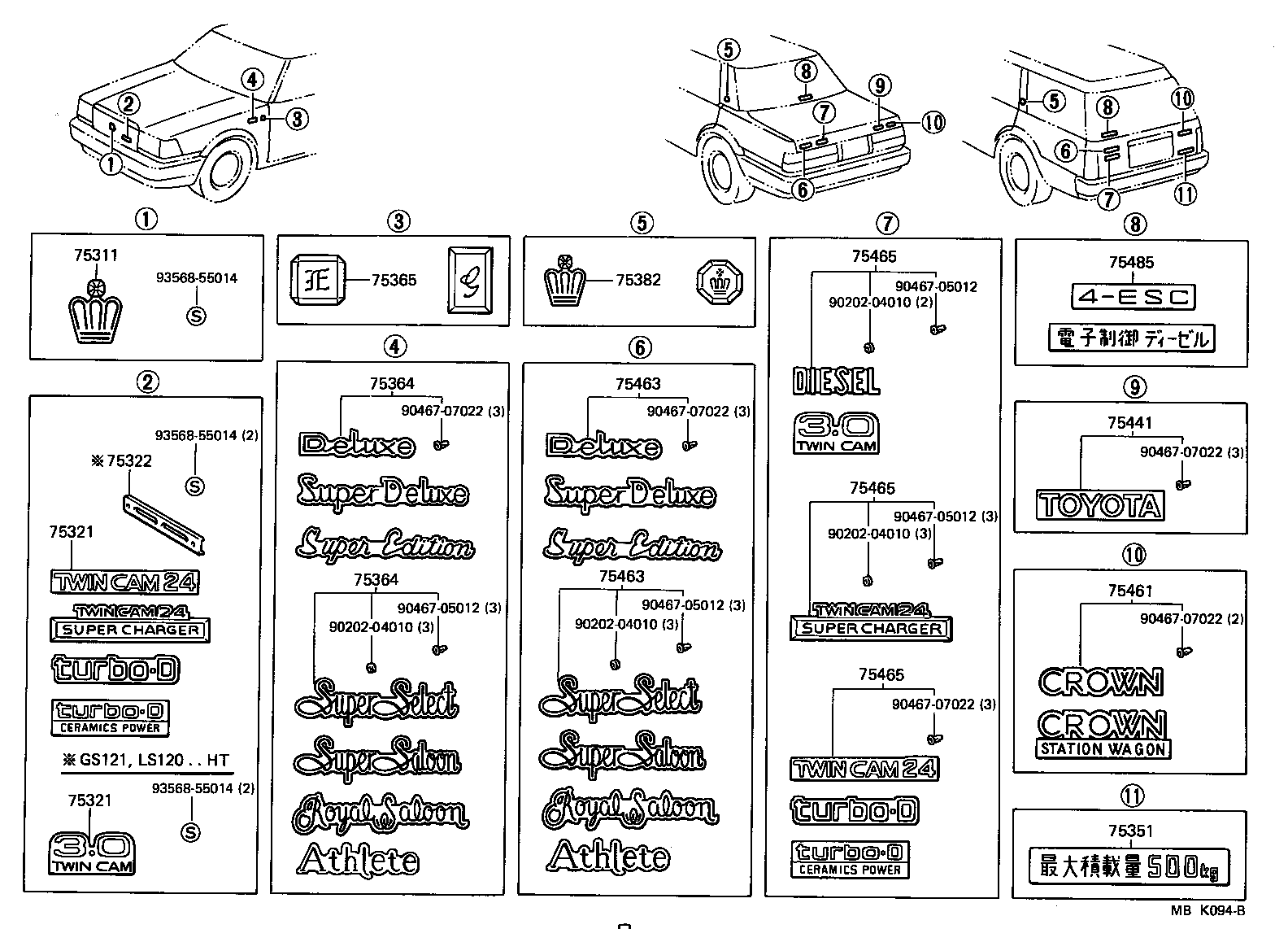

Figure MBF748B MBF748B 1983-08 → 1985-09 Figure MBK094B MBK094B 1985-09 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75322 Retainer, Radiator Grille Name Plate
75351 Plate, Rear Name, NO.6 (MAXIMUM LOAD)
75364 Plate, Front Fender Name, NO.2 (GRADE MARK)
75365 Emblem, Front Fender
75382 Emblem, Quarter Panel OR Side Panel
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
