Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

21 part groups · 5 illustrations

Illustrations

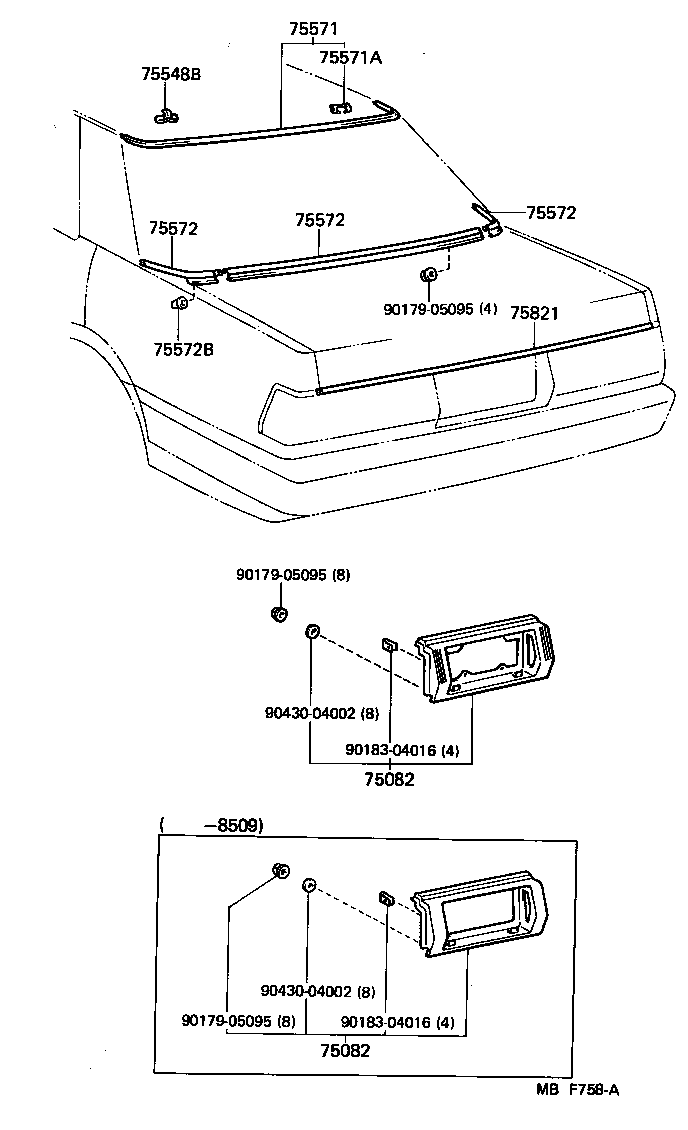

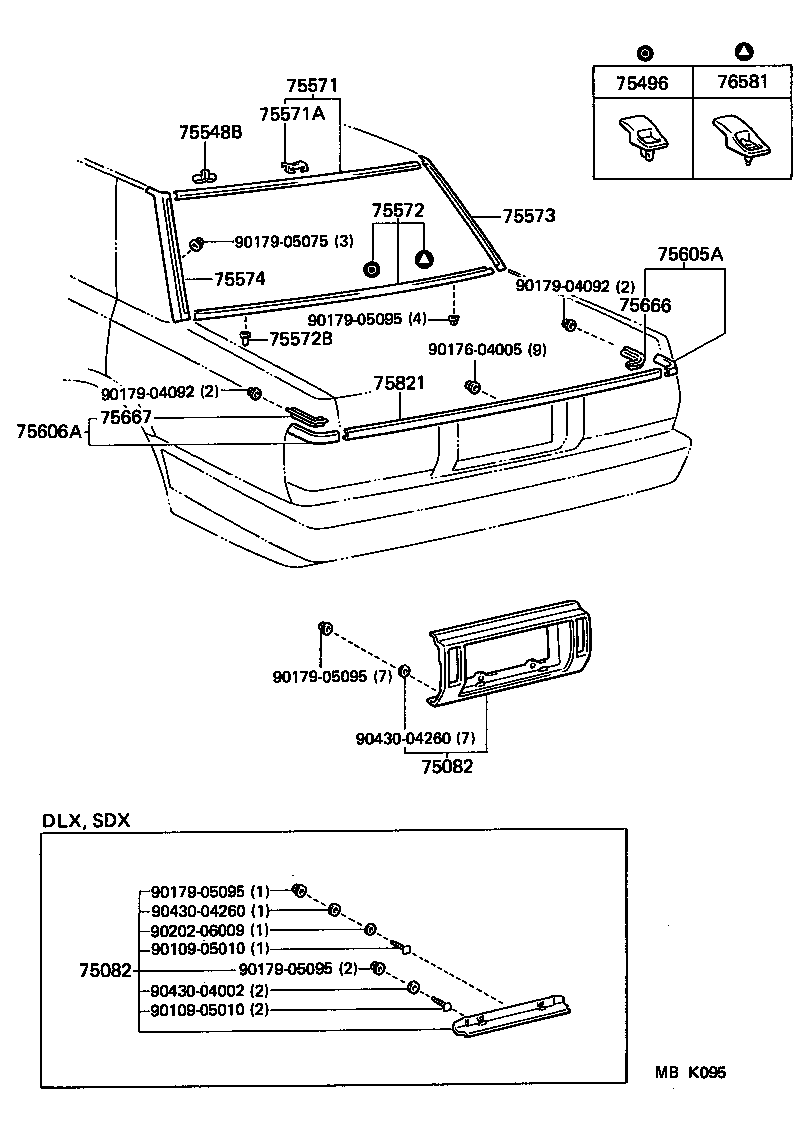

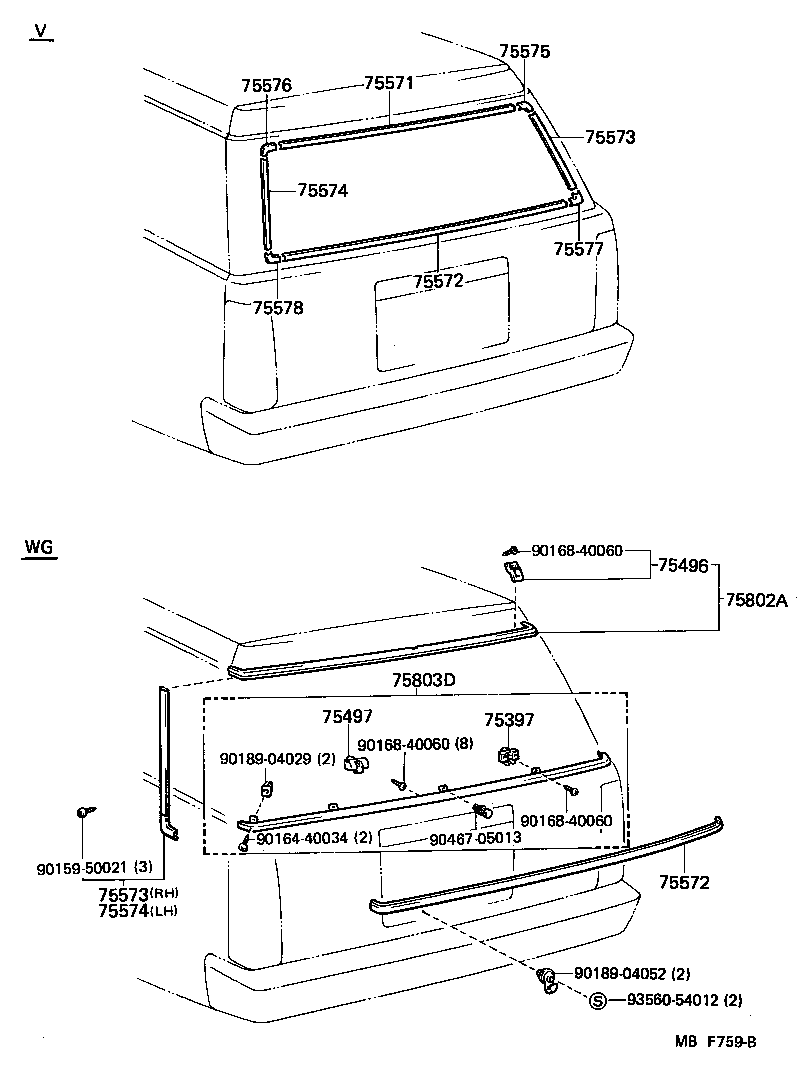

Figure MBF757B MBF757B 1983-08 → 1985-09 Figure MBF757B MBF757B 1985-09 → — Figure MBK095 MBK095 1985-09 → — Figure MBF758A MBF758A 1983-08 → — Figure MBF759B MBF759B 1983-08 → —

Part groups

PNCDescription
75082 Panel Sub-assy, Lower Back Finish, Center
75397 Clip, Back Door Moulding, NO.3
75496 Clip, Back Window Outside Moulding, NO.1
75497 Clip, Back Window Outside Moulding, NO.2
75548B Fastener, Back Window Outside Moulding
75571 Moulding, Back Window, Outside Upper
75571A Clip(FOR BACK WINDOW MOULDING SET)
75572 Moulding, Back Window, Lower
75572B Clip(FOR BACK WINDOW MOULDING SET)
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75666 Cover, Quarter Panel Back Moulding End, NO.1
75667 Cover, Quarter Panel Back Moulding End, NO.2
75802A Moulding Sub-assy, Back Door, Outside Upper
75803D Moulding Sub-assy, Back Door, Outside Lower
75821 Moulding, Luggage Compartment Door Back
76581 Retainer, Back Window Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
