Toyota Crown
1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan
Discontinued model
Data version 1988-01

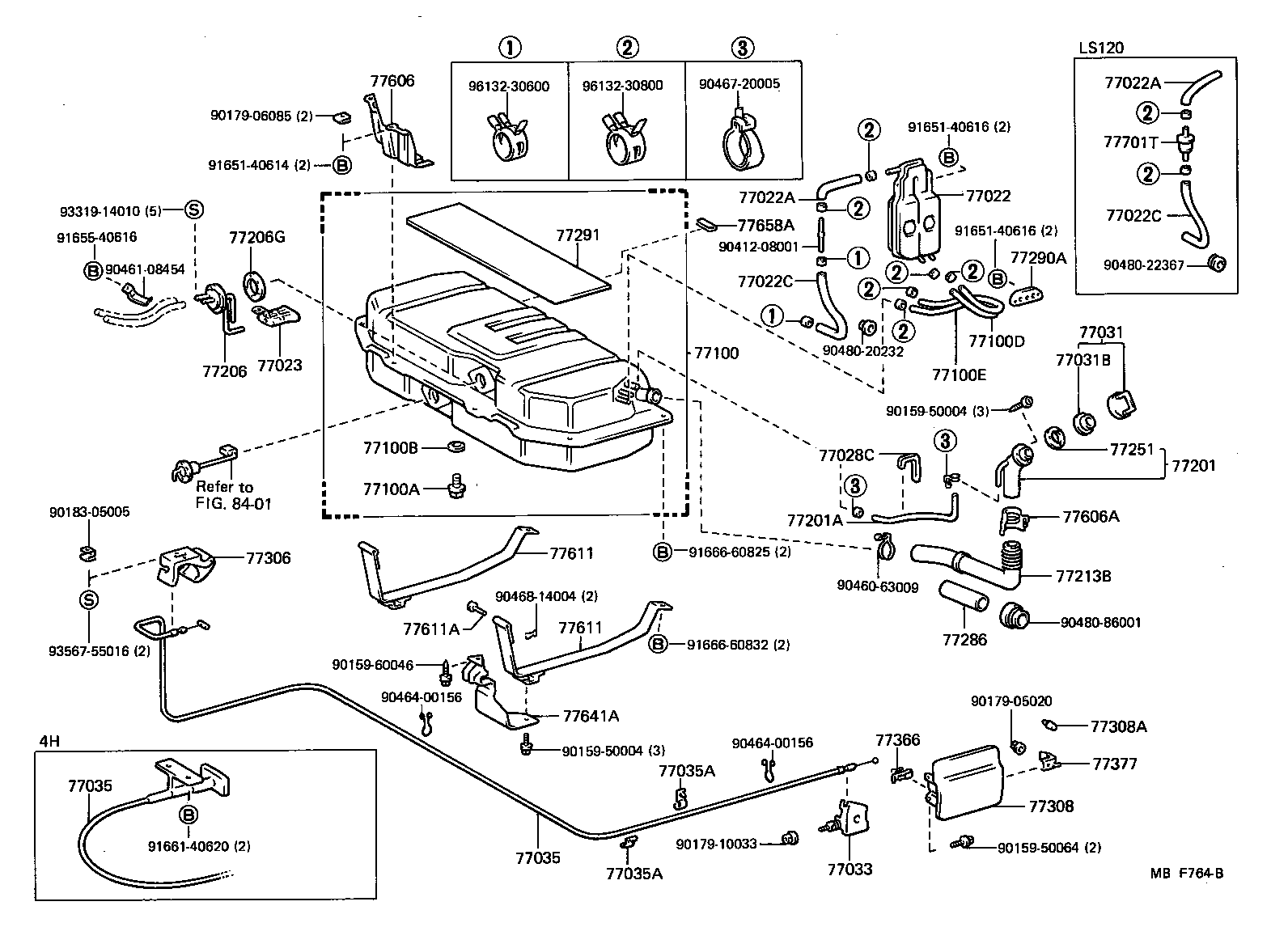

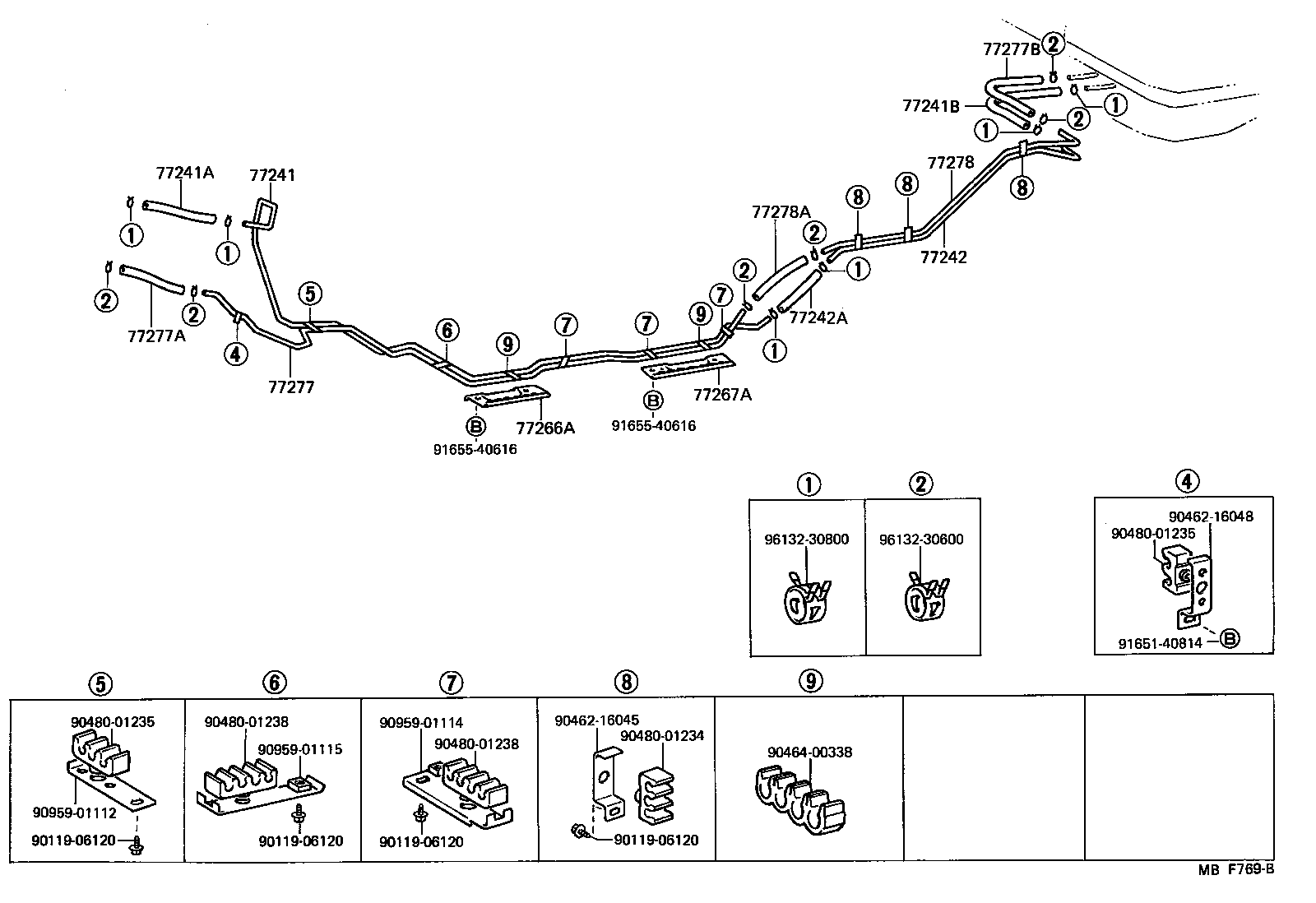

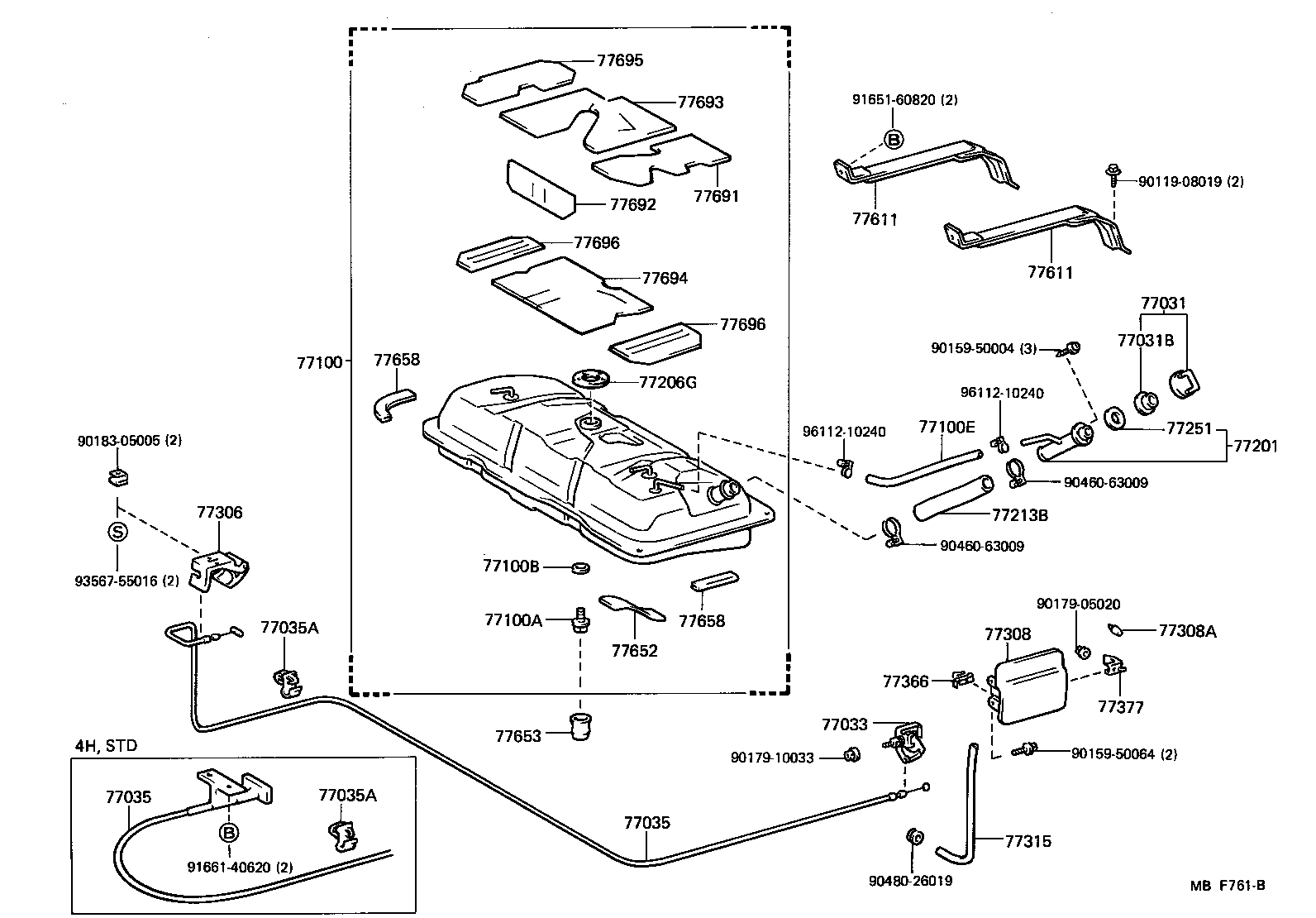

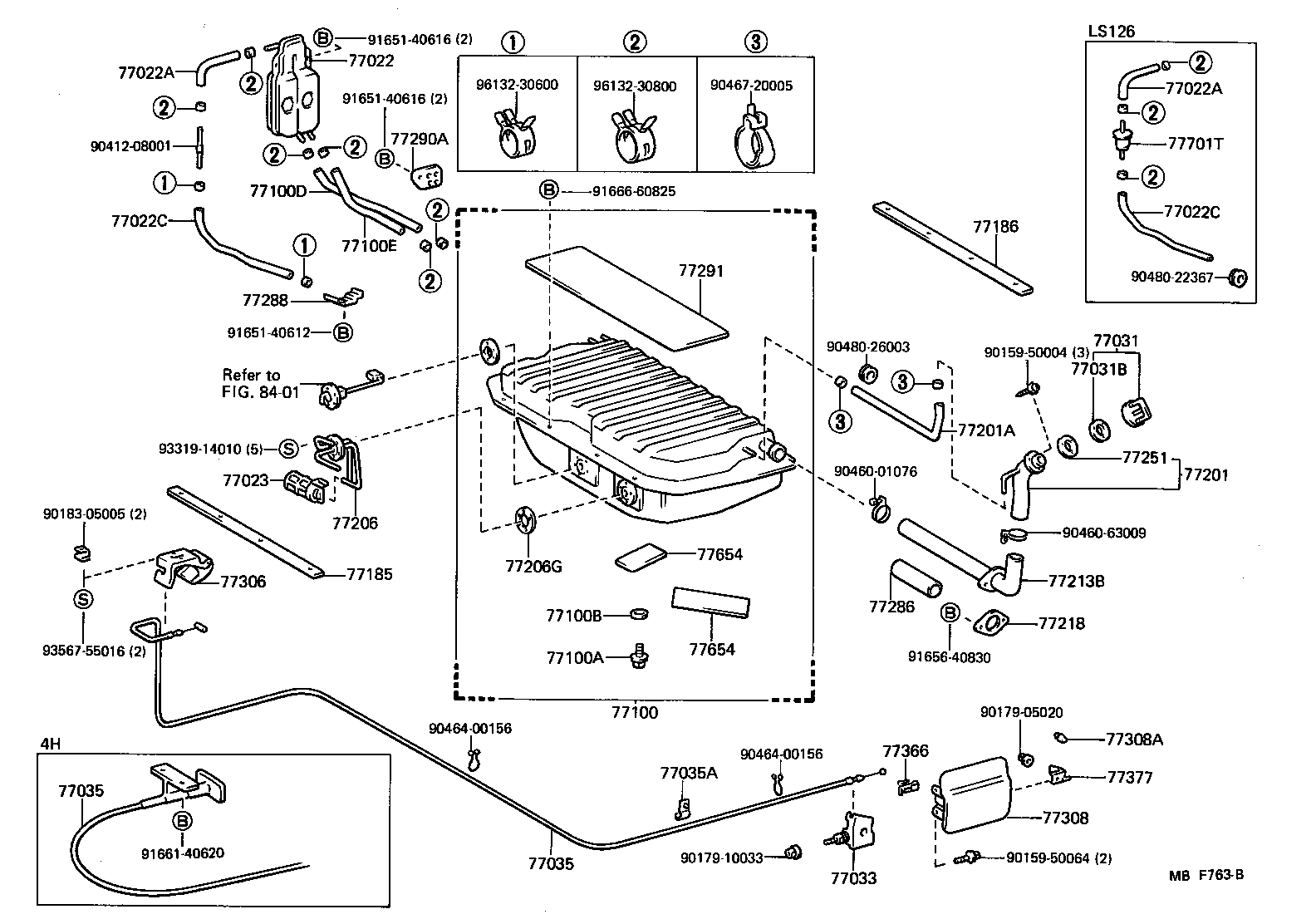

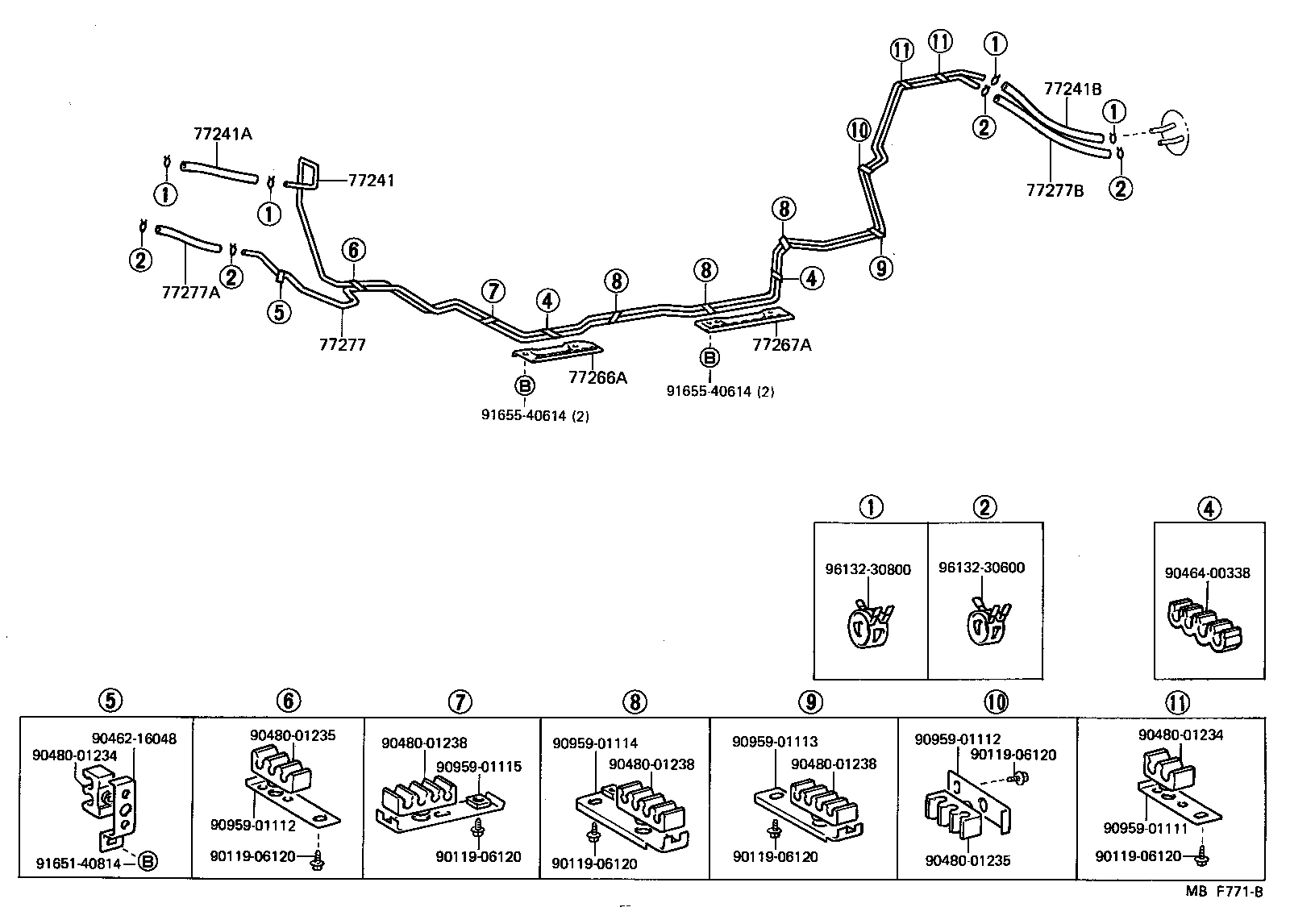

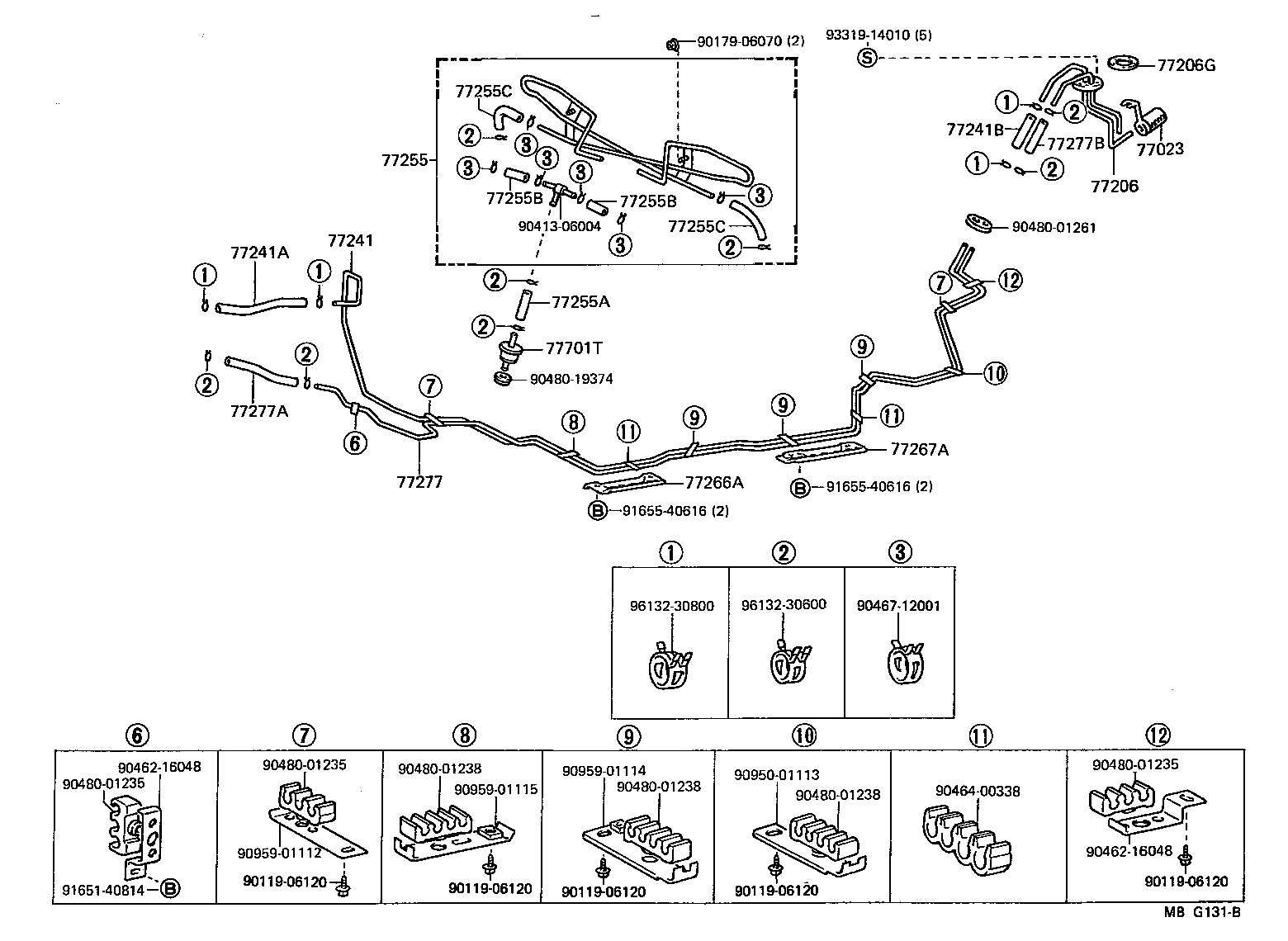

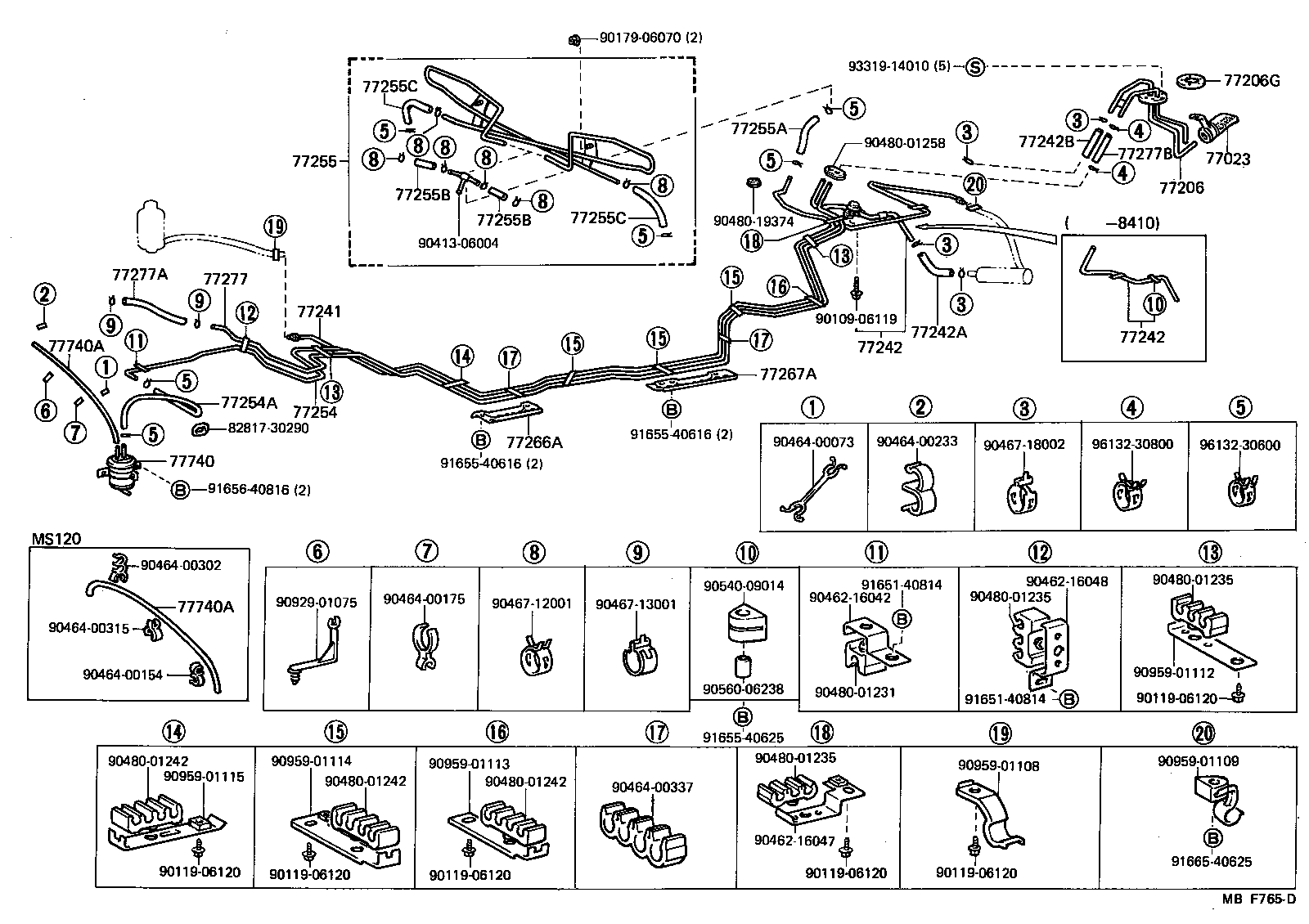

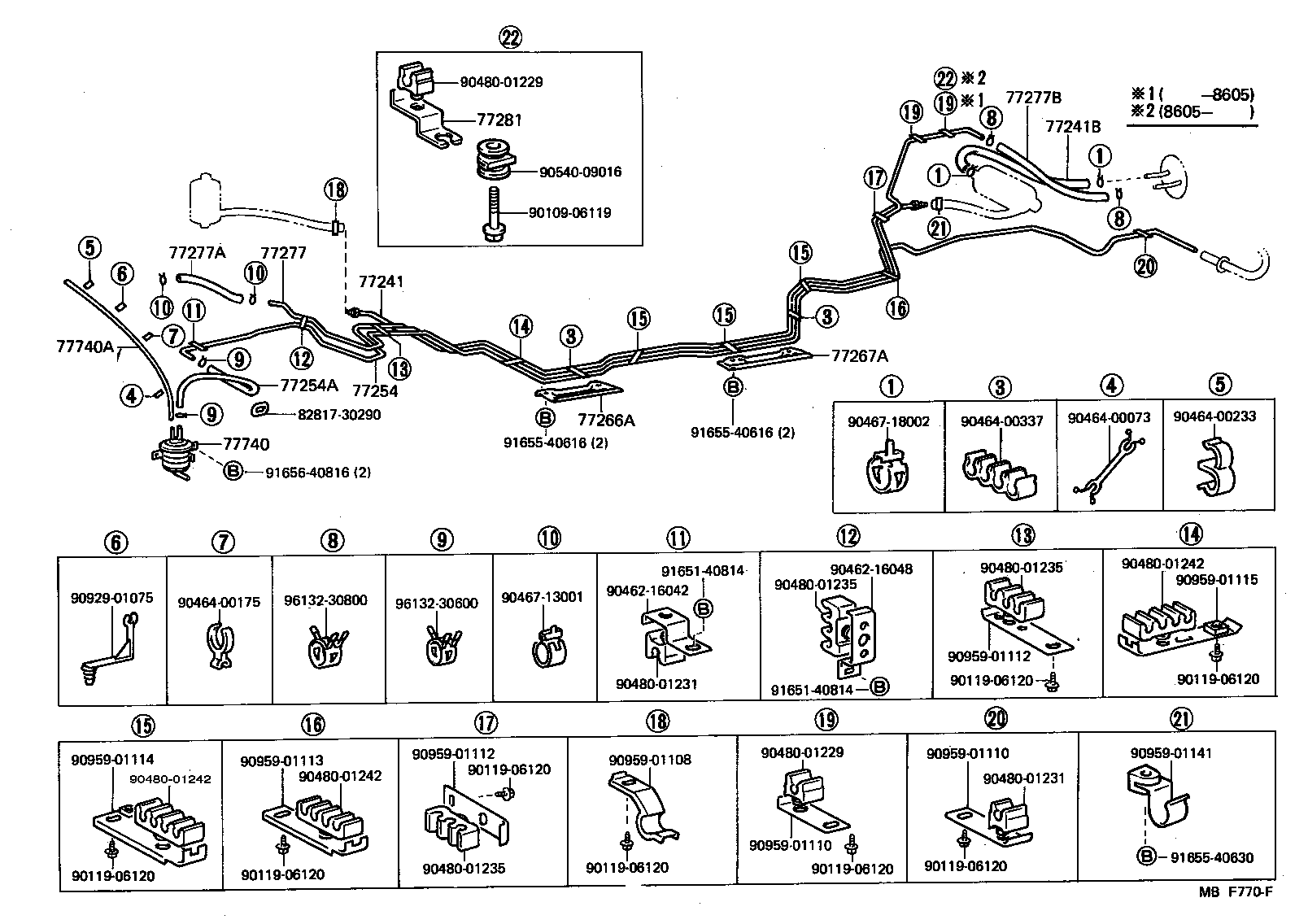

Fuel Tank & Tube
99 part groups · 12 illustrations
Illustrations
Part groups

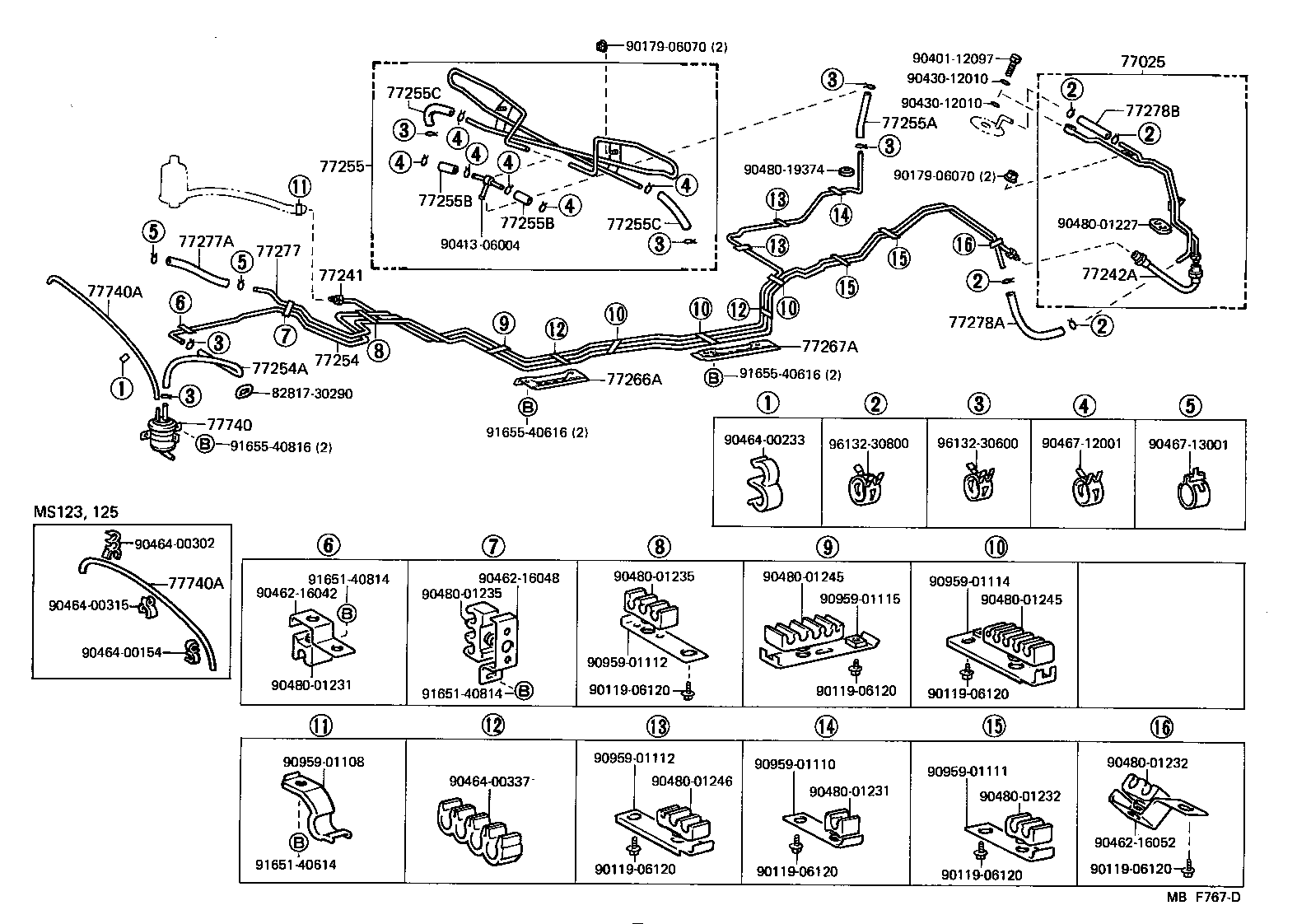

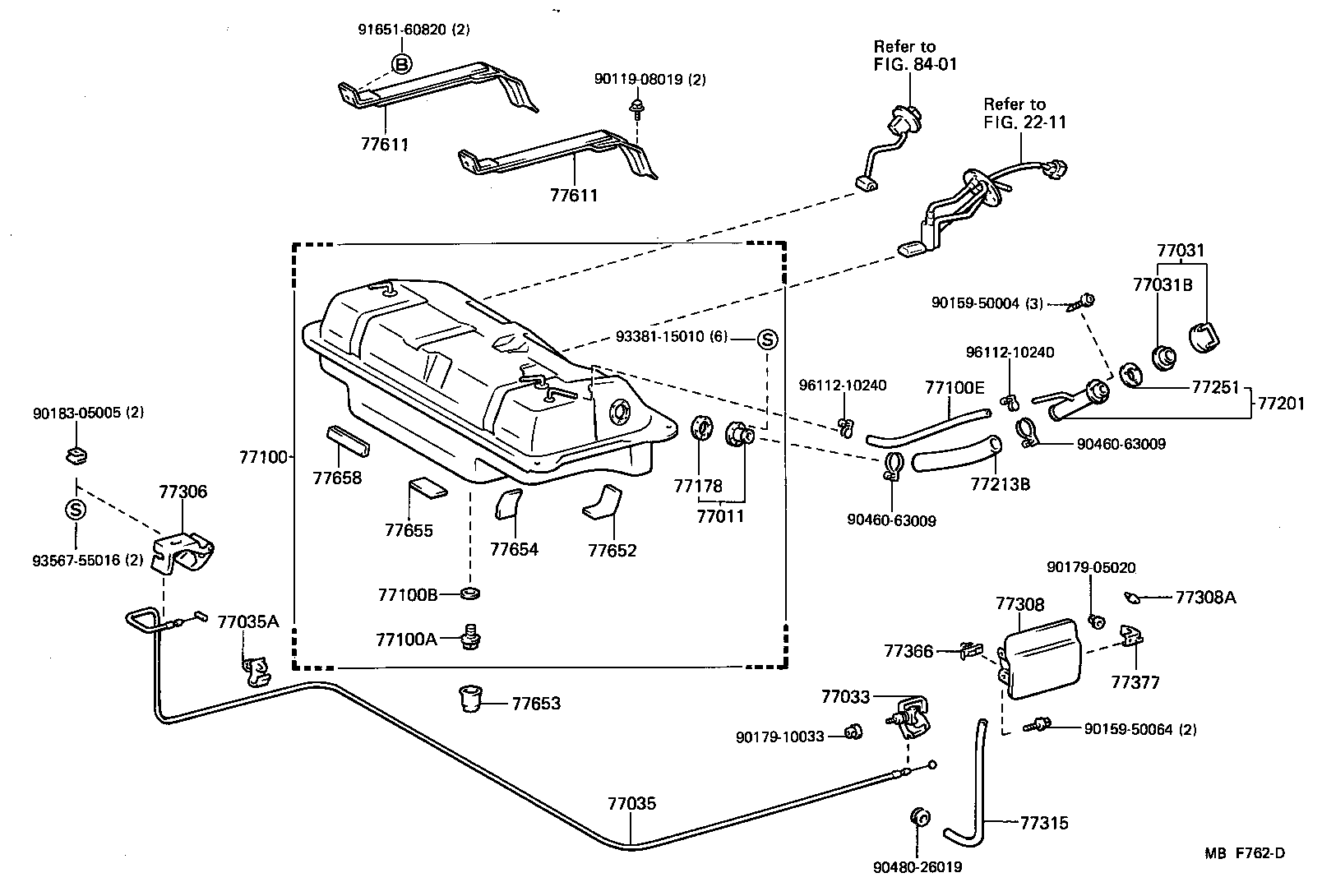

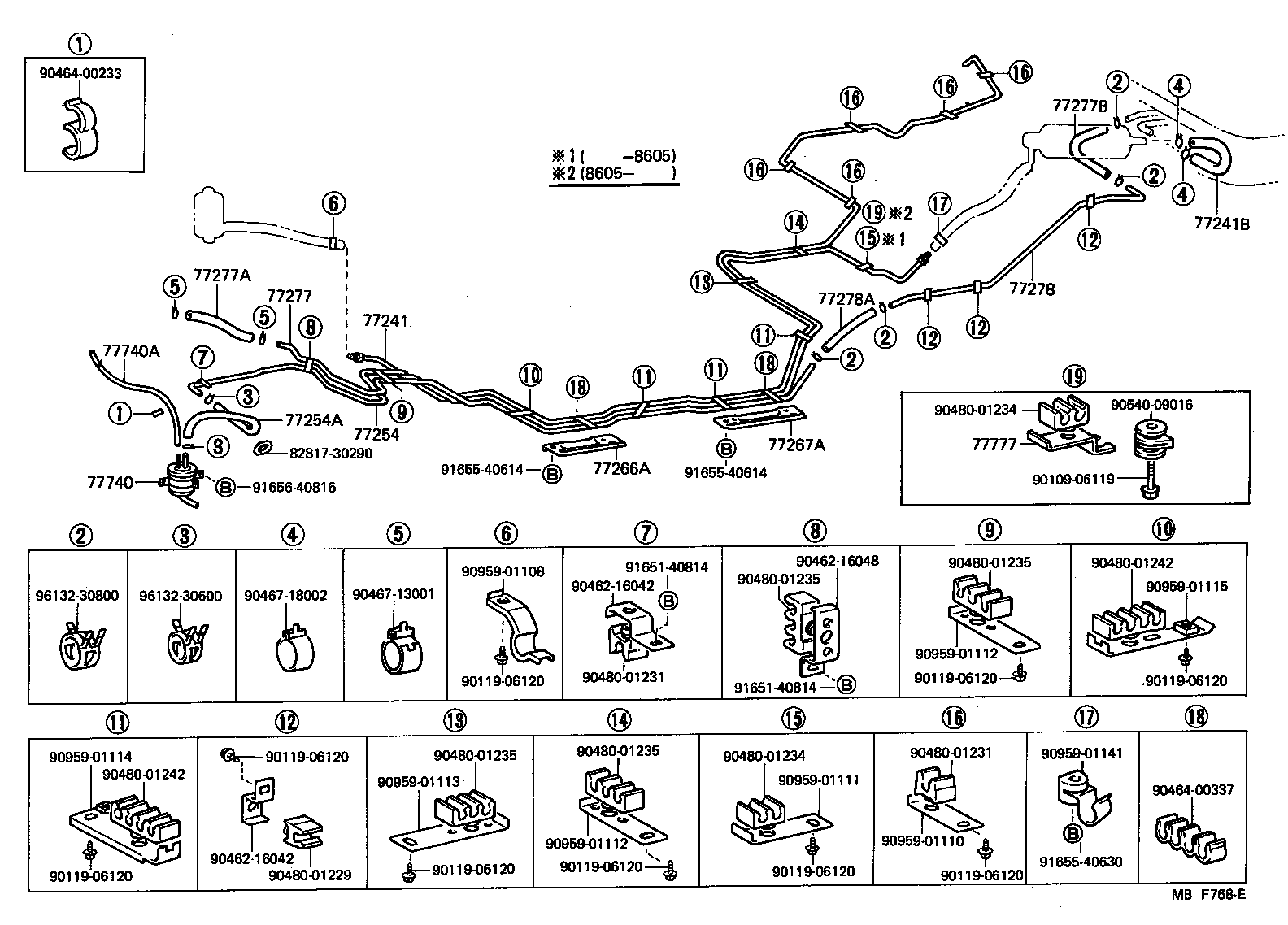

| PNC | Description |
|---|---|
| 77001 | Tank Assy, Fuel (LPG) |
| 77001B | Valve (FOR LPG TANK) |
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77022 | Separator Sub-assy, Fuel Evaporative |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77022C | Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77025 | Tube Sub-assy, Fuel Main & Return, Rear |
| 77028C | Trim, Hose Protector |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77033 | Lock Sub-assy, Fuel Tank Cap |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77035A | Clamp (FOR FUEL LID LOCK CONTROL CABLE) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77100E | Hose, Fuel, NO.2(FOR FUEL TANK) |
| 77128 | Glass, Fuel Tank Window |
| 77161 | Bracket, Fuel Tank, Front RH |
| 77162 | Bracket, Fuel Tank, Front LH |
| 77163 | Bracket, Fuel Tank, Rear RH |
| 77164 | Bracket, Fuel Tank, Rear LH |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77185 | Shim, Fuel Tank Set, Front |
| 77186 | Shim, Fuel Tank Set, Rear |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77206 | Tube Sub-assy, Fuel Tank Suction |
| 77206G | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77218 | Plate, Fuel Inlet Pipe Set |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77242 | Tube, Fuel Main, NO.2 |
| 77242A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2) |
| 77242B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2) |
| 77251 | Shield, Fuel Tank, Inlet, NO.1 |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77255 | Tube, Fuel Emission, NO.2 |
| 77255A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2) |
| 77255B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.2) |
| 77255C | Hose, Fuel, NO.3 (FOR EMISSION TUBE, NO.2) |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77278 | Tube, Fuel Return, NO.2 |
| 77278A | Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2) |
| 77278B | Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2) |
| 77281 | Bracket, Fuel Main Tube, NO.1 |
| 77286 | Protector, Fuel Tank Inlet Pipe |
| 77288 | Clamp, Breather Hose |
| 77290A | Grommet Assy, Fuel Hose |
| 77291 | Packing, Fuel Tank Support, Upper |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77315 | Hose, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77390 | Valve Assy, Fuel Tank Inlet |
| 77602 | Case Sub-assy, Fuel Tank, Upper |
| 77603 | Case Sub-assy, Fuel Tank, Lower |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77606A | Protector, Fuel Tank Filler Pipe |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77617 | Gasket, Fuel Tank Case Cover |
| 77618 | Gasket, Case Window |
| 77623A | Frame, Tank Cover Window Glass |
| 77625 | Box, Fuel Tank Case |
| 77628 | Glass, Case Cover Window |
| 77638A | Ring, O (FOR TANK VALVE JOINT SLEEVE) |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77652 | Cushion, Fuel Tank, NO.1 |
| 77653 | Shield, Fuel Tank Drain Plug |
| 77654 | Cushion, Fuel Tank, NO.2 |
| 77655 | Cushion, Fuel Tank, NO.3 |
| 77656 | Gasket, Breather Cover, Upper |
| 77657 | Gasket, Breather Cover, Lower |
| 77658 | Moulding, Fuel Tank Edge |
| 77658A | Protector, Fuel Tank Edge, NO.1 |
| 77661A | Cover, Fuel Tank Filler Hose |
| 77669 | Protector, Fuel Tank Rear Mounting Bracket Edge |
| 77691 | Sheet, Fuel Tank Silencer, Upper NO.1 |
| 77692 | Sheet, Fuel Tank Silencer, Lower NO.1 |
| 77693 | Sheet, Fuel Tank Silencer, Upper NO.2 |
| 77694 | Sheet, Fuel Tank Silencer, Lower NO.2 |
| 77695 | Sheet, Fuel Tank Silencer, Upper NO.3 |
| 77696 | Sheet, Fuel Tank Silencer, Lower NO.3 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77777 | Bracket, Fuel Tube Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
