Toyota Crown
1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan
Discontinued model
Data version 1988-01

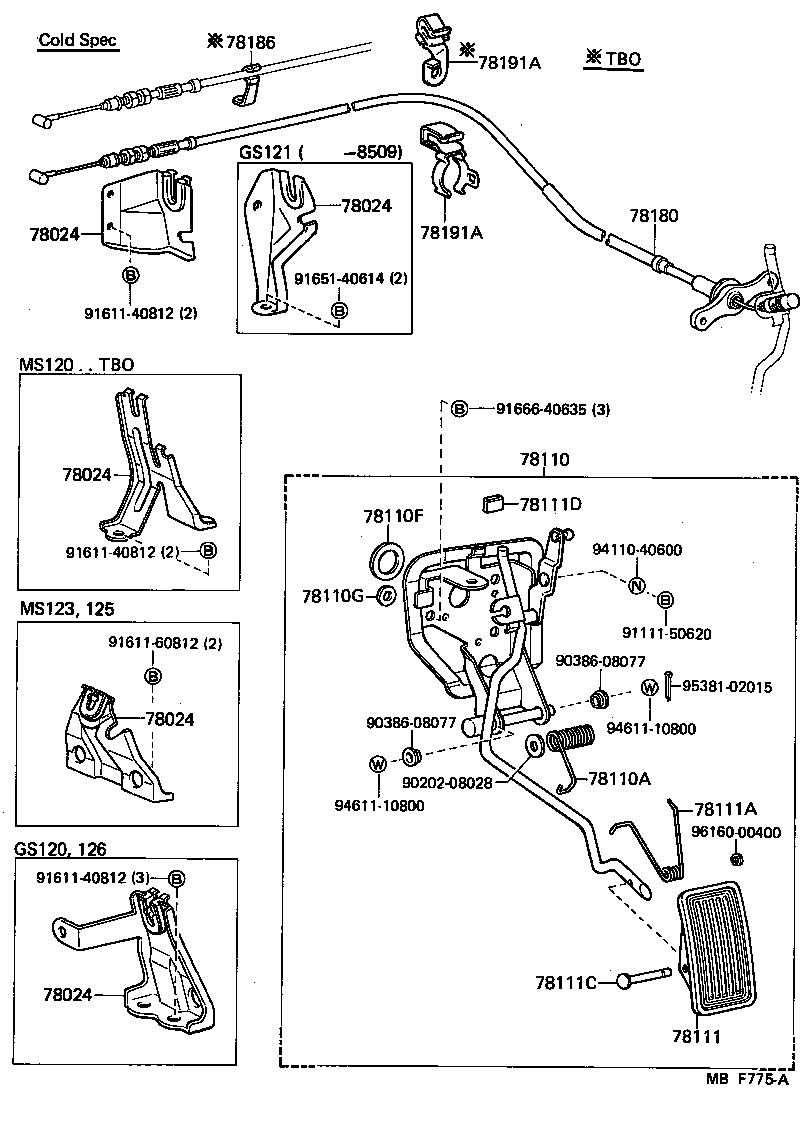

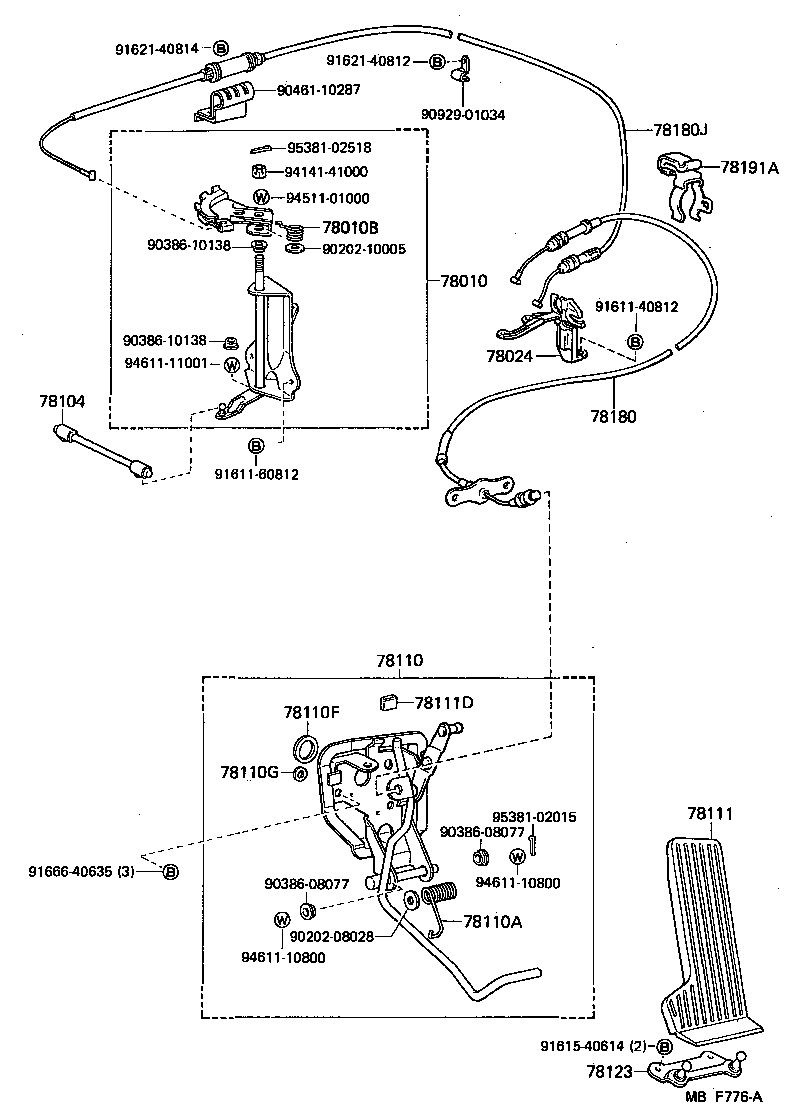

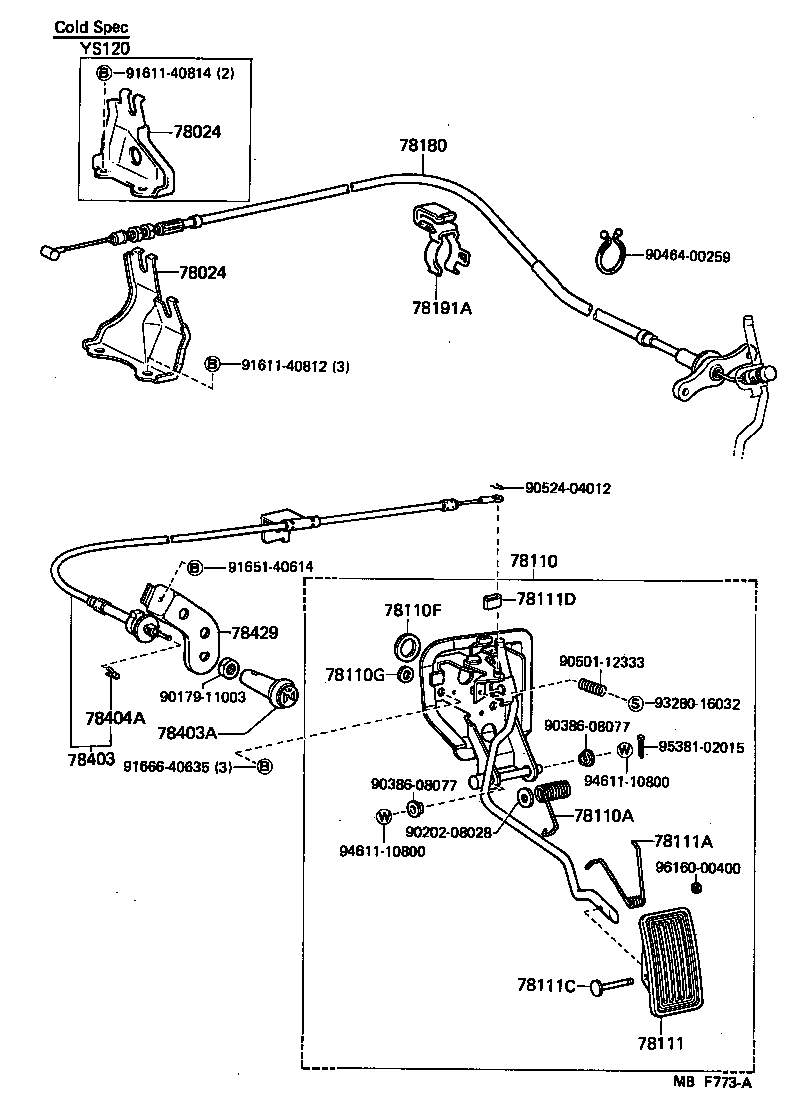

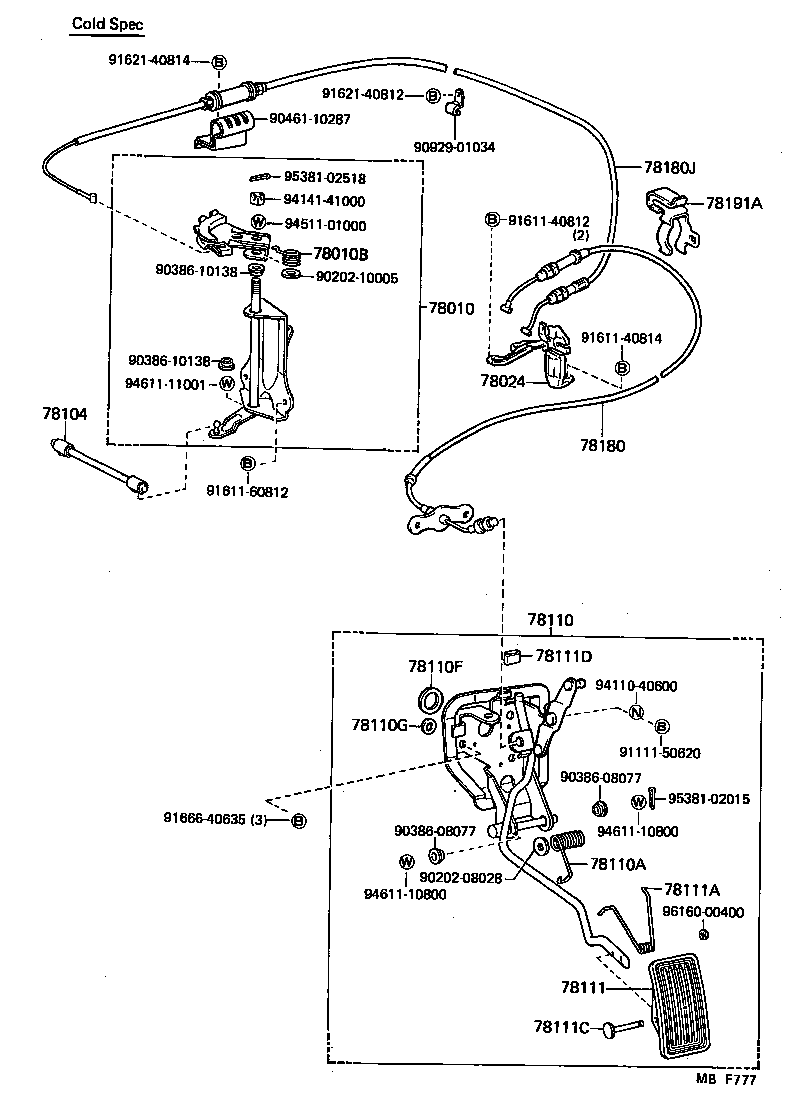

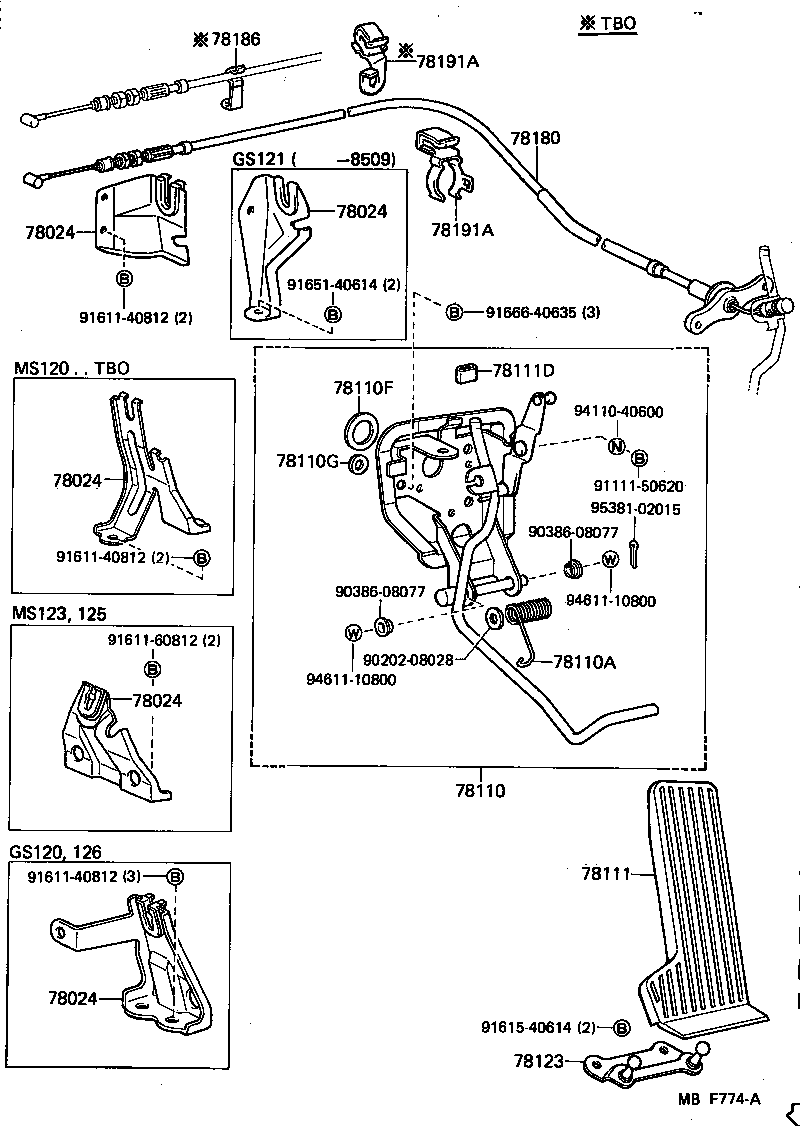

Accelerator Link
21 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010 | Link, Accelerator |
| 78010B | Spring, Torsion (FOR ACCELERATOR LINK) |
| 78024 | Bracket Sub-assy, Accelerator Control Cable |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78110 | Rod Assy, Accelerator Pedal |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78110F | Seal, NO.1 (FOR ACCELERATOR PEDAL ROD) |
| 78110G | Seal, NO.2 (FOR ACCELERATOR PEDAL ROD) |
| 78111 | Pedal, Accelerator |
| 78111A | Spring (FOR ACCELERATOR PEDAL) |
| 78111C | Pin (FOR ACCELERATOR PEDAL) |
| 78111D | Stopper (FOR ACCELERATOR PEDAL) |
| 78123 | Bracket, Accelerator Pedal Support |
| 78180 | Wire Assy, Accelerator |
| 78180J | Wire Assy, Accelerator, NO.2 |
| 78186 | Support, Accelerator Control Cable, NO.1 |
| 78191A | Clamp (FOR ACCELERATOR WIRE SET) |
| 78403 | Cable Sub-assy, Throttle Control |
| 78403A | Knob, Throttle Control |
| 78404A | Clip, Throttle Flexible Wire |
| 78429 | Bracket, Throttle Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
