Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

21 part groups · 3 illustrations

Illustrations

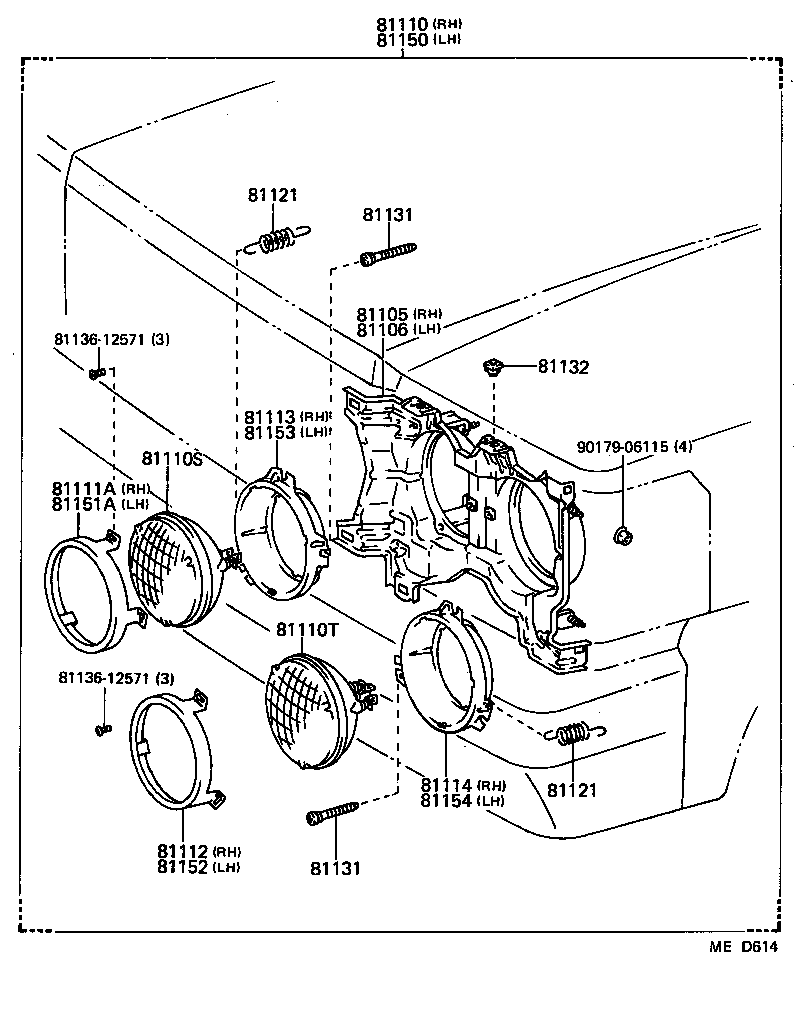

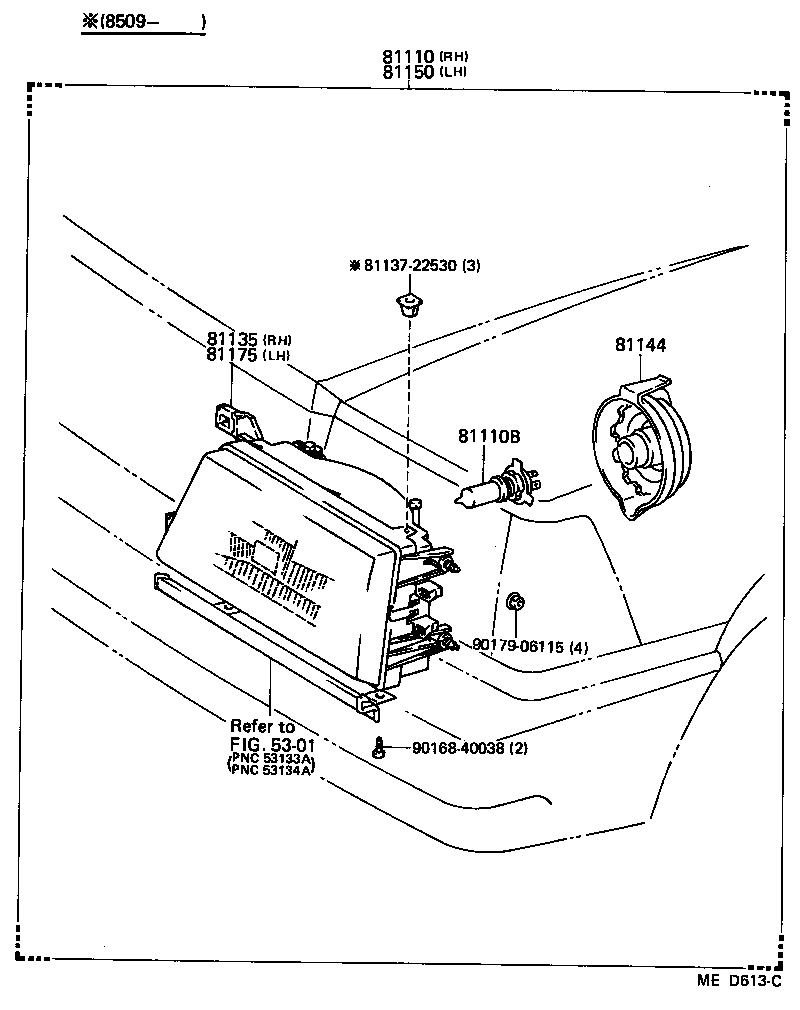

Figure MED612B MED612B 1983-08 → — Figure MED613C MED613C 1983-08 → — Figure MED614 MED614 1983-08 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81110T Sealed Beam Unit, NO.2
81111A Ring, Sealed Beam Retaining, NO.1 RH
81112 Ring, Sealed Beam Retaining, NO.2 RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81114 Ring, Sealed Beam Mounting, NO.2 RH
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81132 Nut, Headlamp Self Locking
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81152 Ring, Sealed Beam Retaining, NO.2 LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81154 Ring, Sealed Beam Mounting, NO.2 LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
