Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

53 part groups · 10 illustrations

Illustrations

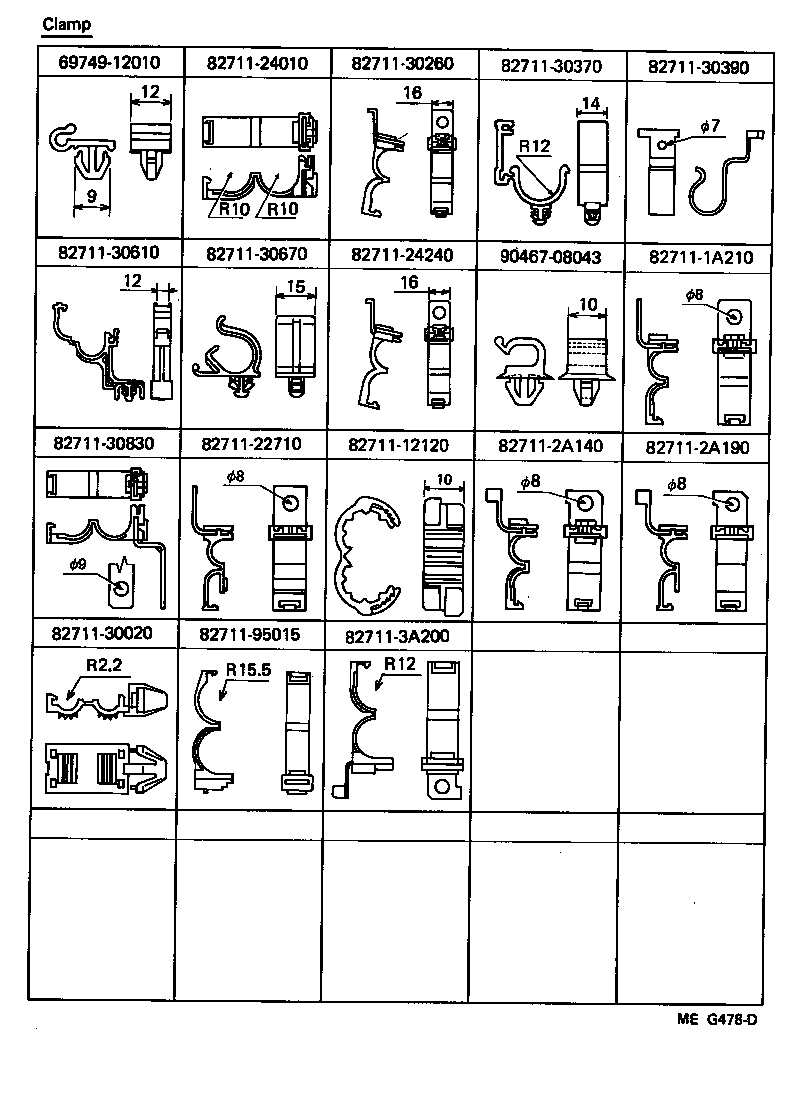

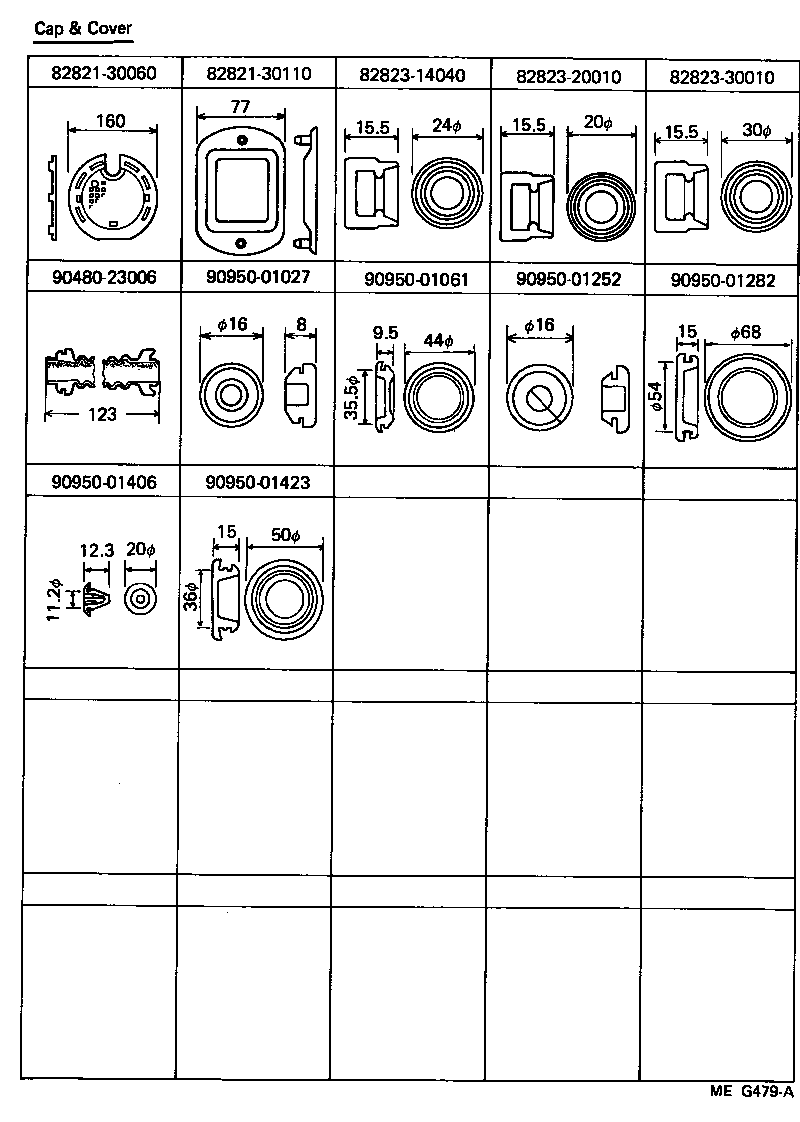

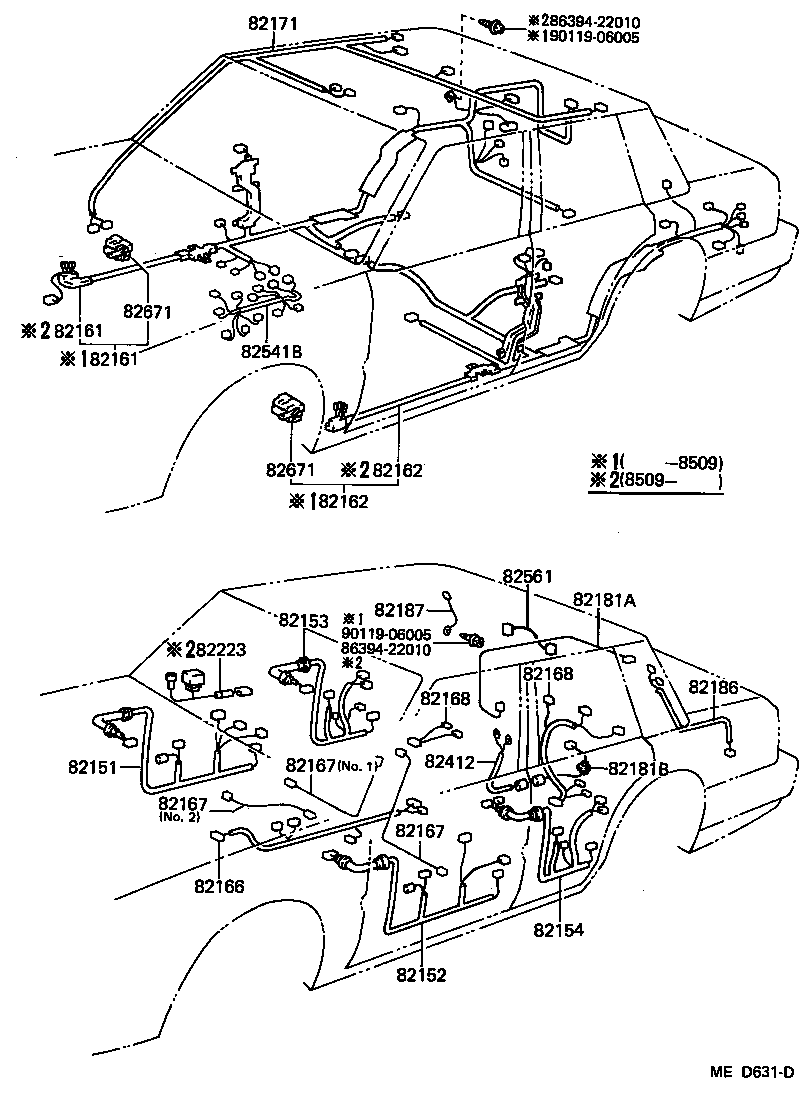

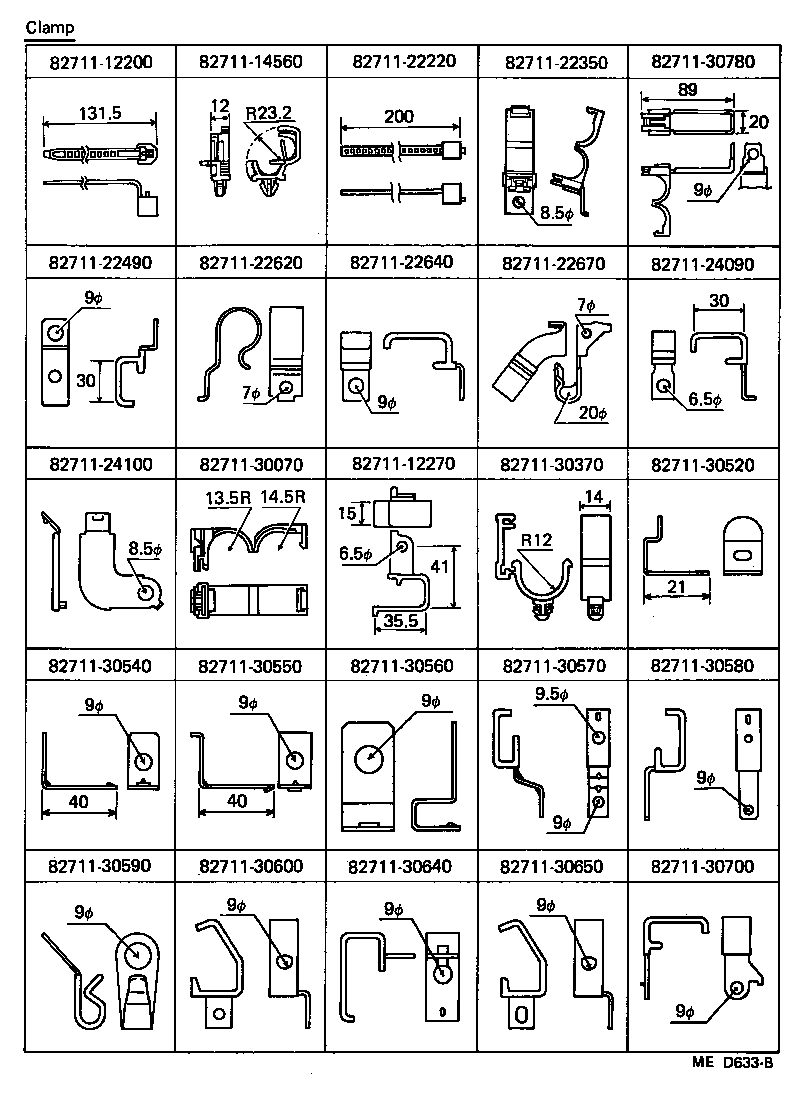

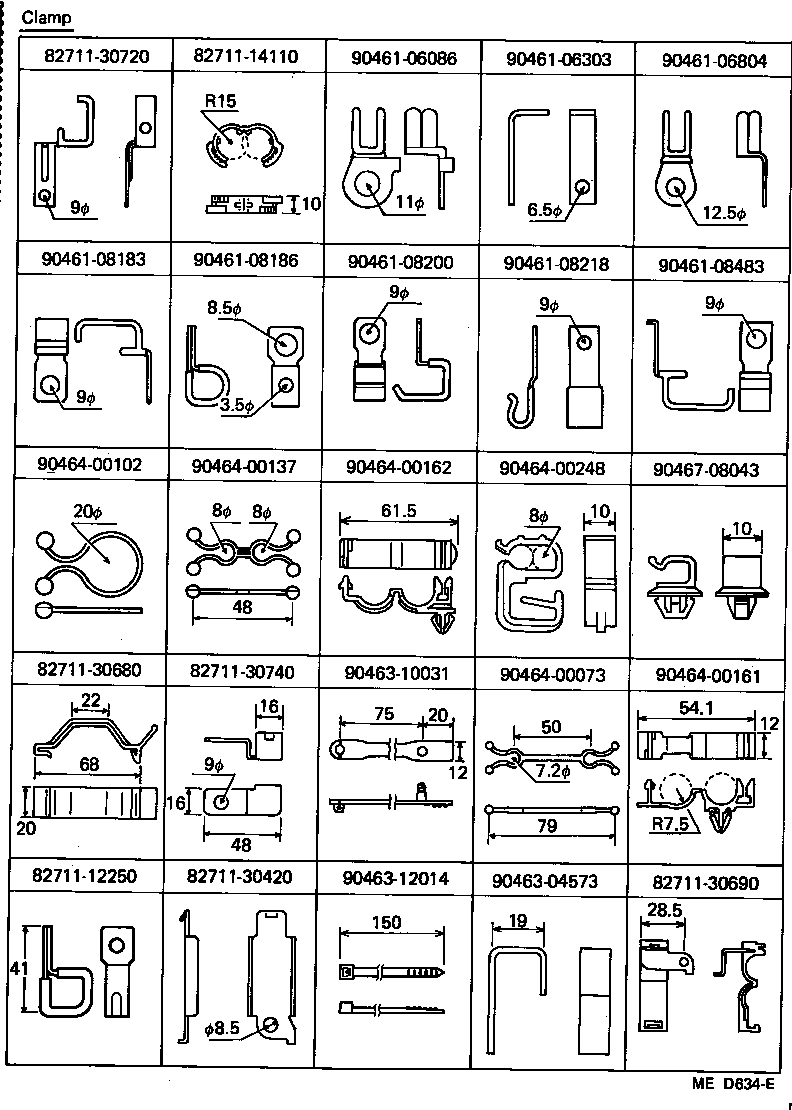

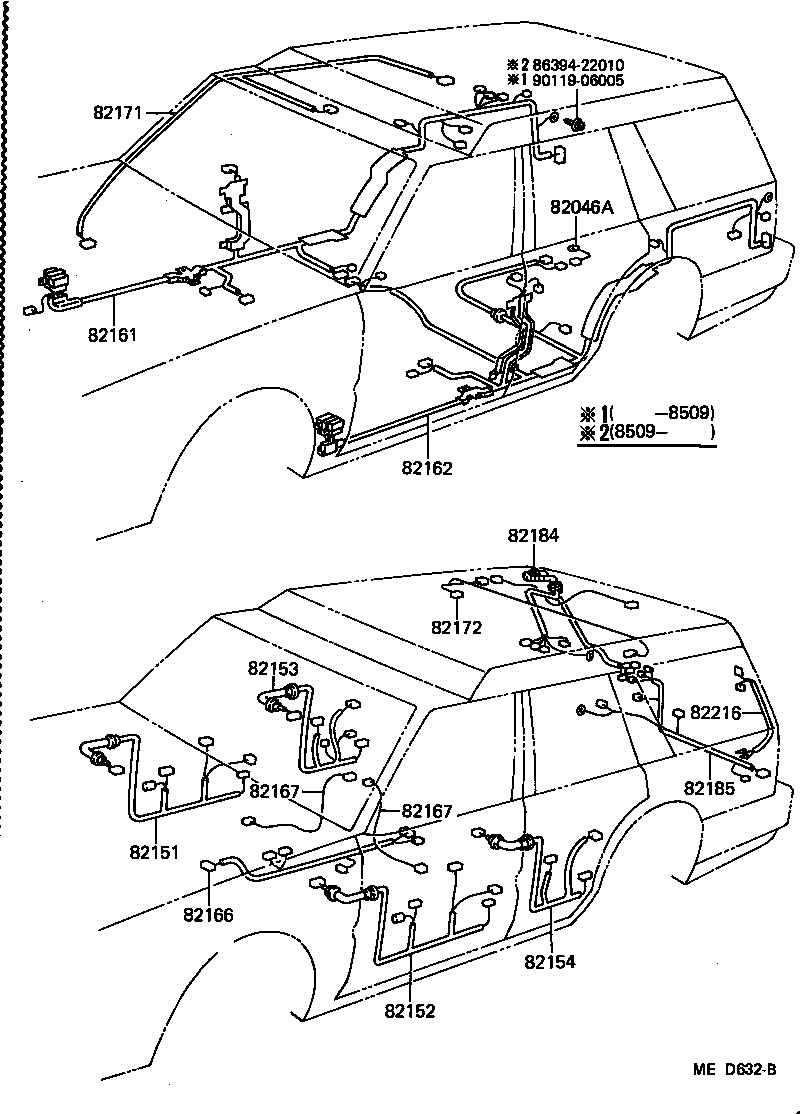

Figure MED630H MED630H 1983-08 → — Figure MED631D MED631D 1983-08 → — Figure MED632B MED632B 1983-08 → — Figure MEE161A MEE161A 1983-08 → — Figure MEE162 MEE162 1983-08 → — Figure MED633B MED633B 1983-08 → — Figure MED634E MED634E 1983-08 → — Figure MEG478D MEG478D 1985-09 → — Figure MED635E MED635E 1983-08 → — Figure MEG479A MEG479A 1985-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82181A Wire, Luggage Room, NO.2
82181B Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210B Fusible Link
82210C Fusible Link
82210D Fusible Link
82214A Wire, Lamp
82216 Wire, Rear Window Defogger
82221 Wire, Oil Pressure Switch
82223 Wire, Switch
82241C Wire, Relay
82345 Diode
82412 Wire, Fuel Gage
82541B Wire, Seat Adjuster
82561 Wire, Rear Speaker
82620 Block Assy, Fusible Link
82671 Block, Junction
82672 Cover, Junktion Block
82673 Bracket, Junction Block
82823 Cap, Terminal, NO.1

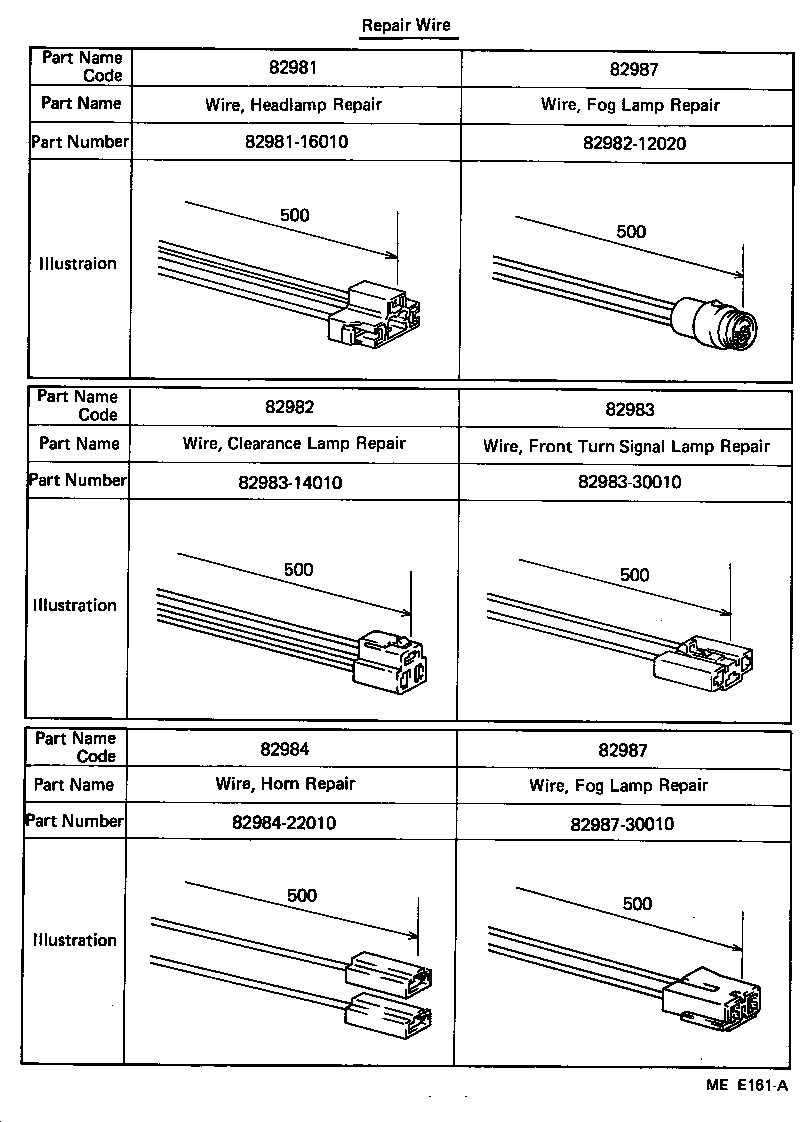

82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82987 Wire, Fog Lamp Repair
82991 Wire, Fusible Link Repair
85999J Bracket, Circuit Breaker
88648G Wire, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
