Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

11 part groups · 2 illustrations

Illustrations

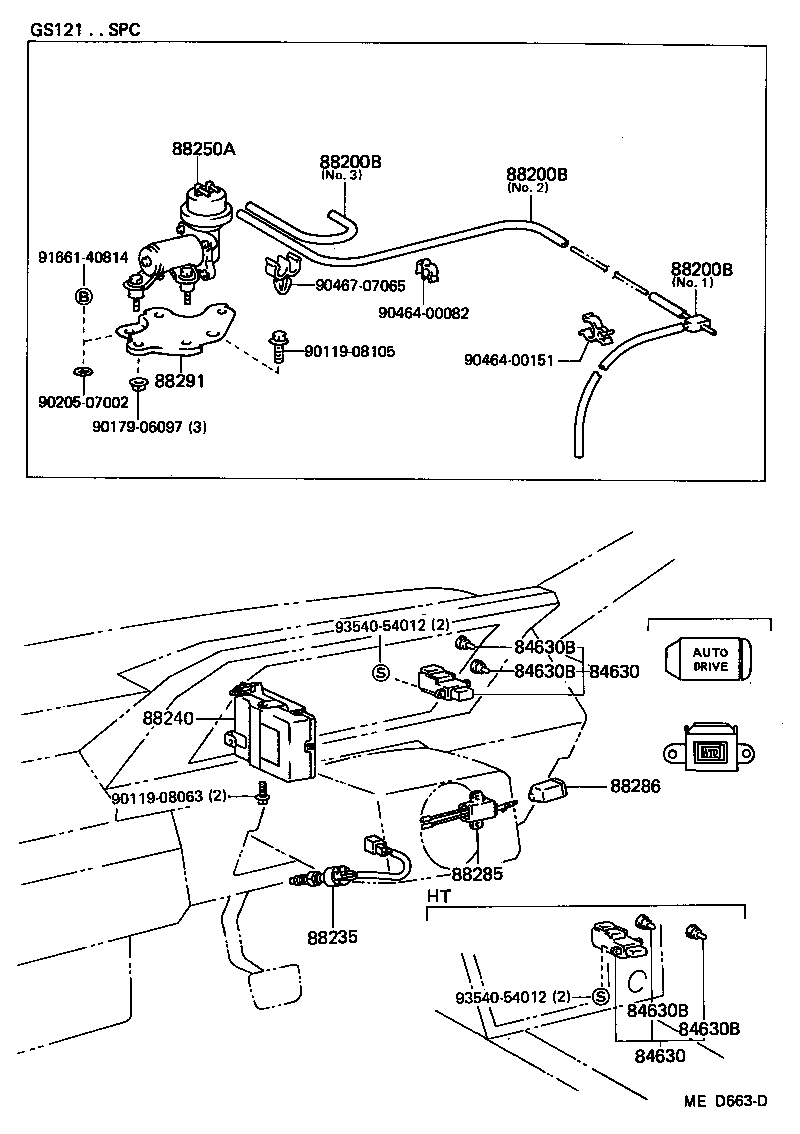

Figure MED662B MED662B 1983-08 → — Figure MED663D MED663D 1983-08 → —

Part groups

PNCDescription
84630 Switch Assy, Cruise Control Main
84630B Bulb(FOR CRUISE CONTROL SWITCH)
88200B Hose, Cruise Control Vacuum
88200D Actuator Assy, Cruise Control
88235 Switch Assy, Cruise Control(AUTO DRIVE) Release
88240 Computer Assy, Cruise Control
88250A Pump Assy, Cruise Control
88270 Cable Assy, Cruise Control(AUTO DRIVE)
88285 Switch, Cruise Control
88286 Knob, Speed Control Switch
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
