Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

11 part groups · 2 illustrations

Illustrations

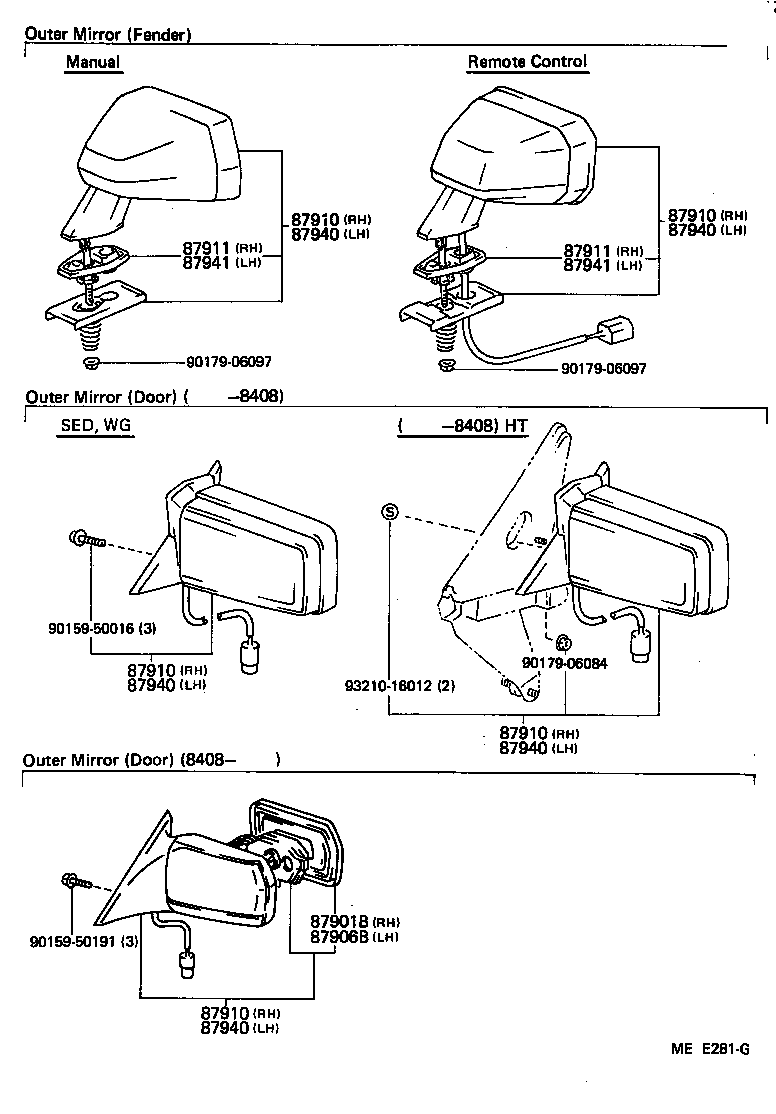

Figure MED679E MED679E 1983-08 → — Figure MEE281G MEE281G 1983-08 → —

Part groups

PNCDescription
87803 Switch Sub-assy, Inner Mirror
87810 Mirror Assy, Inner Rear View
87816 Spring, Inner Rear View Mirror
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
