Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

36 part groups · 11 illustrations

Illustrations

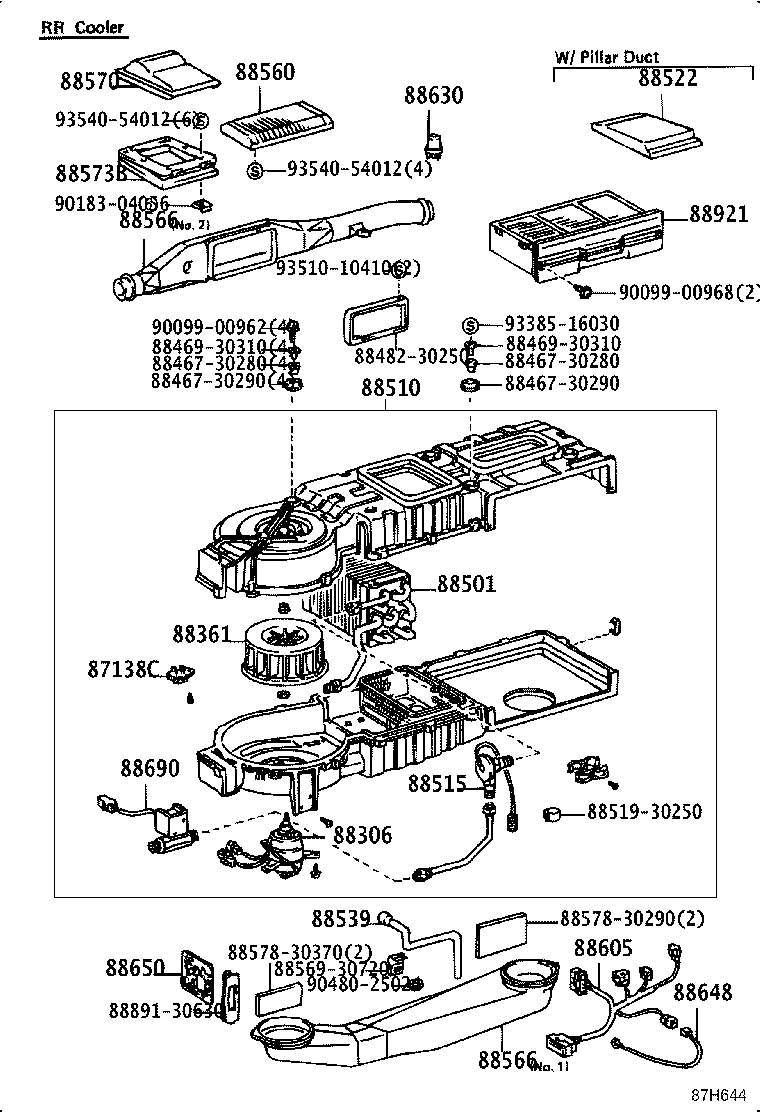

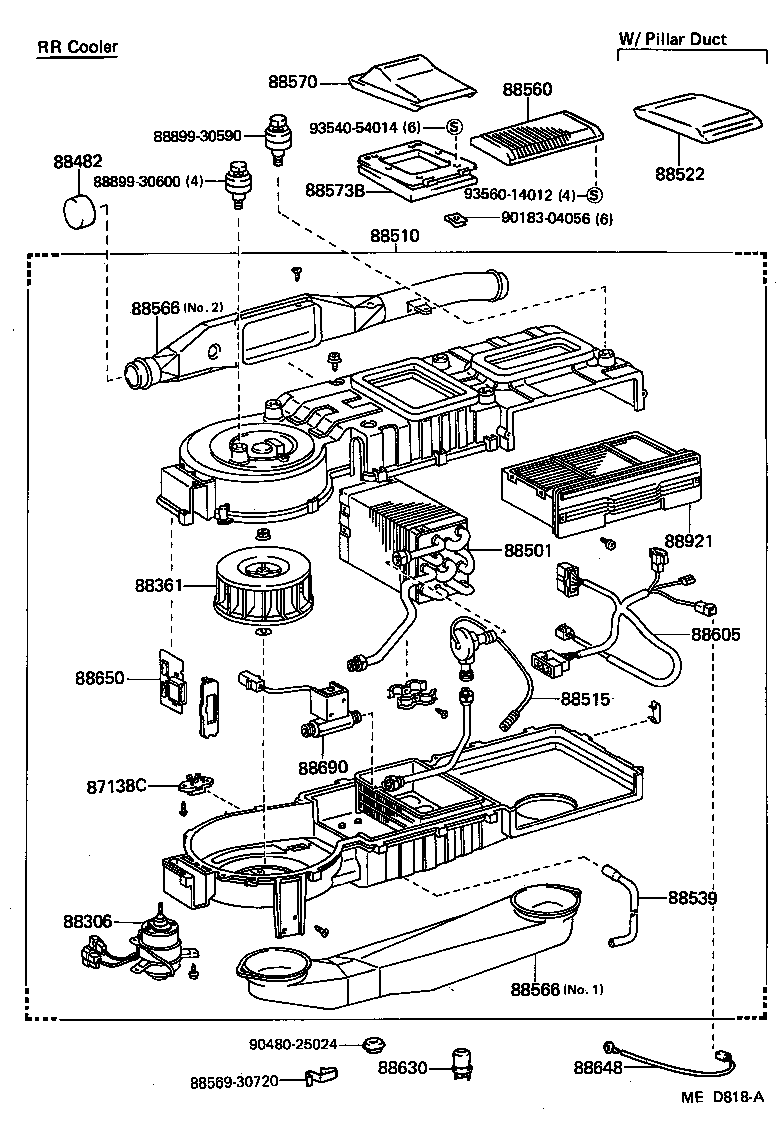

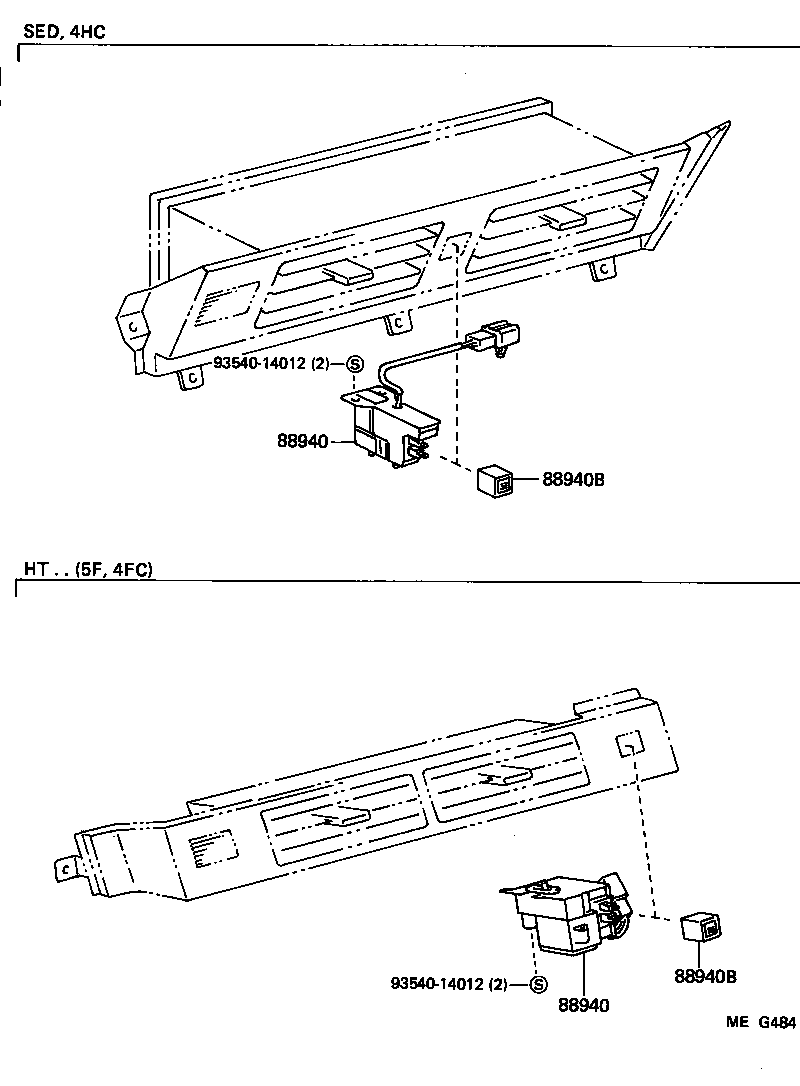

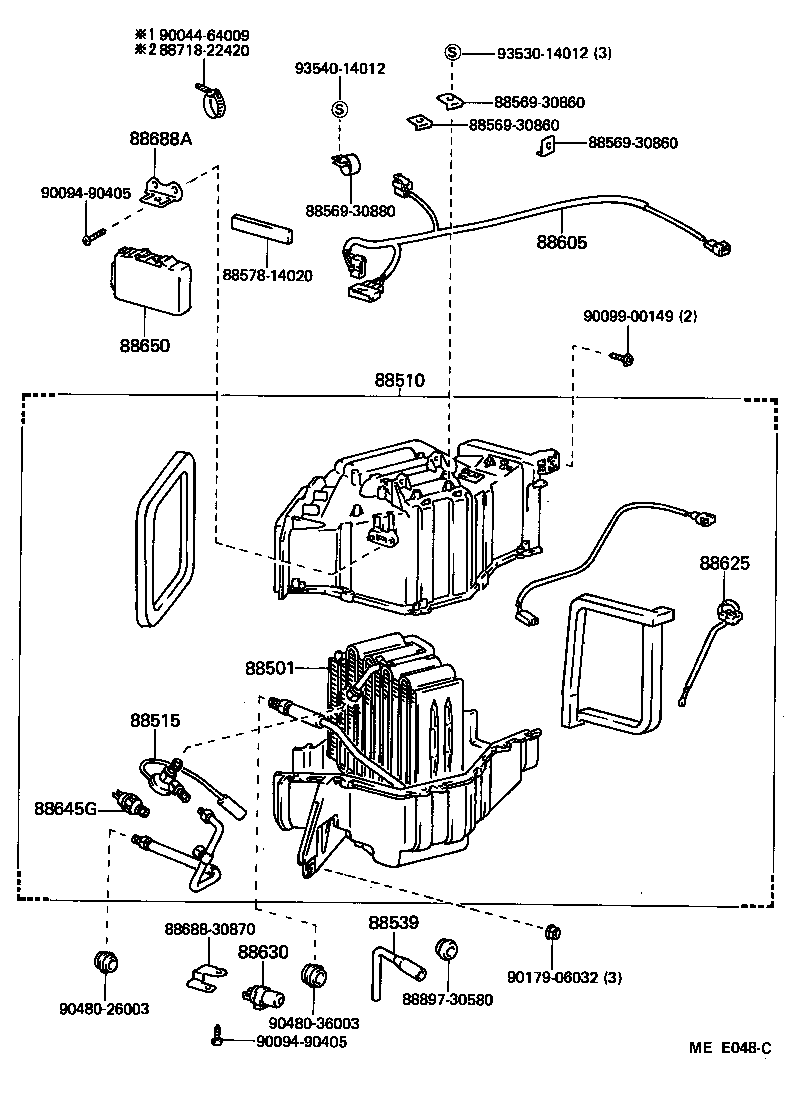

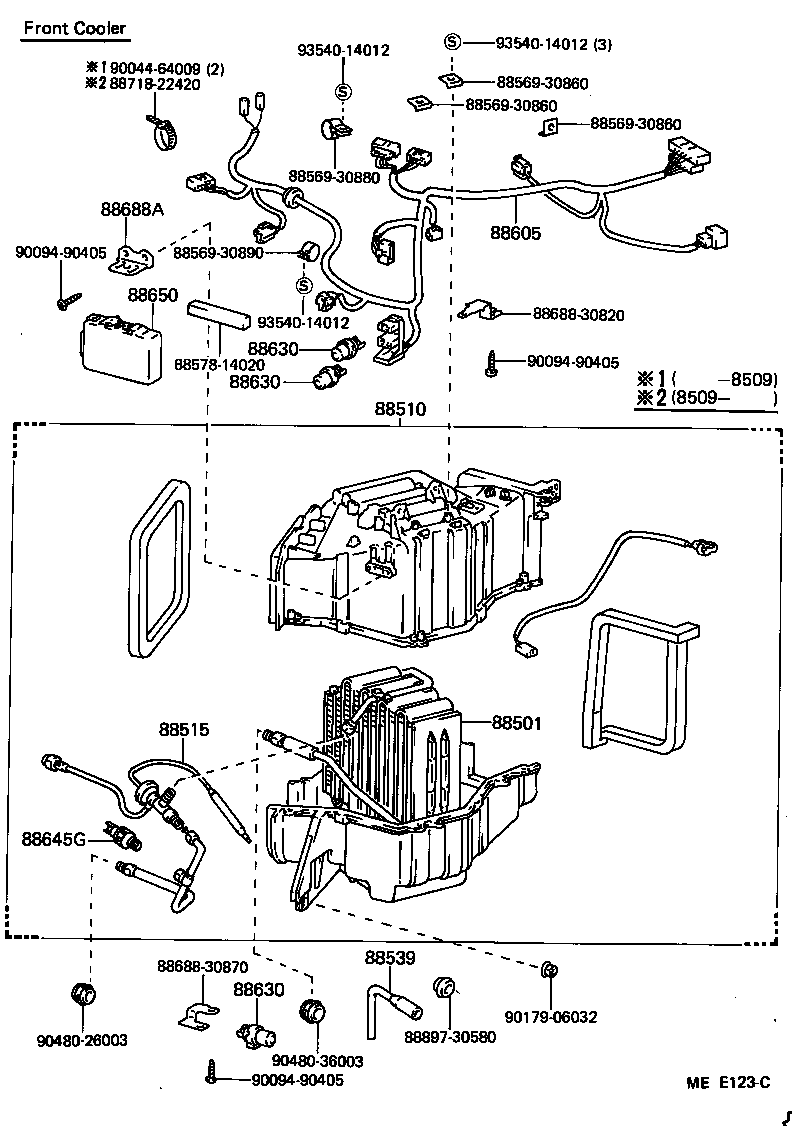

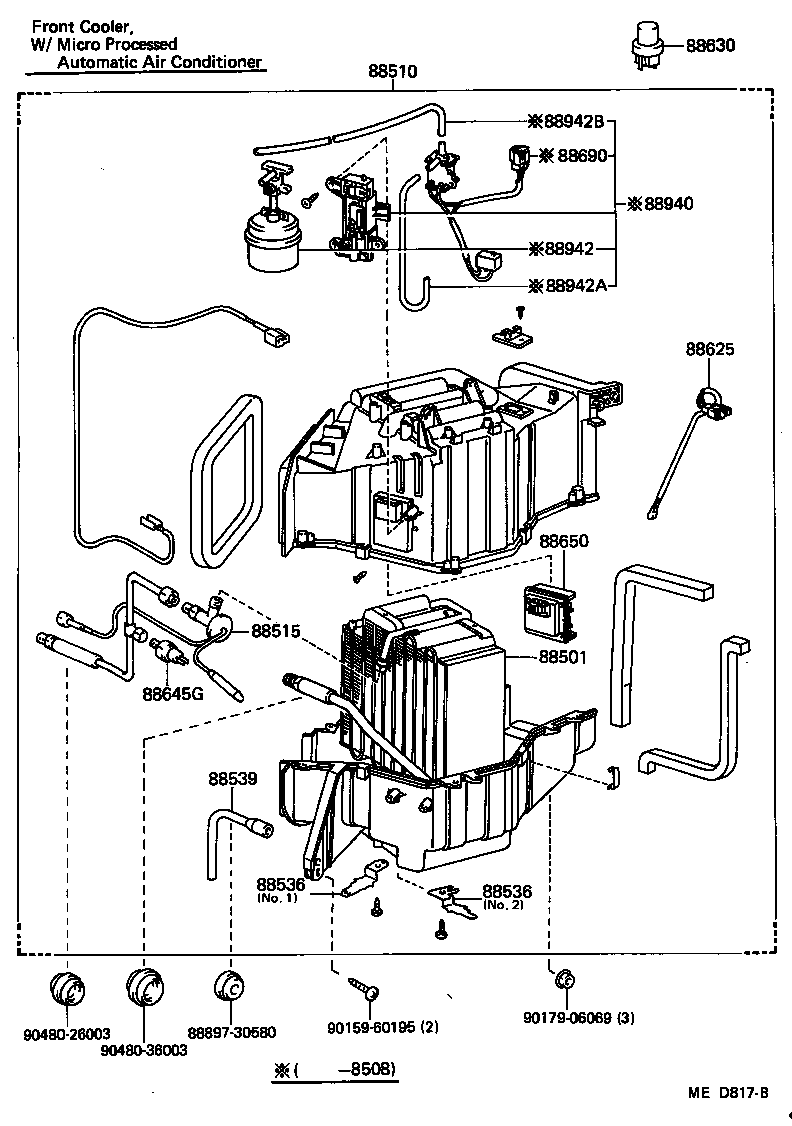

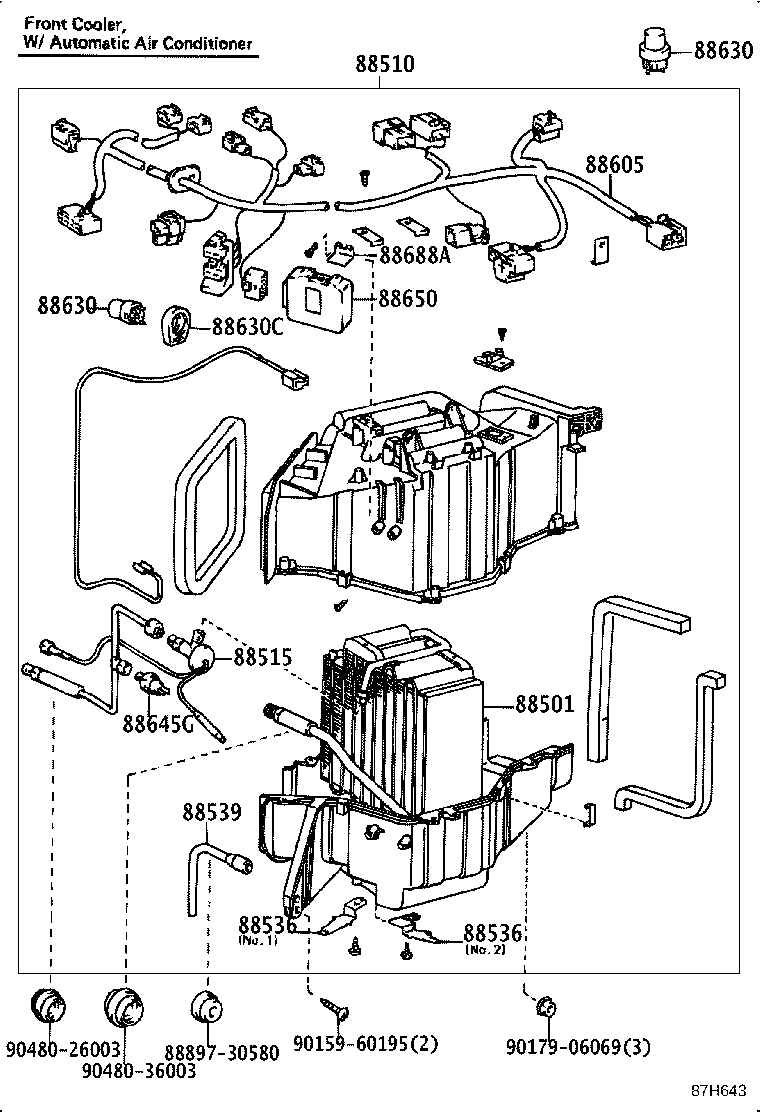

Figure MEE047C MEE047C 1983-08 → — Figure MEE048C MEE048C 1983-08 → — Figure MEE123C MEE123C 1983-08 → — Figure MEE123C MEE123C 1984-05 → — Figure 87H643 87H643 1983-08 → — Figure MED817B MED817B 1983-08 → — Figure MED817B MED817B 1984-08 → — Figure 87H644 87H644 1983-08 → — Figure 87H644 87H644 1984-05 → — Figure MED818A MED818A 1983-08 → — Figure MEG484 MEG484 1985-08 → —

Part groups

PNCDescription
87138C Resistor, Blower
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88371 Fan, Cooler Blower, NO.2
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88522 Door, Cooling Unit
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88539 Hose, Cooler Unit Drain, NO.1
88560 Grille Assy, Cooler Air Inlet
88566 Duct, Cooler Air, NO.1
88568 Filter, Cooler Unit Cover
88570 Grille Sub-assy, Cooler Air Outlet
88573B Base, Grille
88601F Bracket, Cooler Control Switch
88605 Harness Sub-assy, Cooler Wiring, NO.1
88610 Switch Assy, Cooler Control
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630C Bracket, Cooler Relay
88635 Resistor, Cooler Unit Blower
88645G Switch, Pressure
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88688A Bracket, Cooler Stabilizer Amplifier
88690 Valve Assy, Cooler Magnet
88921 Filter, Air Purifier, NO.1
88940 Actuator Assy, Swing Grille
88940B Knob Sub-assy, Control
88942 Diaphragm, Vacuum
88942A Hose
88942B Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
