Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

8 part groups · 2 illustrations

Illustrations

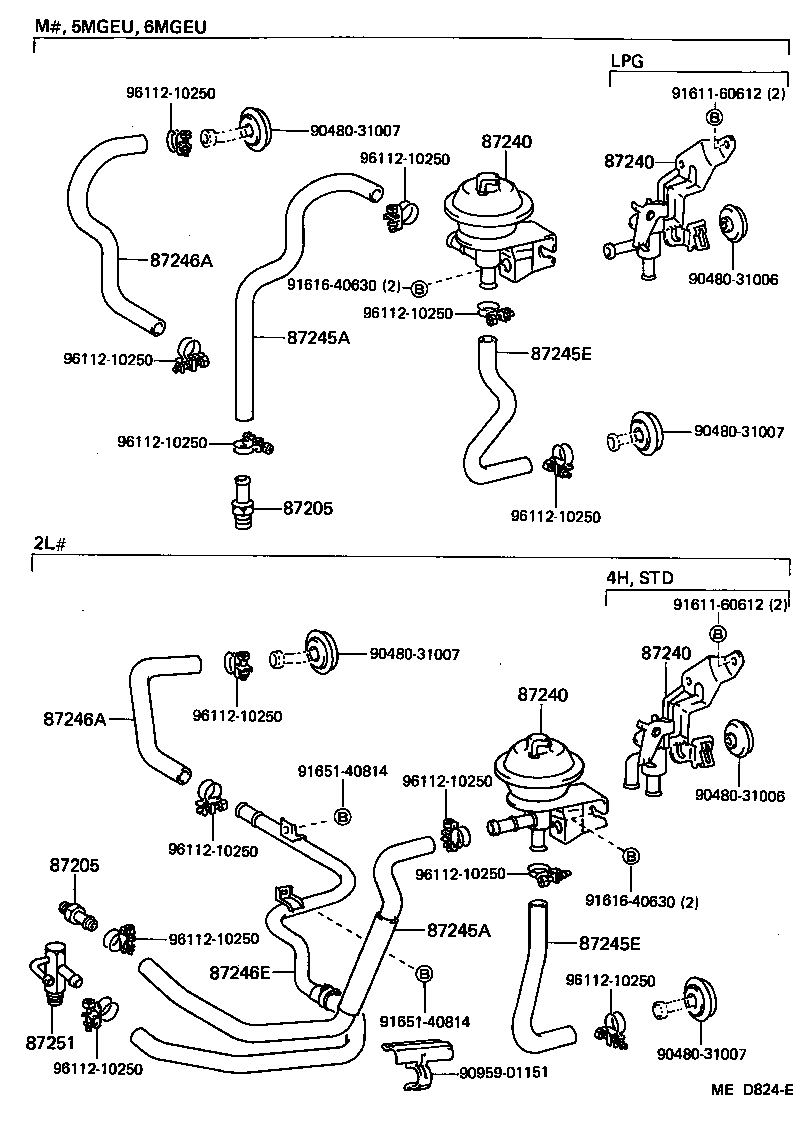

Figure MED823C MED823C 1983-08 → — Figure MED824E MED824E 1983-08 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87251 Joint OR Union, Water Hose Through
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
