Toyota Crown

1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

15 part groups · 5 illustrations

Illustrations

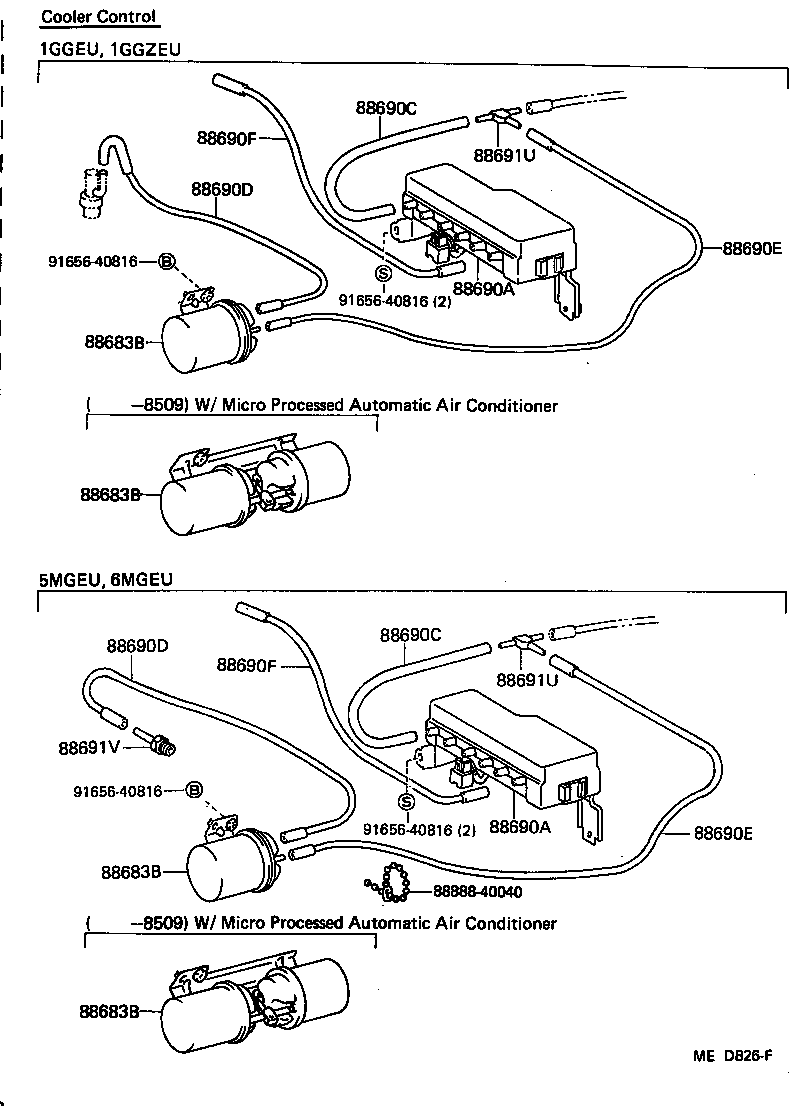

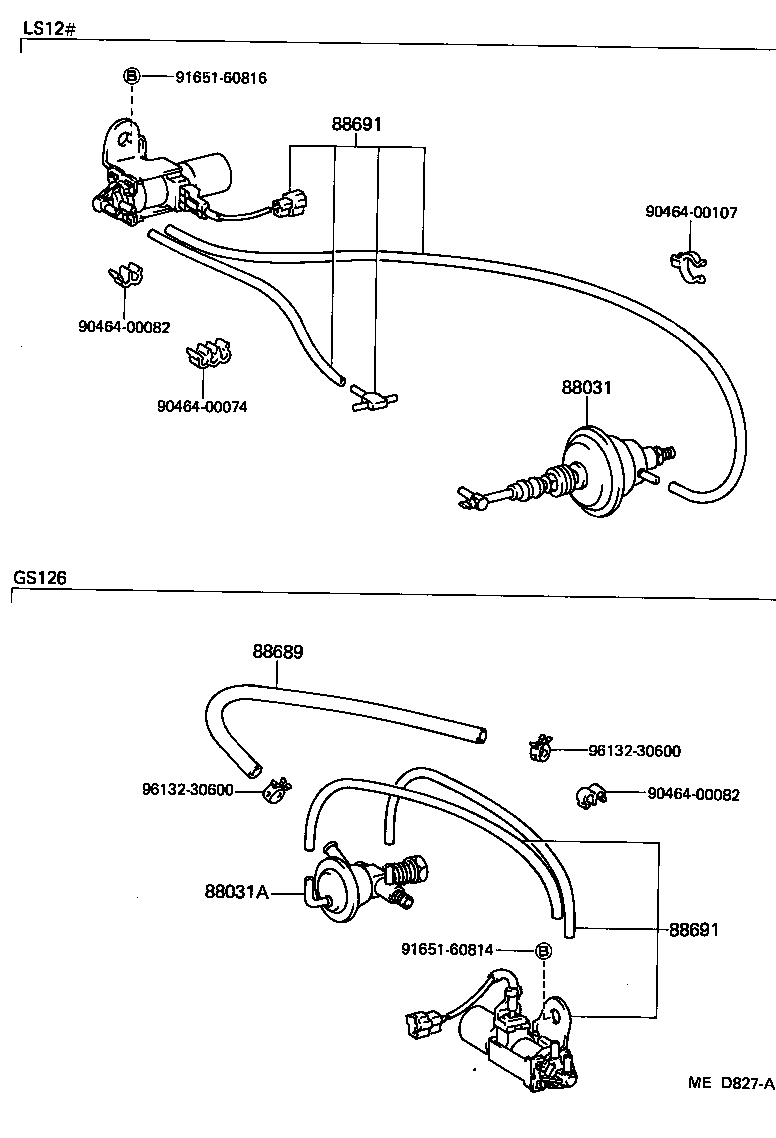

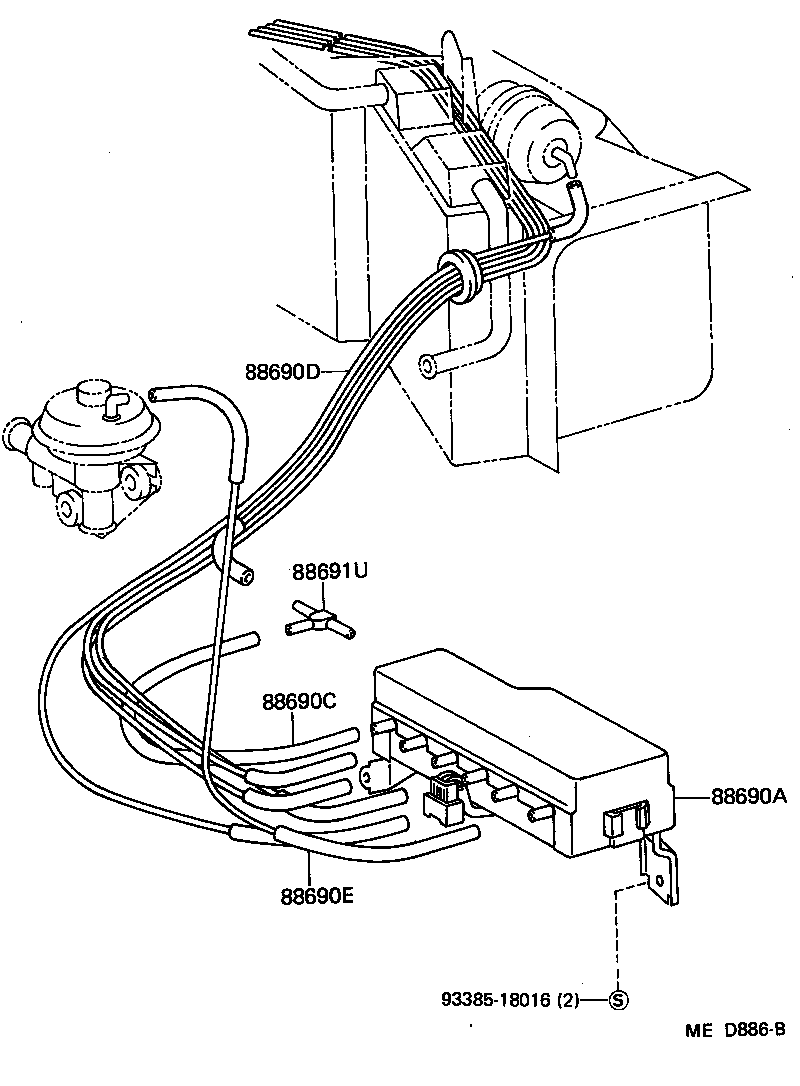

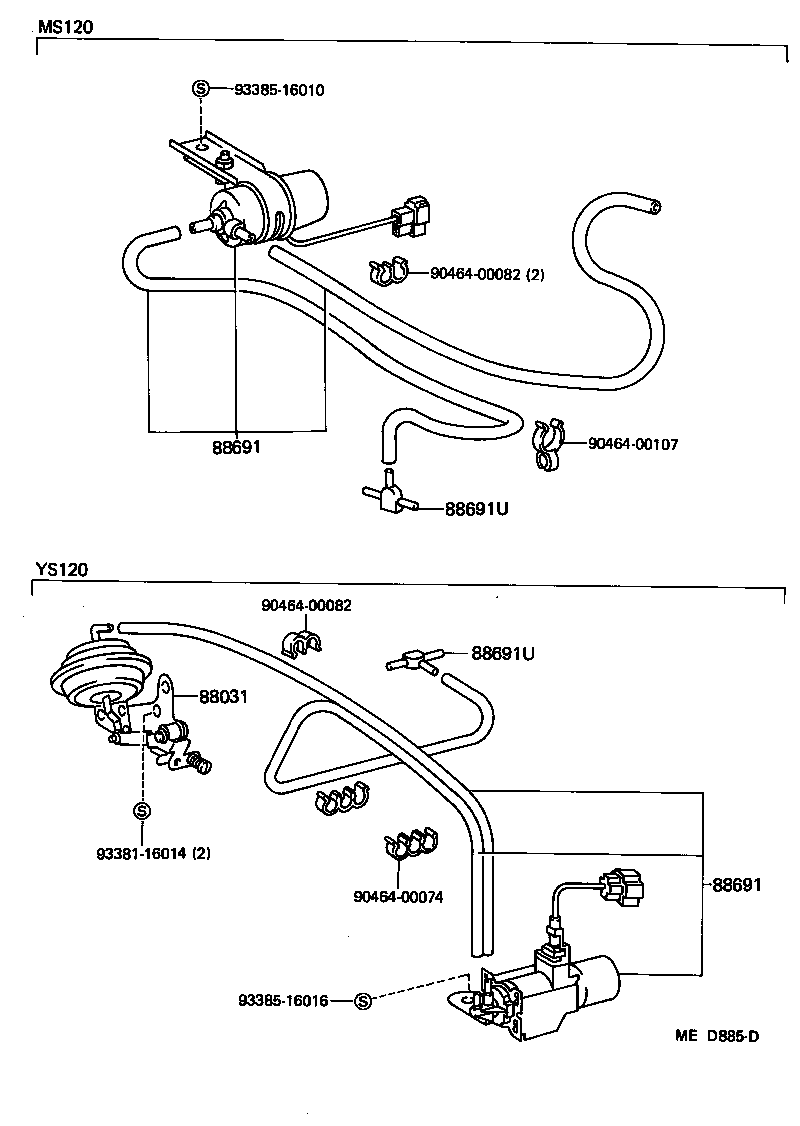

Figure MED825B MED825B 1983-08 → — Figure MED826F MED826F 1983-08 → — Figure MED827A MED827A 1983-08 → — Figure MED885D MED885D 1983-08 → — Figure MED886B MED886B 1983-08 → —

Part groups

PNCDescription
87292 Tank, Vacuum
87292A Hose, Vacuum Tank
87293E Union, Hose
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88683B Tank, Vacuum
88689 Hose, Damper Control Diaphragm Vacuum
88690A Valve Assy, Combination
88690C Hose, Vacuum, NO.1 (FOR HEATER OR AIR CONDITIONER)
88690D Hose, Vacuum, NO.2 (FOR HEATER OR AIR CONDITIONER)
88690E Hose, Vacuum, NO.3 (FOR HEATER OR AIR CONDITIONER)
88690F Hose, Vacuum, NO.4 (FOR HEATER OR AIR CONDITIONER)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691U Way(FOR VACUUM HOSE)
88691V Union (FOR VACUUM PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
