Toyota Crown
1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan
Discontinued model
Data version 1988-01

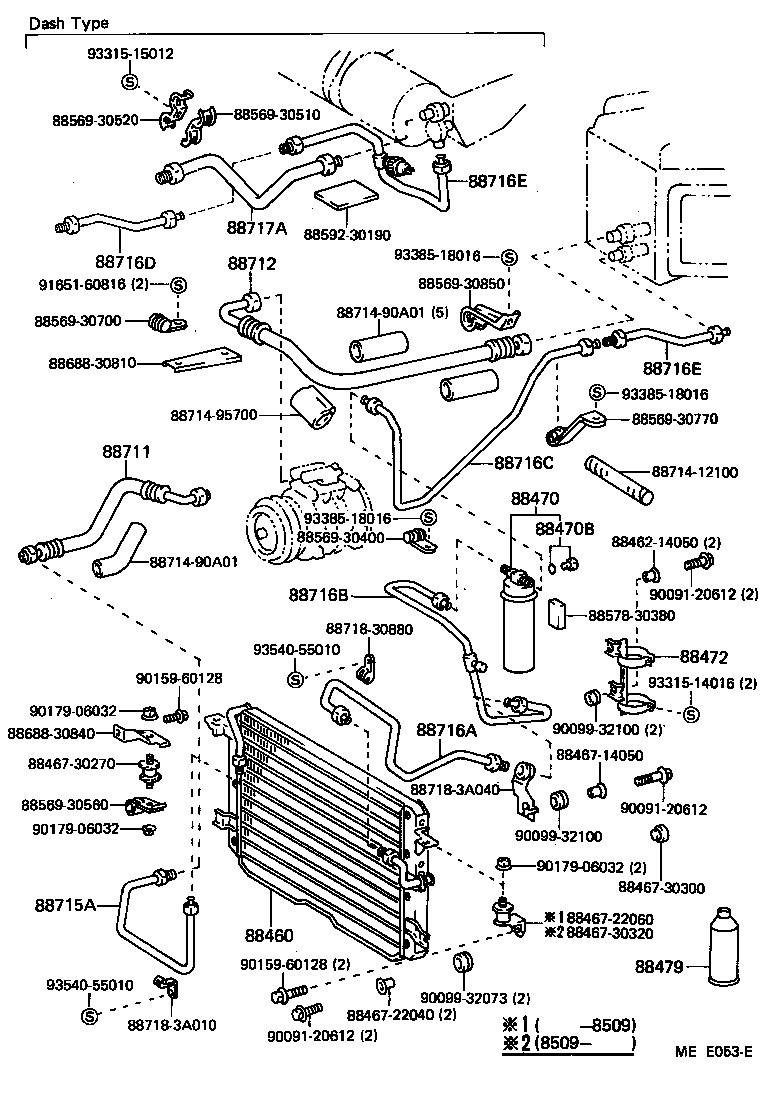

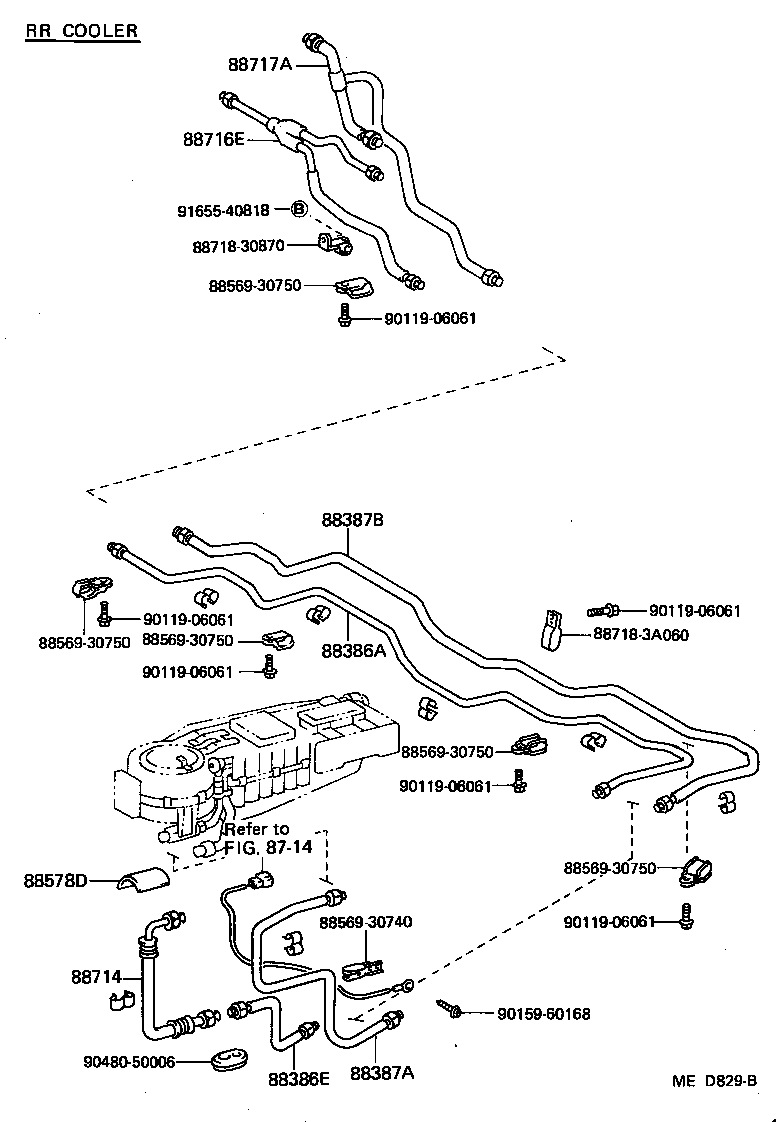

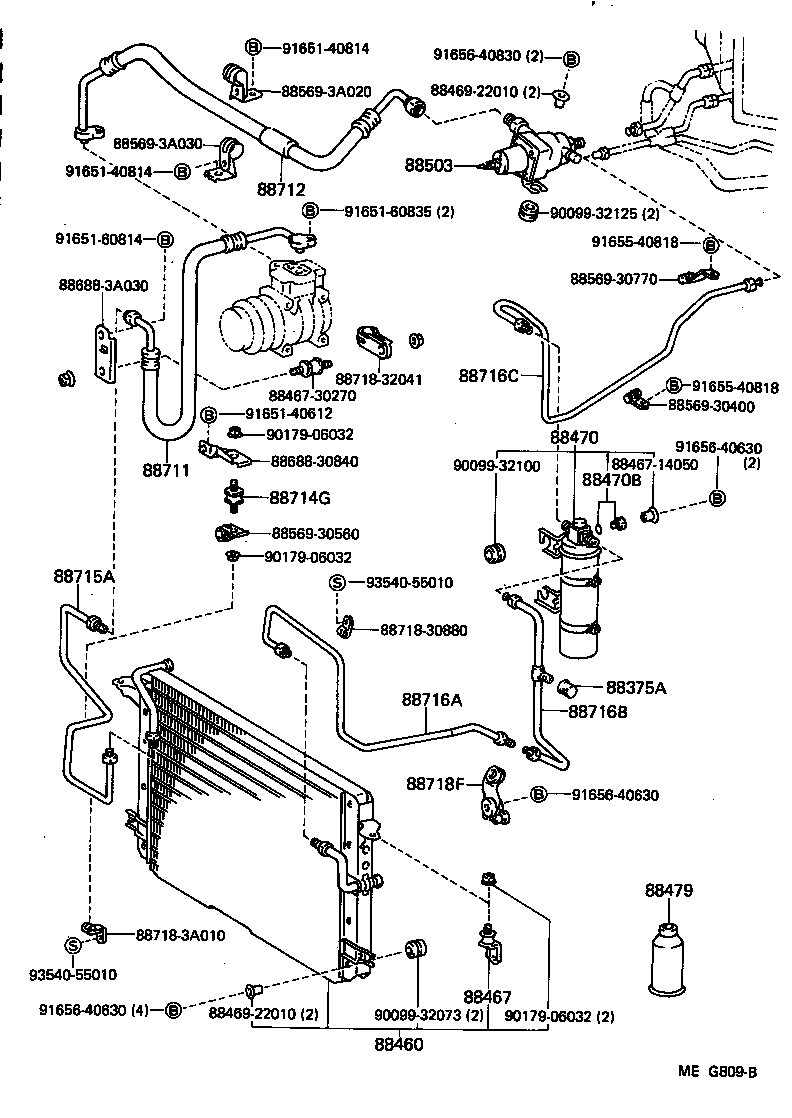

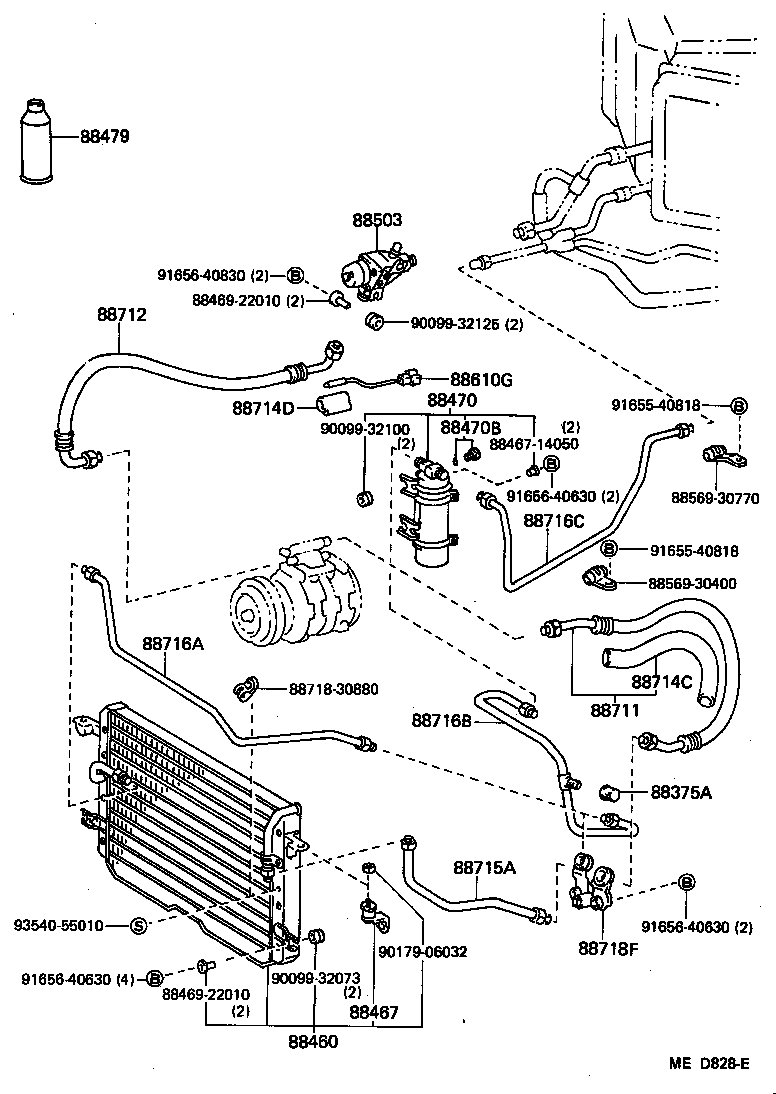

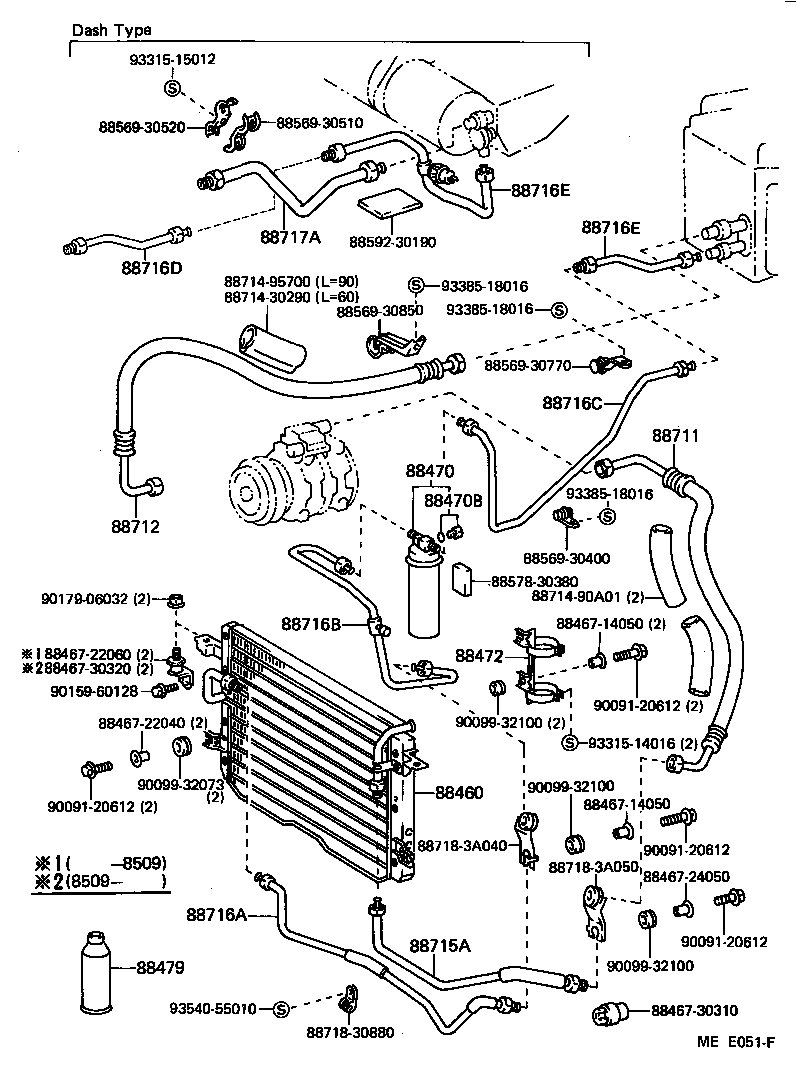

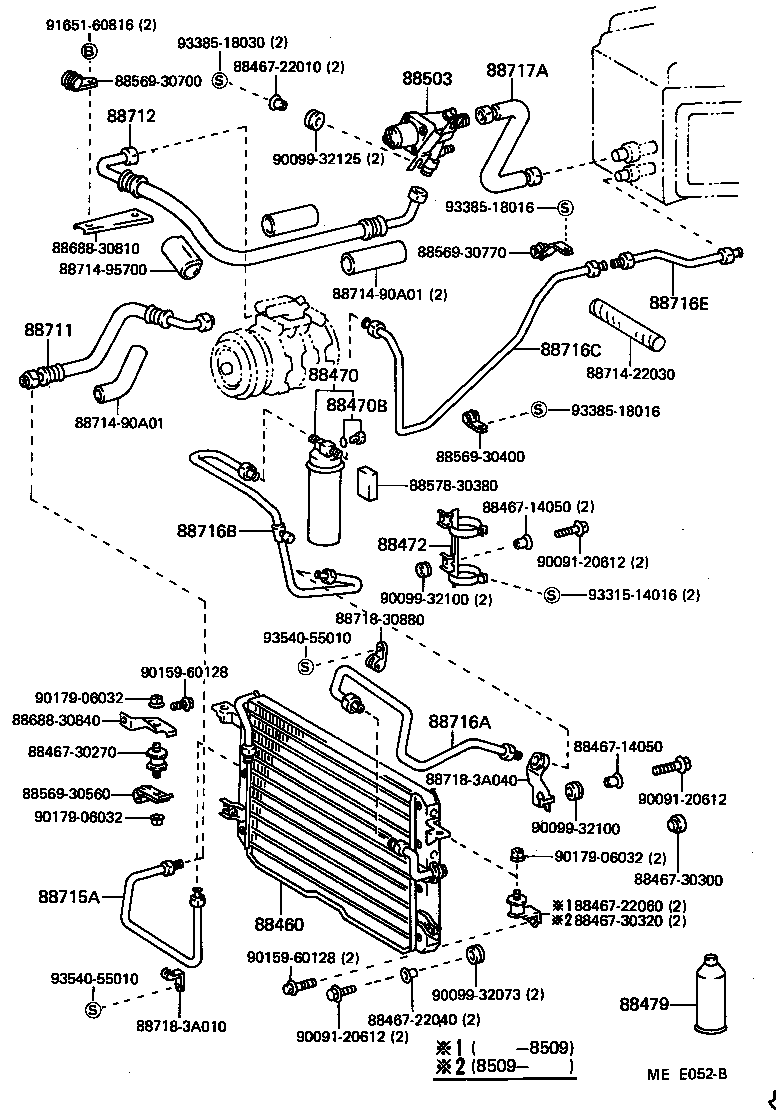

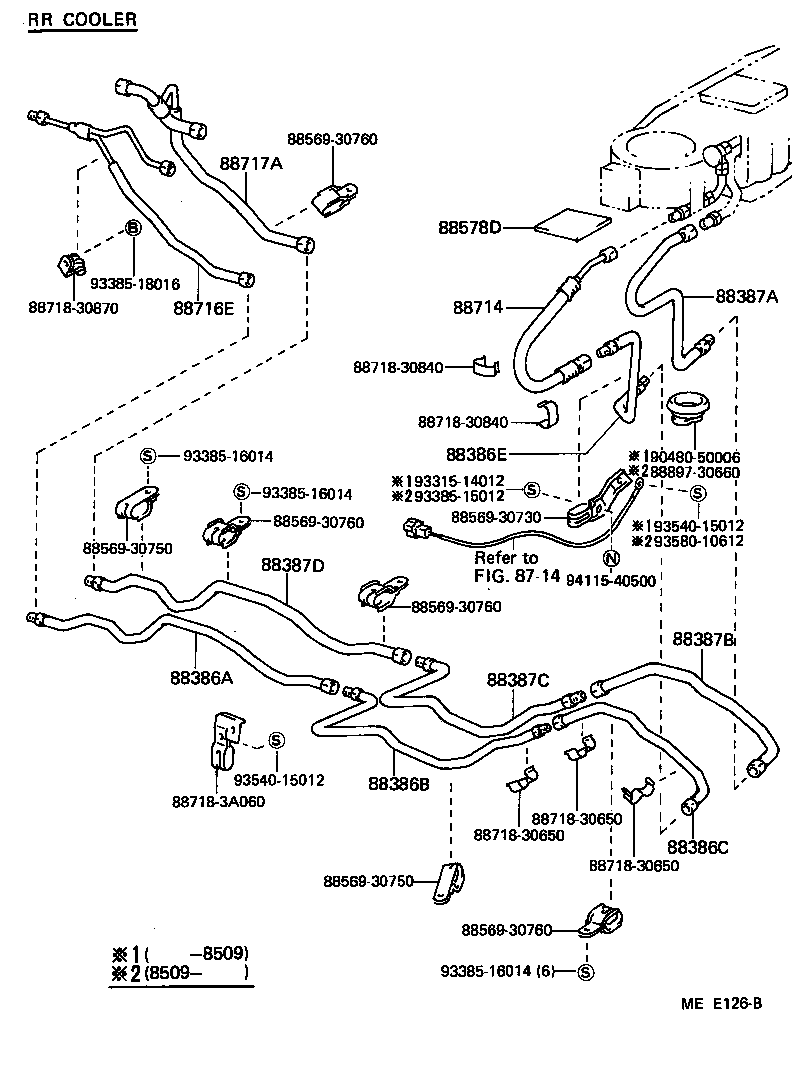

Heating & Air Conditioning - Cooler Piping
32 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 88375A | Cap, Service Valve (FOR COOLER PIPE) |
| 88386A | Pipe, Rear Cooler Refrigerant Liquid, A (FROM CONDENSER) |
| 88386B | Pipe, Rear Cooler Refrigerant Liquid, B |
| 88386C | Pipe, Rear Cooler Refrigerant Liquid, C |
| 88386E | Pipe, Rear Cooler Refrigerant Liquid, E (TO COOLER UNIT) |
| 88387A | Pipe, RR Cooler Refrigerant Suction, A (FROM COOLER UNIT) |
| 88387B | Pipe, Rear Cooler Refrigerant Suction, B |
| 88387C | Pipe, Rear Cooler Refrigerant Suction, C |
| 88387D | Pipe, Rear Cooler Refrigerant Suction, D |
| 88460 | Condenser Assy, Cooler |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88470B | Bolt, Fuse |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88503 | Regulator Assy, Pressure |
| 88578D | Packing, Cooler Pipe, NO.1 |
| 88610G | Switch Assy, Control |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88714 | Hose, Cooler Refrigerant Liquid, NO.1 |
| 88714C | Insulator, Cooler Refrigerant Hose, NO.1 |
| 88714D | Insulator, Cooler Refrigerant Hose, NO.2 |
| 88714G | Insulator, Cooler Refrigerant Pipe, NO.1 |
| 88715A | Pipe, Cooler Refrigerant Discharge, A |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716D | Pipe, Cooler Refrigerant Liquid, D |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88718F | Clamp, NO.1(FOR COOLER REFRIGERANT HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
