Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Partial Engine Assembly

1 part groups · 2 illustrations

Illustrations

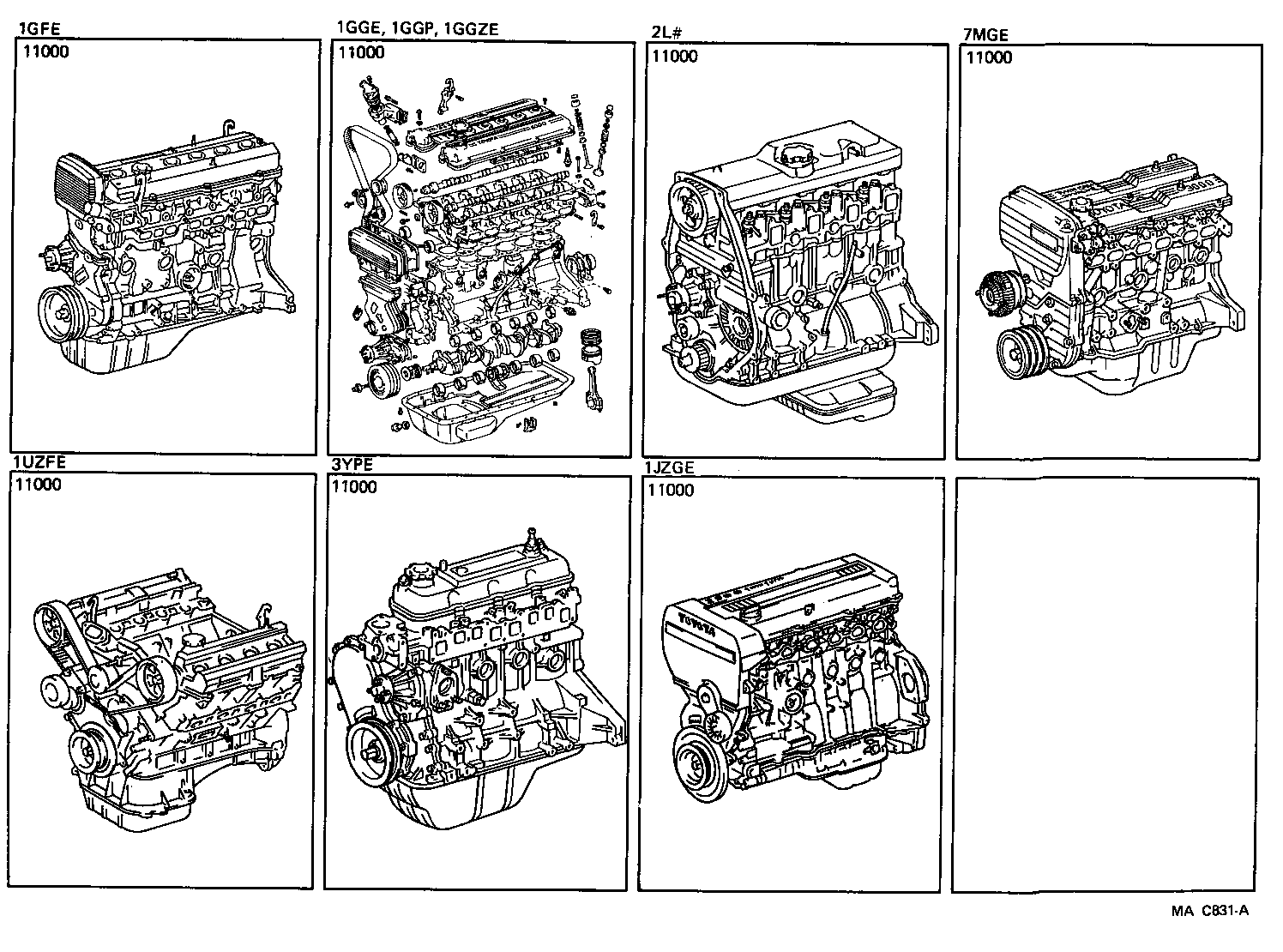

Figure MA9853A MA9853A 1987-09 → 1989-08 Figure MAC831A MAC831A 1989-08 → —

Part groups

PNCDescription
11000 Engine Assy, Partial
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
