Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

10 part groups · 8 illustrations

Illustrations

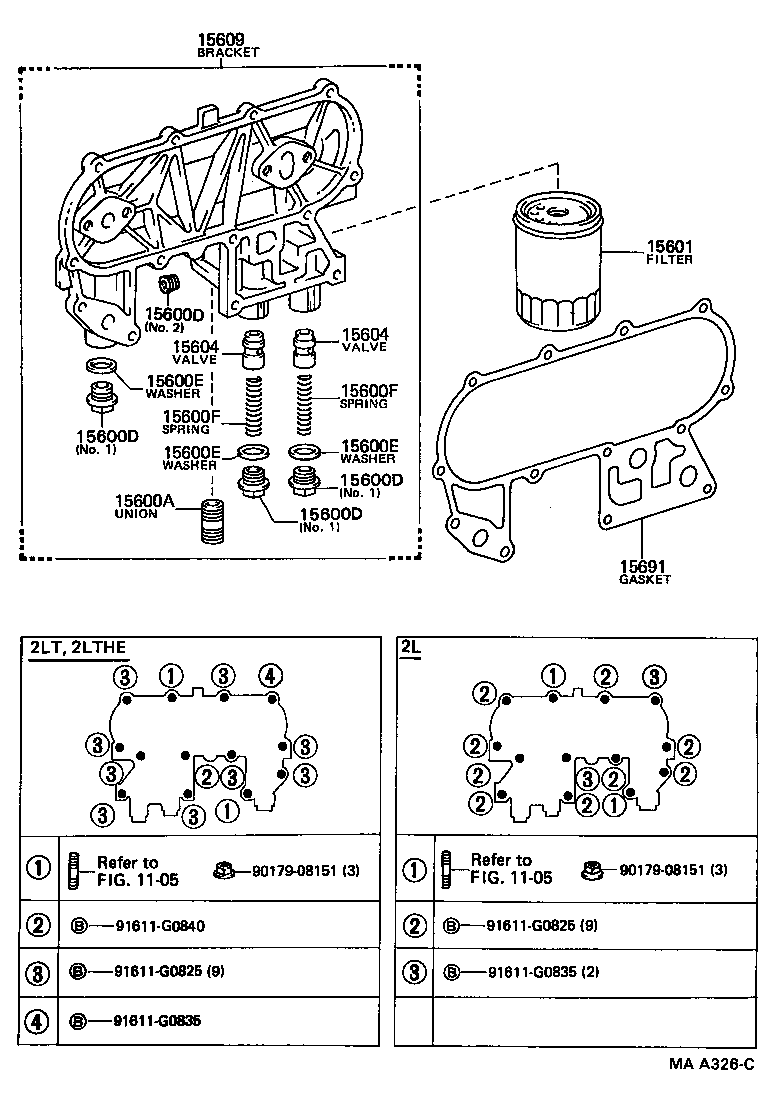

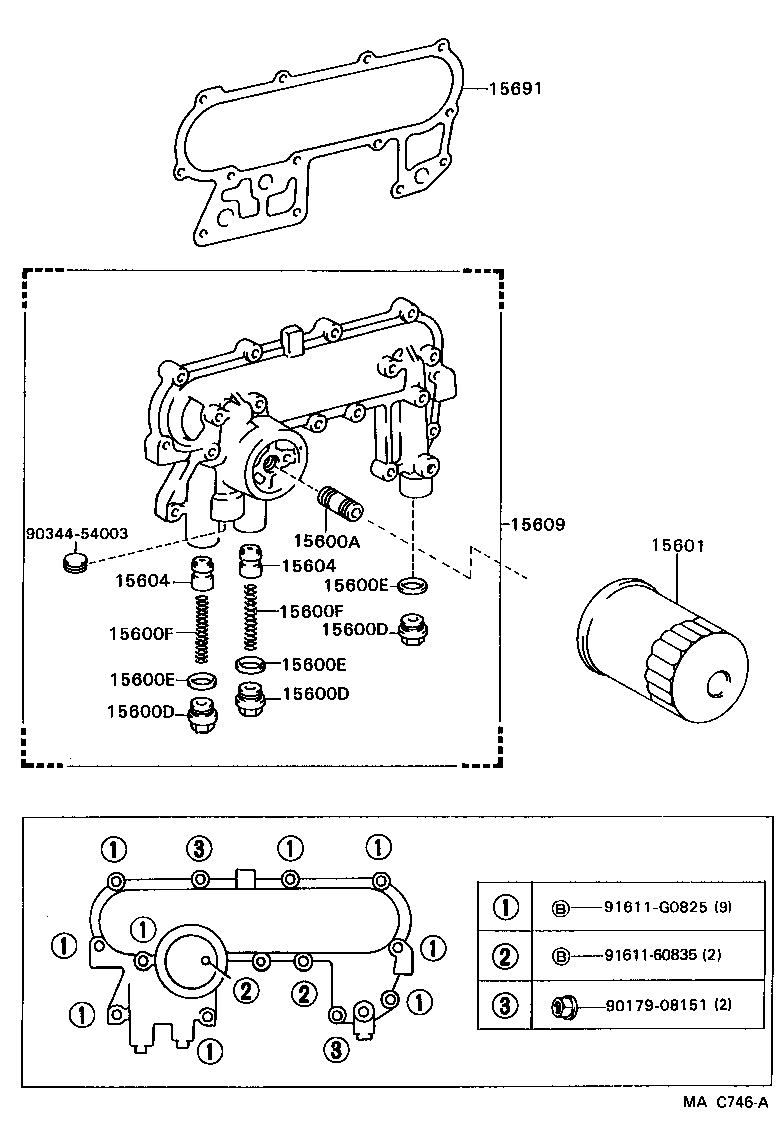

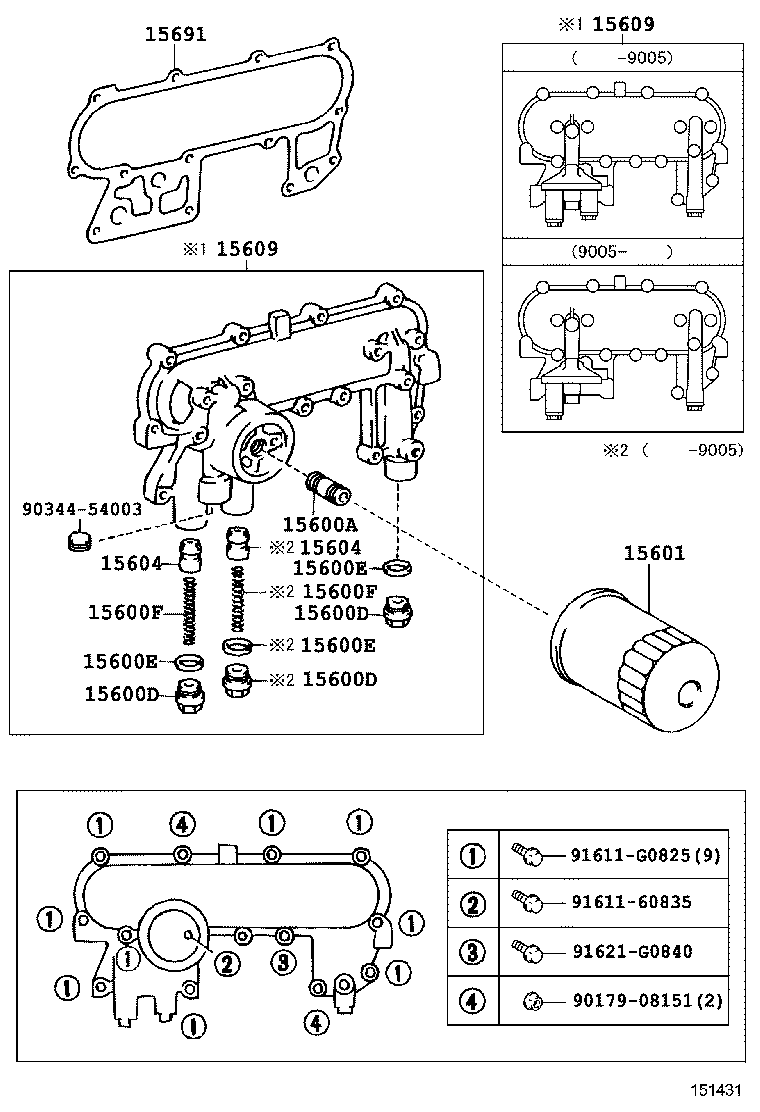

Figure MA6093A MA6093A 1987-09 → — Figure MAE120B MAE120B 1990-08 → — Figure MAA326C MAA326C 1987-09 → 1989-08 Figure MAC746A MAC746A 1989-08 → — Figure 151431 151431 1989-08 → — Figure MA6093A MA6093A 1987-09 → — Figure 153259 153259 1989-08 → — Figure MA6182A MA6182A 1987-09 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15671 Bracket, Oil Filter
15671B Gasket, Oil Filter Bracket
15691 Gasket, Oil Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
