Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

25 part groups · 11 illustrations

Illustrations

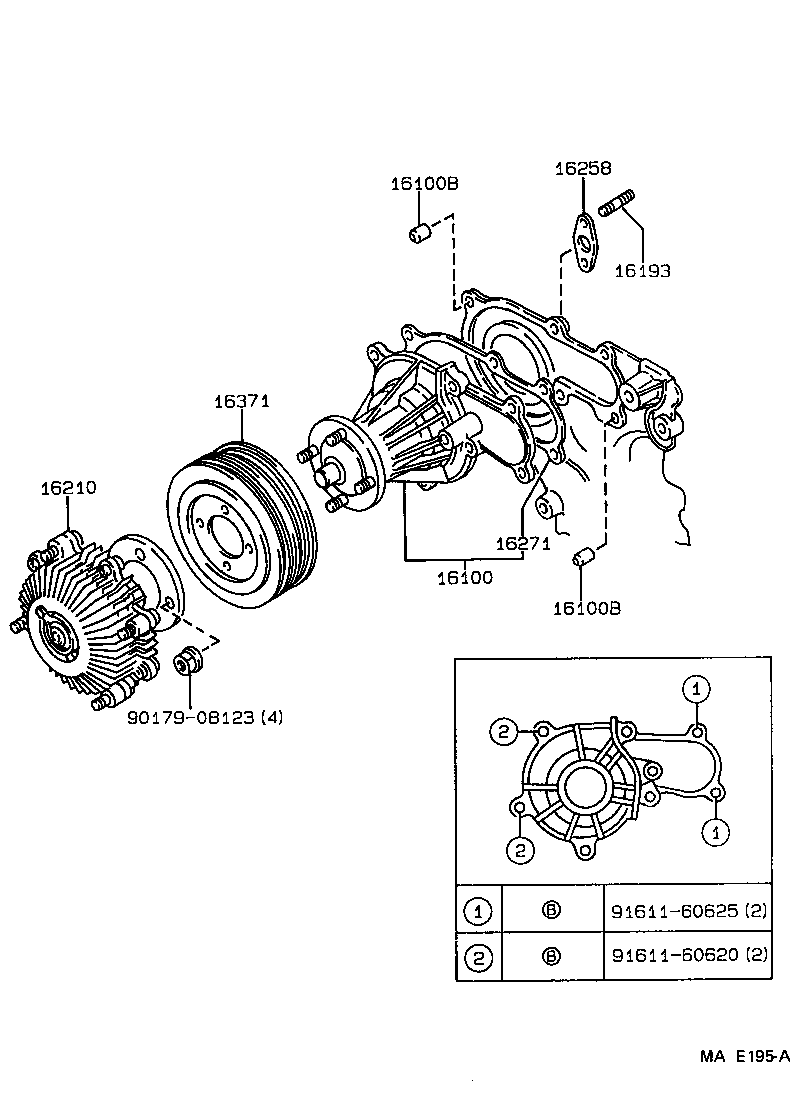

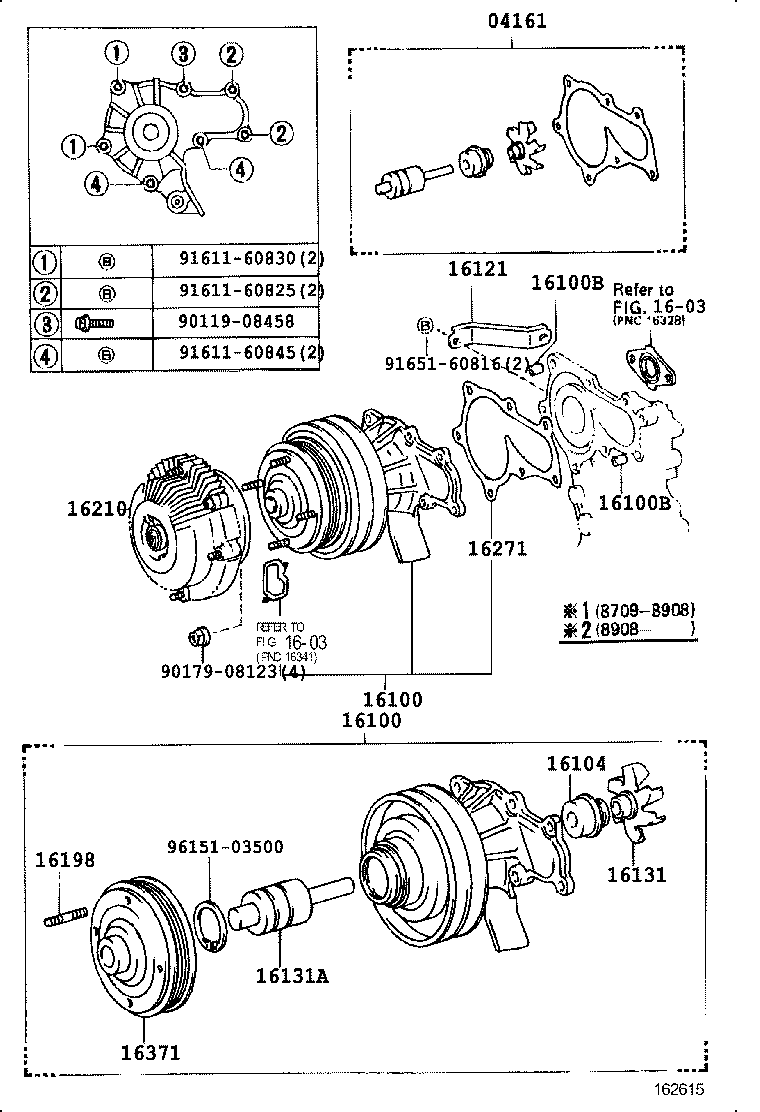

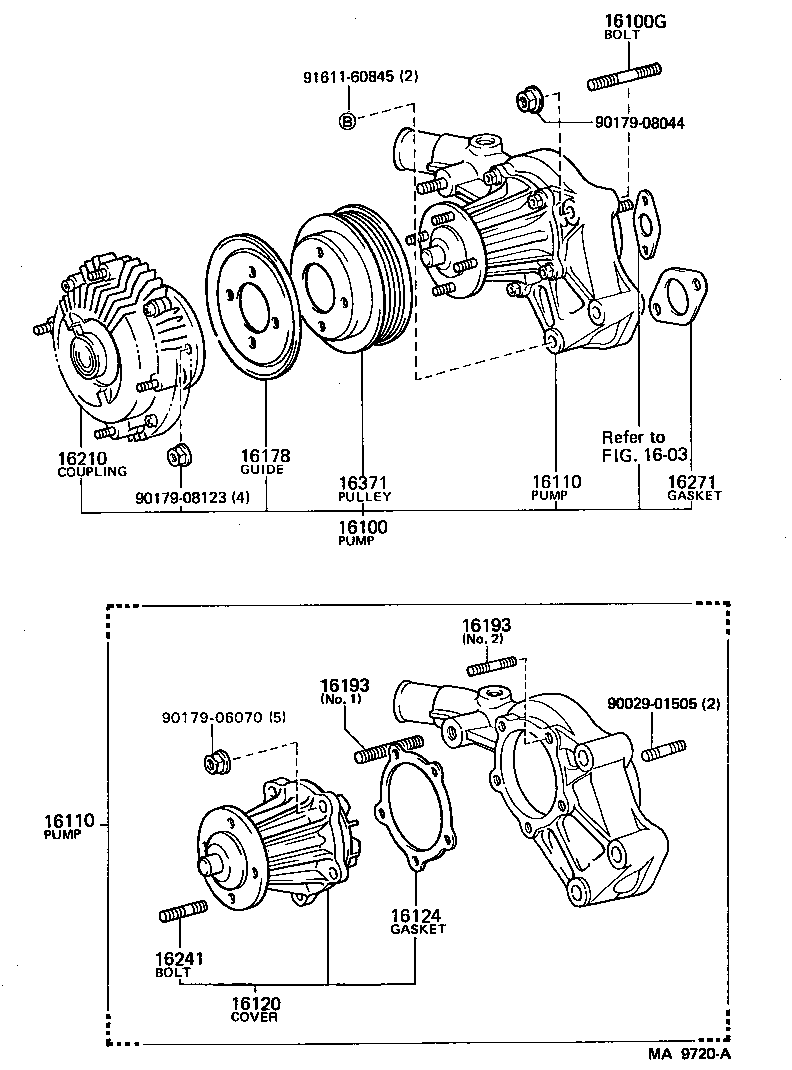

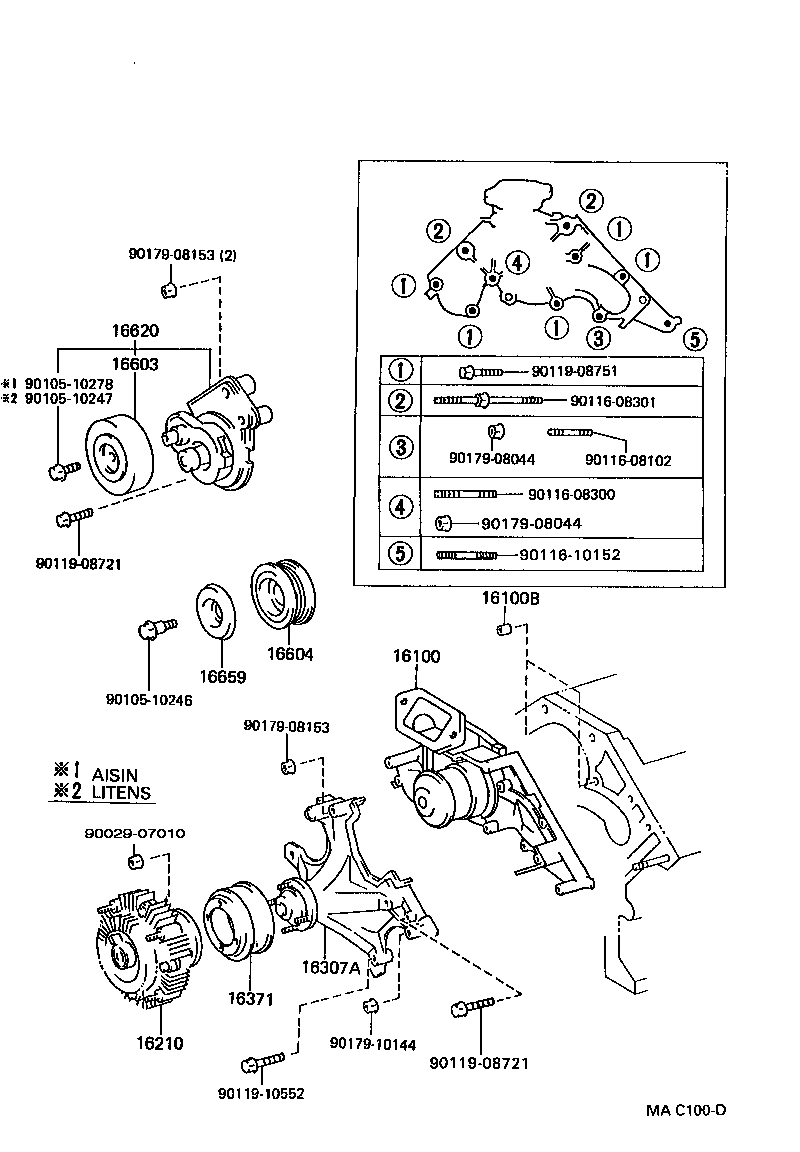

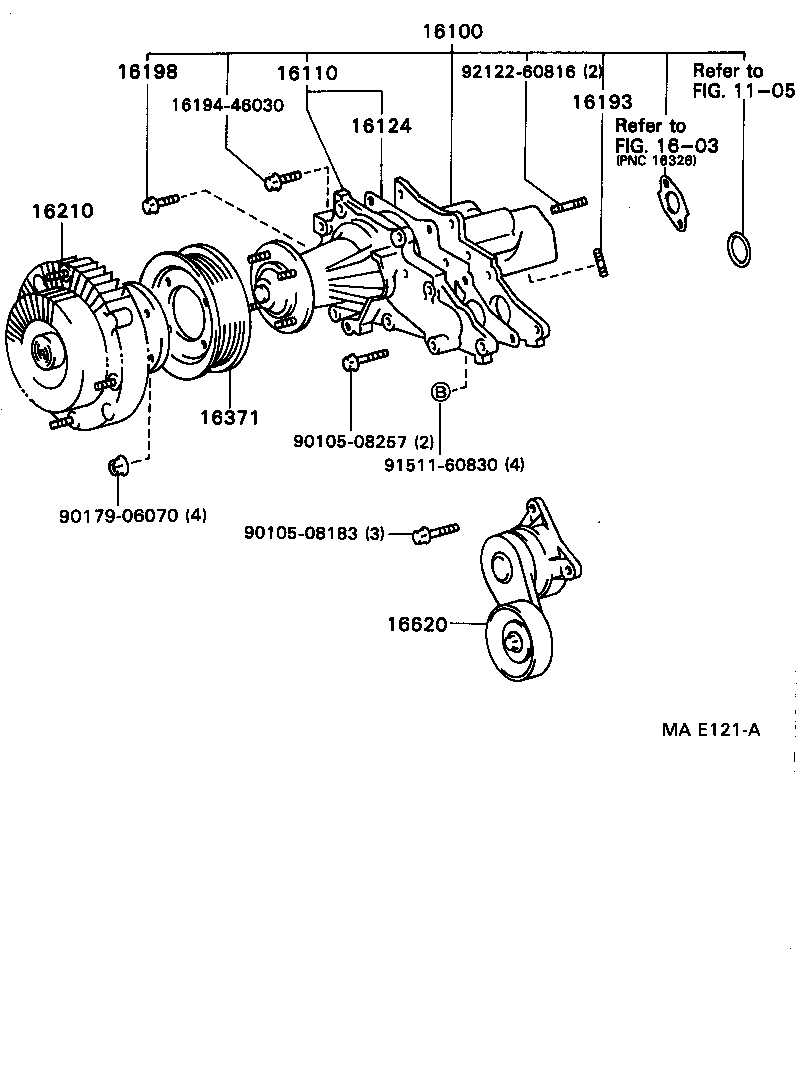

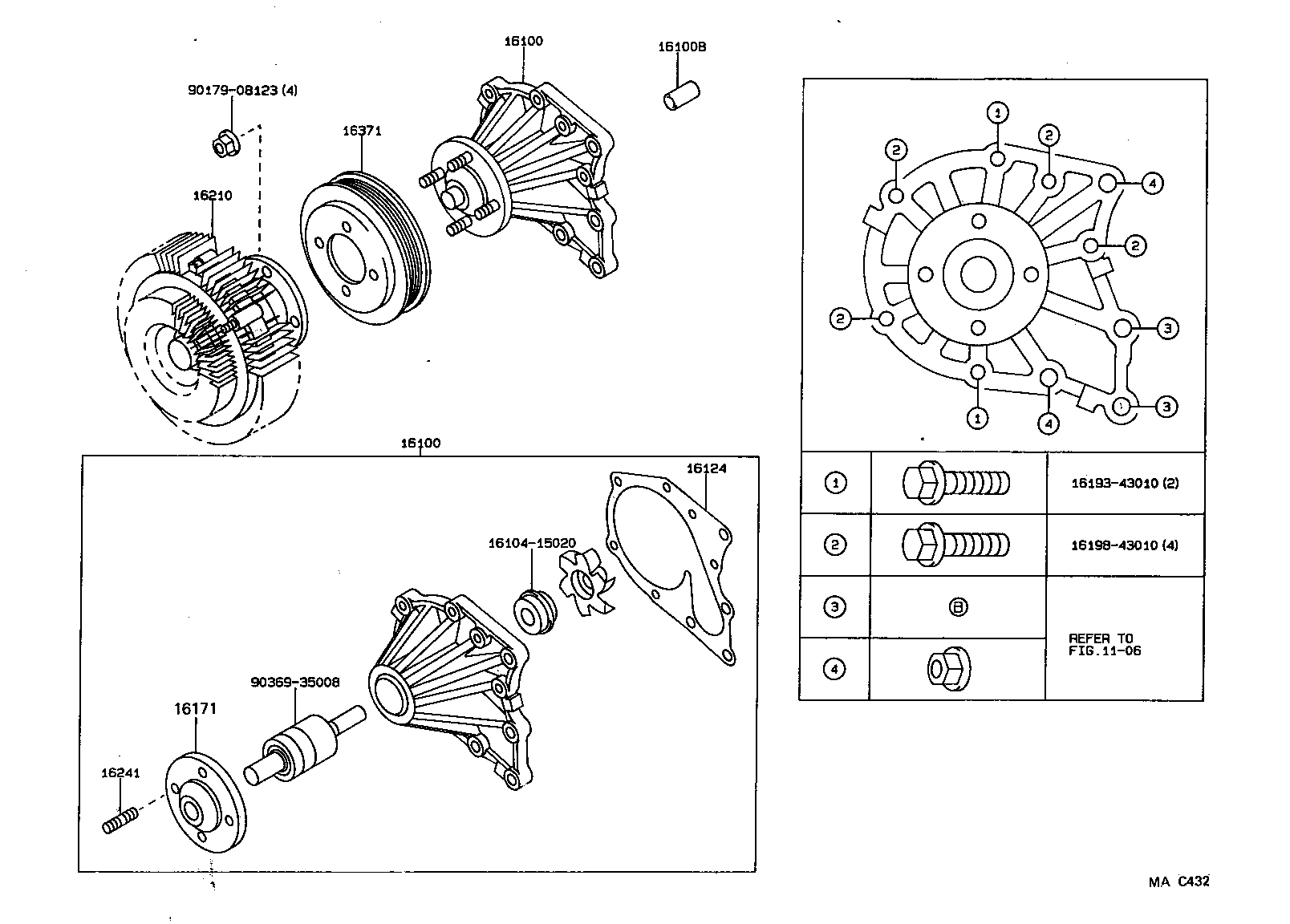

Figure MAA441B MAA441B 1987-09 → 1989-08 Figure MAA441B MAA441B 1989-08 → — Figure MAE195A MAE195A 1988-09 → — Figure 162615A 162615A 1987-09 → — Figure MAE121A MAE121A 1990-08 → — Figure 166670 166670 1987-09 → 1989-08 Figure MAB232A MAB232A 1989-08 → — Figure MA9720A MA9720A 1987-09 → 1989-08 Figure MAC432 MAC432 1987-09 → — Figure MAC100D MAC100D 1989-08 → — Figure MAA374C MAA374C 1987-09 → —

Part groups

PNCDescription
04161 Pump Kit, Water
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16100G Bolt, Stud(FOR WATER PUMP SET)
16104 Seal Set, Water Pump
16110 Pump Assy, Water, W/O Coupling
16120 Cover Assy, Water Pump
16121 Stay, Water Pump
16124 Gasket, Water Pump Cover
16131 Rotor, Water Pump
16131A Bearing, Water Pump
16171 Seat, Water Pump Pulley
16178 Guide, Water Pump V Belt
16193 Bolt, Stud(FOR WATER PUMP COVER)
16198 Bolt, Stud(FOR WATER PUMP PULLEY SEAT)
16210 Coupling Assy, Fluid
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16258 Gasket(FOR HEATER RETURN)
16271 Gasket, Water Pump
16307A Bracket Sub-assy, Fan
16371 Pulley, Fan
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
