Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

40 part groups · 15 illustrations

Illustrations

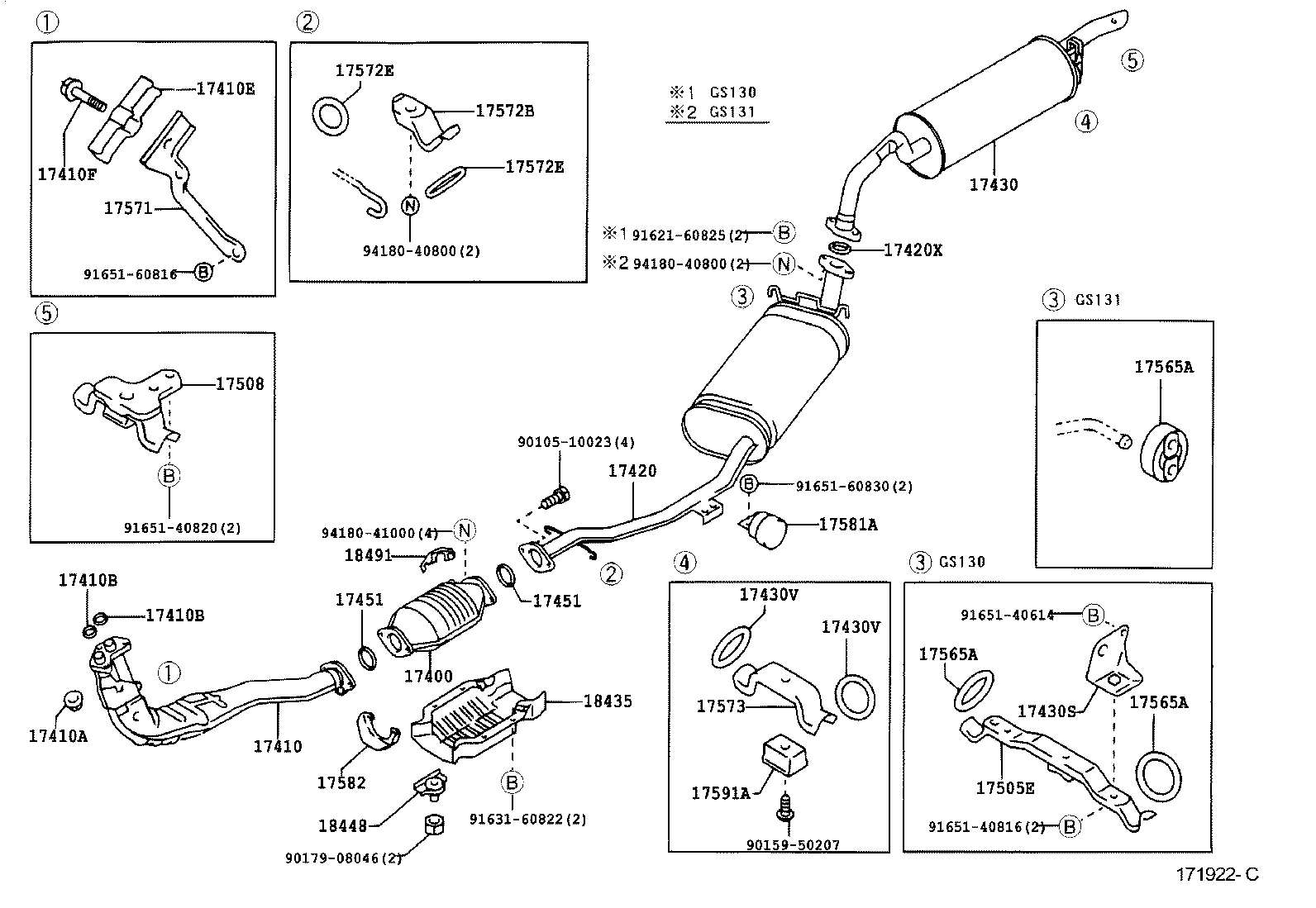

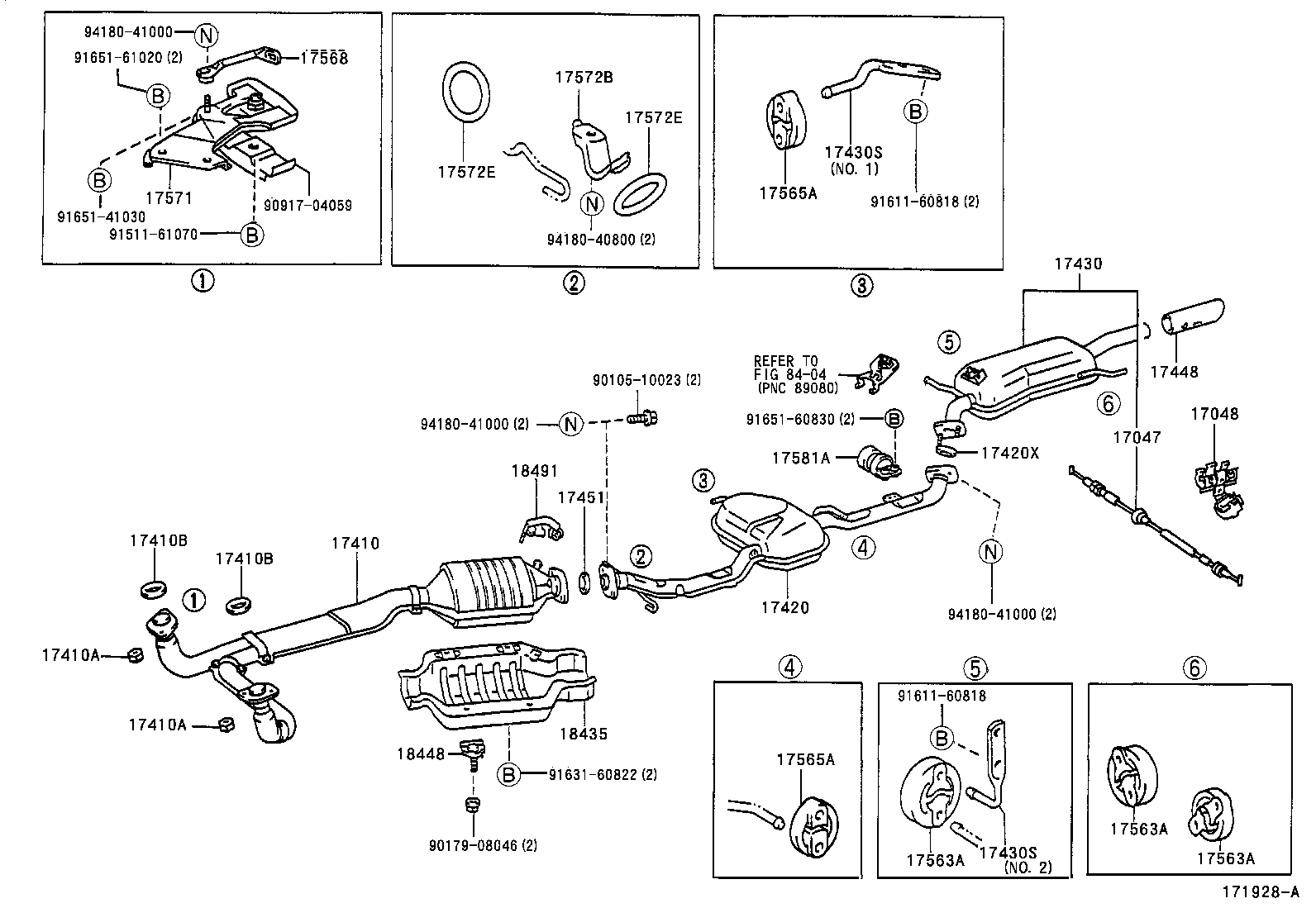

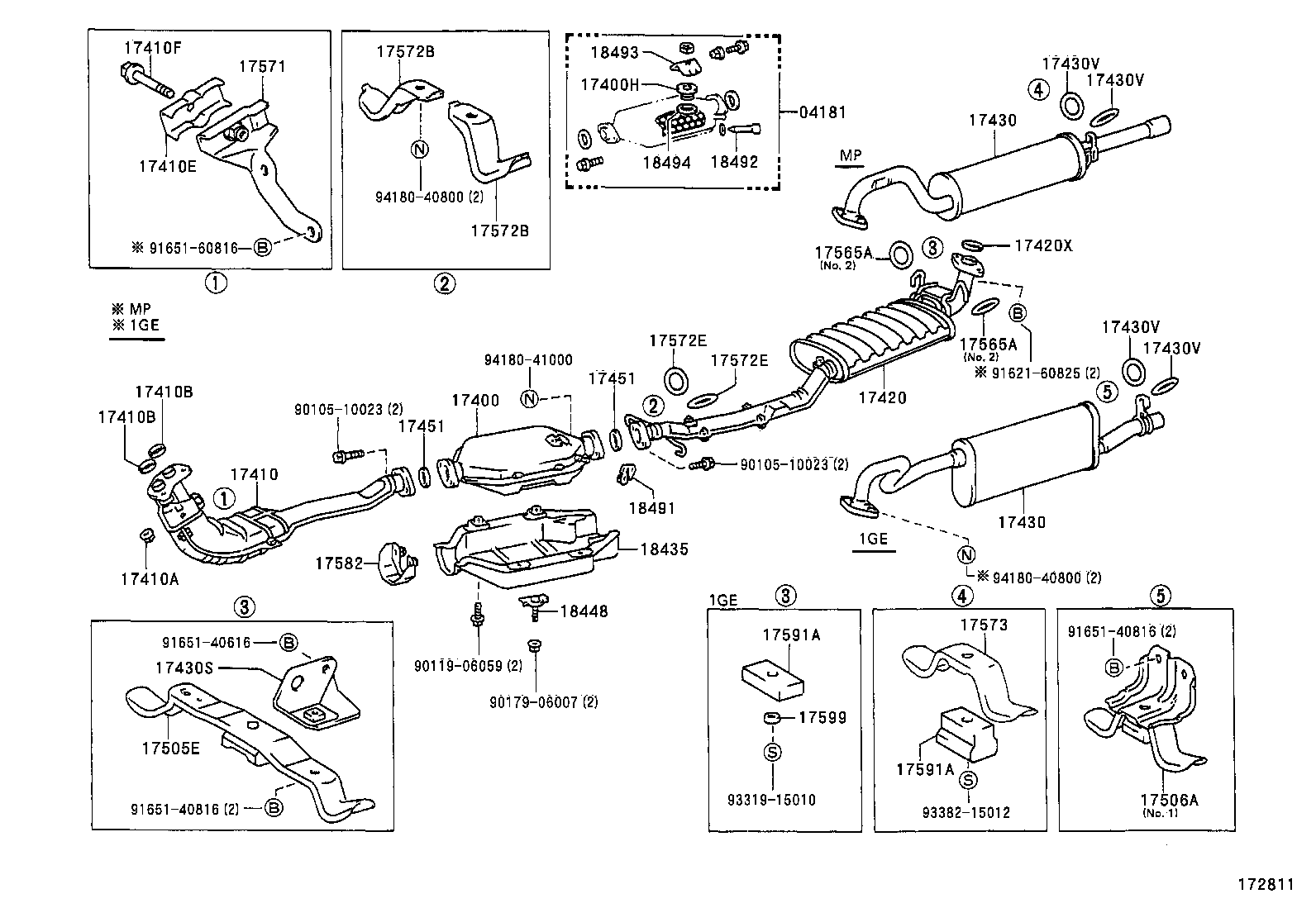

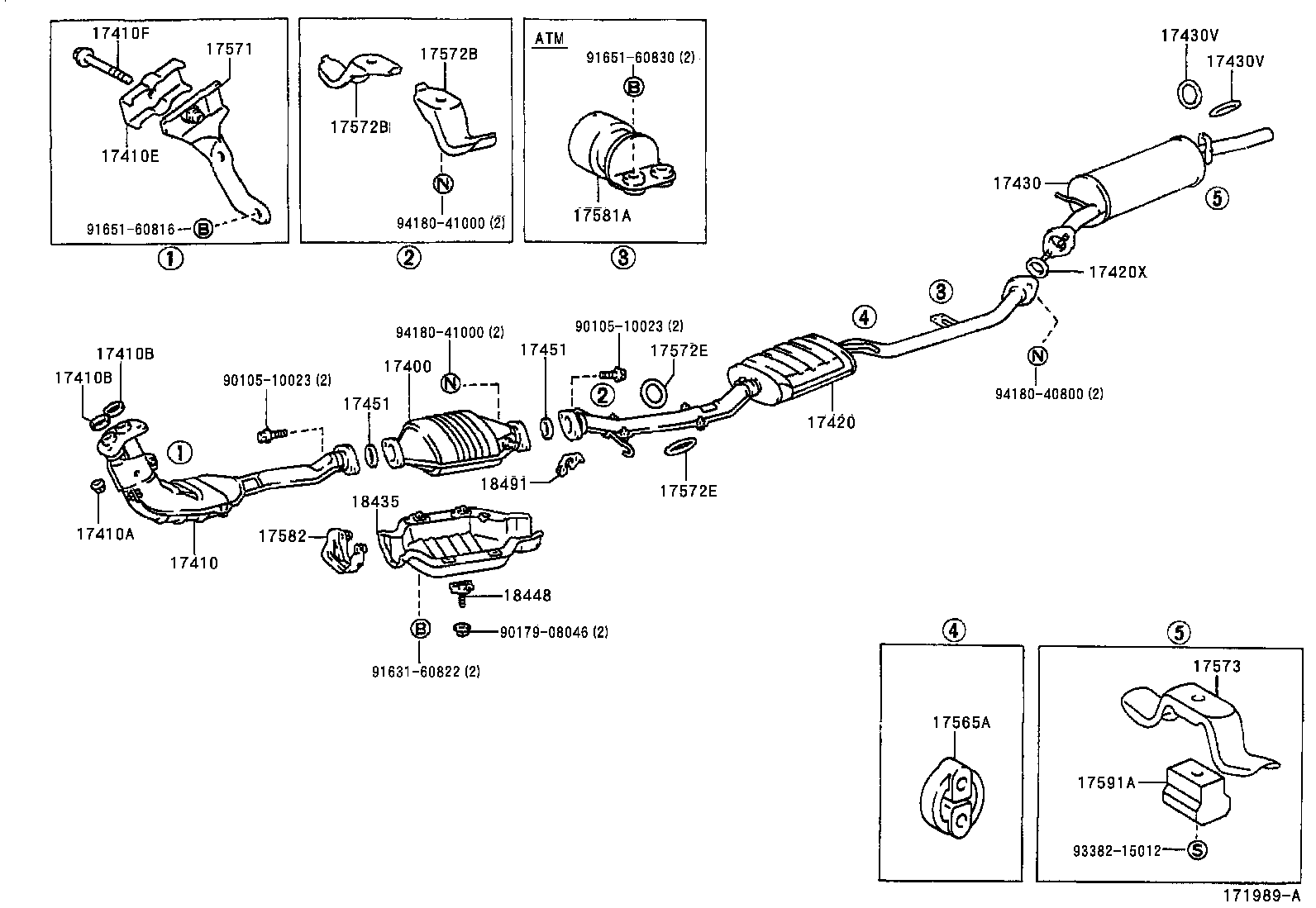

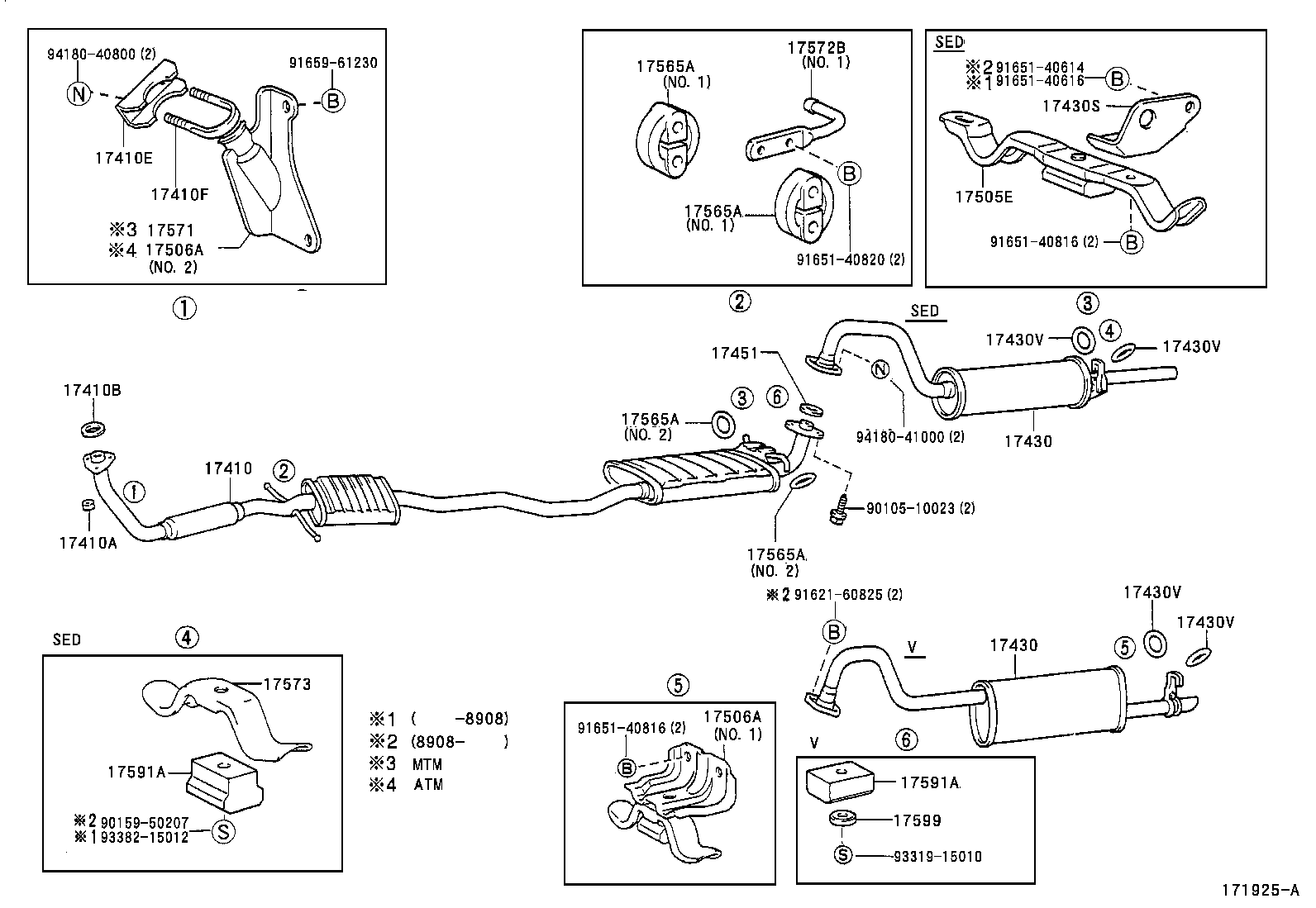

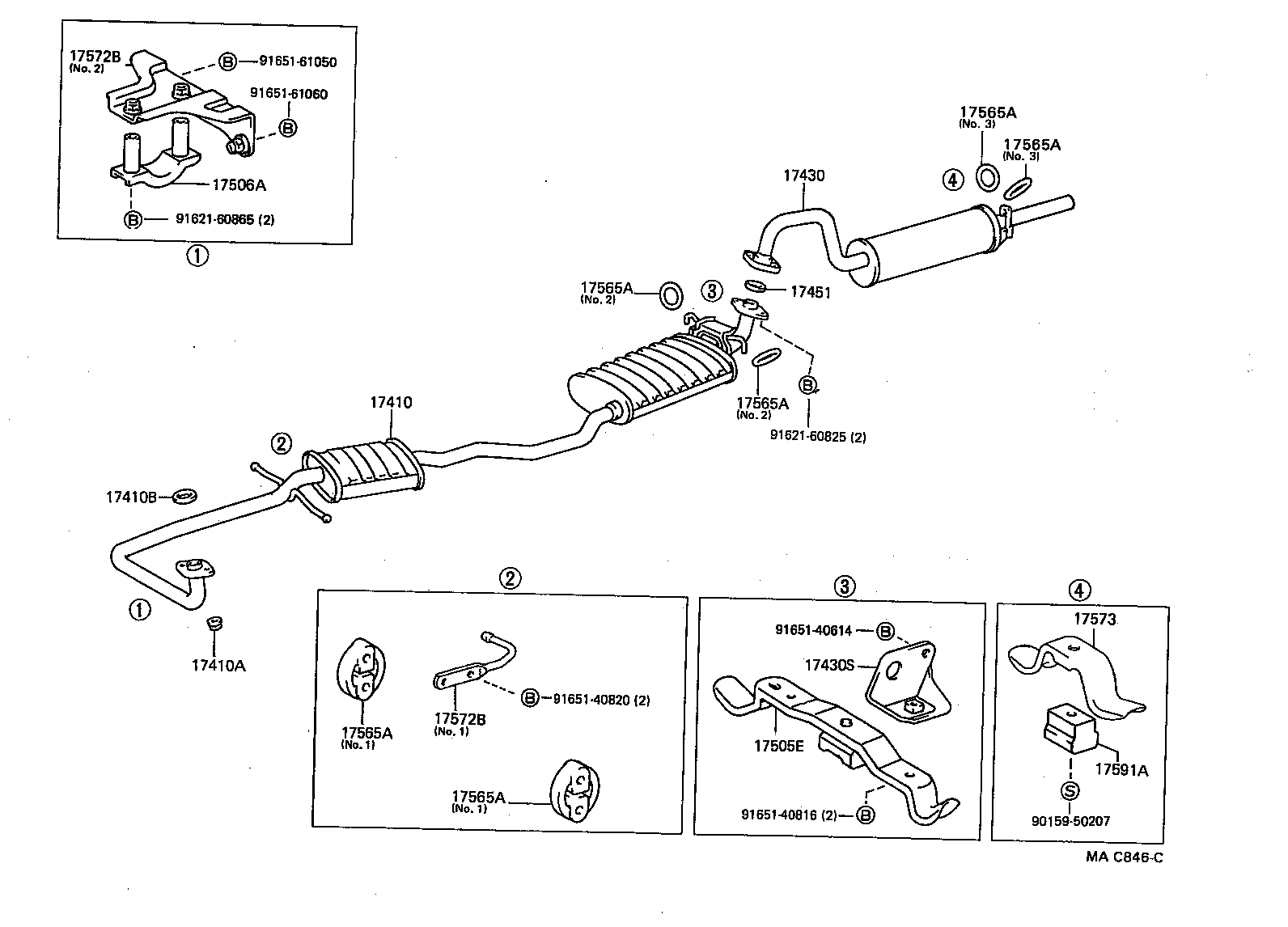

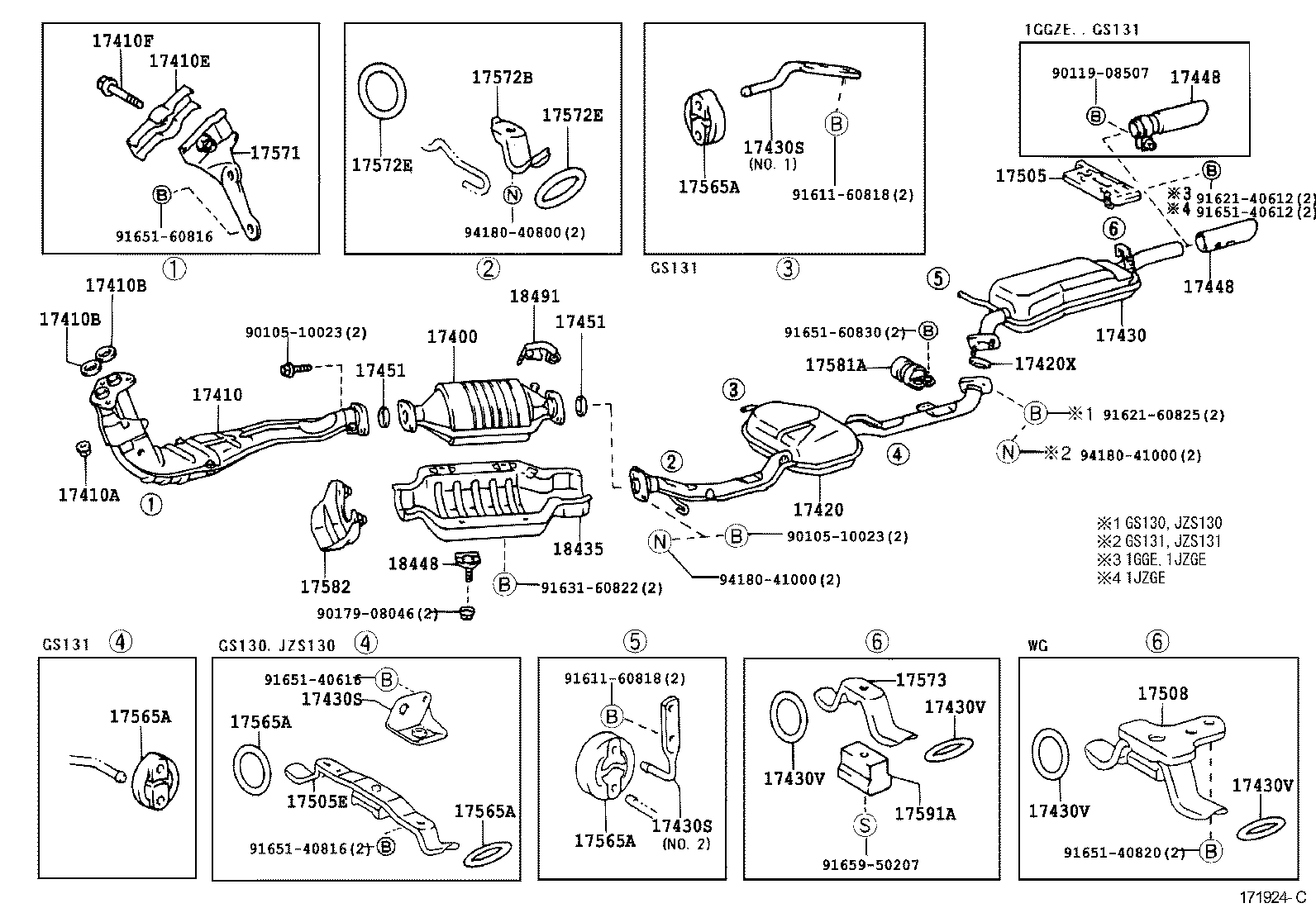

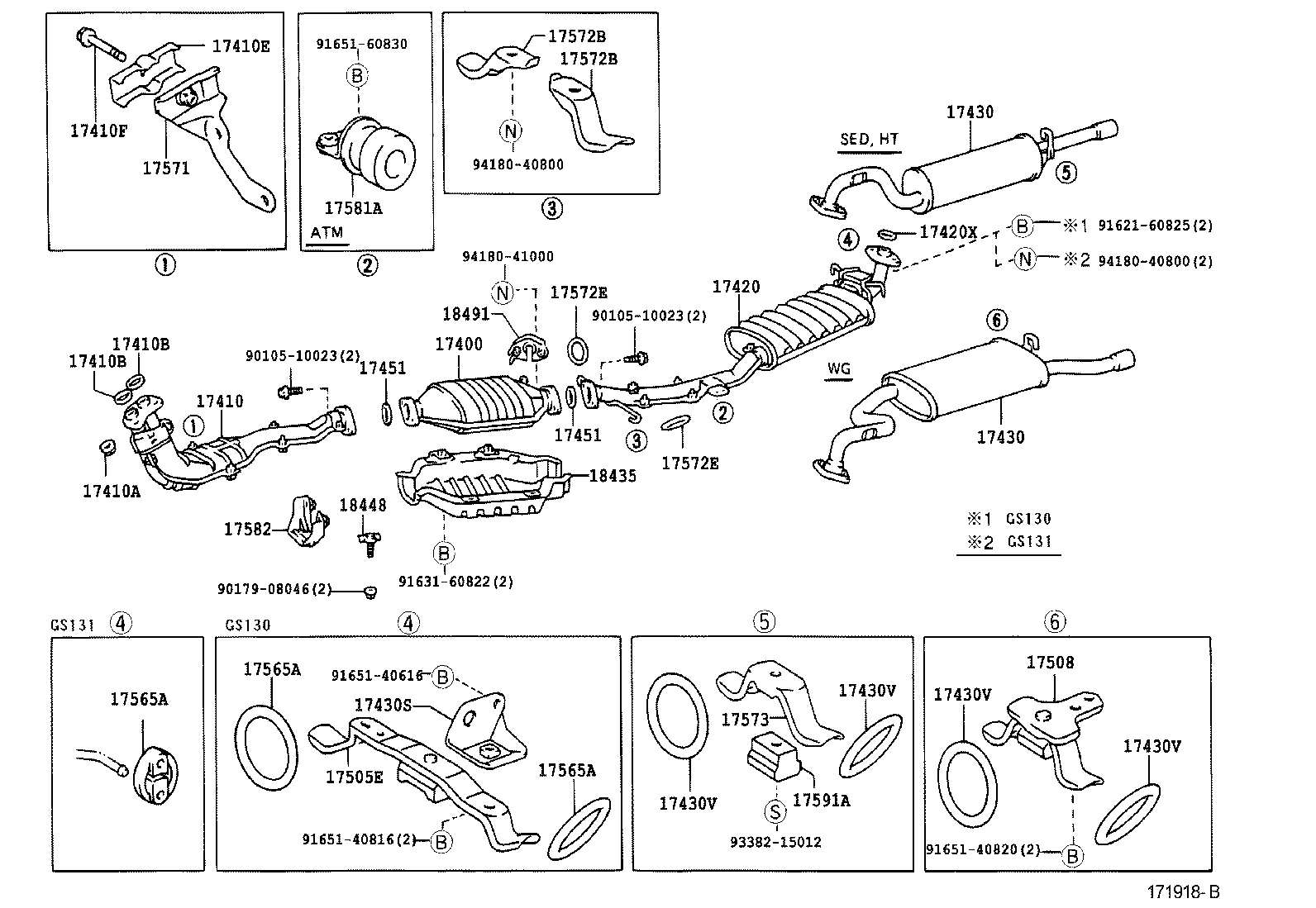

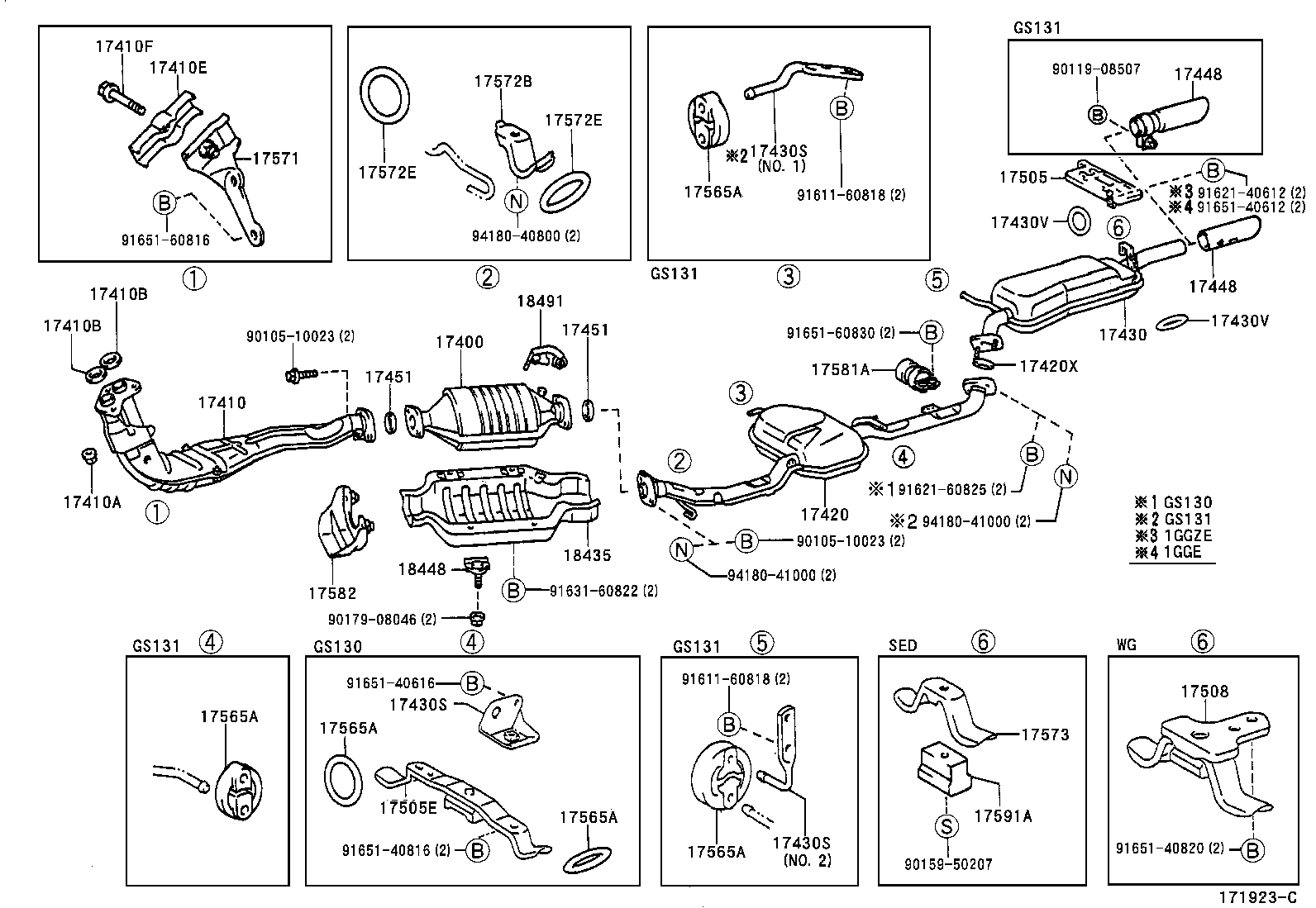

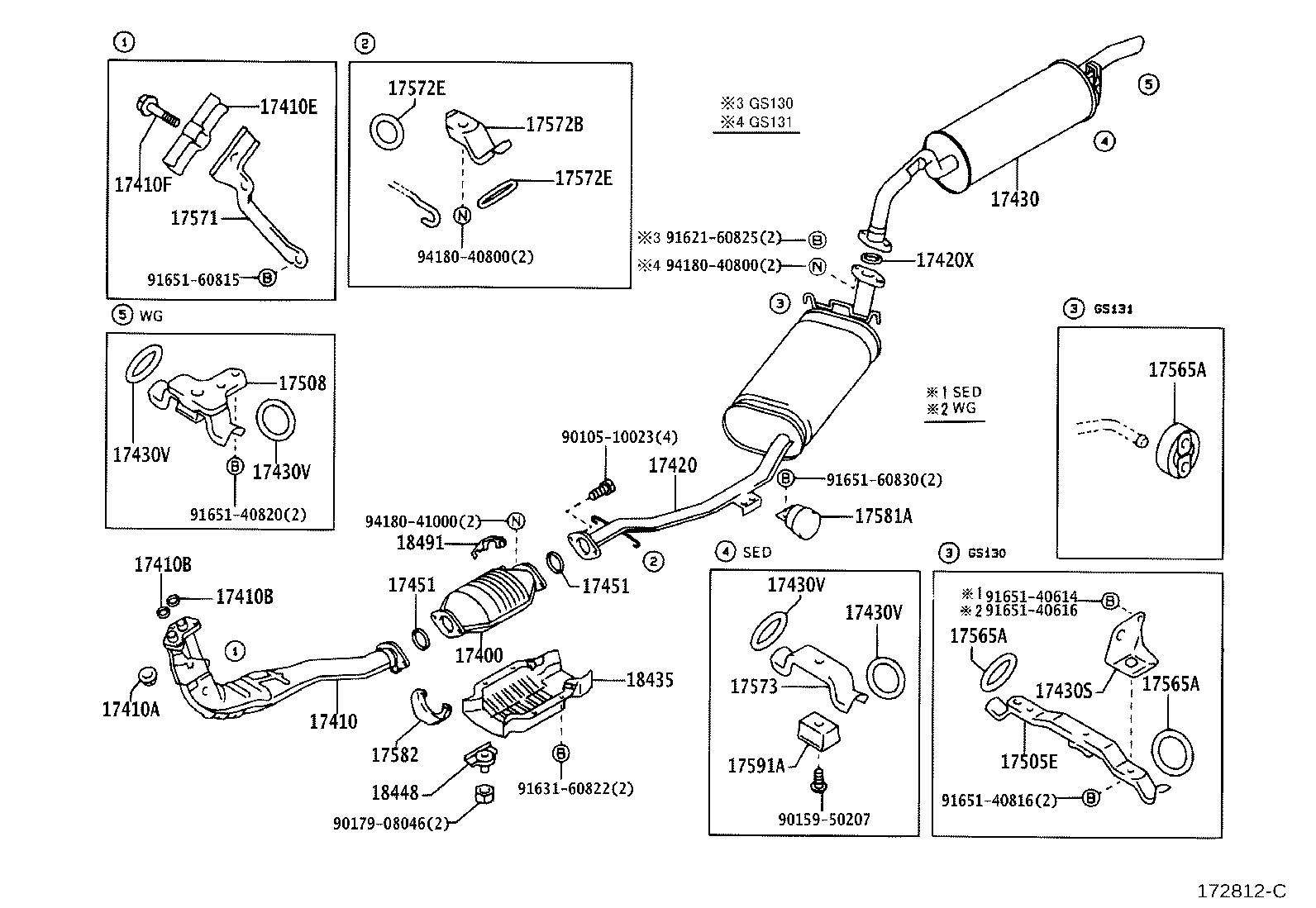

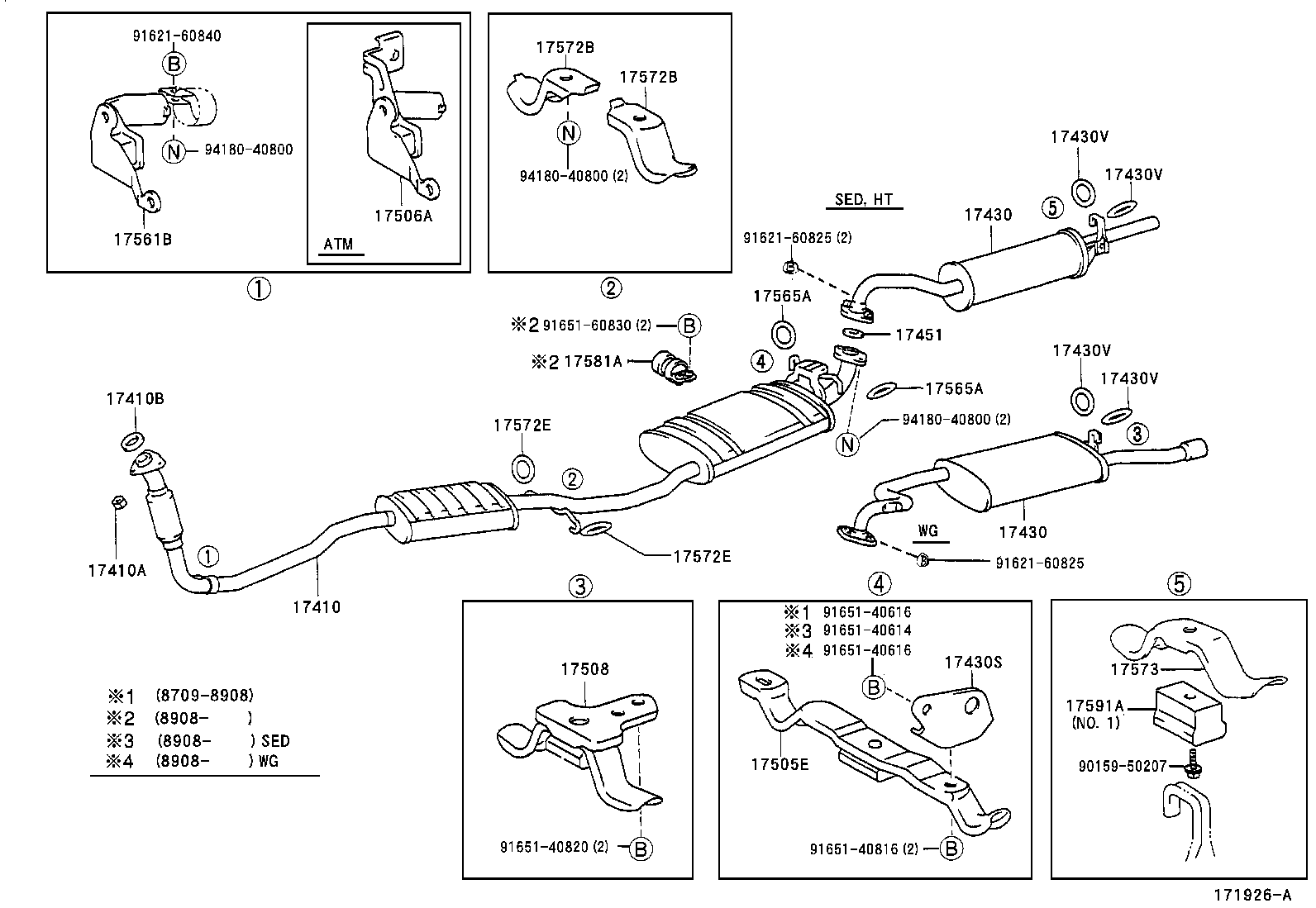

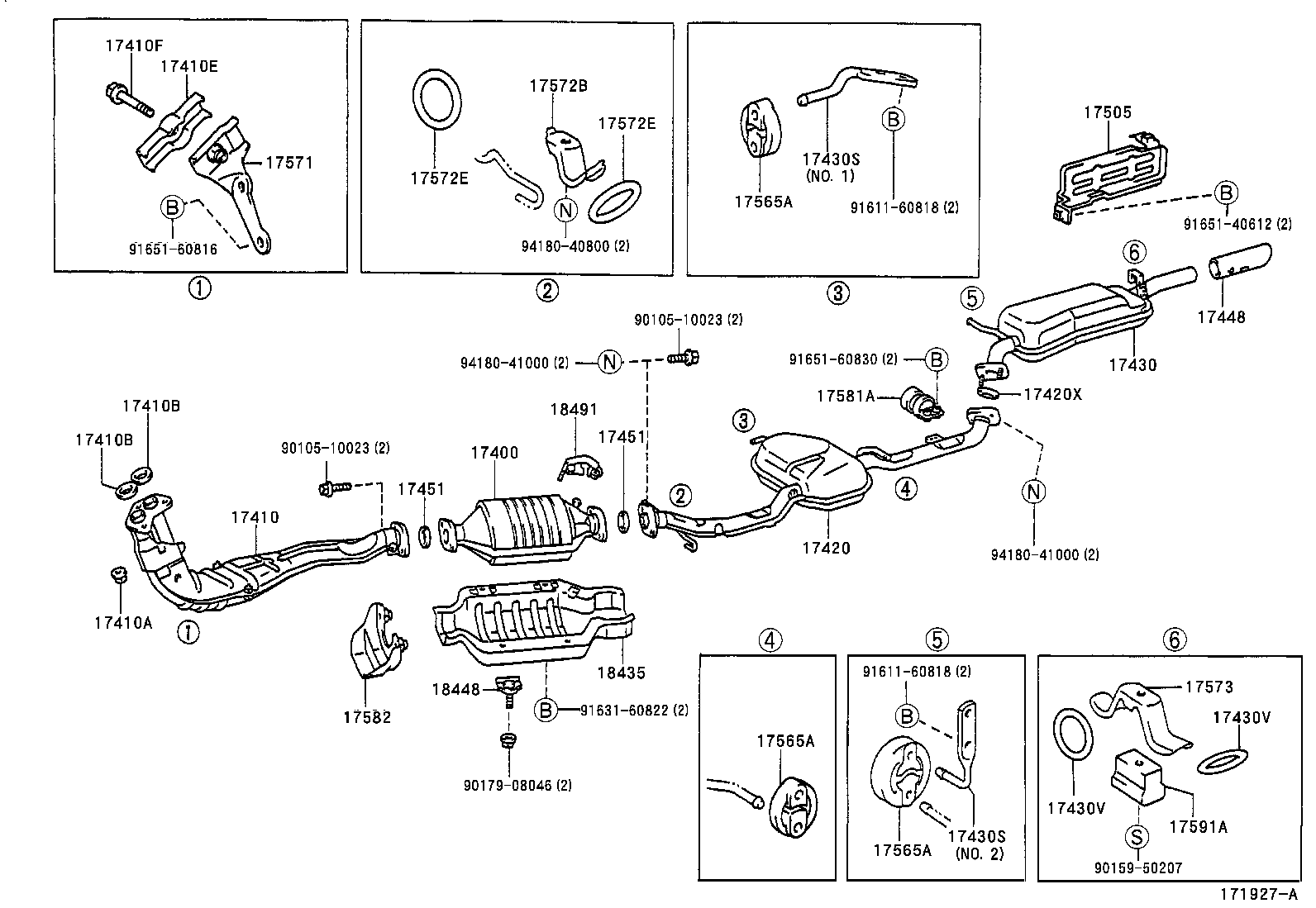

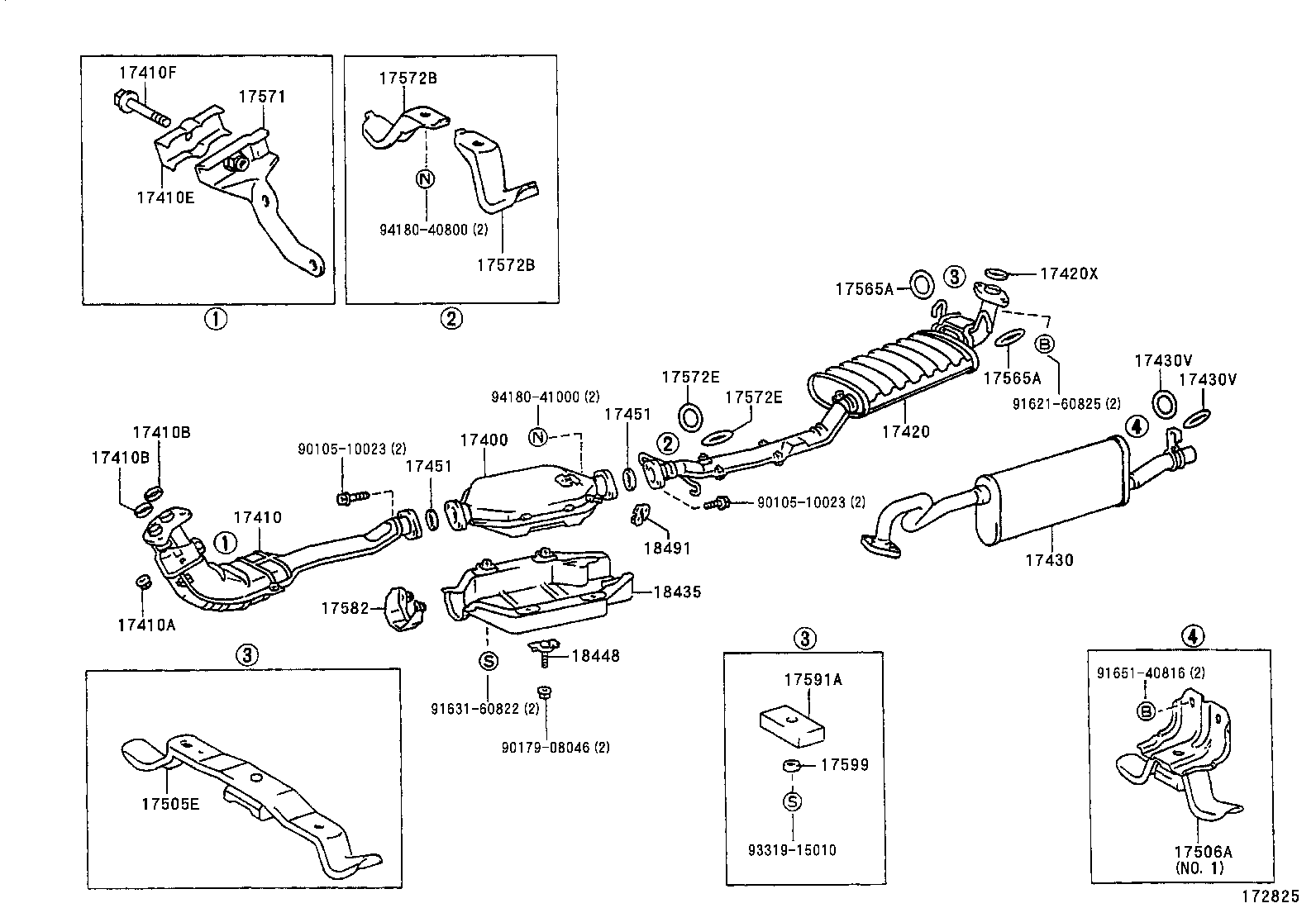

Figure MAE970 MAE970 1987-09 → — Figure MAC846C MAC846C 1989-08 → — Figure 172811 172811 1987-09 → 1989-08 Figure 171918B 171918B 1987-09 → 1989-08 Figure 171922C 171922C 1988-09 → 1989-08 Figure 171989A 171989A 1987-09 → 1988-09 Figure 171923C 171923C 1987-09 → 1988-09 Figure 171923C 171923C 1988-09 → 1989-08 Figure 172812C 172812C 1989-08 → — Figure 172825 172825 1989-08 → — Figure 171924C 171924C 1989-08 → — Figure 171925A 171925A 1987-09 → — Figure 171926A 171926A 1987-09 → — Figure 171927A 171927A 1987-09 → — Figure 171928A 171928A 1989-08 → —

Part groups

PNCDescription
04181 Pellet Kit
17047 Cable Sub-assy, Exhaust Pipe Gas Control
17048 Clamp Sub-assy, Exhaust Pipe Gas Control Cable
17400 Converter Assy, W/Catalyst
17400H Plug, W/Head Straight Screw(FOR CATALYZER INLET)
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17503 Bracket Sub-assy, Catalytic Converter, Rear
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
17505E Support Sub-assy, Catalytic Converter
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17561B Support, Exhaust Pipe, NO.1
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17568 Stay, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17572E Ring,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2)
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17581A Damper, Exhaust Pipe
17582 Bracket, Catalytic Converter Support, Upper
17591A Stopper, Exhaust Pipe Support
17599 Holder, Exhaust Pipe Support Stopper
18435 Protector, Catalytic Converter
18448 Bracket, Converter Protector, Center
18491 Flange, Thermosensor Inlet
18492 Guide, Catalytic Converter Sensor
18493 Plate, Catalyzer Inlet Plug Lock
18494 Gasket, Catalyzer Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
