Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

42 part groups · 25 illustrations

Illustrations

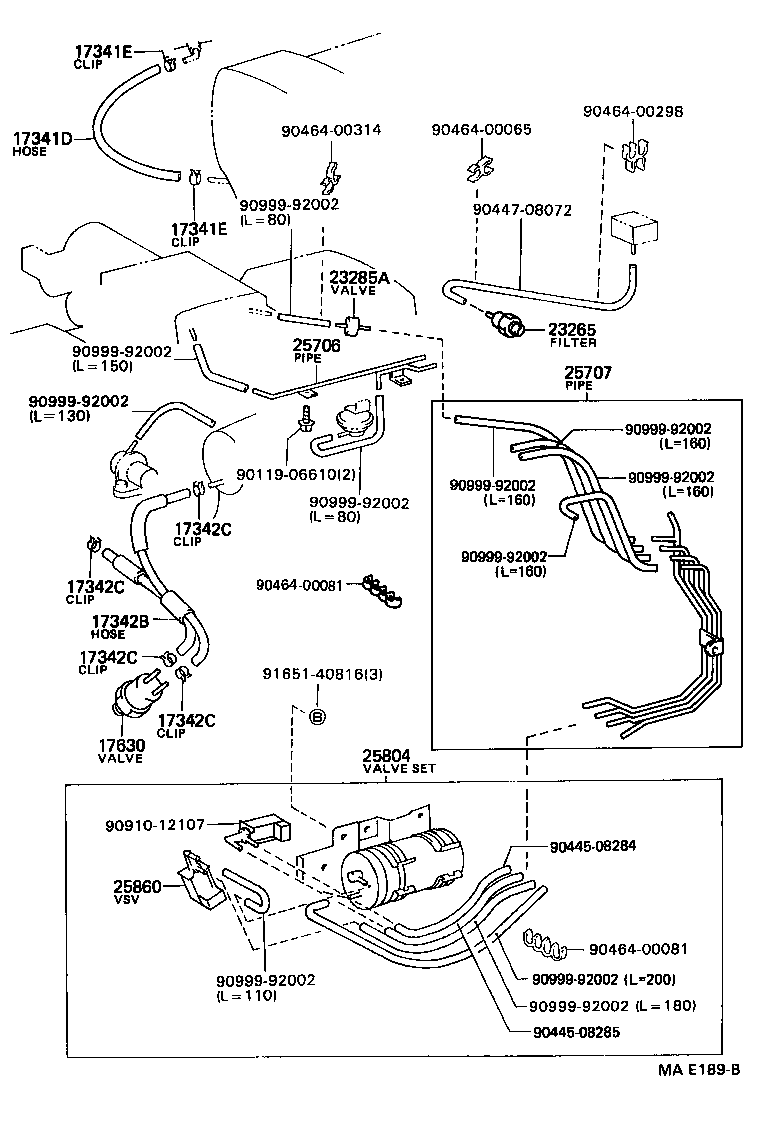

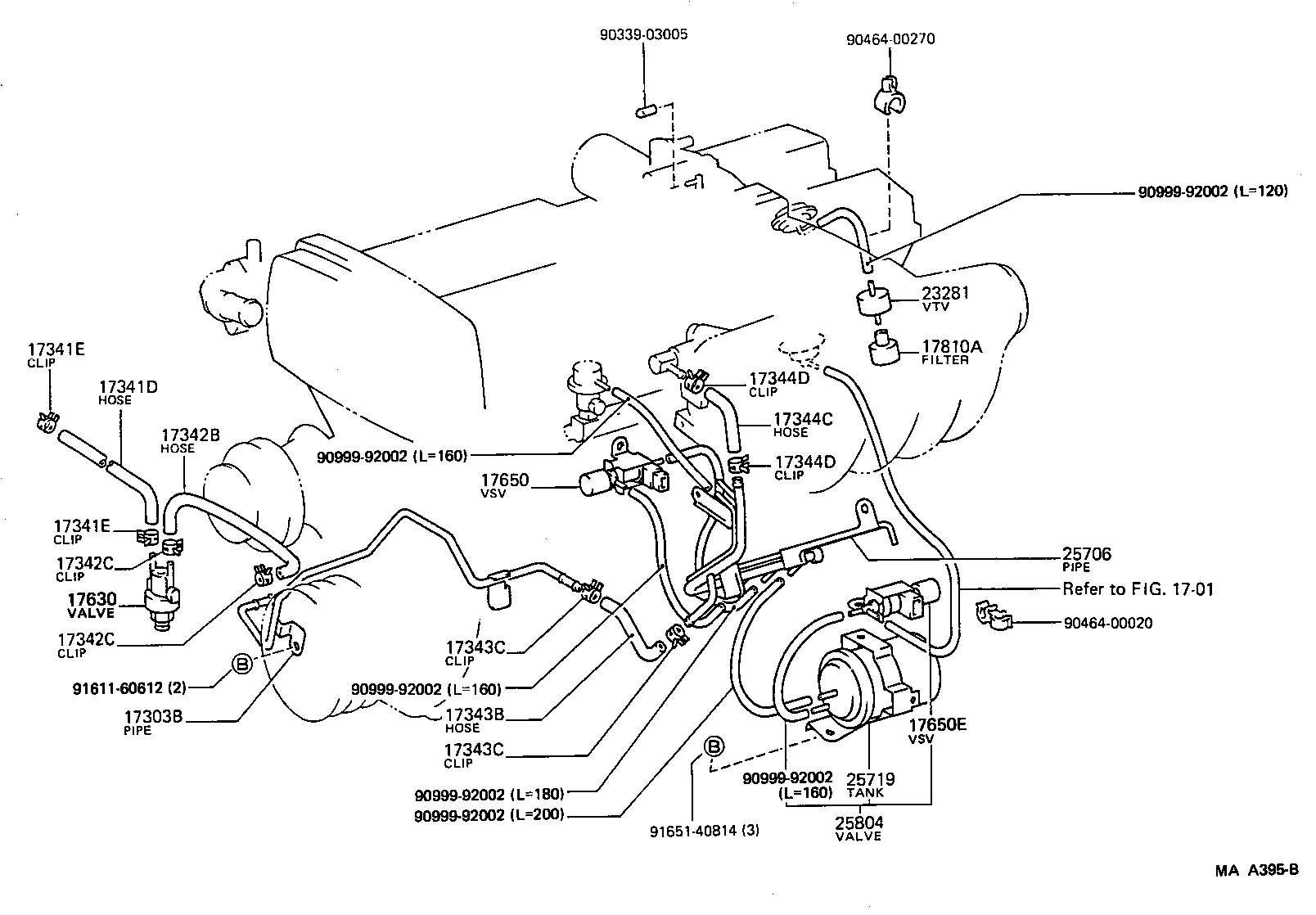

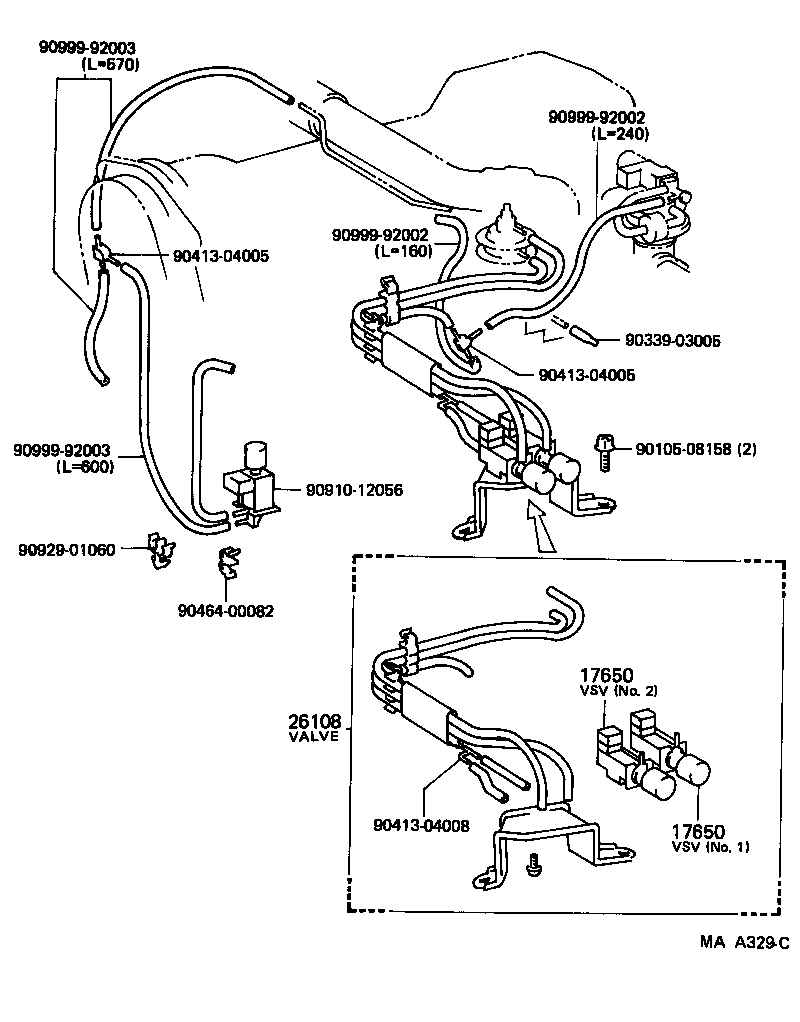

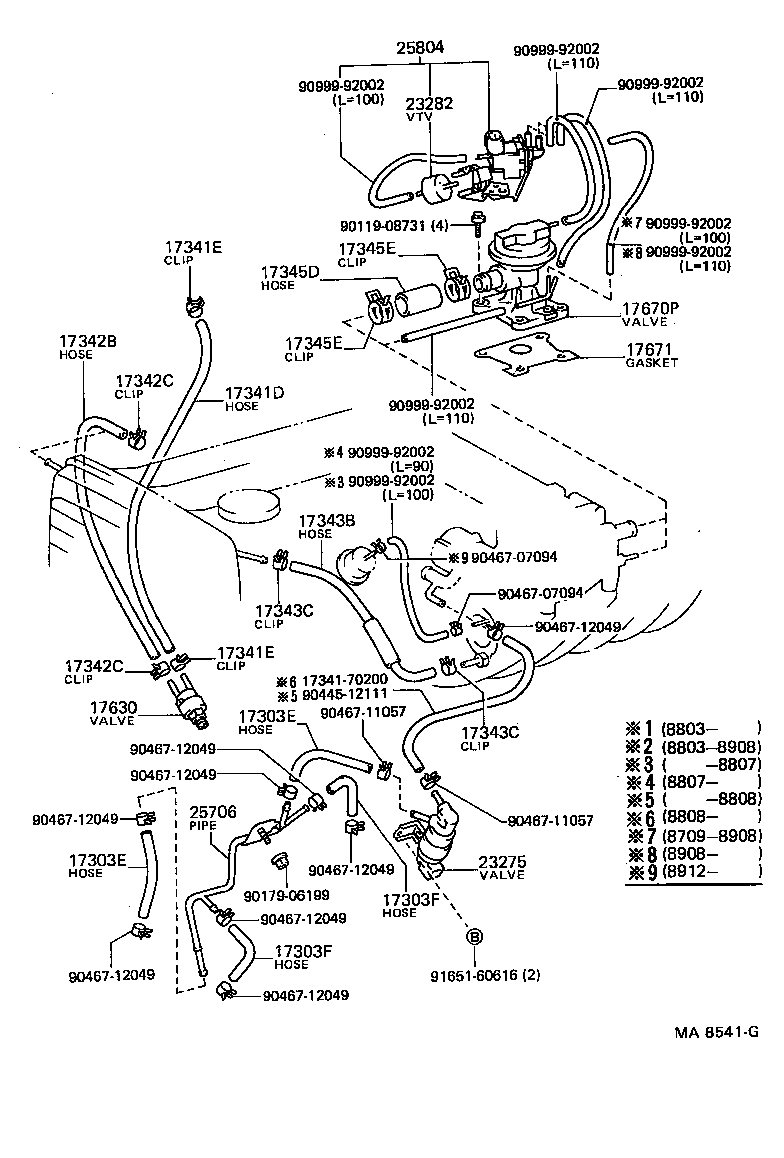

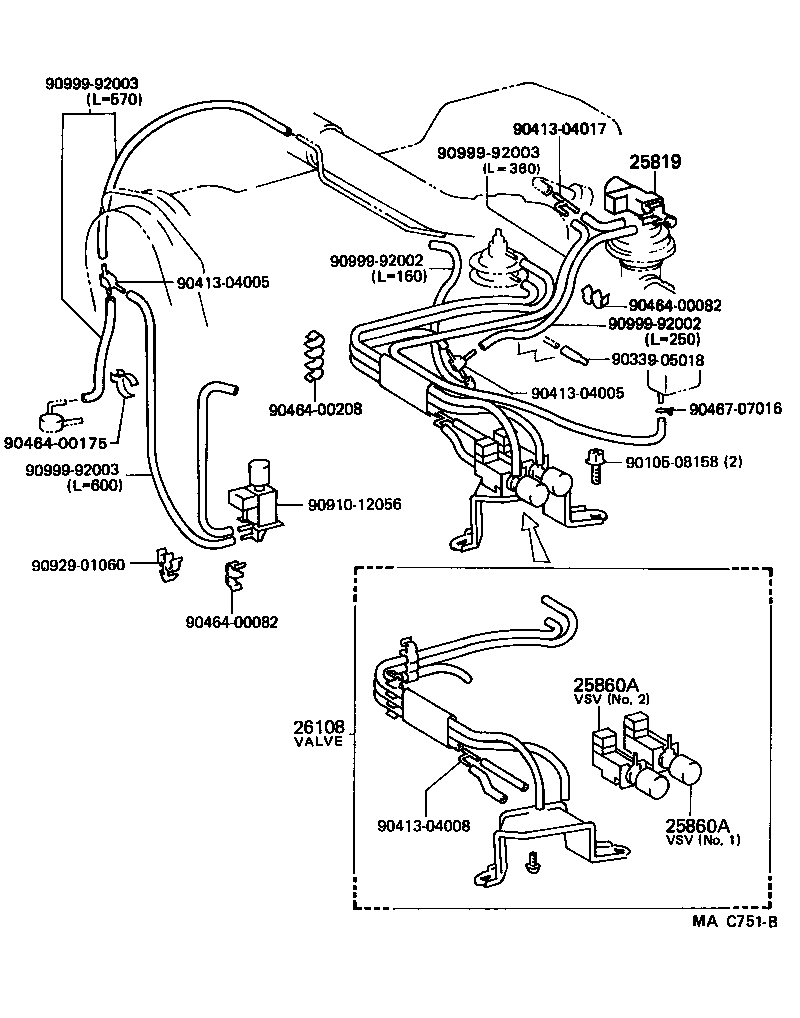

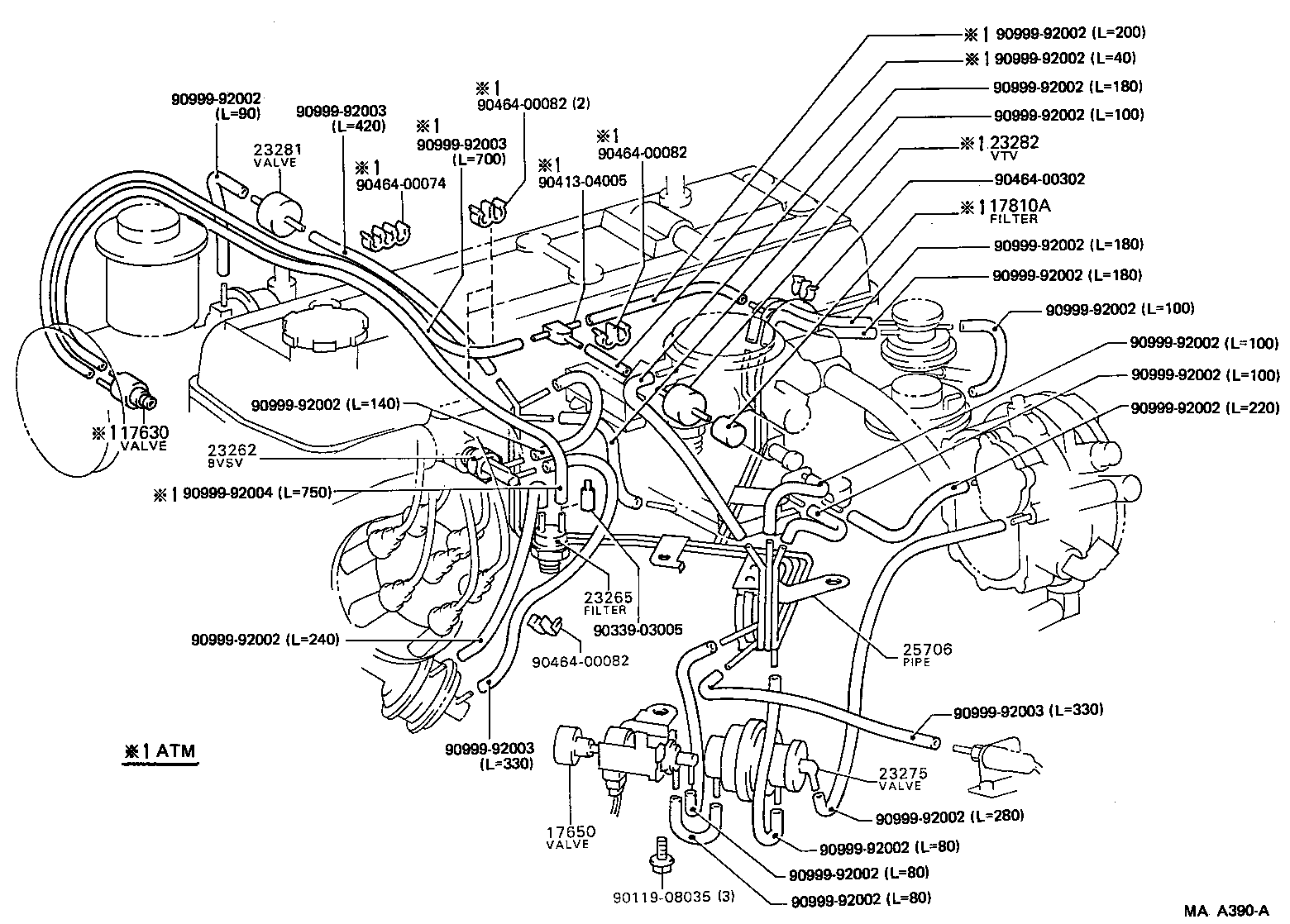

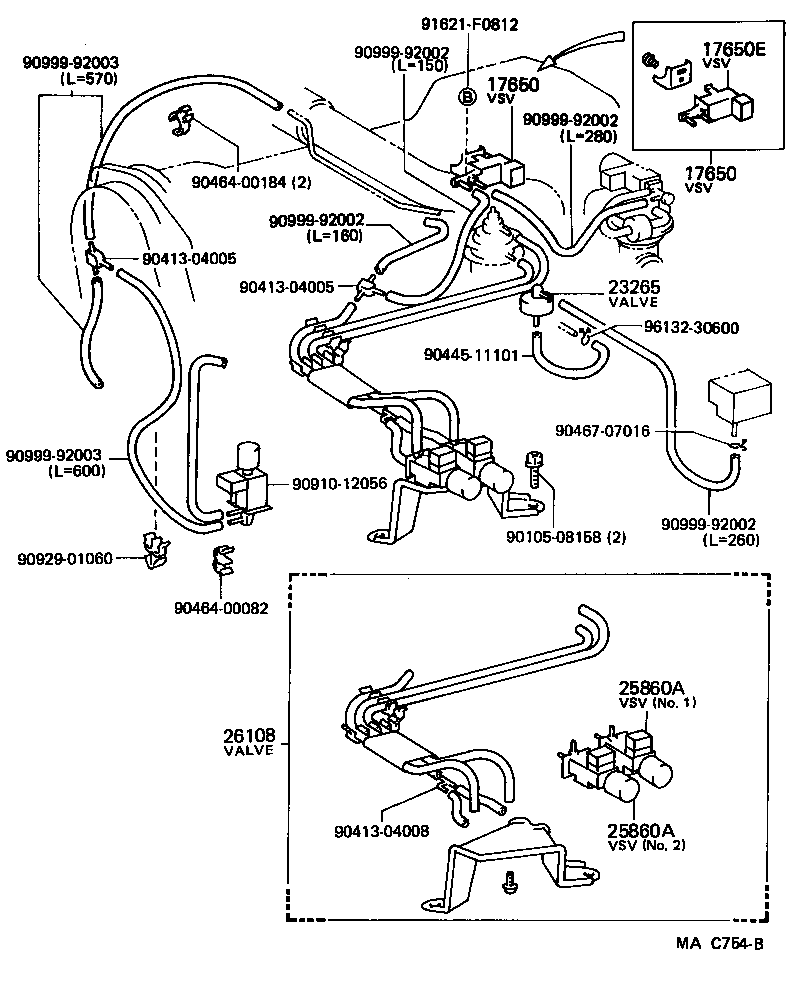

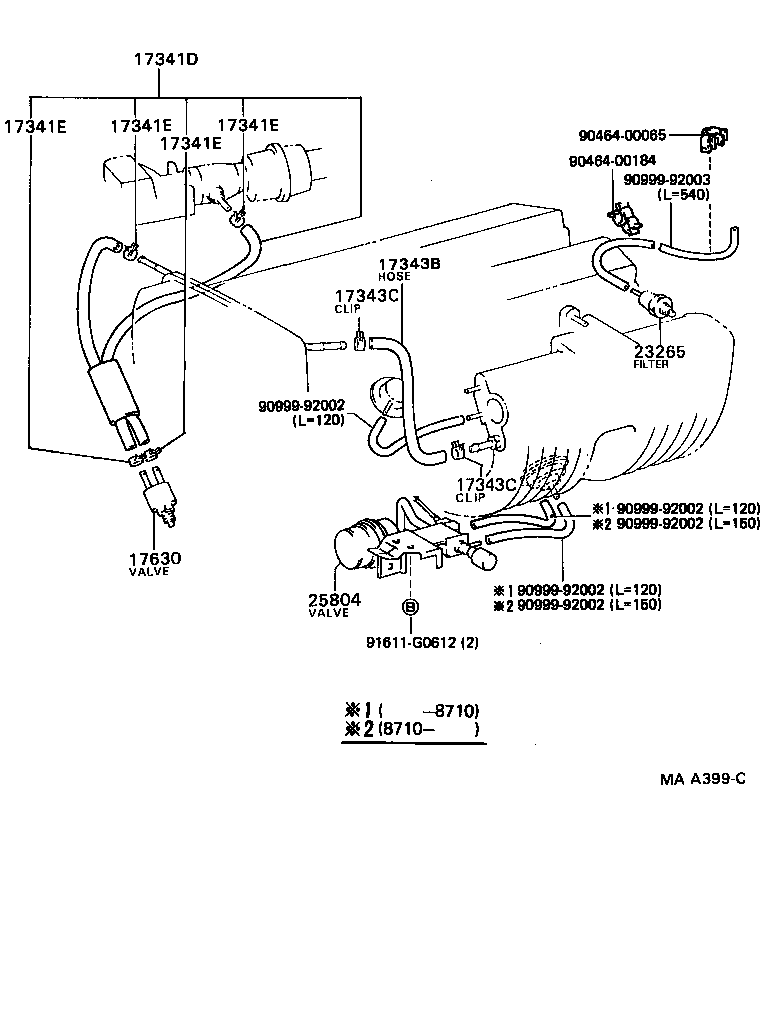

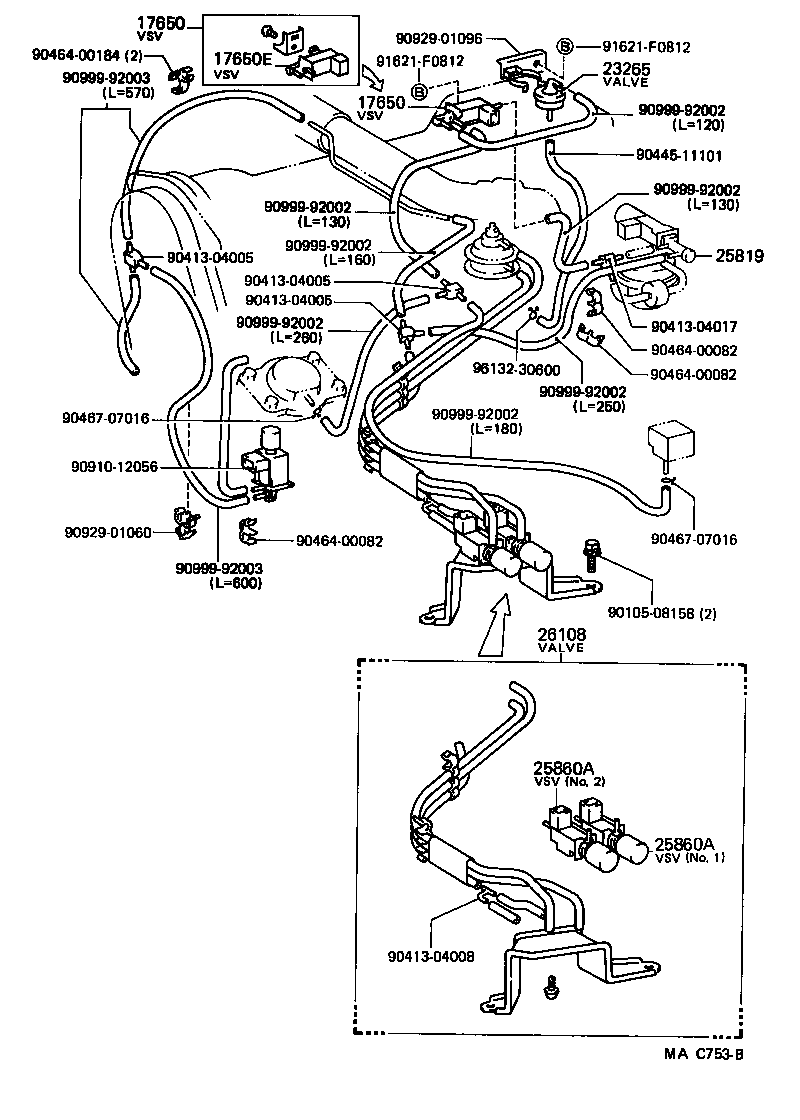

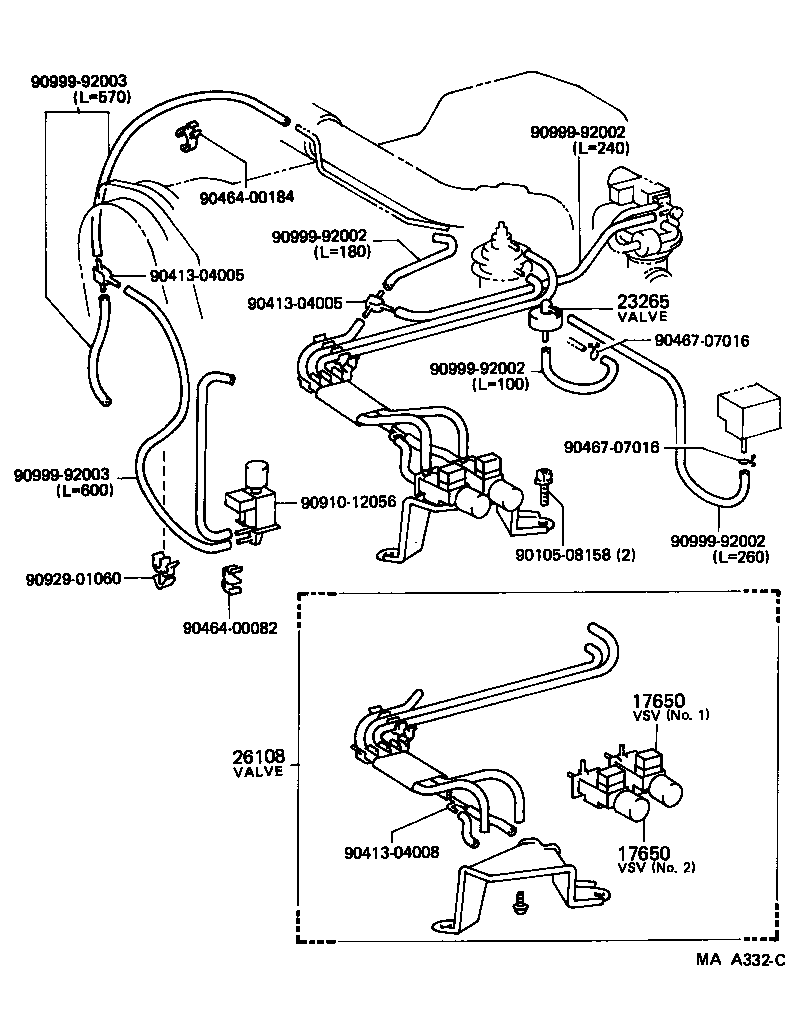

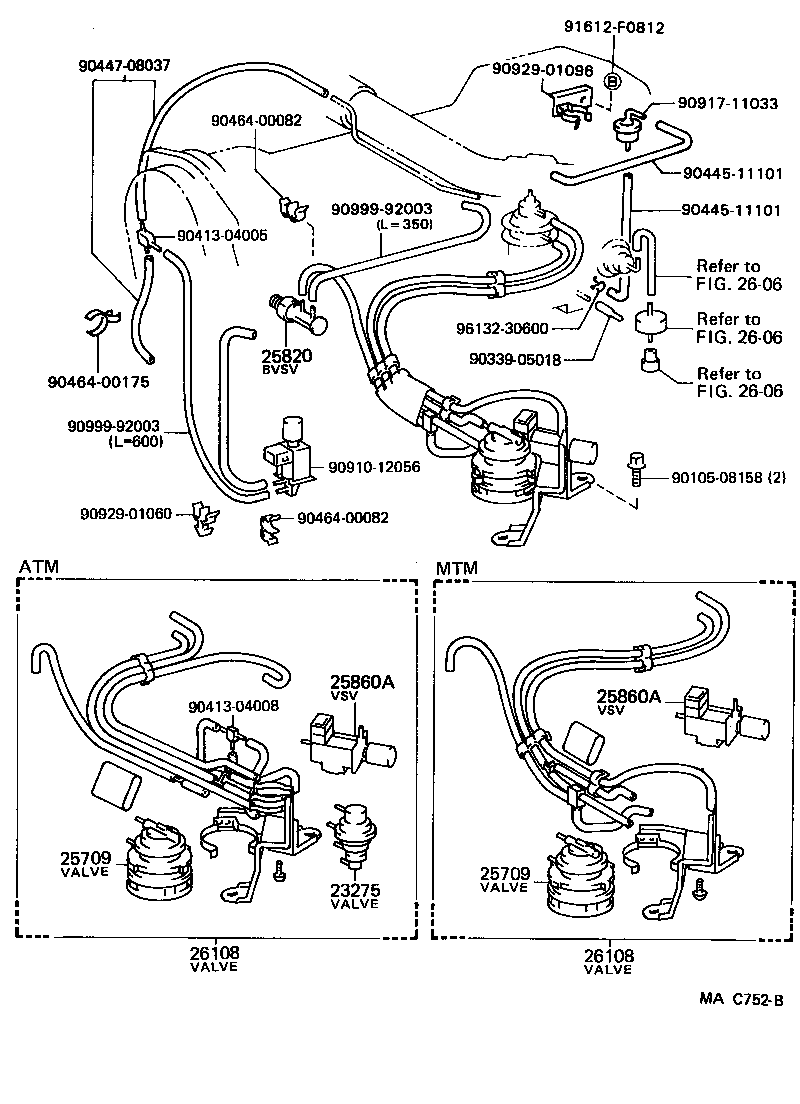

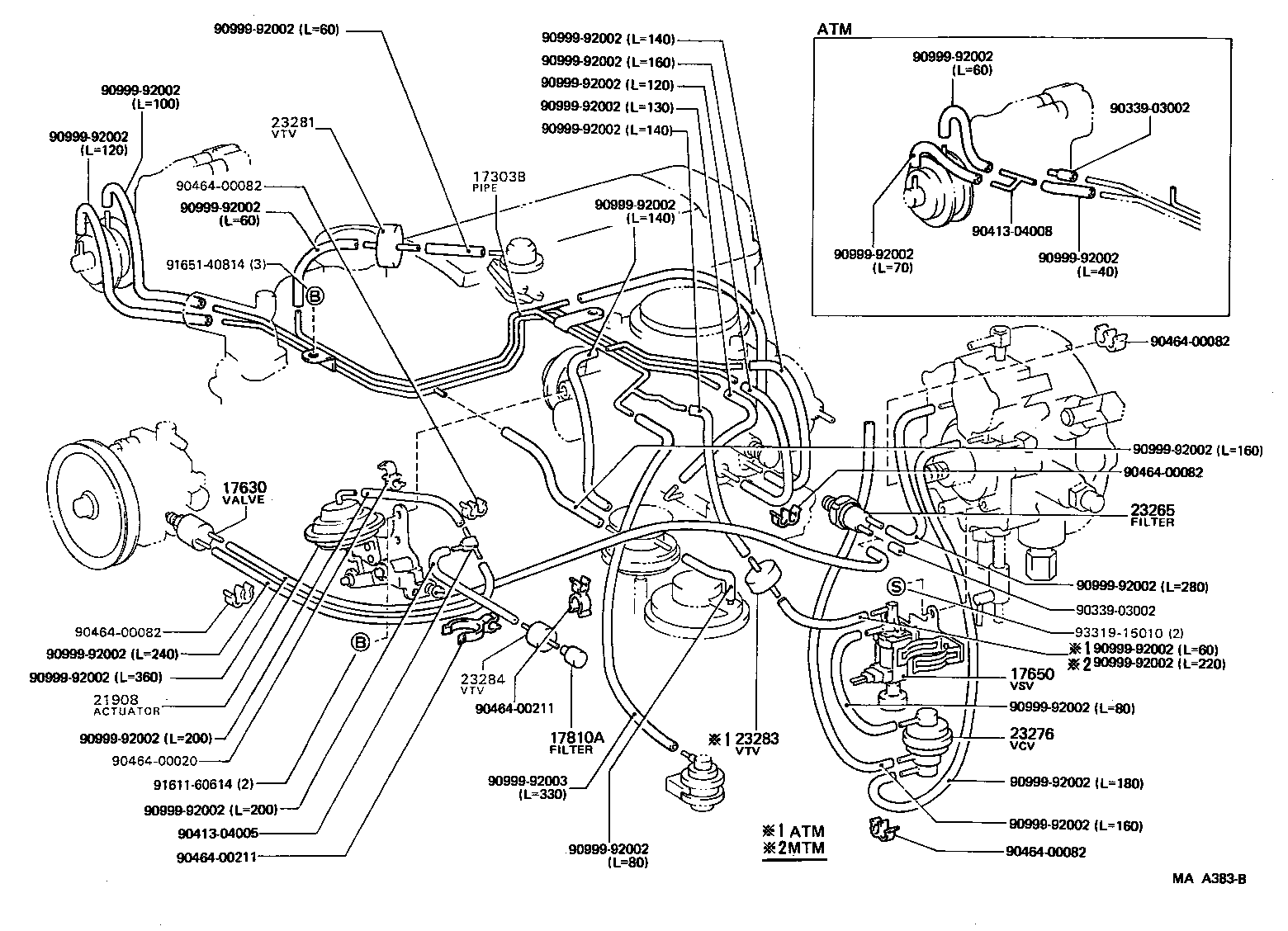

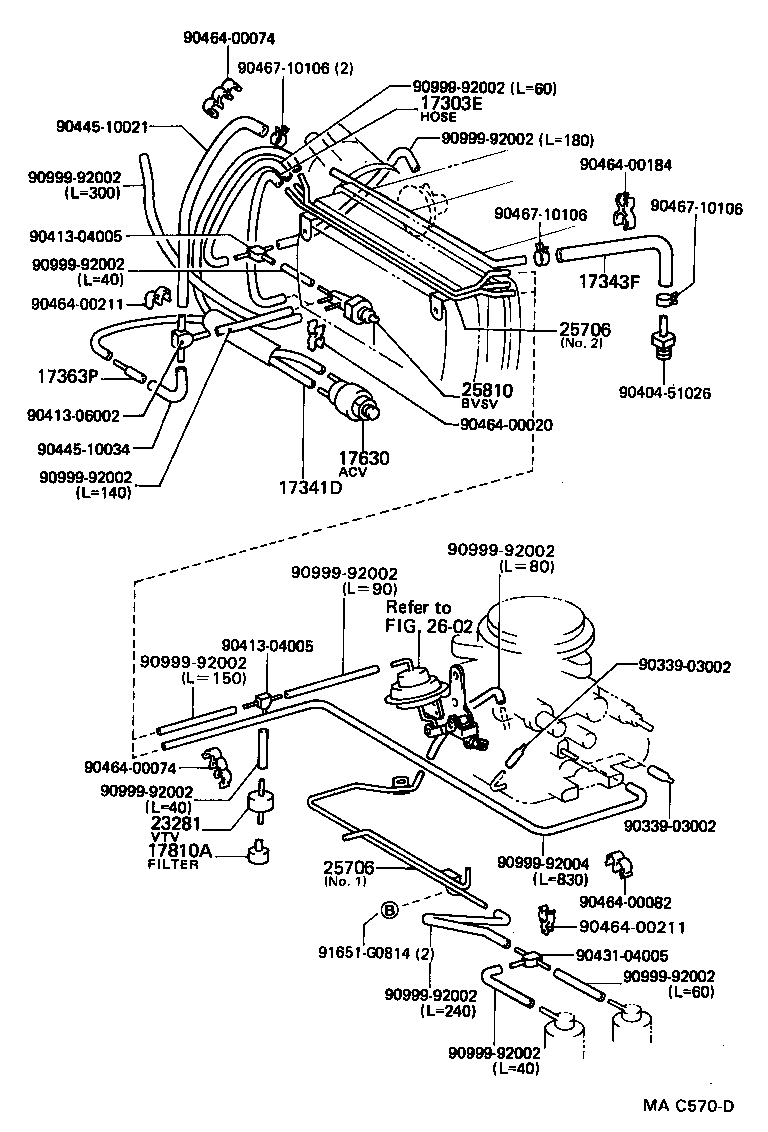

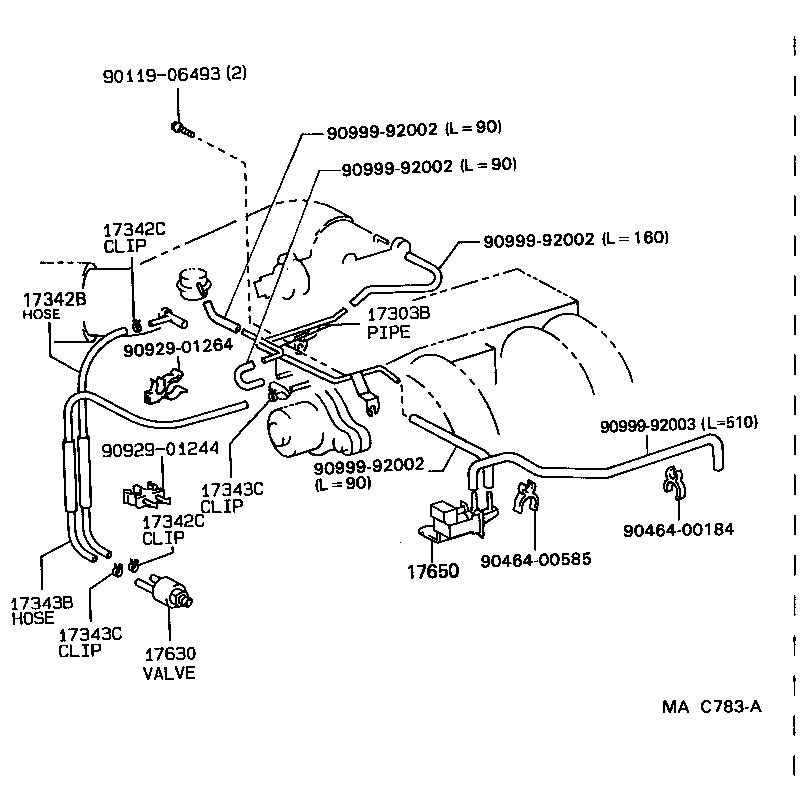

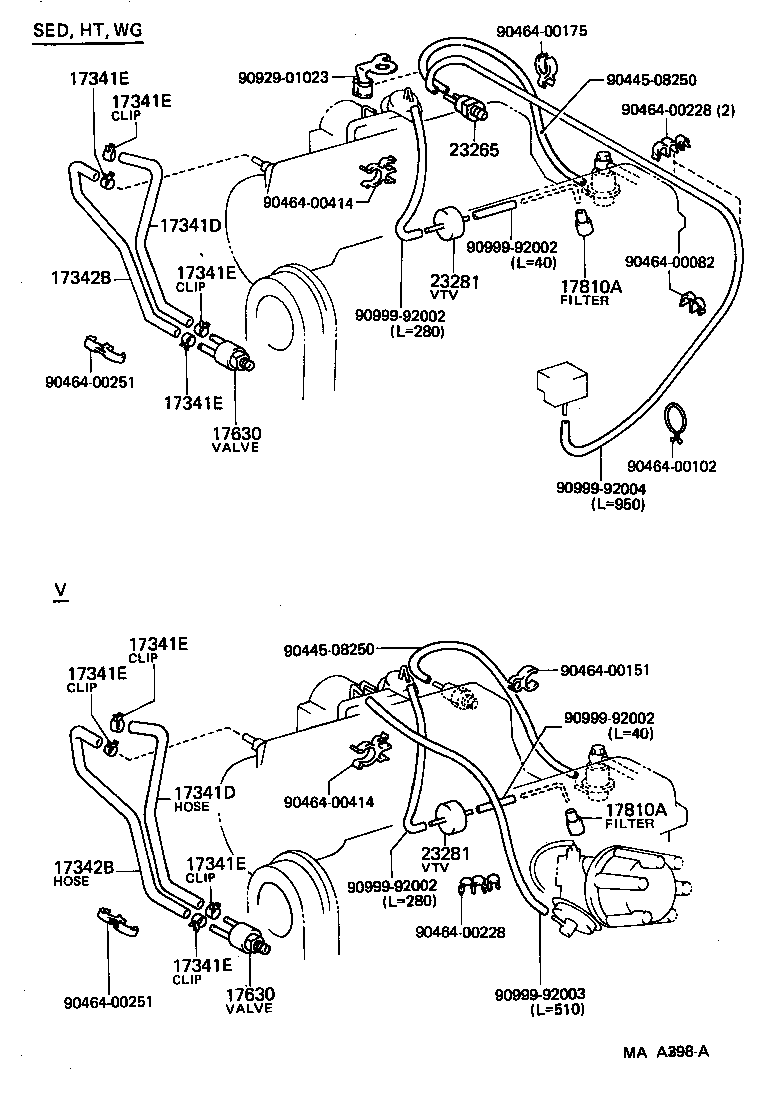

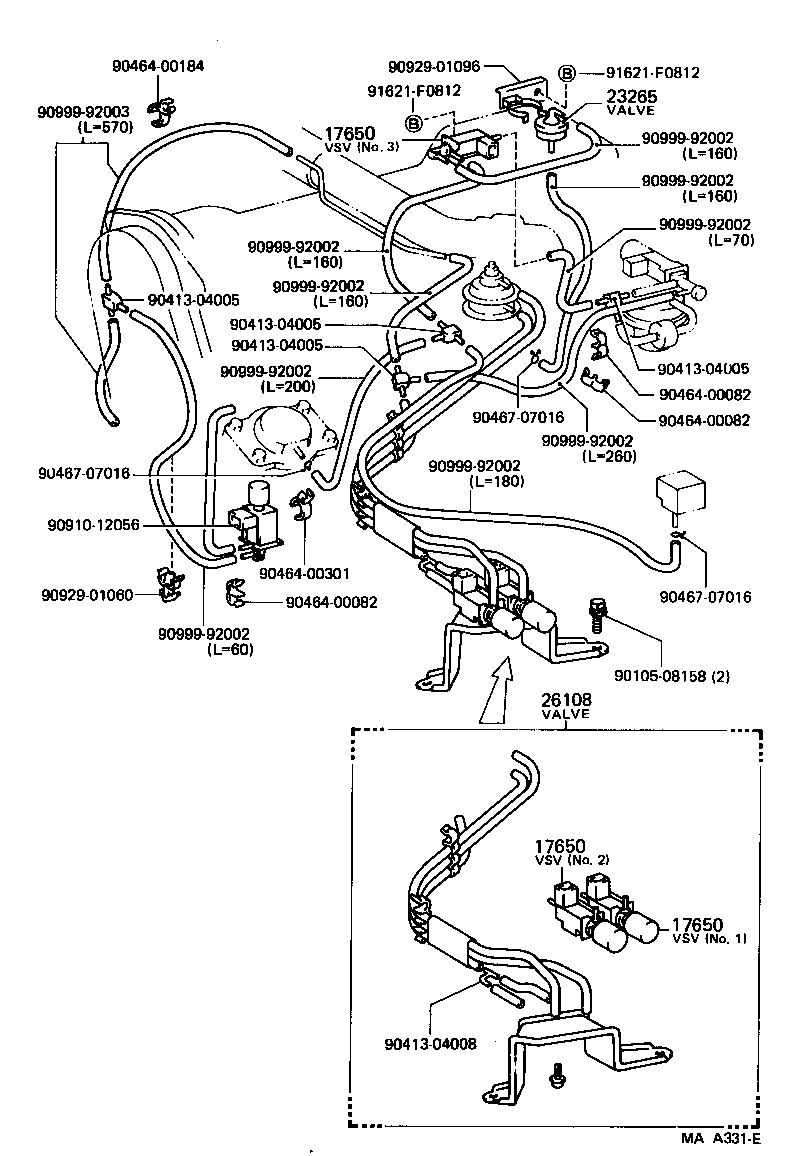

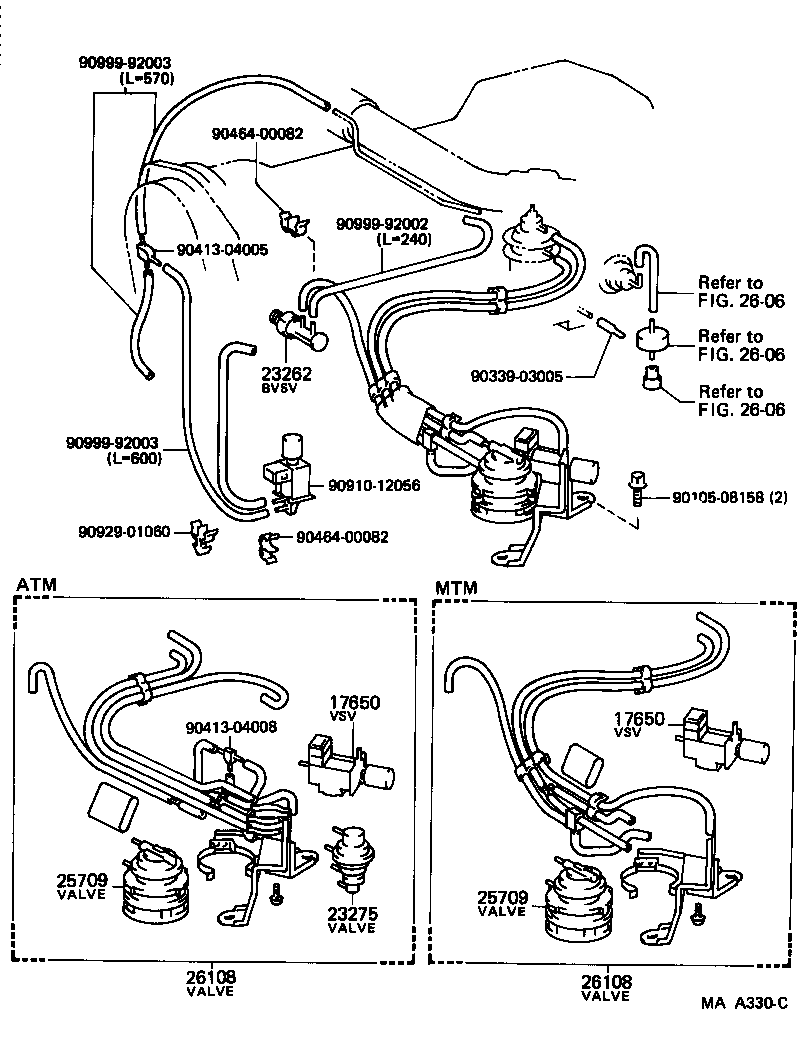

Figure MA9503A MA9503A 1987-09 → — Figure MAA398A MAA398A 1987-09 → 1989-08 Figure NA0948A NA0948A 1988-09 → — Figure MAA399C MAA399C 1987-09 → — Figure MA8541G MA8541G 1987-09 → — Figure MAC570D MAC570D 1989-08 → — Figure MA9503A MA9503A 1987-09 → — Figure MAE189B MAE189B 1990-08 → — Figure MA9503A MA9503A 1987-09 → — Figure MAA329C MAA329C 1987-09 → 1989-08 Figure MAA330C MAA330C 1987-09 → 1989-08 Figure MAA331E MAA331E 1987-09 → 1989-08 Figure MAA332C MAA332C 1987-09 → 1989-08 Figure MAC751B MAC751B 1989-08 → — Figure MAC752B MAC752B 1989-08 → — Figure MAC753B MAC753B 1989-08 → — Figure MAC754B MAC754B 1989-08 → — Figure MA9503A MA9503A 1987-09 → — Figure MAA390A MAA390A 1987-09 → 1989-08 Figure MAA395B MAA395B 1987-09 → — Figure MA9503A MA9503A 1987-09 → — Figure MAC783A MAC783A 1989-08 → — Figure MA9503A MA9503A 1987-09 → — Figure MAA383B MAA383B 1987-09 → 1989-08 Figure MAC322A MAC322A 1989-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17343F Hose, Air, NO.3
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17363P Tube, Air, NO.3
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17670P Valve Assy, Air By-pass
17671 Gasket, Air By-pass Valve
17810A Filter Assy, Air
21908 Actuator Sub-assy, Idle-up
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23284 Valve, Vacuum Transmitting, NO.4
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25719 Tank, Vacuum Surge
25804 Valve Set, Vacuum Control
25810 Valve Assy, Bimetal
25819 Valve Assy, Vacuum Regulating
25820 Valve Assy, Bimetal, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
26108 Valve Set, Intake Air Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
