Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Distributor

38 part groups · 13 illustrations

Illustrations

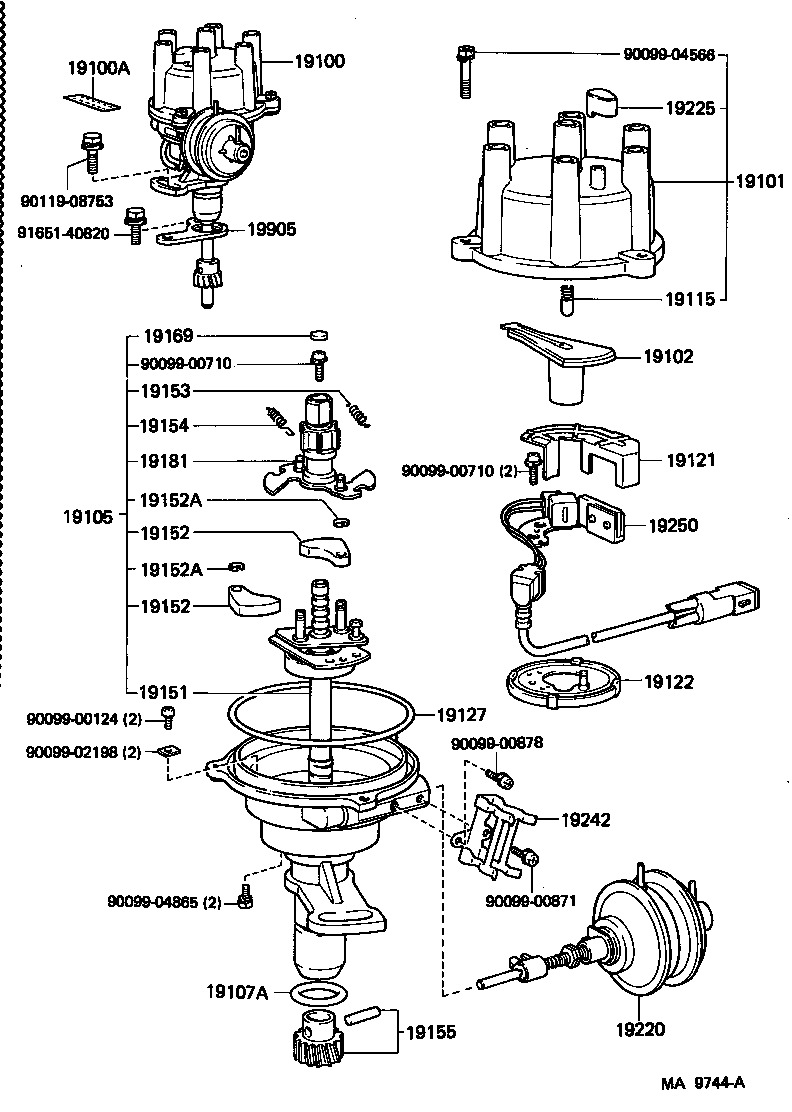

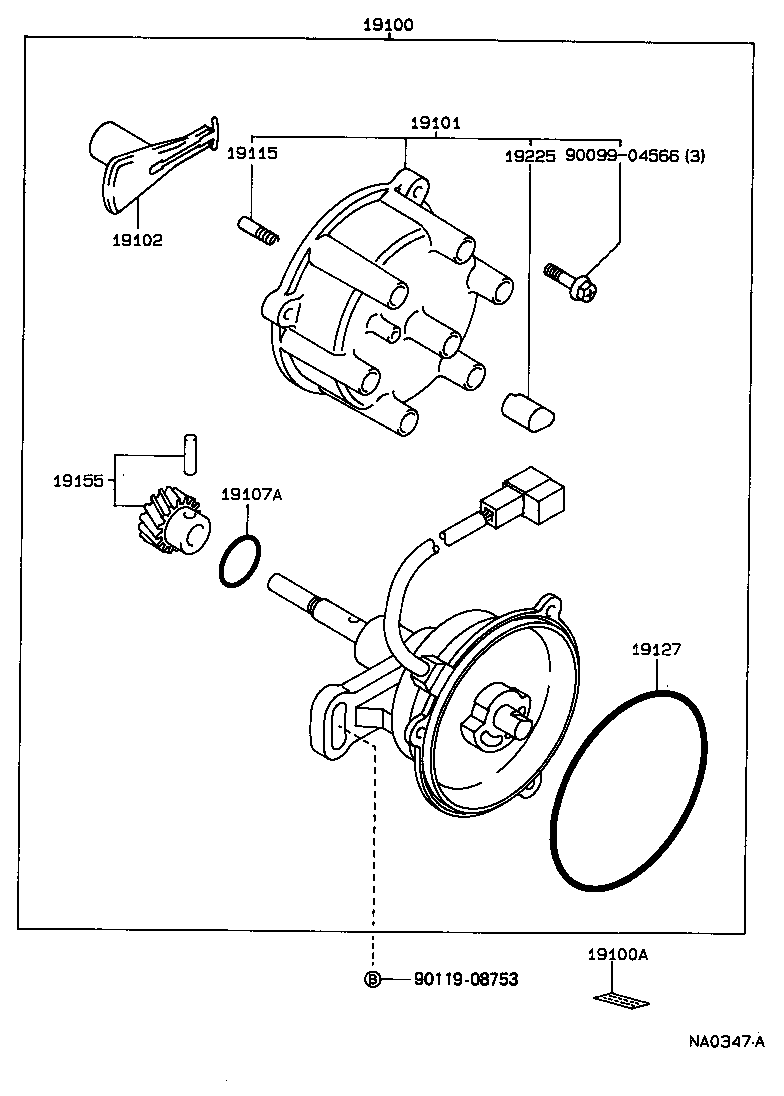

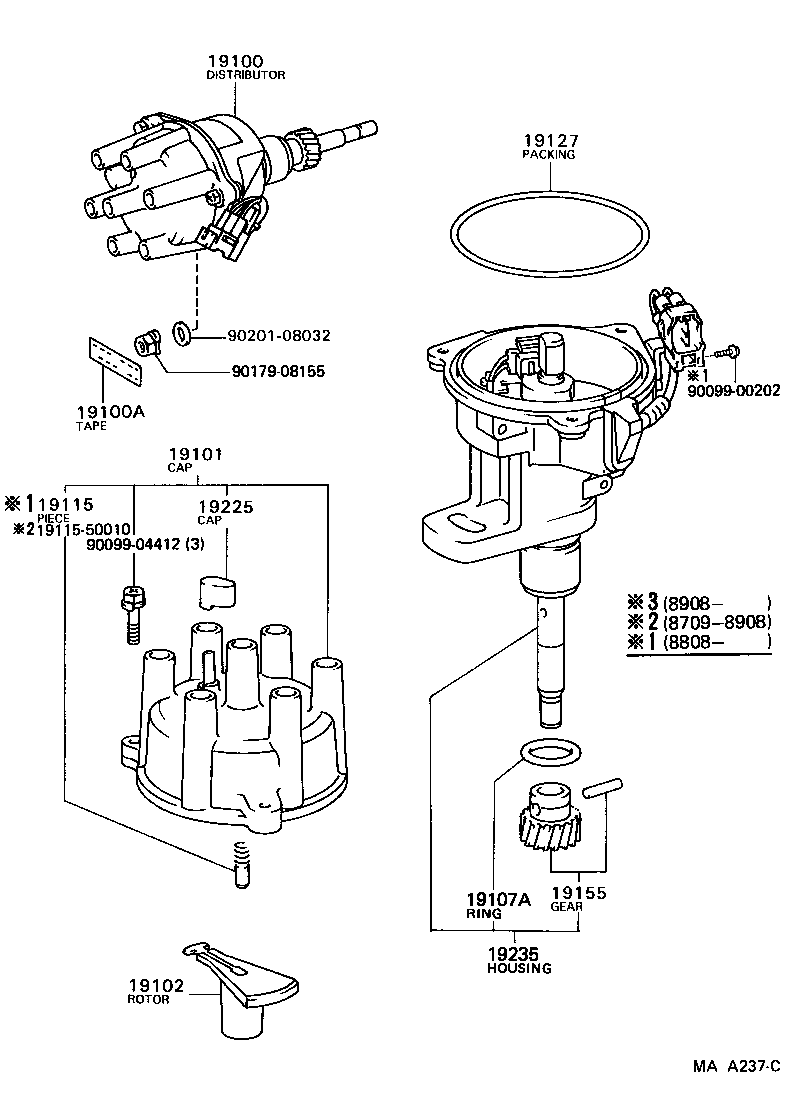

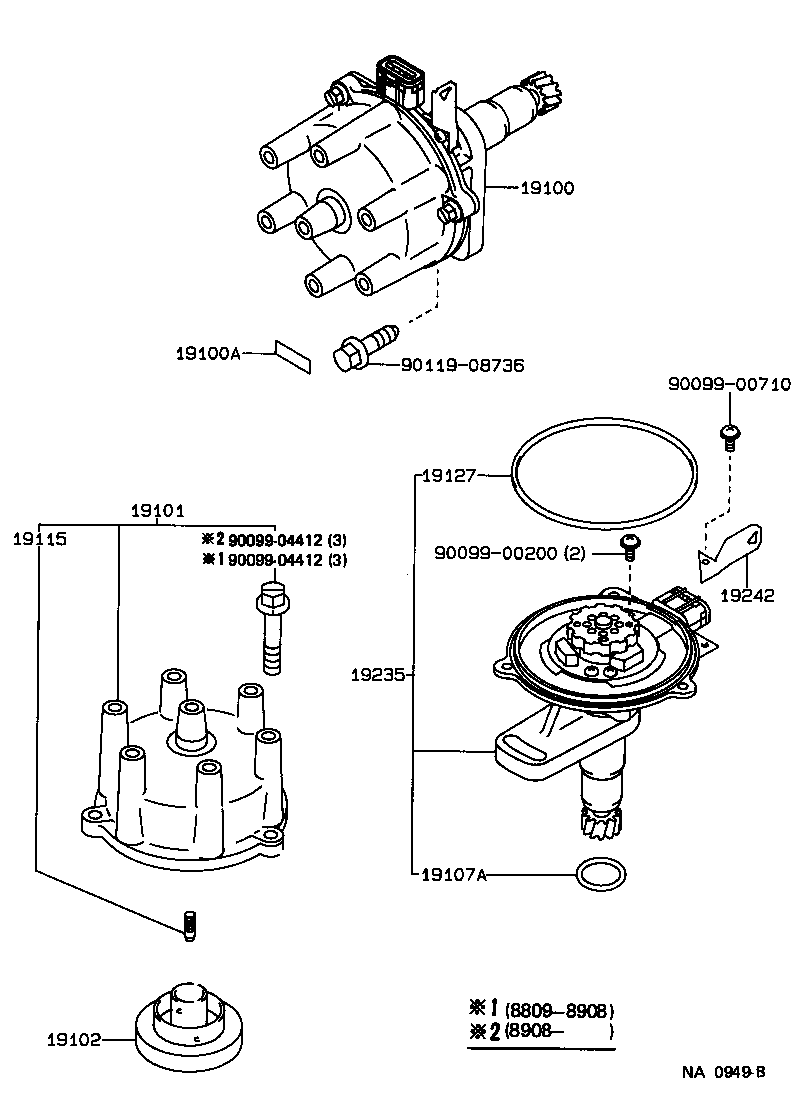

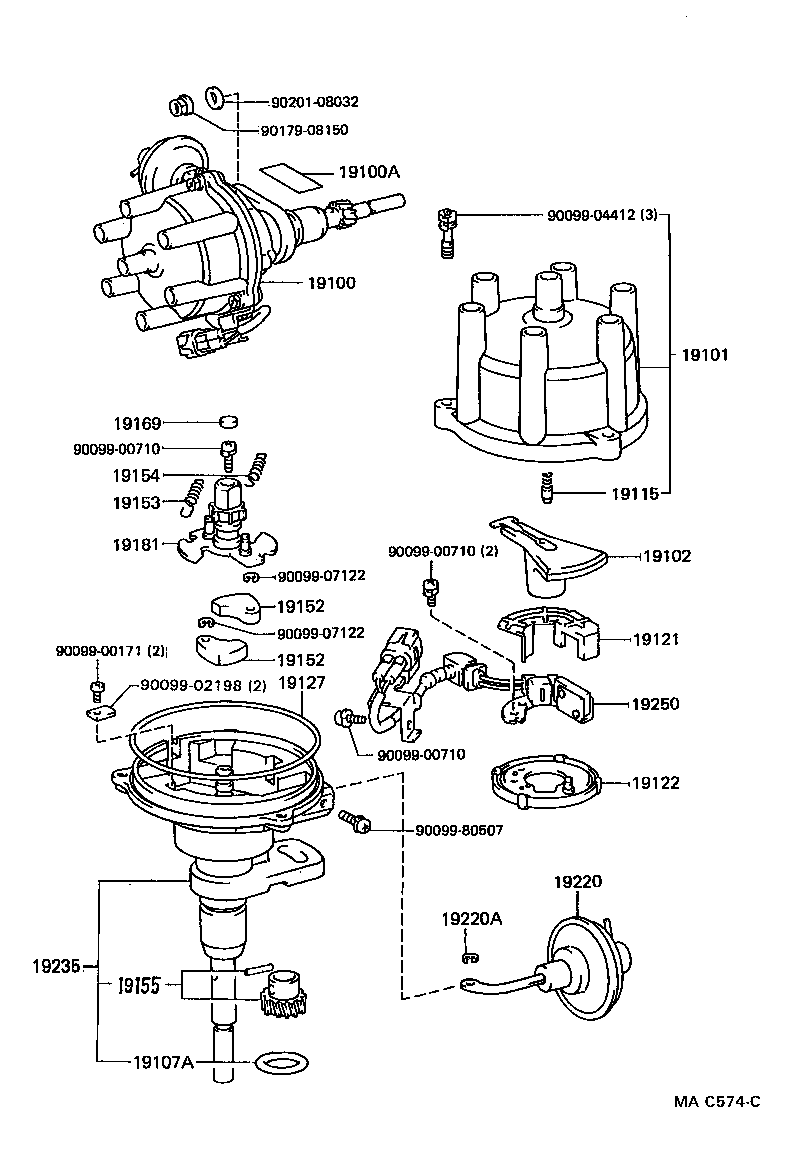

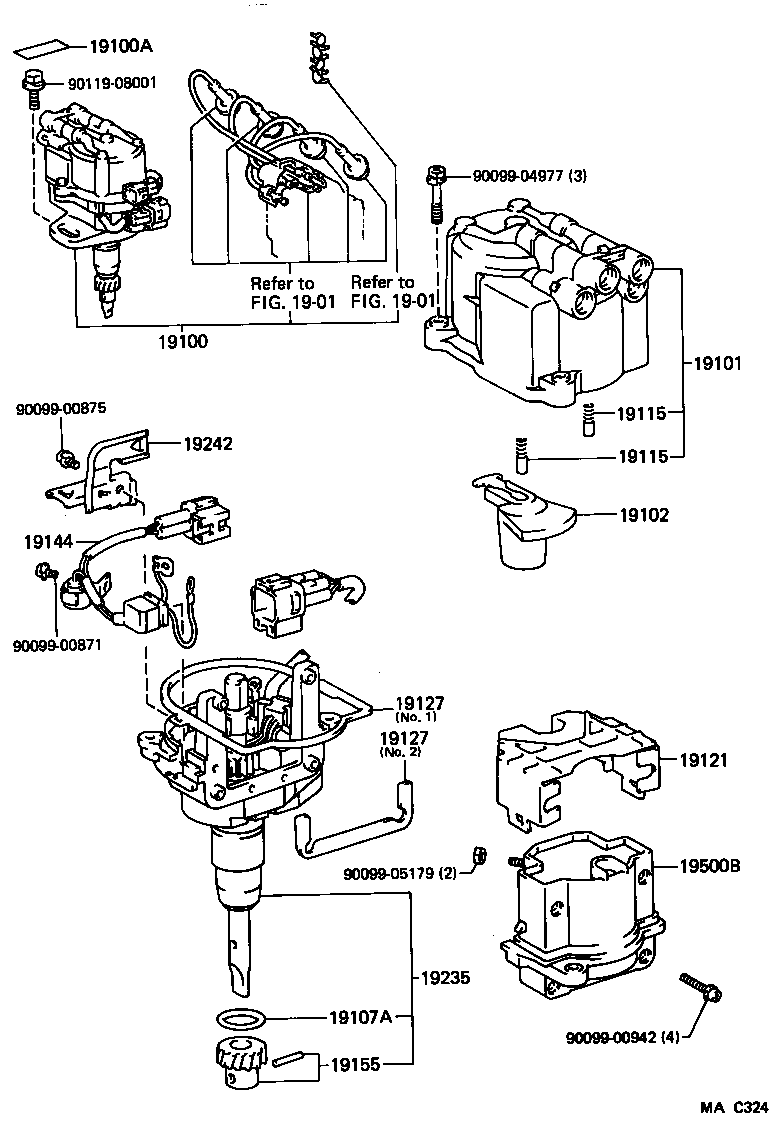

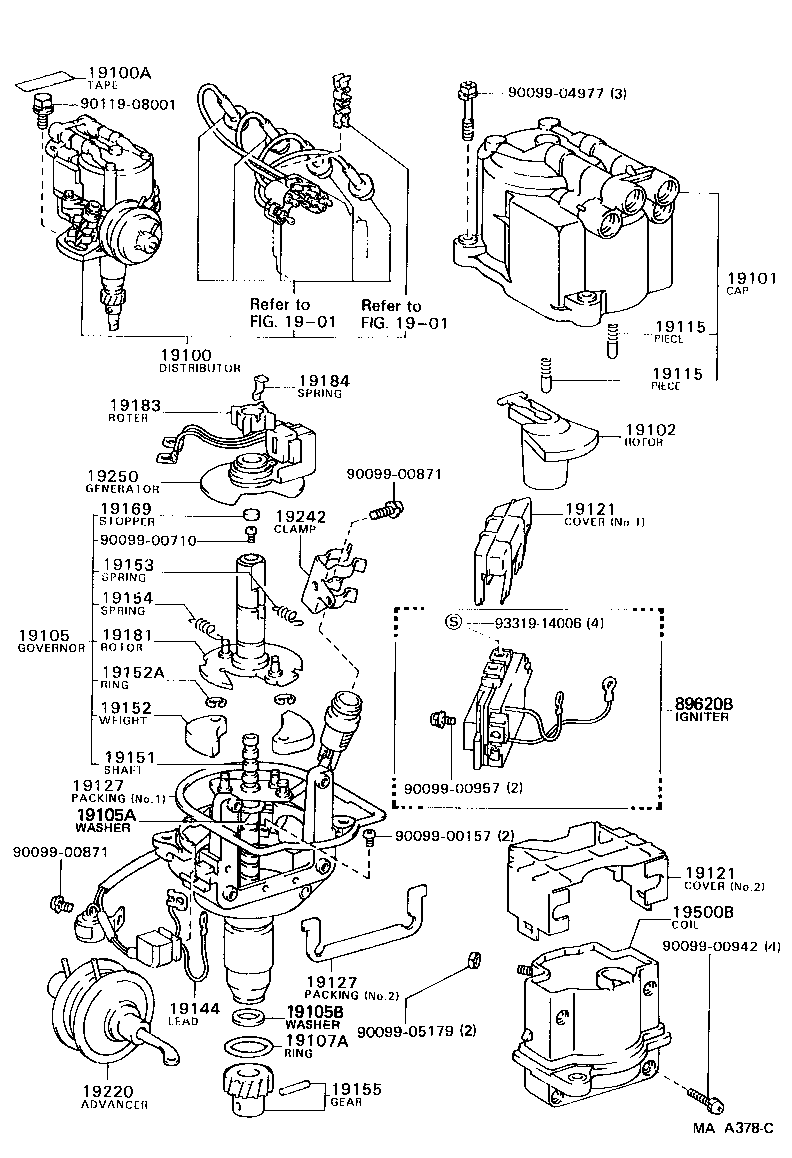

Figure MED322A MED322A 1987-09 → 1989-08 Figure MEA607A MEA607A 1987-09 → 1989-08 Figure NA0949B NA0949B 1988-09 → — Figure MAA237C MAA237C 1987-09 → — Figure MEG462D MEG462D 1987-09 → — Figure MAC574C MAC574C 1989-08 → — Figure 192941 192941 1990-08 → — Figure MA9744A MA9744A 1987-09 → 1989-08 Figure NA0347A NA0347A 1987-09 → 1989-08 Figure MAB887 MAB887 1989-08 → — Figure MAC088 MAC088 1989-08 → — Figure MAA378C MAA378C 1987-09 → 1989-08 Figure MAC324 MAC324 1989-08 → —

Part groups

PNCDescription
19100 Distributor Assy
19100A Tape, Sealing
19101 Cap Sub-assy, Distributor
19102 Rotor Sub-assy, Distributor
19105 Governor Sub-assy
19105A Washer(FOR GOVERNOR SHAFT THRUST)
19105B Washer, NO.2(FOR GOVERNOR SHAFT THRUST)
19107A Ring, O, Distributor Housing
19115 Piece, Distributor Cap, Center
19121 Cover, Dust Proof
19122 Plate, Stationary, Distributor
19127 Packing, Dust Proof
19144 Lead, Distributor Breaker
19151 Shaft, Governor
19152 Weight, Governor
19152A Ring, Snap(FOR GOVERNOR WEIGHT)
19152B Weight, Governor, NO.2
19153 Spring, Governor, A
19154 Spring, Governor, B
19155 Gear, Spiral, Distributor
19169 Stopper, Cam Grease
19181 Rotor, Distributor, Signal
19182 Shaft, Distributor, Driving
19183 Rotor, Signal
19184 Spring, Rotor Set
19207 Housing Sub-assy, Distributor, RH
19207A Sensor, Cam Position
19208 Housing Sub-assy, Distributor, LH
19220 Advancer Assy, Vacuum, Distributor
19220A Ring, Snap(FOR DISTRIBUTOR VACUUM ADVANCER)
19225 Cap, Rubber
19235 Housing, Distributor
19242 Clamp, Cord
19250 Generator Assy, Signal
19300 Sensor Assy, Cam Position
19500B Coil Assy, Ignition
19905 Clamp Sub-assy, Distributor
89620B Igniter Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
