Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

21 part groups · 7 illustrations

Illustrations

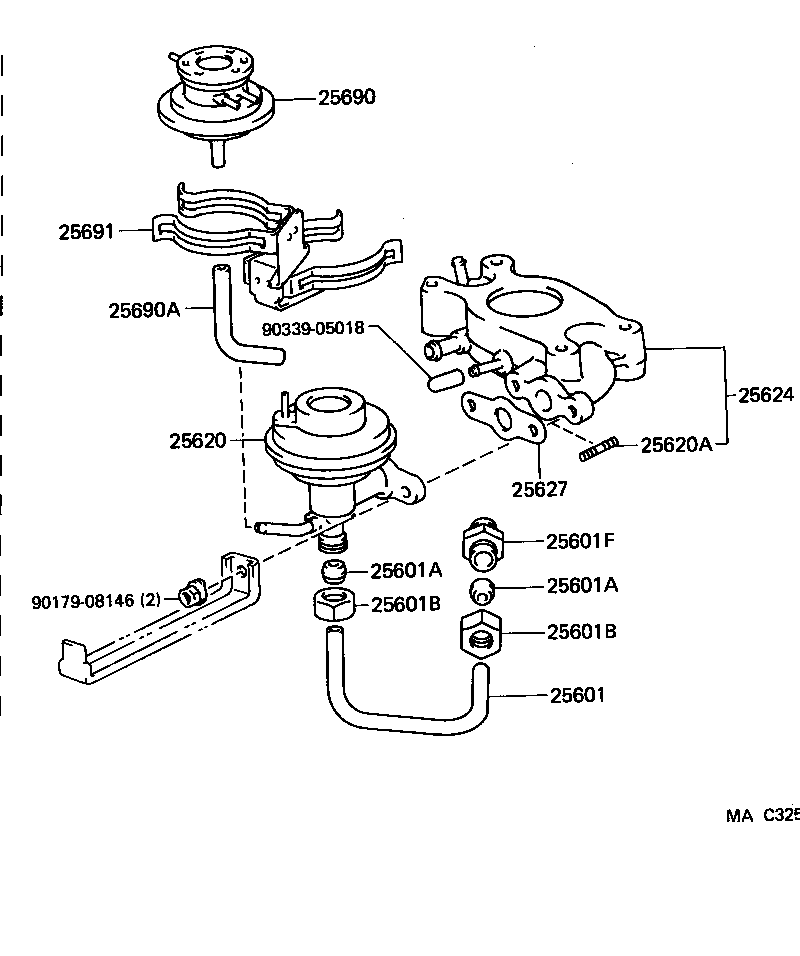

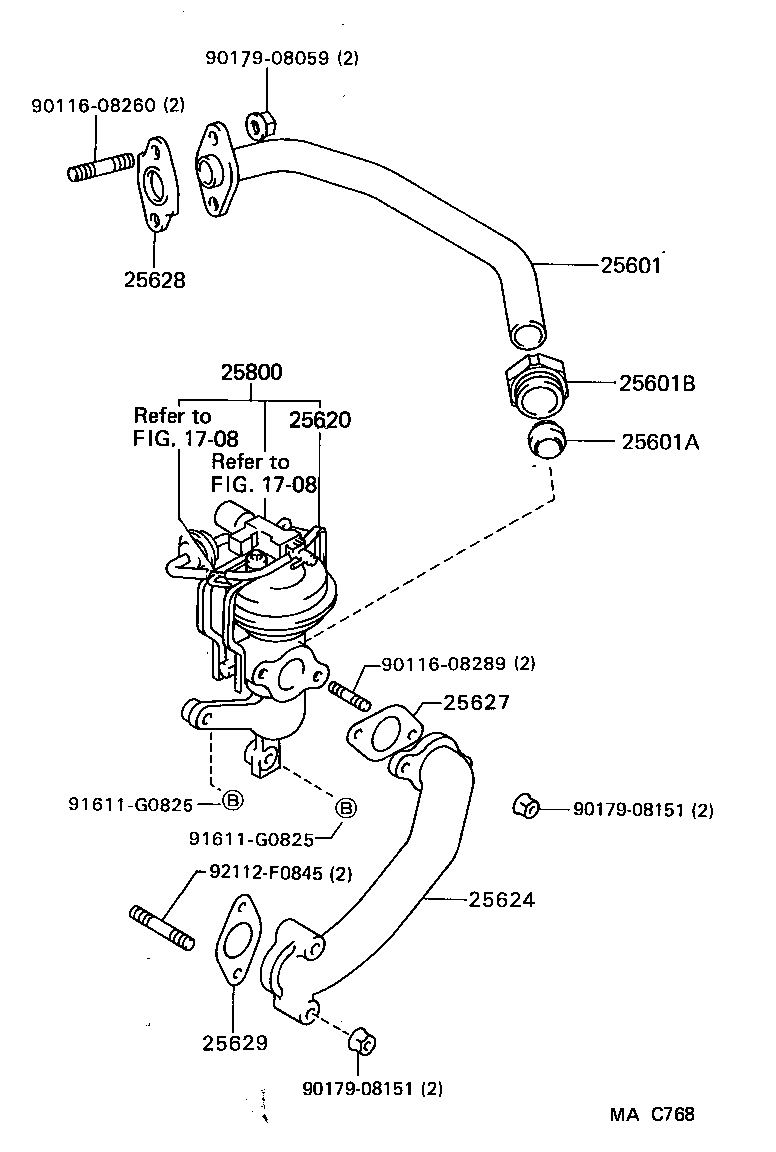

Figure MAB767 MAB767 1987-09 → 1989-08 Figure MAC768 MAC768 1989-08 → — Figure MAB278B MAB278B 1989-08 → — Figure MA9781 MA9781 1987-09 → 1989-08 Figure MA9698A MA9698A 1987-09 → — Figure MF2951A MF2951A 1987-09 → 1989-08 Figure MAC325 MAC325 1989-08 → —

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25601A Sleeve, Ball, Egr Pipe, NO.1
25601B Nut, Union, Egr Pipe, NO.1
25601C Hose(FOR EGR PIPE, NO.1)
25601D Clip OR Clamp(FOR EGR PIPE, NO.1)
25601F Union(FOR EGR PIPE, NO.1)
25616 Plate, Hole Cover(FOR EGR PIPE)
25617 Plate, Egr Hole Cover
25618A Bolt, Stud(FOR EGR INLET)
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25624 Adapter, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25629 Gasket, Egr Valve Adapter
25682 Cooler, Egr, NO.2
25686 Gasket, Egr Cooler, NO.2
25690 Modulator Assy, Egr Vacuum
25690A Hose(FOR EGR VACUUM MODULATOR)
25691 Bracket, Egr Vacuum Modulator
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
